• Number of Hard Drives Supported4
• Number of Hard Drives InstalledNo
• Number of Solid State Drive Supported4
• Number of Solid State Drive InstalledNo
• Processor ManufacturerIntel
• Processor TypeXeon
• Processor ModelD-1527
• Processor CoreQuad-core (4 Core)
• Processor Speed2.20 GHz
• Standard Memory8 GB
• Memory TechnologyDDR4 SDRAM
• Ethernet TechnologyGigabit Ethernet
• Number of Total Expansion Bays4
• Number of 2.5″/3.5″ Bays4
• Total Number of Expansion Slots1
• Expansion Slot TypePCI Express 3.0 x8
• Controller TypeSerial ATA
• RAID SupportedYes
• Total Number of USB Ports2
• Network (RJ-45)Yes
• Operating SystemDiskStation Manager
• Protocols
  • iSCSI
  • LDAP
  • HTTP
  • HTTPS
  • SMB
  • AFP
  • NFS
  • WEBDAV
  • CalDAV
  • Telnet
  • SSH
  • SNMP
  • PPTP
  • L2TP
  • SSL/TLS
  • SFTP
  • FTP
  • TFTP
  • TCP
  • IP
  • SMTP
  • POP3
  • IMAP
  • DNS
• Number of Power Supplies Installed2
• Maximum Power Supply Wattage150 W
• Redundant Power SupplyYes
• Height1.7″
• Width16.9″
• Depth19″
• Form FactorRack-mountable
• Rack Height1U
• Weight (Approximate)17.99 lb
• Country of OriginTaiwan
• Limited Warranty5 Year

General Information
Manufacturer: Synology, Inc
Manufacturer Part Number: RS1619XS+
Manufacturer Website Address: http://www.synology.com
Brand Name: Synology
Product Line: RackStation
Product Series: XS+
Product Model: RS1619XS+

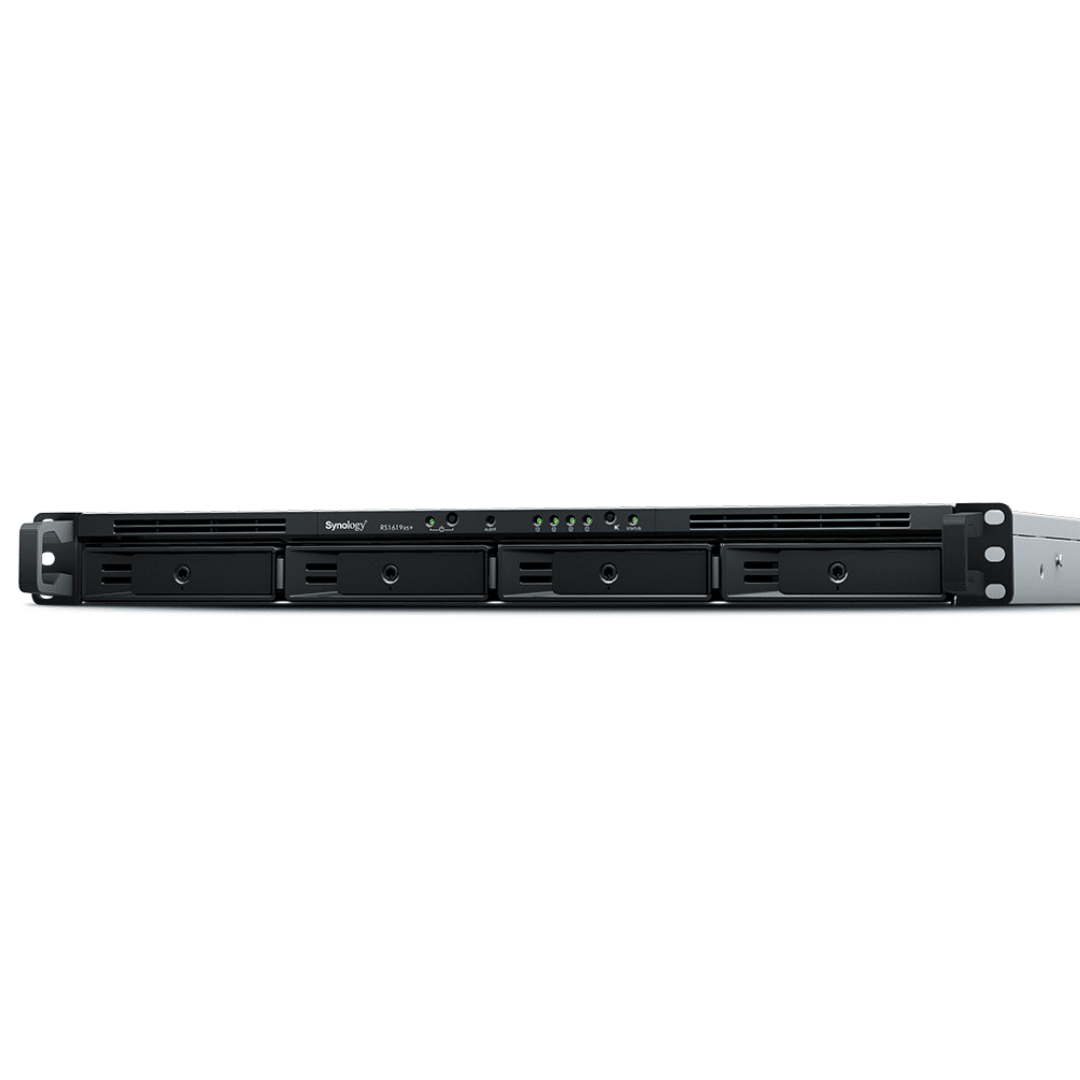

Product Name: RackStation RS1619xs+ SAN/NAS Storage System
Marketing Information: Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty.

Powerful NAS Solution in 1U Form Factor

Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration.

RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5″ drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit2. Storage capacity can be expanded according to your business needs with minimal effort.

Enterprise-Grade Applications

Powered by the innovative Synology DiskStation Manager (DSM), RS1619xs+ comes fully-equipped with applications and features designed specifically for large-scale businesses:

• Windows® AD and LDAP support allows easy integration with existing business directory services.
• Windows ACL support provides fine-grained access control and efficient privilege settings, allowing RS1619xs+ to fit seamlessly into existing infrastructure.
• Internet file access is simplified by the encrypted FTP server and the web-based file explorer Synology File Station. HTTPS, firewall, and IP auto-block support ensures file sharing over the Internet is protected with a high level of security.
• Application Privileges controls access to applications and packages based on each individual account, user group, or IP address.

Btrfs: Next Generation Storage Efficiency

RS1619xs+ introduces the Btrfs file system, bringing the most advanced storage technologies to meet the management needs of modern businesses:

• Advanced snapshot technology with customizable backup schedule allows shared folders to be backed up in a minimum 5-minute interval, without consuming heavy system resources.
• File and folder level data restoration brings huge conveniences and saves time for users who wish to restore only a specific file or folder.
• Flexible Shared Folder and User Quota System provides comprehensive quota control on all user accounts and shared folders.
• File self-healing: Btrfs file system is able to auto-detect corrupted files with mirrored metadata and recover broken data using the supported RAID volumes, which include RAID1, 5, 6, and 10.
• A cutting-edge iSCSI service built for IT administrators that offers advanced LUN and provides lightning-fast snapshot creation, recovery, and cloning.

Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 4
Number of Hard Drives Installed: No
Number of Solid State Drive Supported: 4
Number of Solid State Drive Installed: No
Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: D-1527
Processor Core: Quad-core (4 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 4
Number of 2.5″/3.5″ Bays: 4
Total Number of Expansion Slots: 1
Expansion Slot Type: PCI Express 3.0 x8
Controllers
Controller Type: Serial ATA
RAID Supported: Yes
Interfaces/Ports
Total Number of USB Ports: 2
Network (RJ-45): Yes
Software
Operating System: DiskStation Manager
Management & Protocols
Protocols:

• iSCSI
• LDAP
• HTTP
• HTTPS
• SMB
• AFP
• NFS
• WEBDAV
• CalDAV
• Telnet
• SSH
• SNMP
• PPTP
• L2TP
• SSL/TLS
• SFTP
• FTP
• TFTP
• TCP
• IP
• SMTP
• POP3
• IMAP
• DNS

Power Description
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 150 W
Redundant Power Supply: Yes
Physical Characteristics
Height: 1.7″
Width: 16.9″
Depth: 19″
Form Factor: Rack-mountable
Rack Height: 1U
Weight (Approximate): 17.99 lb
Miscellaneous
Country of Origin: Taiwan
Warranty
Limited Warranty: 5 Year
