• Number of Hard Drives Supported12
• Number of Hard Drives Installed0
• Total Hard Drive Capacity Supported192 TB
• Number of Solid State Drive Supported12
• Number of Solid State Drive Installed0
• Total Solid State Drive Capacity Supported192 TB
• Number of Processors Installed2
• Processor ManufacturerIntel
• Processor TypeXeon
• Processor ModelD-1521
• Processor CoreQuad-core (4 Core)
• Processor Speed2.40 GHz
• Standard Memory16 GB
• Memory TechnologyDDR4 SDRAM
• Ethernet Technology10 Gigabit Ethernet
• Number of Total Expansion Bays12
• Number of 2.5″/3.5″ Bays12
• Total Number of Expansion Slots2
• Expansion Slot TypePCI Express 3.0 x8
• Number of Controllers2
• Controller TypeSerial Attached SCSI (SAS)
• RAID SupportedYes
• RAID Levels0, 1, 5, 6, 10, Basic, JBOD, RAID F1
• Number of SAS Ports (External)2
• Network (RJ-45)Yes
• Number of Network (RJ-45) Ports6
• Operating SystemDiskStation Manager
• Protocols
  • iSCSI
  • Telnet
  • SSH
  • SNMP
• Number of Power Supplies Installed2
• Maximum Power Supply Wattage500 W
• Redundant Power SupplyYes
• Height3.5″
• Width19″
• Depth28.5″
• Form FactorRack-mountable
• Weight (Approximate)43.43 lb
• Country of OriginTaiwan

General Information
Manufacturer: Synology, Inc
Manufacturer Part Number: UC3200
Manufacturer Website Address: http://www.synology.com
Brand Name: Synology
Product Model: UC3200

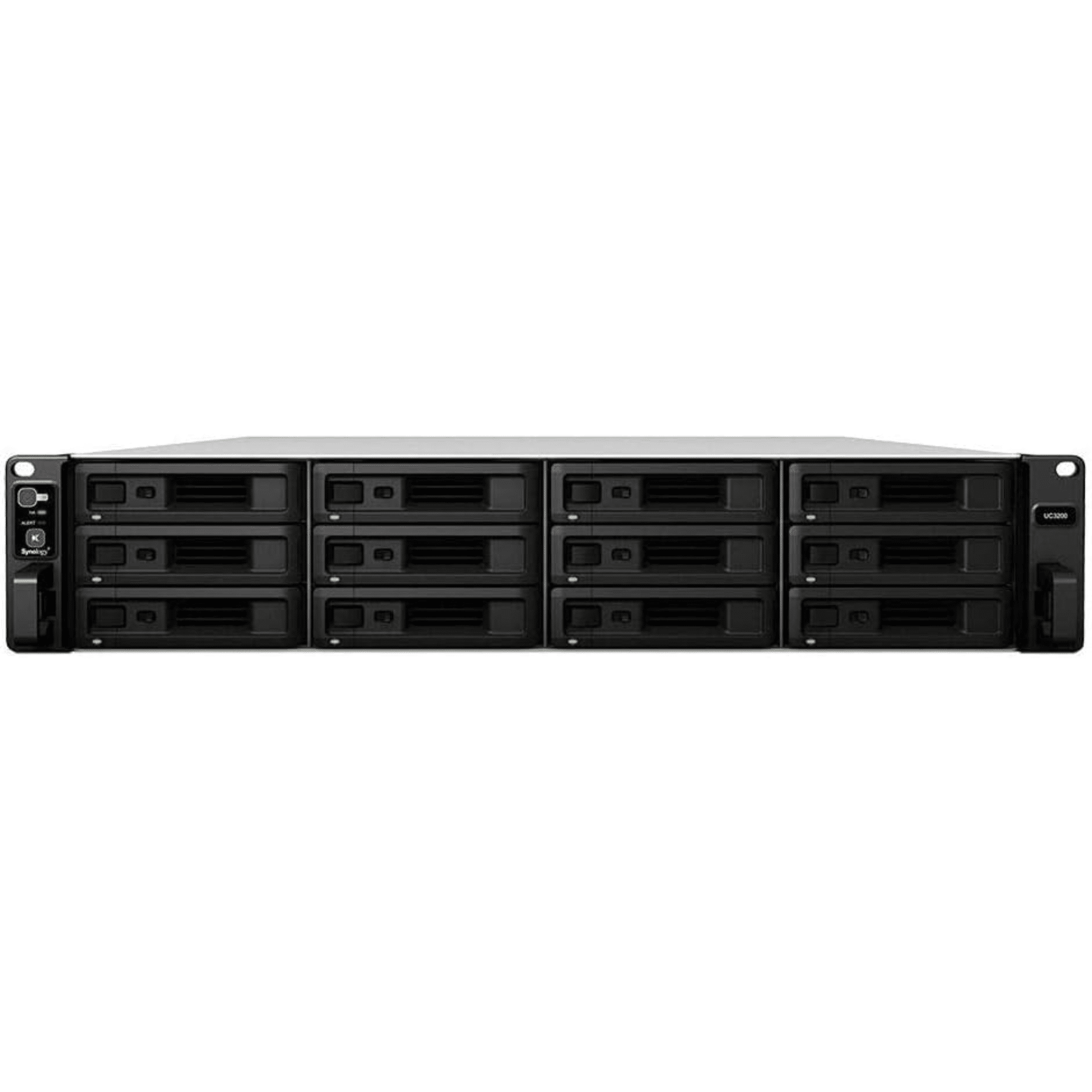

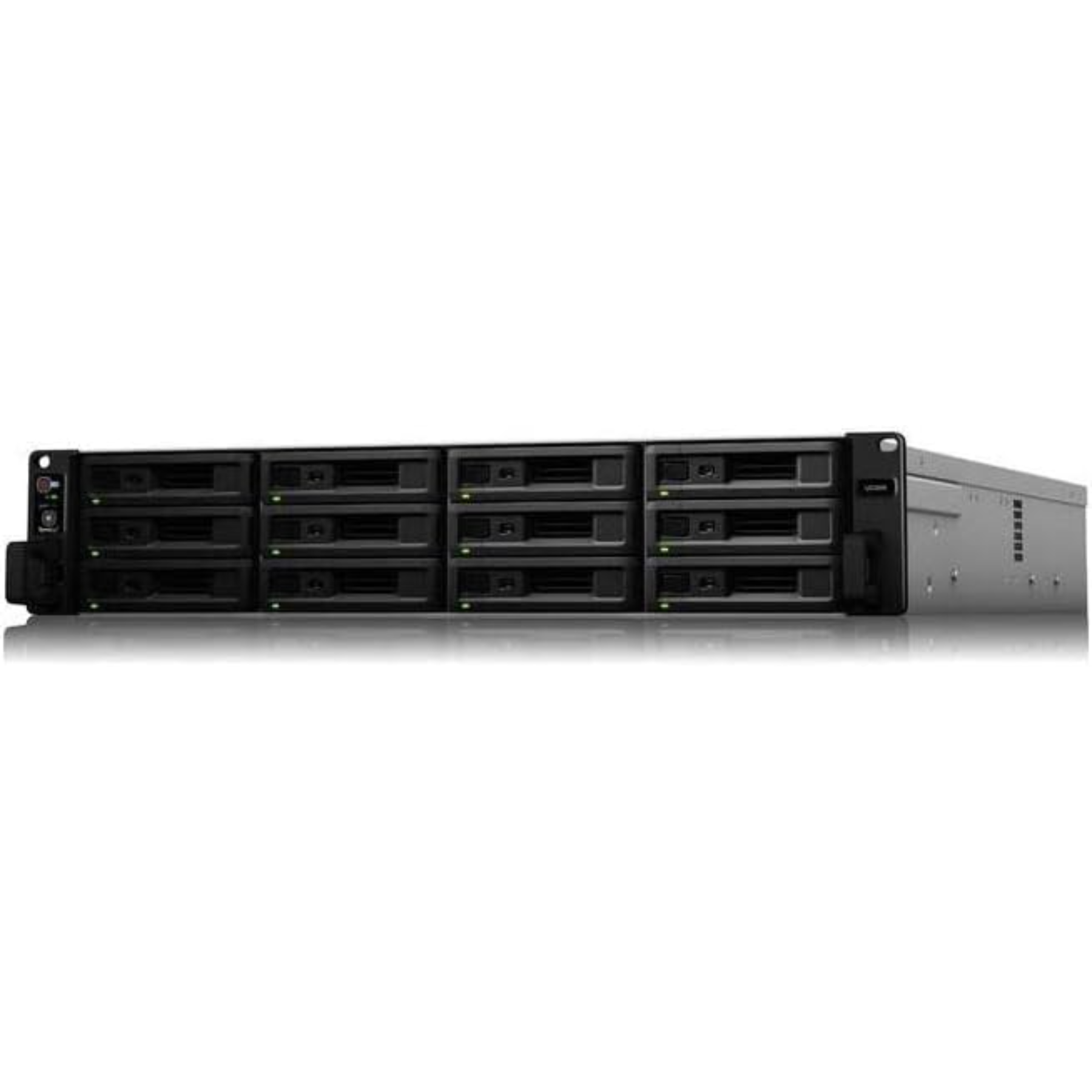

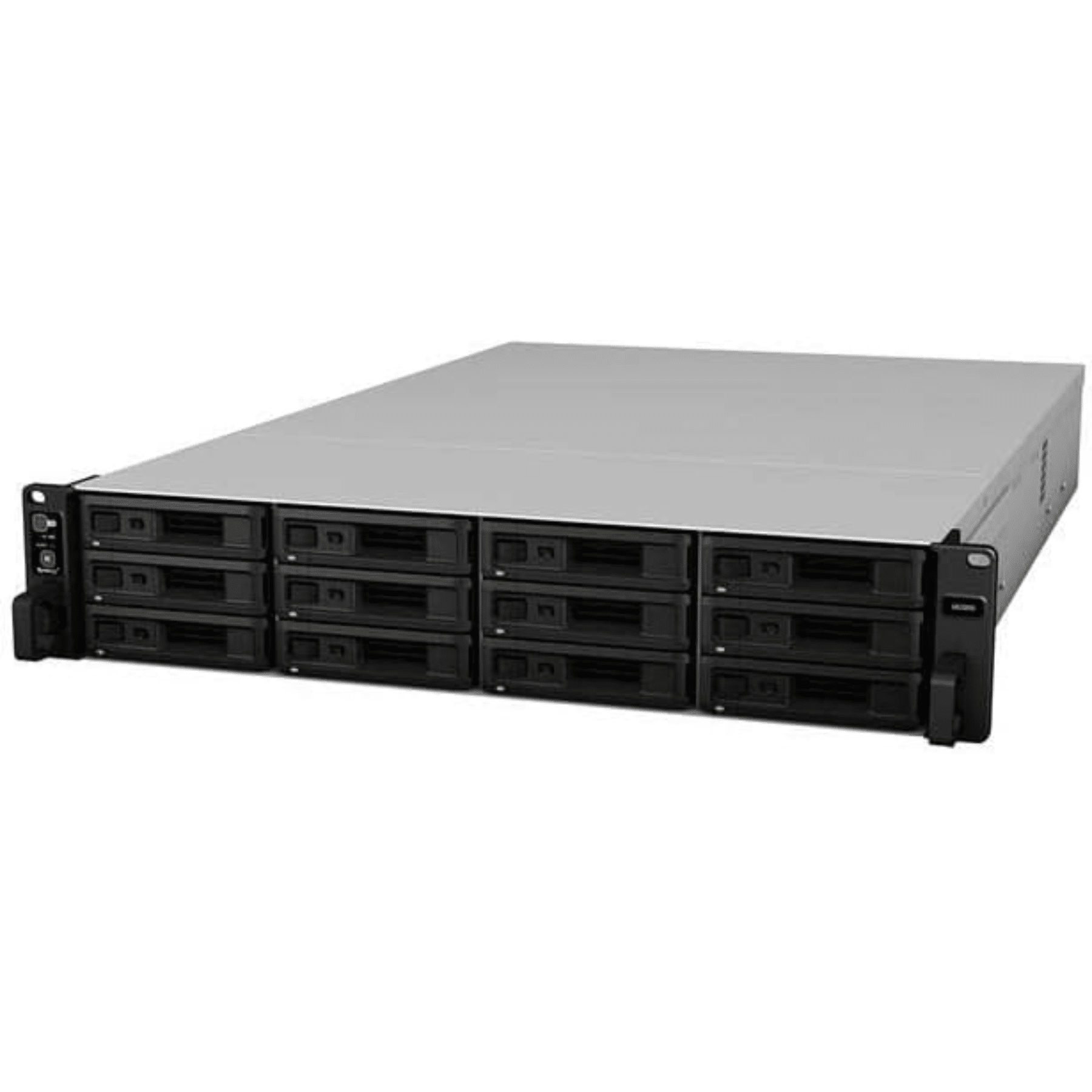

Product Name: Unified Controller UC3200 Active-Active IP SAN for Mission-Critical Environments
Marketing Information:

Delivering reliable, highly available iSCSI services

Realizing high-availability architecture in just one single chassis, the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster, delivering services without any interruptions.

12 x 3.5″/2.5″ HDD/SSD

High-performance SAS interface drive slots with maximum 576TB raw capacity. Supporting SED (Self Encrypting Drive) to encrypt all data to hard drives, UC3200 provides upmost data security at the hardware level.

Processor

Armed with Intel^® Xeon^® D-1521 4-core 2.4 GHz processor burst up to 2.7 GHz, UC3200’s dual CPUs provide enterprise-class performance of 140,000 4K random write IOPS with low latency.

4 x DDR4 memory slots

8GB ECC UDIMM, expandable up to 64GB to boost system performance.

Fan

Redundant, modularized fans for easy maintenance and replacement, minimizing service downtime.

SATA DOM

The dedicated SATA DOM isolates the operating system from the regular data stored in hard drives.

Non-Transparent Bridge (NTB)

Connect two controller modules at a blazingly fast speed and instantly sync memory data between the controllers to prevent cached data loss when one controller is unavailable.

Works with mainstream virtualization systems

Optimized for virtualization environments.

• Integrated with VMware vSphere^® 6.5, Microsoft Hyper-V^®, and VAAI to offload storage operations and optimize computational efficiency.
• Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
• Turn Synology UC3200 into a block-based storage component with the support of OpenStack^® Cinder.
• Compliance with iSCSI industry standard ALUA allows hosts to identify the optimized paths to increase data transfer performance and efficiency.

A system built exclusively for iSCSI

DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible.

Disaster-proof your critical data

Snapshot Replication is put in place with the support of Btrfs file system, offering schedulable and near-instantaneous data protection. Supporting up to 4,096 system-wide snapshots for local volumes or offsite servers, UC3200 brings application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.

Schedulable, near-instantaneous data protection

Supports up to 4,096 system-wide snapshots

Instant recovery of virtual machines

5-year warranty

As we’re committed to improving product innovation and quality, Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

Packaged Quantity: 1
Product Type: SAN Storage System
Storage
Number of Hard Drives Supported: 12
Number of Hard Drives Installed: 0
Total Hard Drive Capacity Supported: 192 TB
Number of Solid State Drive Supported: 12
Number of Solid State Drive Installed: 0
Total Solid State Drive Capacity Supported: 192 TB
Processor & Chipset
Number of Processors Installed: 2
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: D-1521
Processor Core: Quad-core (4 Core)
Processor Speed: 2.40 GHz
Memory
Standard Memory: 16 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 12
Number of 2.5″/3.5″ Bays: 12
Total Number of Expansion Slots: 2
Expansion Slot Type: PCI Express 3.0 x8
Controllers
Number of Controllers: 2
Controller Type: Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, Basic, JBOD, RAID F1
Interfaces/Ports
Number of SAS Ports (External): 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 6
Software
Operating System: DiskStation Manager
Management & Protocols
Protocols:

• iSCSI
• Telnet
• SSH
• SNMP

Power Description
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 500 W
Redundant Power Supply: Yes
Physical Characteristics
Height: 3.5″
Width: 19″
Depth: 28.5″
Form Factor: Rack-mountable
Weight (Approximate): 43.43 lb
Miscellaneous
Country of Origin: Taiwan
