• Processor ManufacturerIntel
• Processor TypeCore i3
• Processor Generation12th Gen
• Processor Modeli3-1215U
• Processor CoreHexa-core (6 Core)
• Maximum Turbo Speed3.40 GHz
• Chipset ManufacturerIntel
• Standard Memory8 GB
• Maximum Memory Supported96 GB
• Memory TechnologyDDR4 SDRAM
• Memory Speed3200 MHz
• Memory Configuration1 x 8GB
• Total Number of Memory Slots2
• Number of Occupied Memory Slots1
• Drive TypeSSD
• Total Solid State Drive Capacity500 GB
• Solid State Drive InterfacePCI Express NVMe 4.0 x4
• SSD Form FactorM.2
• Graphics Controller ManufacturerIntel
• Graphics Controller ModelUHD Graphics
• Graphics Memory TechnologyDDR4 SDRAM
• Graphics Memory AccessibilityShared
• LAN ManufacturerRealtek
• LAN Model
  • RTL8125BG-CG
  • RTL8111H
• Ethernet Technology
  • 2.5 Gigabit Ethernet
  • Gigabit Ethernet
• Wireless LANYes
• Wireless LAN StandardIEEE 802.11ax
• BluetoothYes
• Number of HDMI Outputs1
• HDMI (Rear)Yes
• Total Number of USB Ports4
• Number of USB 3.2 Gen 2 Ports4
• Number Of Ethernet Ports2
• Number of DisplayPort Outputs (Rear)1
• DisplayPort (Rear)Yes
• Number of Thunderbolt 4 Ports1
• Operating System PlatformWindows
• Operating SystemWindows 11 Pro
• Maximum Power Supply Wattage65 W
• Color FamilyBlack
• Product ColorCore Black
• Cooler TypeFan Cooler
• Form FactorMini PC
• Height2.1″
• Width4.9″
• Depth4.9″
• Weight (Approximate)1.21 lb
• Package Contents
  • Cubi 5 12M-401US Desktop Computer
  • Power Adapter
• Energy StarYes
• Country of OriginUnited States
• Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
• Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
• Limited Warranty3 Year
• Additional Warranty Information3 Year Advance Replacement

General Information
Manufacturer: MSI
Manufacturer Part Number: CUBI512M401
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: Cubi 5 12M
Product Model: Cubi 5 12M-401US

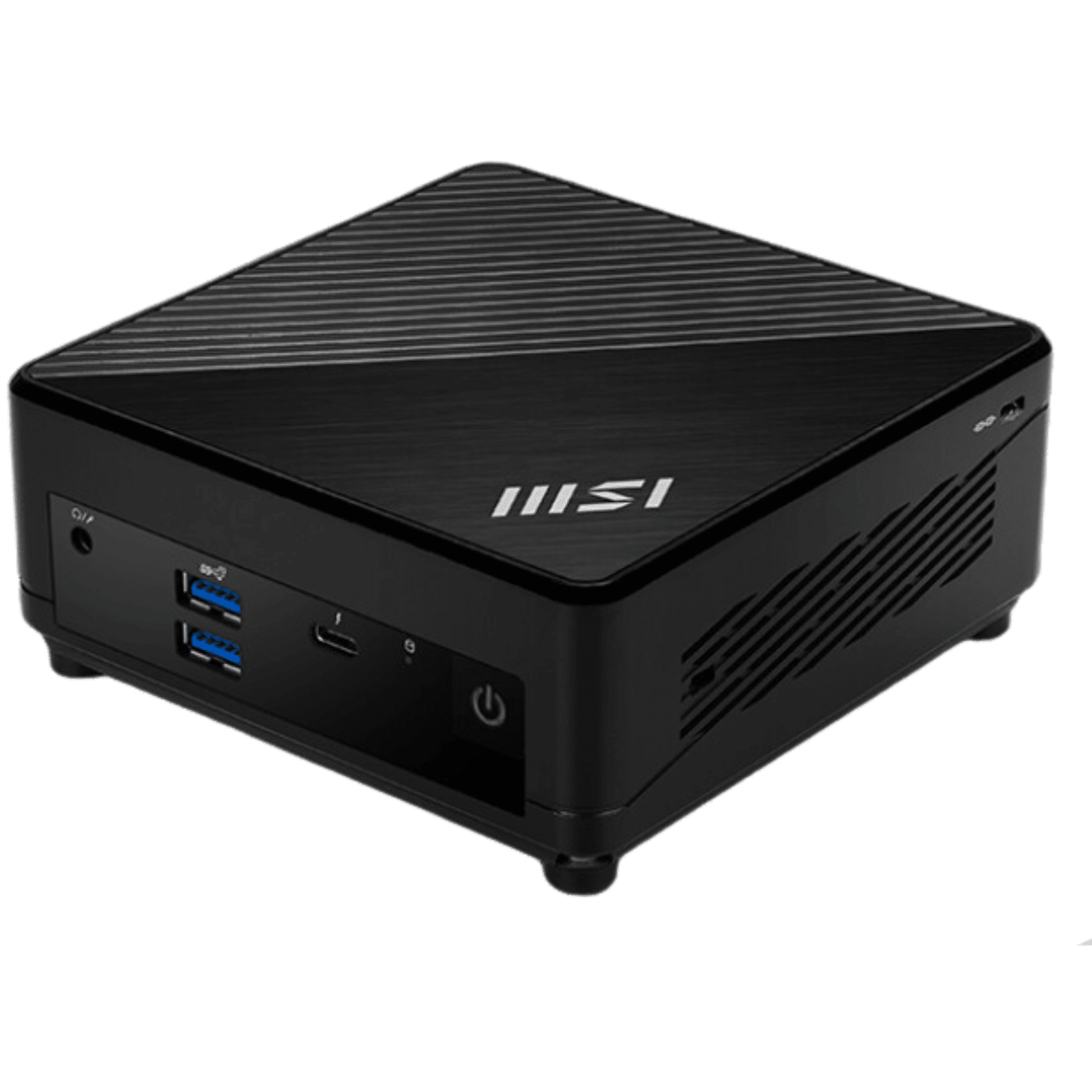

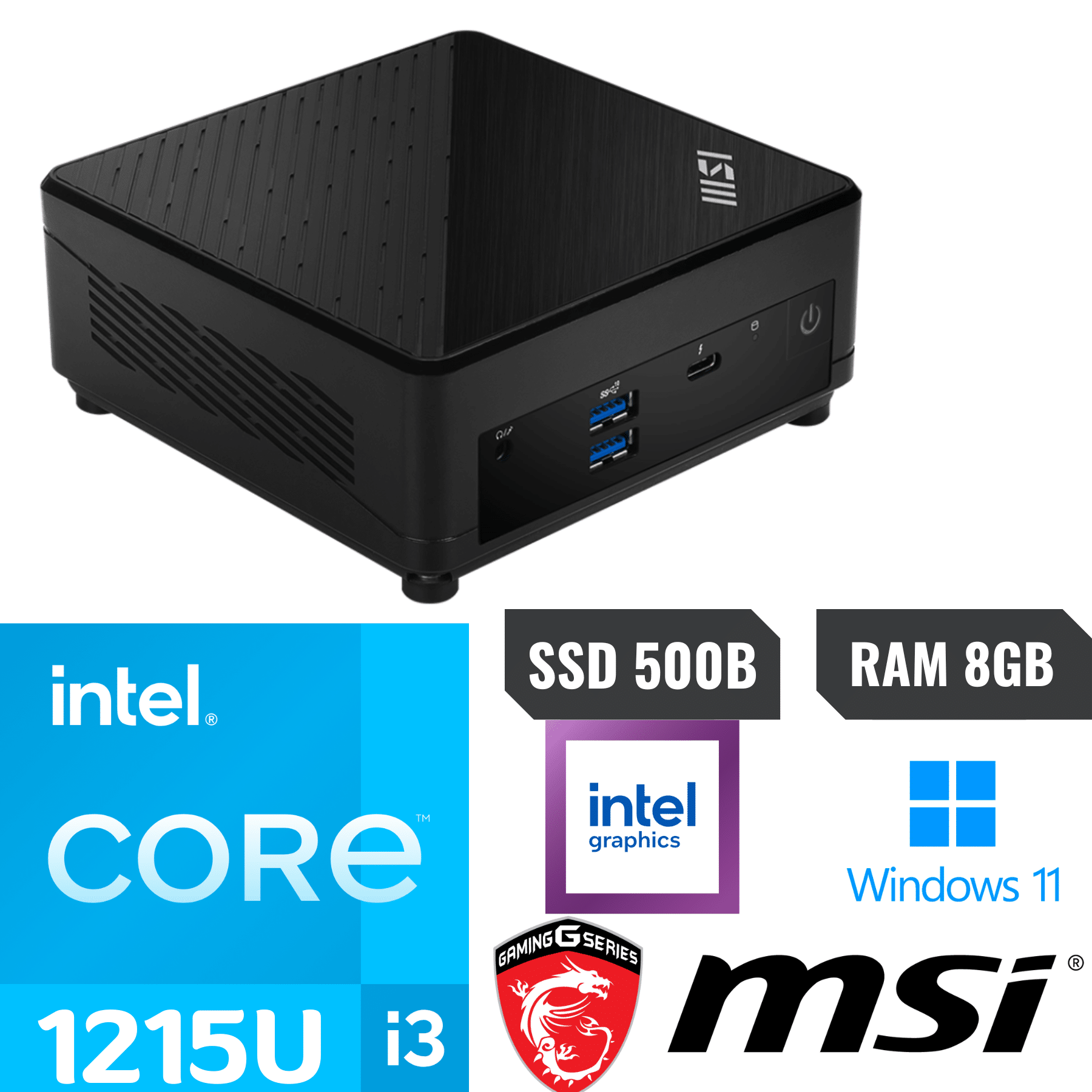

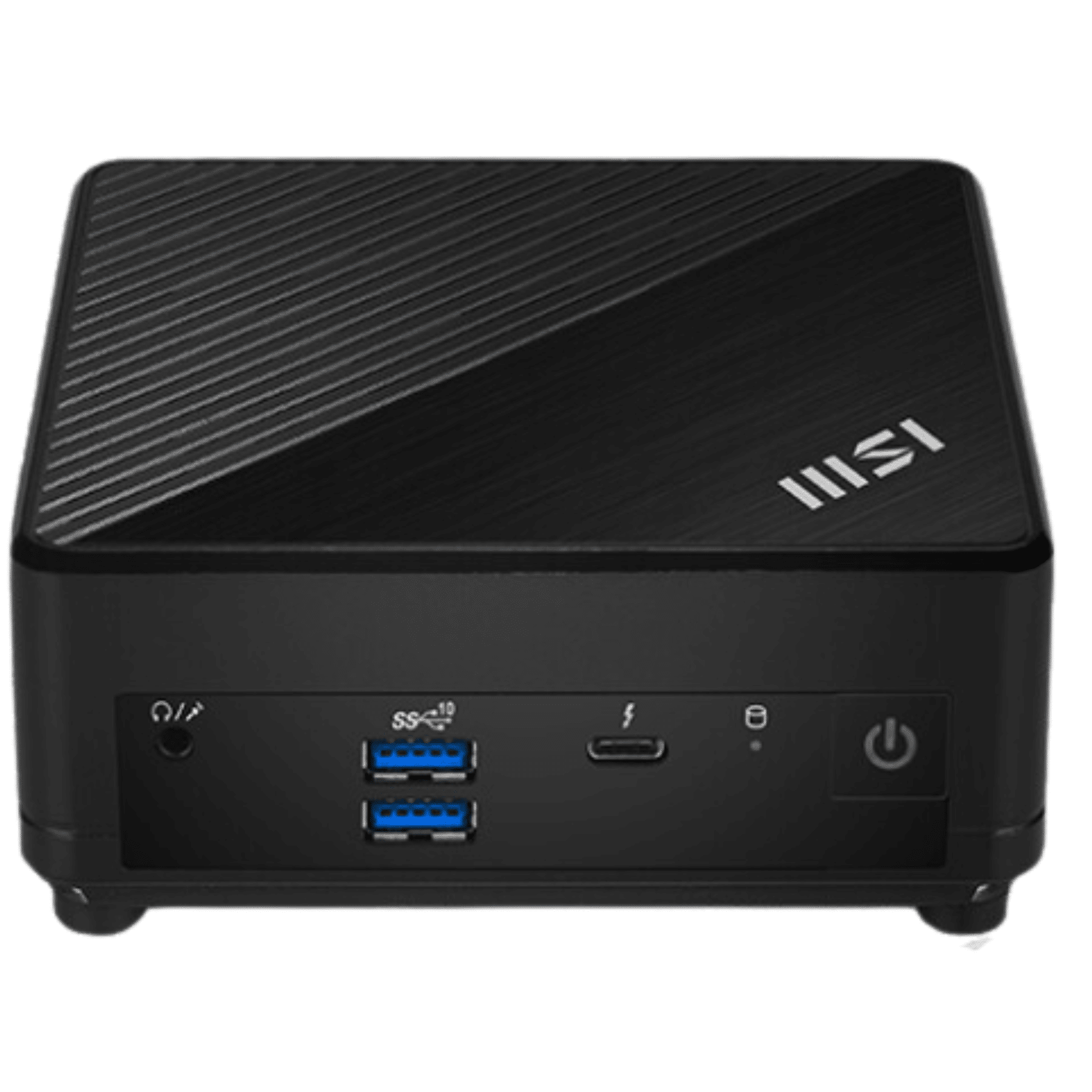

Product Name: Cubi 5 12M-401US Desktop Computer
Marketing Information: the MSI Cubi NUC Mini PC is the ideal client device for purpose built applications such as digital signage, back up or front end user interface without taking up any space. it can be hidden or mount behind the display less than 6 inches from backwall. the Cubi can display up to 3 indepent displays.

More from the Manufacturer

Product Type: Desktop Computer
Processor
Processor Manufacturer: Intel
Processor Type: Core i3
Processor Generation: 12th Gen
Processor Model: i3-1215U
Processor Core: Hexa-core (6 Core)
Maximum Turbo Speed: 3.40 GHz
Chipset
Chipset Manufacturer: Intel
Memory
Standard Memory: 8 GB
Maximum Memory Supported: 96 GB
Memory Technology: DDR4 SDRAM
Memory Speed: 3200 MHz
Memory Configuration: 1 x 8GB
Total Number of Memory Slots: 2
Number of Occupied Memory Slots: 1
Storage
Drive Type: SSD
Total Solid State Drive Capacity: 500 GB
Solid State Drive Interface: PCI Express NVMe 4.0 x4
SSD Form Factor: M.2
Display & Graphics
Graphics Controller Manufacturer: Intel
Graphics Controller Model: UHD Graphics
Graphics Memory Technology: DDR4 SDRAM
Graphics Memory Accessibility: Shared
Network & Communication
LAN Manufacturer: Realtek
LAN Model:

• RTL8125BG-CG
• RTL8111H

Ethernet Technology:

• 2.5 Gigabit Ethernet
• Gigabit Ethernet

Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ax
Bluetooth: Yes

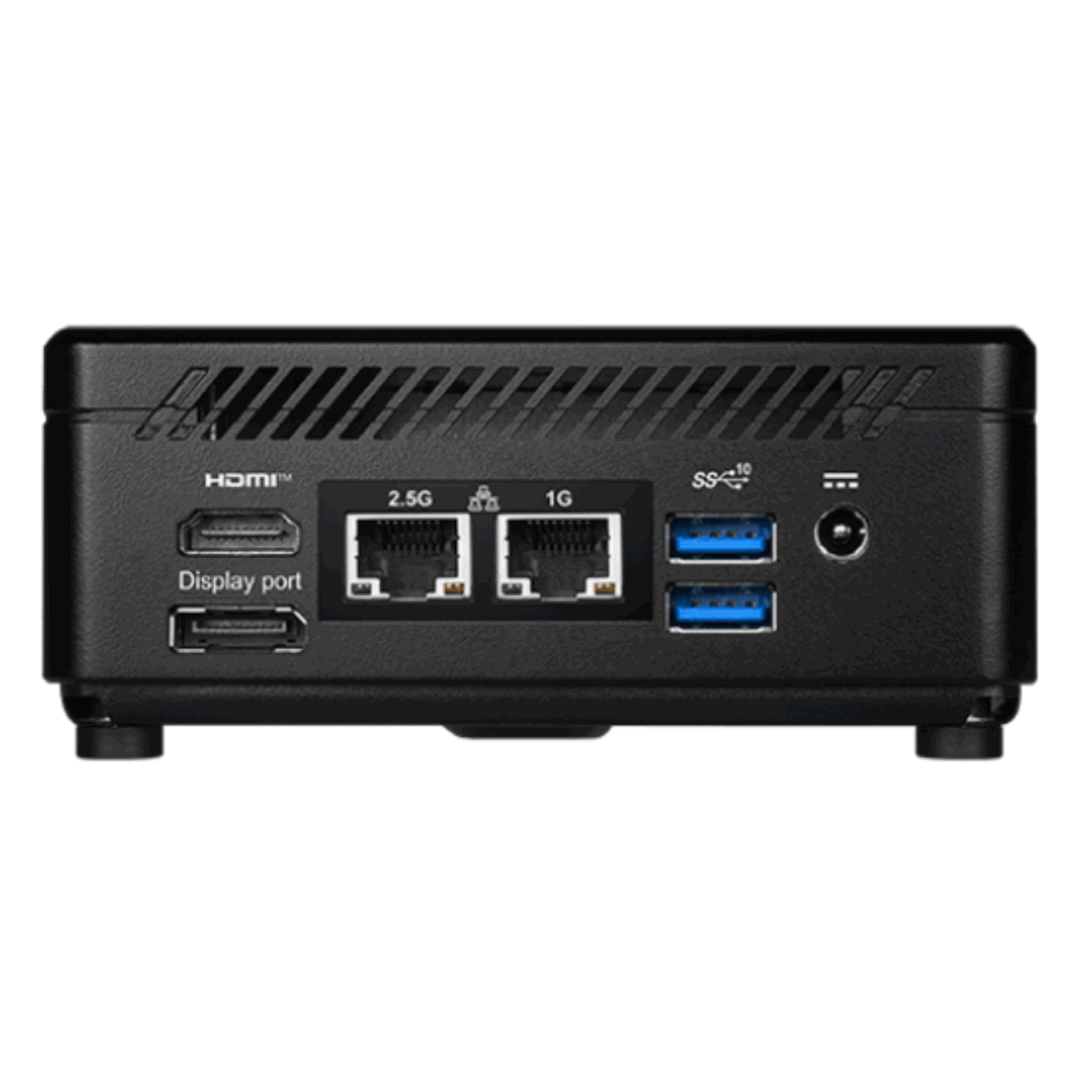

Interfaces/Ports
Number of HDMI Outputs: 1
HDMI (Rear): Yes
Total Number of USB Ports: 4
Number of USB 3.2 Gen 2 Ports: 4
Number Of Ethernet Ports: 2
Number of DisplayPort Outputs (Rear): 1
DisplayPort (Rear): Yes
Number of Thunderbolt 4 Ports: 1
Operating System
Operating System Platform: Windows
Operating System: Windows 11 Pro
Power Description
Maximum Power Supply Wattage: 65 W
Physical Characteristics
Color Family: Black
Product Color: Core Black
Cooler Type: Fan Cooler
Form Factor: Mini PC
Height: 2.1″
Width: 4.9″
Depth: 4.9″
Weight (Approximate): 1.21 lb
Miscellaneous
Package Contents:

• Cubi 5 12M-401US Desktop Computer
• Power Adapter

Energy Star: Yes
Country of Origin: United States
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
Additional Warranty Information: 3 Year Advance Replacement
