• Chipset ManufacturerIntel
• Total Processor Supported1
• Processor SocketSocket BGA-2227
• Processor Generation Supported1st Gen
• Processor SupportedXeon D
• Number of Memory Slots2
• Memory Form Factor
  • DIMM
  • RDIMM
  • UDIMM
• Maximum Memory Supported128 GB
• Memory TechnologyDDR4 SDRAM
• Memory Speed Supported
  • 2933 MHz
  • 2666 MHz
  • 2400 MHz
• Error CheckingECC
• Controller TypeSerial ATA/600
• RAID SupportedYes
• RAID Levels
  • 0
  • 1
  • 5
  • 10
• Onboard VideoCPU Dependent Video
• Graphics Controller ModelAST2600
• Gigabit EthernetYes
• 10Gigabit EthernetYes
• Total Number of Expansion Slots2
• PCI Express Standard
  • PCI Express 3.0
  • PCI Express 4.0
• Total Number of PCI Express Slots2
• Number of PCI Express x4 Slots1
• Number of PCI Express x8 Slots1
• Total Number of USB Ports2
• VGAYes
• HDMINo
• DVINo
• Number of Network (RJ-45) Ports2
• Number of SATA Interfaces4
• Number of M.2 Interfaces1
• Total Number of Onboard USB Ports2
• Form FactorMini ITX
• Width6.8″
• Depth6.8″
• Weight (Approximate)4.41 lb
• Package Contents
  • X12SDV-4C-SPT4F Server Motherboard
  • 1 x 6CM ATX Power Signal Cable
  • 1 x COM Cable 20cm
  • 1 x Standard I/O Shield
  • 1 x 50CM OCuLink to 4x SATA Cable
  • 1 x 55CM OCuLink to U.2 Cable with Molex Power Header
  • 1 x Motherboard Quick Reference Guide
• Environmental Compliance
  • Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
  • Restriction of Hazardous Substances (RoHS)
• Limited Warranty36 Month

General Information
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X12SDV-4C-SPT4F-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro

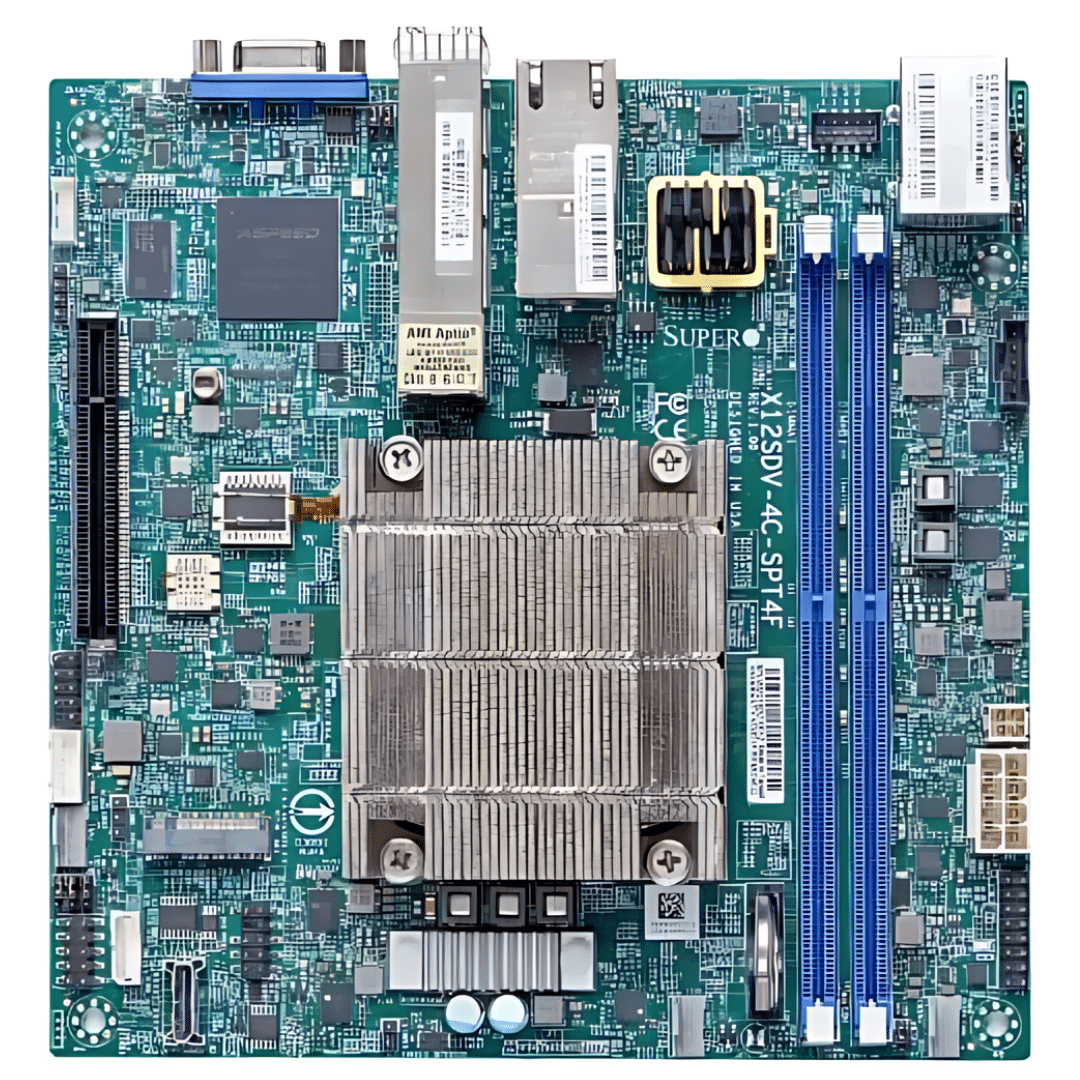

Product Model: X12SDV-4C-SPT4F
Product Name: X12SDV-4C-SPT4F Server Motherboard
Marketing Information:

Supermicro motherboards support the latest generation Intel and AMD processors, memories and offer the most advanced technologies in the IT field – NVMe, M.2, 10GbE network ports. Thanks to their high scalability and a wide choice of form factors, the boards can fulfill the needs of even the most demanding customers. Supermicro offers the broadest selection of servers designed for industrial use, which is reflected in the overall quality of the boards. Materials that guarantee a long lifespan are used for manufacturing Supermicro motherboards, thanks to which a minimal failure rate is achieved. Supermicro motherboards go through a generational exchange approximately once every seven years, which guarantees long support by the manufacturer. Each Supermicro motherboard also allows free installation of specialized software for basic system monitoring.

The purchase of NBD warranty of your own choice is a matter of course, which minimizes service outages even in cases that cannot be predicted. Contact our sales department for more information. Standard NBD warranties are offered for 3 or 5 years.

Packaged Quantity: 1
Package Type: Retail
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket BGA-2227
Processor Generation Supported: 1st Gen
Processor Supported: Xeon D
Memory
Number of Memory Slots: 2
Memory Form Factor:

• DIMM
• RDIMM
• UDIMM

Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported:

• 2933 MHz
• 2666 MHz
• 2400 MHz

Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Graphics Controller Model: AST2600
Network & Communication
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 2
PCI Express Standard:

• PCI Express 3.0
• PCI Express 4.0

Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
VGA: Yes
HDMI: No
DVI: No
Number of Network (RJ-45) Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 2
Physical Characteristics
Form Factor: Mini ITX
Width: 6.8″
Depth: 6.8″
Weight (Approximate): 4.41 lb
Miscellaneous
Package Contents:

• X12SDV-4C-SPT4F Server Motherboard
• 1 x 6CM ATX Power Signal Cable
• 1 x COM Cable 20cm
• 1 x Standard I/O Shield
• 1 x 50CM OCuLink to 4x SATA Cable
• 1 x 55CM OCuLink to U.2 Cable with Molex Power Header
• 1 x Motherboard Quick Reference Guide

Environmental Compliance:

• Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 36 Month
