• Number of Hard Drives Supported12
• Number of Hard Drives InstalledNo
• Total Hard Drive Capacity Supported144 TB
• Number of Solid State Drive Supported12
• Number of Solid State Drive InstalledNo
• Processor ManufacturerIntel
• Processor TypeXeon
• Processor ModelD-1521
• Processor CoreQuad-core (4 Core)
• Processor Speed2.40 GHz
• Standard Memory8 GB
• Memory TechnologyDDR4 SDRAM
• Ethernet TechnologyGigabit Ethernet
• Number of Total Expansion Bays12
• Number of 2.5″/3.5″ Bays12
• Total Number of Expansion Slots2
• Expansion Slot TypePCI Express x8
• Controller TypeSerial ATA
• RAID Levels0, 1, 5, 6, 10, Basic, JBOD, RAID F1
• Total Number of USB Ports2
• Number of USB 3.0 Ports2
• Network (RJ-45)Yes
• Operating SystemDiskStation Manager
• Protocols
  • iSCSI
  • DLNA
  • AFP
  • CIFS
  • Kerberos
  • FTP
  • HTTP
  • RSync
  • NFS
  • SMB
• Maximum Power Supply Wattage500 W
• Height3.5″
• Width16.9″
• Depth27.2″
• Form FactorRack-mountable
• Rack Height2U
• Weight (Approximate)31.97 lb
• Country of OriginTaiwan

General Information
Manufacturer: Synology, Inc
Manufacturer Part Number: RS3618XS
Manufacturer Website Address: http://www.synology.com
Brand Name: Synology
Product Line: RackStation
Product Series: XS
Product Model: RS3618XS

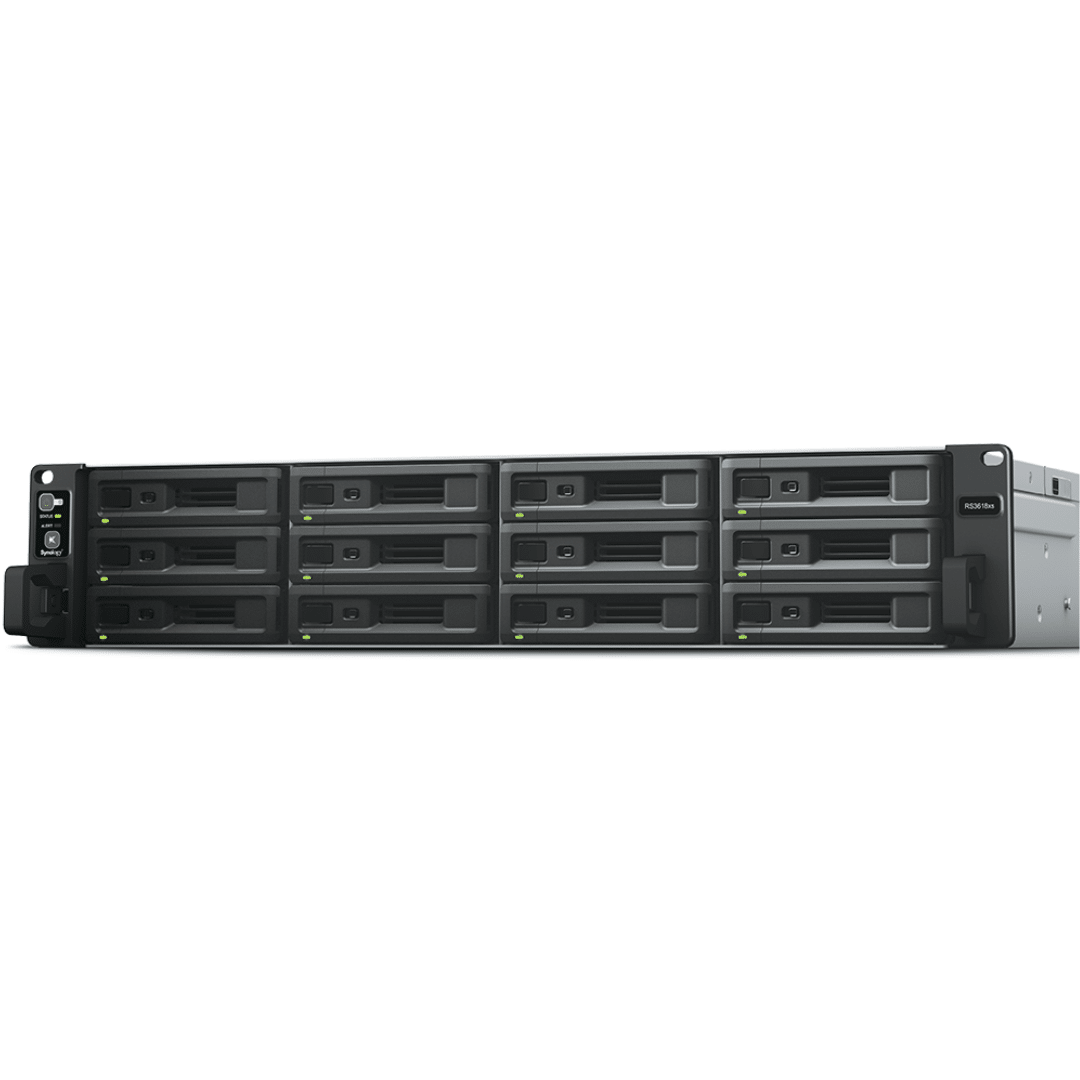

Product Name: RackStation RS3618xs SAN/NAS Storage System
Marketing Information:

High-speed scalable storage server

Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.

Ready for 10GbE and beyond

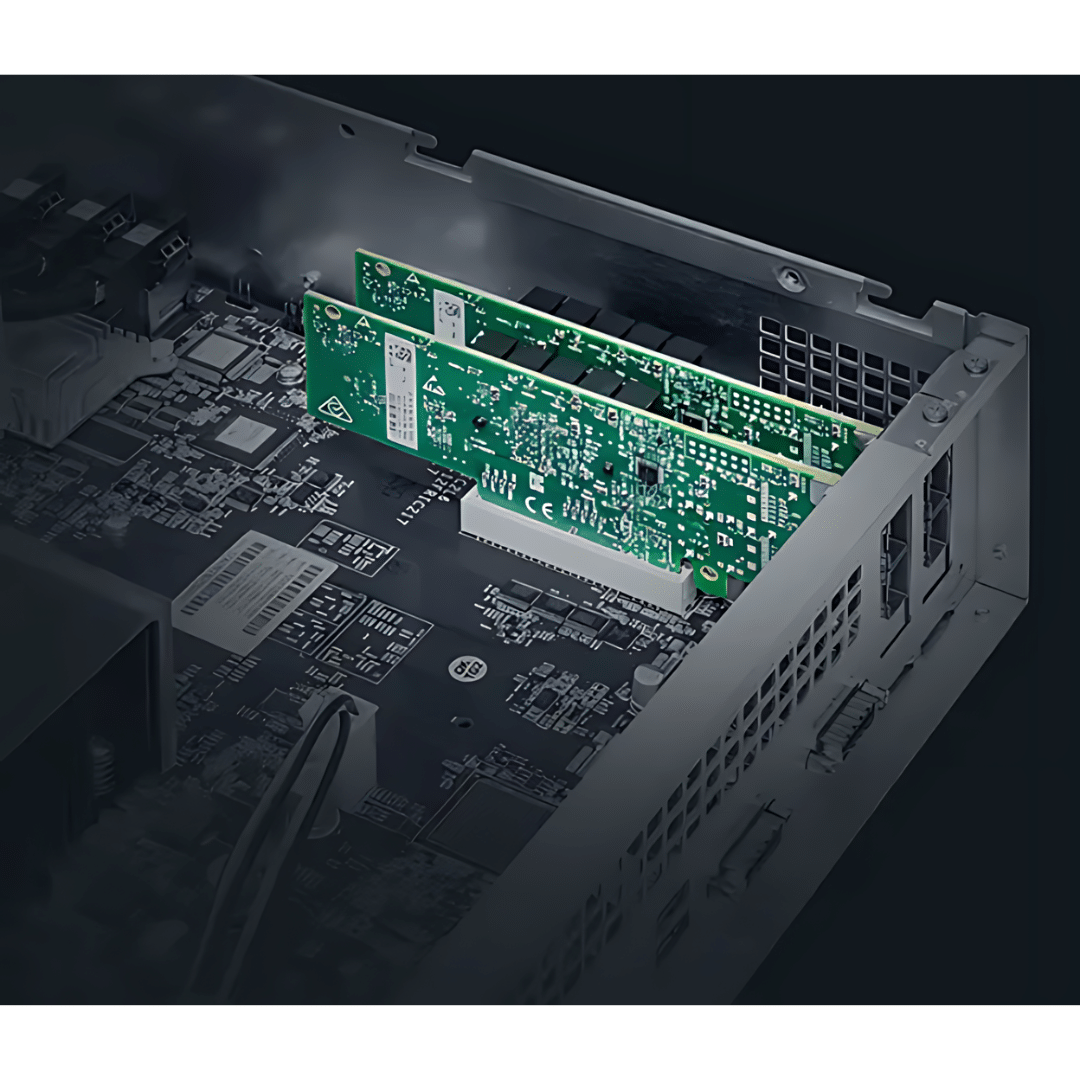

PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.

5 year warranty

Synology’s 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises’ return on investment.

Synology Replacement Service (SRS)

SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity.

Ultimate Backup Solution

RS3618xs integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.

Active Backup for Server

An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.

Hyper Backup

Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.

Desktop Backup

Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.

Active Backup for Office 365/ G Suite

Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Fully certified storage virtualization solutions

Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Next-generation file system for better data protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders

Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots

File or folder level data restoration makes data recovery fast and flexible

Automatic file self-healing detects and recovers corrupted files without user intervention

Packaged Quantity: 1
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 12
Number of Hard Drives Installed: No
Total Hard Drive Capacity Supported: 144 TB
Number of Solid State Drive Supported: 12
Number of Solid State Drive Installed: No
Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: D-1521
Processor Core: Quad-core (4 Core)
Processor Speed: 2.40 GHz
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 12
Number of 2.5″/3.5″ Bays: 12
Total Number of Expansion Slots: 2
Expansion Slot Type: PCI Express x8
Controllers
Controller Type: Serial ATA
RAID Levels: 0, 1, 5, 6, 10, Basic, JBOD, RAID F1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Network (RJ-45): Yes
Software
Operating System: DiskStation Manager
Management & Protocols
Protocols:

• iSCSI
• DLNA
• AFP
• CIFS
• Kerberos
• FTP
• HTTP
• RSync
• NFS
• SMB

Power Description
Maximum Power Supply Wattage: 500 W
Physical Characteristics
Height: 3.5″
Width: 16.9″
Depth: 27.2″
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 31.97 lb
Miscellaneous
Country of Origin: Taiwan
