• HD RecordingYes
• Night VisionYes
• Night Vision Distance98.43 ft
• Night Vision TypeInfrared
• Image Sensor Size1/2.7″
• Color SupportedColor
• Field of View110° H, 56° V, 132° D (LDC ON)
• Effective Camera Resolution5 Megapixel
• Video Formats
  • H.264
  • H.265
• Maximum Video Resolution2880 x 1620
• Maximum Frame Rate30 fps
• Lens TypeFixed
• Maximum Focal Length2.80 mm
• Lens IncludedYes
• Maximum Aperturef/1.8
• Shortest Shutter Speed1/16000 Second
• Longest Shutter Speed1/30 Second
• Connectivity TechnologyWired
• Ethernet TechnologyFast Ethernet
• Protocols
  • HTTPS
  • SRTP
• Remote ManagementYes
• Storage TypeMemory Card
• Network (RJ-45)Yes
• Input Voltage12 V DC
• Power Source Type
  • DC
  • PoE
• Form FactorTurret
• Durability
  • Water Proof
  • Weather Resistant
  • Impact Resistant
• Diameter3.8″
• Weight (Approximate)13.65 oz
• Minimum Operating Temperature-22°F (-30°C)
• Maximum Operating Temperature122°F (50°C)
• Maximum Operating Humidity95%
• Features
  • Day/Night
  • Built-in IR LED
  • Human Detection
  • Vehicle Detection
  • SD Card Local Storage
  • 3D Noise Reduction
  • 2D Noise Reduction
  • Privacy Masking
  • Motion Detection
  • Audio Detection
• Indoor/OutdoorIndoor/Outdoor
• Package Contents
  • TC500 Network Camera
  • 1 x TC500 main unit
  • 1 x Installation guide
  • 1 x RJ-45 connector cap cover
  • 1 x Screw pack
• Impact Protection RatingIK10
• Ingress Protection RatingIP67
• TAA CompliantYes
• Environmentally FriendlyYes
• Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
• Limited Warranty3 Year

AI-Powered Camera for Integrated Smart Surveillance

Synology cameras are designed to pair with Surveillance Station,1 providing unparalleled ease of use thanks to quick and easy setup, batch configuration, and seamless firmware updates. They feature camera-based AI that enhances Surveillance Station deployments with smart capabilities.

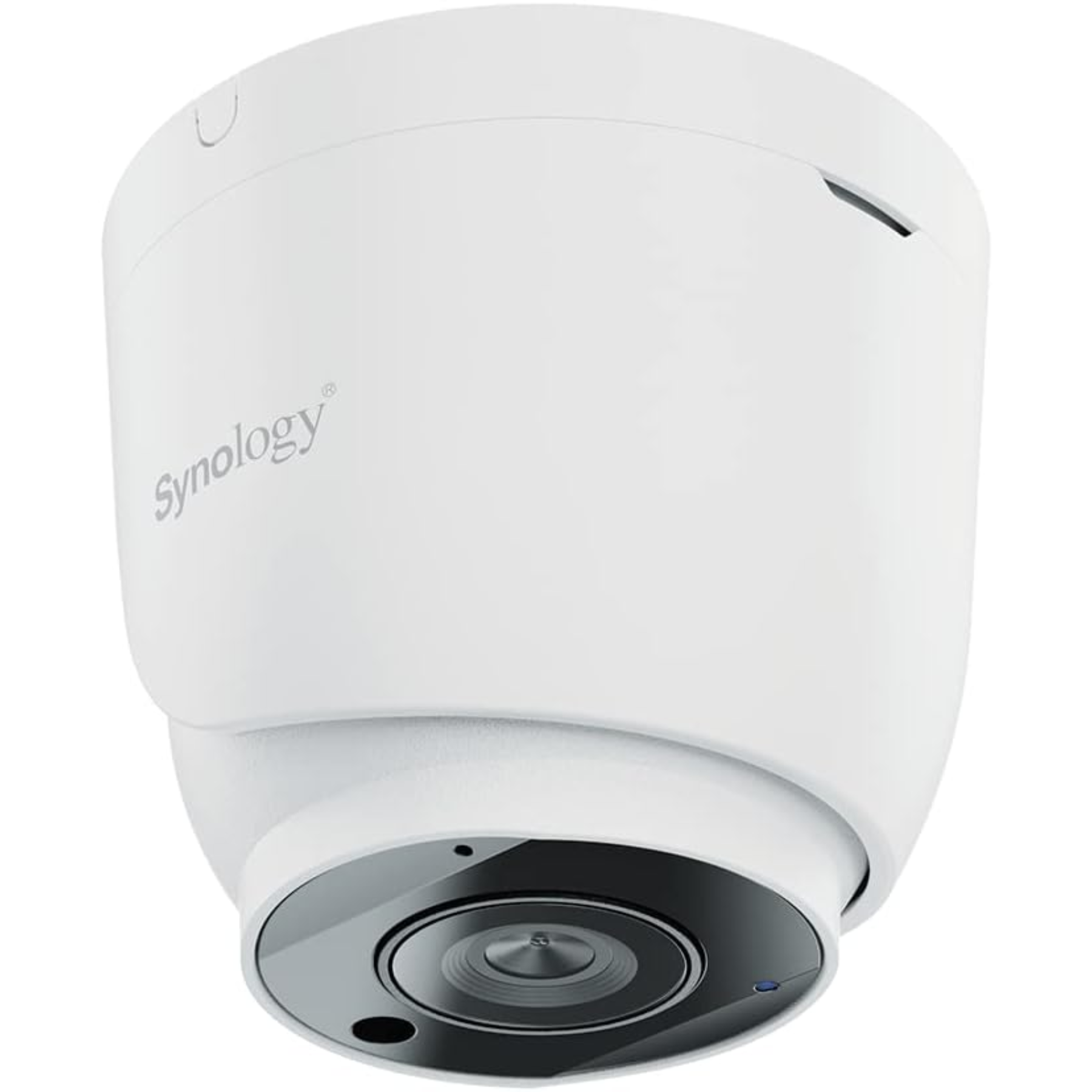

The TC500 is a versatile IP67-rated 5 MP wide-angle AI camera suitable for both indoor and outdoor use. Boasting a high resolution of 2880×1620 @ 30 FPS, 110° horizontal wideangle view, and night vision capability, the TC500 captures all the details you need.

Capture quality

Highly detailed, wide-angle coverage helps secure large areas, night or day.

• High resolution of 5 MP (2880×1620) 16:9 provides clear and detailed videos
• 110° wide horizontal viewing angle captures large areas at once and reduces the need for multiple cameras
• Large aperture of F1.8 and multi-exposure HDR provide good low-light performance without overexposing lighter areas
• High power infrared LED provides clear night vision up to 30 meters

Video intelligence

Camera-based AI capabilities empower your surveillance with smart analytics.

• People and Vehicle Detection distinguishes people and vehicles from other moving objects with high accuracy
• Intrusion Detection identifies people and vehicles, and issues alerts when a virtual border is crossed from a designated direction
• Instant Search allows for quick investigations with the ability to search for people, vehicles, and motion in an area in the past
• Pair with Synology DVA models for more intelligent analytics, such as face recognition, license plate recognition, and people counting

Streamlining and integration

Integration with Surveillance Station streamlines deployment and maintenance.

• Quick and simple single camera or batch installation process through Surveillance Station or the DS cam app speeds up deployment
• No Surveillance Device License purchase or activation required
• Camera settings adjustment and maintenance features are available directly in Surveillance Station or DS cam
• Continuous firmware updates provide new features and security enhancements, and can be applied in batch, with or without internet
• Failover edge storage increases system reliability by automatically switching to microSD recording in case of network failure

Security and privacy

From recording to archiving, protect your footage with our integrated safeguards.

HTTPS & SRTP support enable encrypted network and video transfer, authentication, and integrity protection

Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 98.43 ft
Night Vision Type: Infrared
Display & Graphics
Image Sensor Size: 1/2.7″
Color Supported: Color
Field of View: 110° H, 56° V, 132° D (LDC ON)
Effective Camera Resolution: 5 Megapixel
Video
Video Formats:

• H.264
• H.265

Maximum Video Resolution: 2880 x 1620
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 2.80 mm
Lens Included: Yes
Maximum Aperture: f/1.8
Exposure
Shortest Shutter Speed: 1/16000 Second
Longest Shutter Speed: 1/30 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:

• HTTPS
• SRTP

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 12 V DC
Power Source Type:

• DC
• PoE

Physical Characteristics
Form Factor: Turret
Durability:

• Water Proof
• Weather Resistant
• Impact Resistant

Diameter: 3.8″
Weight (Approximate): 13.65 oz
Environmental Conditions
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 122°F (50°C)
Maximum Operating Humidity: 95%
Miscellaneous
Features:

• Day/Night
• Built-in IR LED
• Human Detection
• Vehicle Detection
• SD Card Local Storage
• 3D Noise Reduction
• 2D Noise Reduction
• Privacy Masking
• Motion Detection
• Audio Detection

Indoor/Outdoor: Indoor/Outdoor
Package Contents:

• TC500 Network Camera
• 1 x TC500 main unit
• 1 x Installation guide
• 1 x RJ-45 connector cap cover
• 1 x Screw pack

Impact Protection Rating: IK10
Ingress Protection Rating: IP67
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 3 Year
