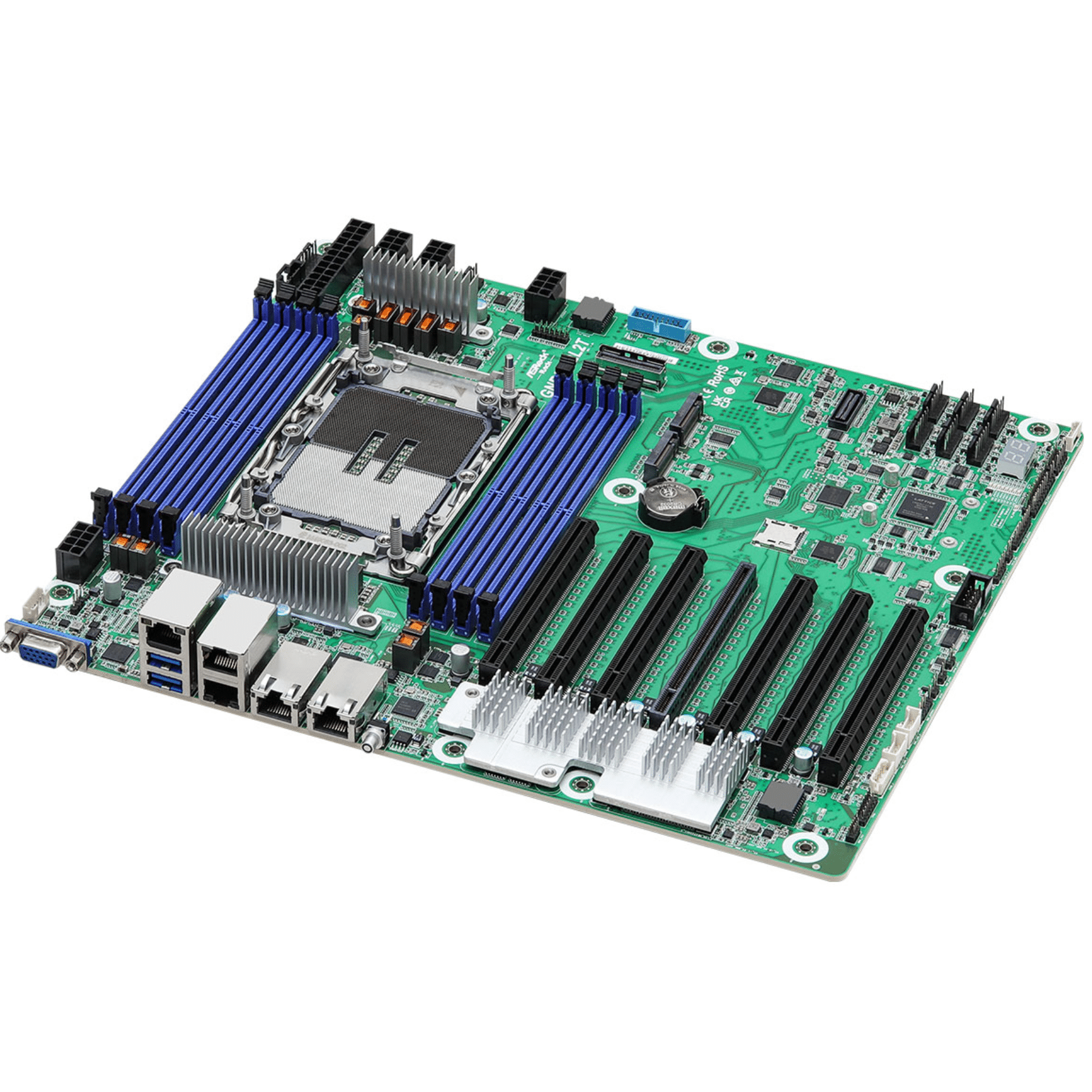

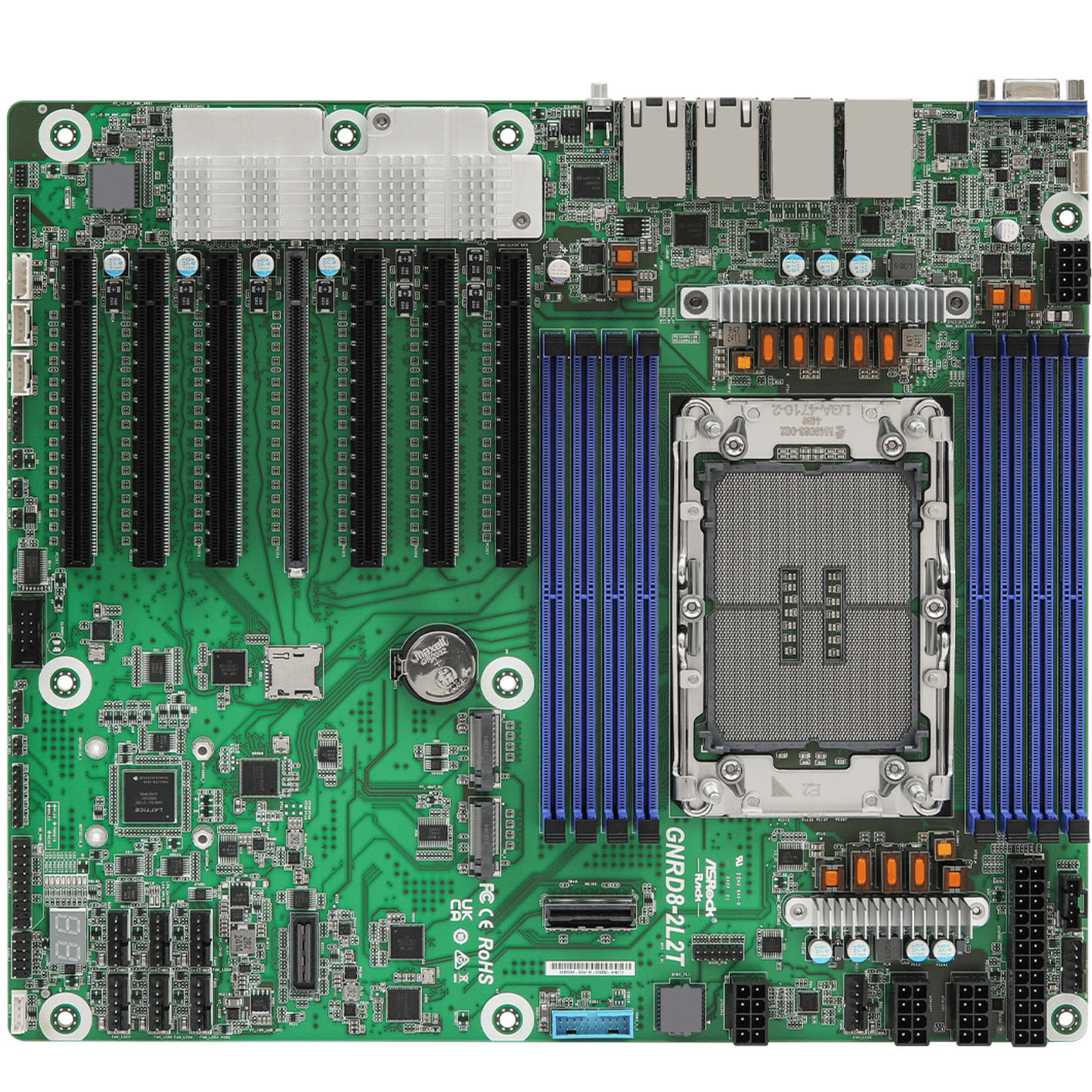

ASRock Rack GNRD8-2L2T LGA 4710 Socket/ DDR5/ USB 3.2/ M.2/ CEB Server Motherboard

Descripci車n Corta IDC-MAYORISTA:

• Physical Status
  • • Form Factor: CEB



  • • Dimensions: 12″ x 10.5″





• Processor System
  • • CPU: Supports Intel Xeon 6700E-series processors



  • • Socket: 1 Socket E2 (LGA 4710)



  • • Chipset: System on Chip





• System Memory
  • • Supported DIMM Quantity: 8 DIMM slots (1DPC)



  • • Supported Type: DDR5 RDIMM



  • • Max. Capacity per DIMM: RDIMM: 128GB



  • • Max. DIMM Frequency: RDIMM: 6400MT/s



  • • Voltage: 1.1V





• PCIe Expansion Slots (SLOT7 close to CPU)
  • • PCIe x 16:



  • • SLOT7: PCIe5.0 / CXL2.0 x16



  • • SLOT6: PCIe5.0 / CXL2.0 x16



  • • SLOT5: PCIe5.0 / CXL2.0 x16



  • • SLOT4: PCIe5.0 / CXL2.0 x16



  • • SLOT3: PCIe5.0 / CXL2.0 x16



  • • SLOT2: PCIe5.0 / CXL2.0 x16



  • • SLOT1: PCIe5.0 / CXL2.0 x16



•
• TPM support: 1 (13-pin, SPI)
•
• Other PCIe Expansion Connectors
  • • M.2 slot: 2 M-key (PCIe5.0 x4), supports 22110/2280 form factor



  • • Others: 1 MCIO (PCIe5.0 / CXL2.0 x8)





• Ethernet
  • • Additional GbE Controller:



  • • 2 RJ45 (10GbE) by Intel X710-AT2



  • • 2 RJ45 (1GbE) by Intel i210





• Server Management
  • • BMC Controller: ASPEED AST2600: IPMI2.0 with iKVM and vMedia support



  • • IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN





• Graphics
  • • Controller: ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header

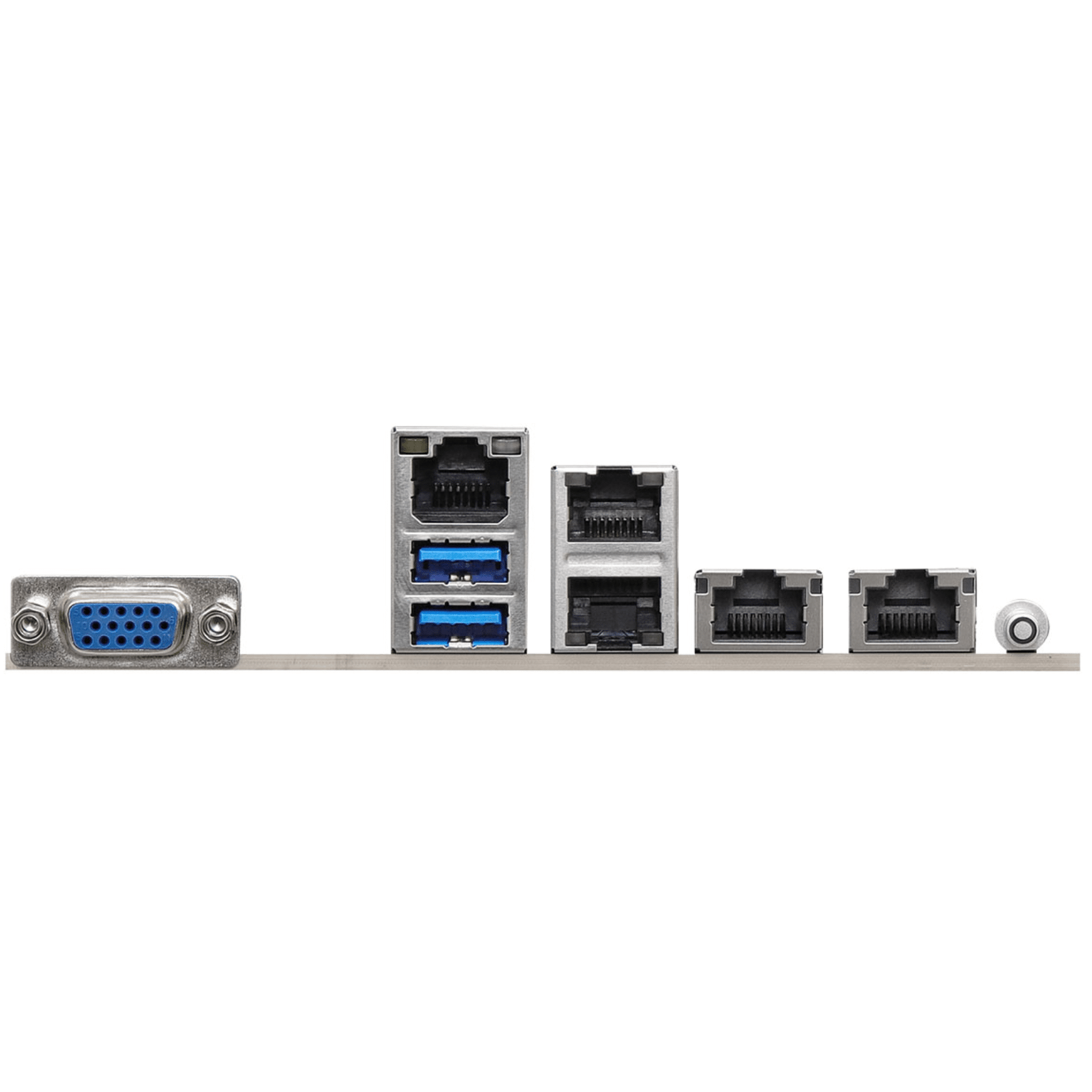

• Rear I/O
  • • UID Button/LED: 1 UID button w/ LED



  • • VGA Port: 1 DB15 (VGA)



  • • USB 3.2 Gen1 Port: 2 Type-A (UBS3.2 Gen1)



  • • RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI





• Internal Connector/Headers
  • • Power Connector: 1 (24-pin, ATX main power), 4 ( 8-pin, ATX 12V)



  • • Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus



  • • System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED



  • • COM Header: 1 (9-pin)



  • • Fan Header: 8 (6-pin)



  • • TPM Header: 1 (13-pin, SPI)



  • • VROC header: 1



  • • HSBP: 1



  • • SMBus header: 2



  • • PMBus header: 1



  • • IPMB Header: 1



  • • Clear CMOS: 1 (contact pads)



  • • Front Lan LED Connector: 1



  • • USB 3.2 (Gen1) Header: 1 header (19-pin, 1 USB3.2 Gen1)



  • • USB 2.0 Header: 1 header (19-pin, 1 USB2.0)



  • • NMI Header: 1





• LED Indicators
  • • Standby PWR LED: 1 (5VSB)



  • • 80 Debug Port LED: 1



  • • Fan Fail LED: 8



  • • BMC heartbeat LED: 1





• System BIOS
  • • BIOS Type: AMI UEFI BIOS; 512Mb SPI Flash ROM



  • • BIOS Features: Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash





• Hardware Monitor
  • • Temperature: CPU, MB, Card Side, M.2, RAM, TR Temperature Sensing



  • • Fan:



  • • Fan Tachometer



  • • CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)



  • • Fan Multi-Speed Control



  • • Voltage: 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB





• Environment
  • • Temperature: Operation temperature: 10C~ 35C/ Non operation temperature: -40C~ 70C



  • • Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
