• Chipset ManufacturerAMD
• Chipset ModelWRX80
• Total Processor Supported1
• Processor SocketSocket sWRX8
• Processor SupportedRyzen Threadripper PRO
• Number of Memory Slots8
• Memory Form Factor
  • DIMM
  • UDIMM
• Maximum Memory Supported2 TB
• Memory TechnologyDDR4 SDRAM
• Memory Speed Supported
  • 4400 MHz
  • 3200 MHz
  • 2933 MHz
  • 2667 MHz
  • 2400 MHz
  • 2133 MHz
• Controller TypeSerial ATA/600
• RAID SupportedYes
• RAID Levels
  • 0
  • 1
  • 5
  • 10
• Onboard VideoCPU Dependent Video
• Graphics Controller ModelAST2500
• Audio Channels7.1
• BluetoothYes
• Bluetooth StandardBluetooth 5.3
• Gigabit EthernetYes
• 10Gigabit EthernetYes
• Wireless LANYes
• Wireless LAN StandardIEEE 802.11 a/b/g/n/ax
• Total Number of Expansion Slots7
• PCI Express StandardPCI Express 4.0
• Total Number of PCI Express Slots7
• Number of PCI Express x16 Slots7
• Total Number of USB Ports6
• Number of USB 3.2 Gen 1 Ports2
• S/PDIFYes
• VGAYes
• DisplayPortYes
• Number of Network (RJ-45) Ports3
• ThunderboltYes
• Number of M.2 Interfaces2
• Total Number of Onboard USB Ports5
• Form FactorExtended ATX
• Width12″
• Depth10.7″
• Energy Efficiency Compliance
  • Energy-related Products Directive Ready (ErP Ready)
  • Energy-using Products Directive Ready (EuP Ready)

General Information

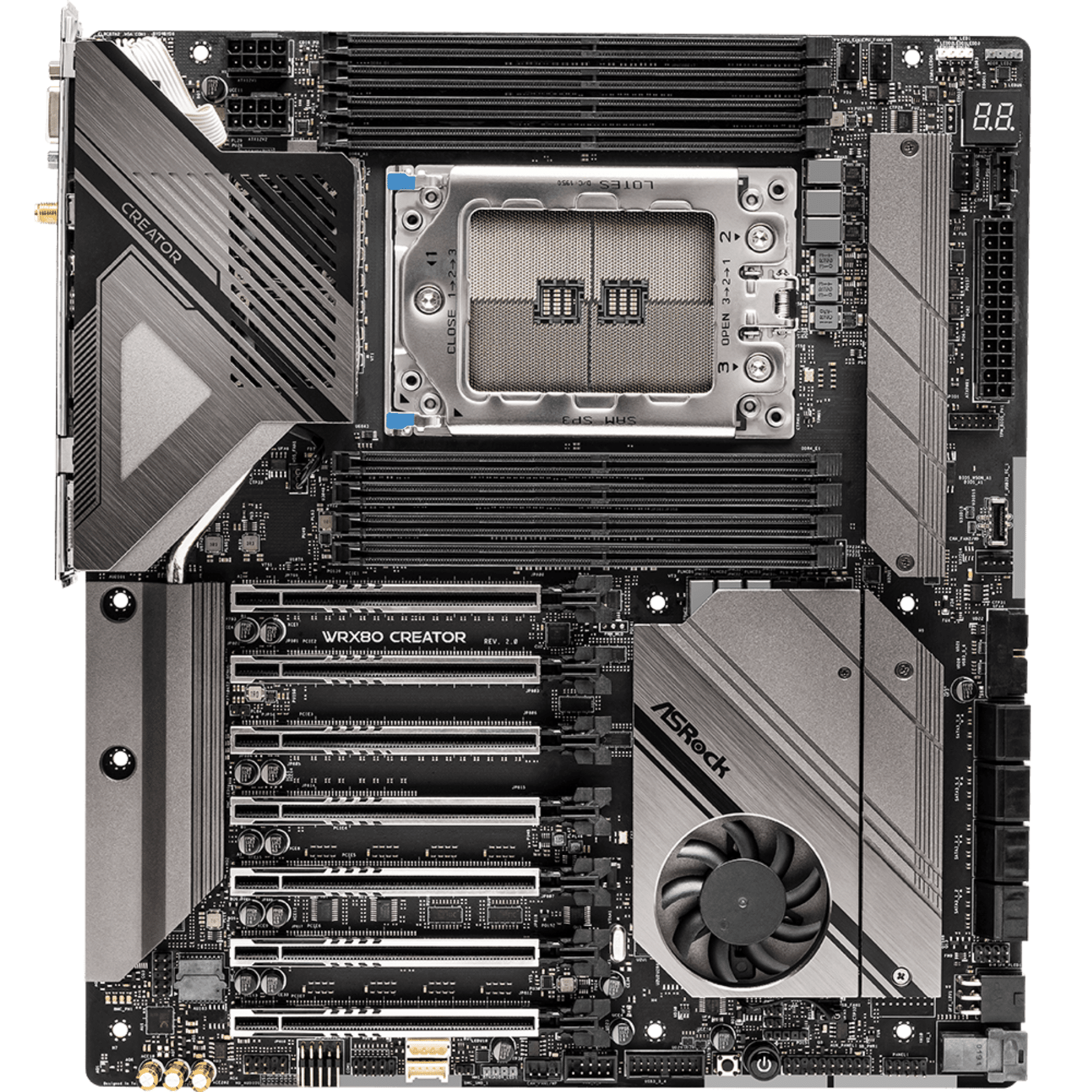

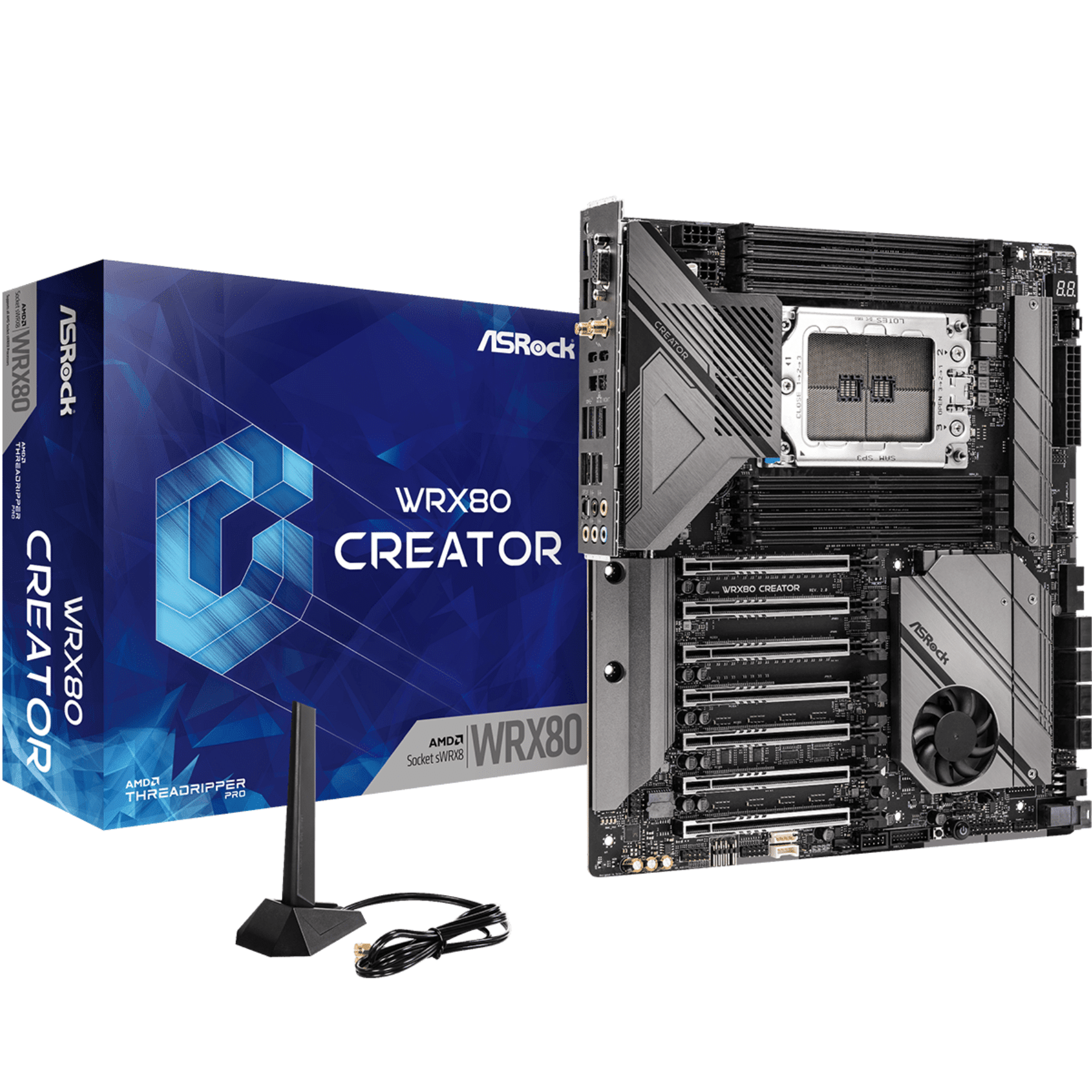

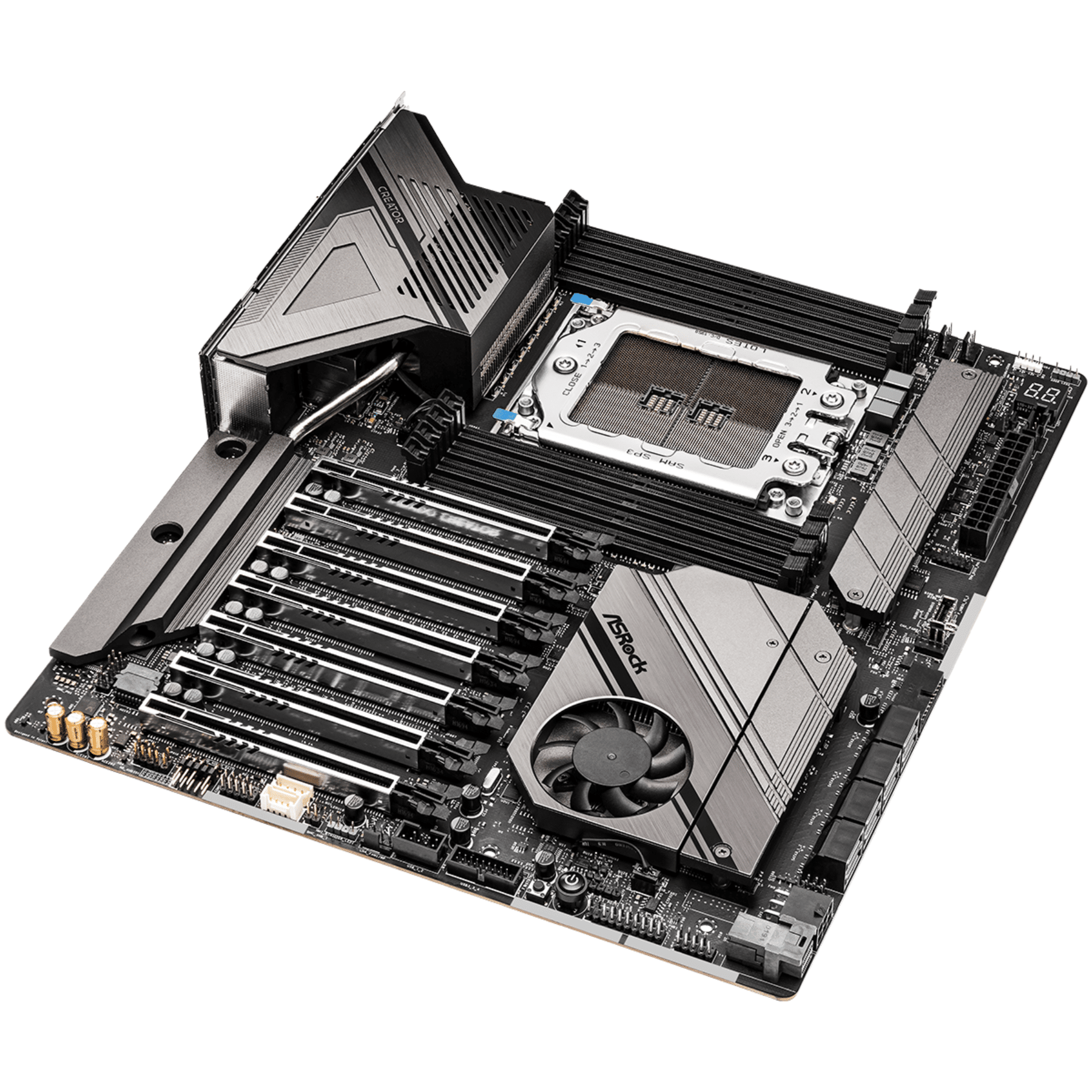

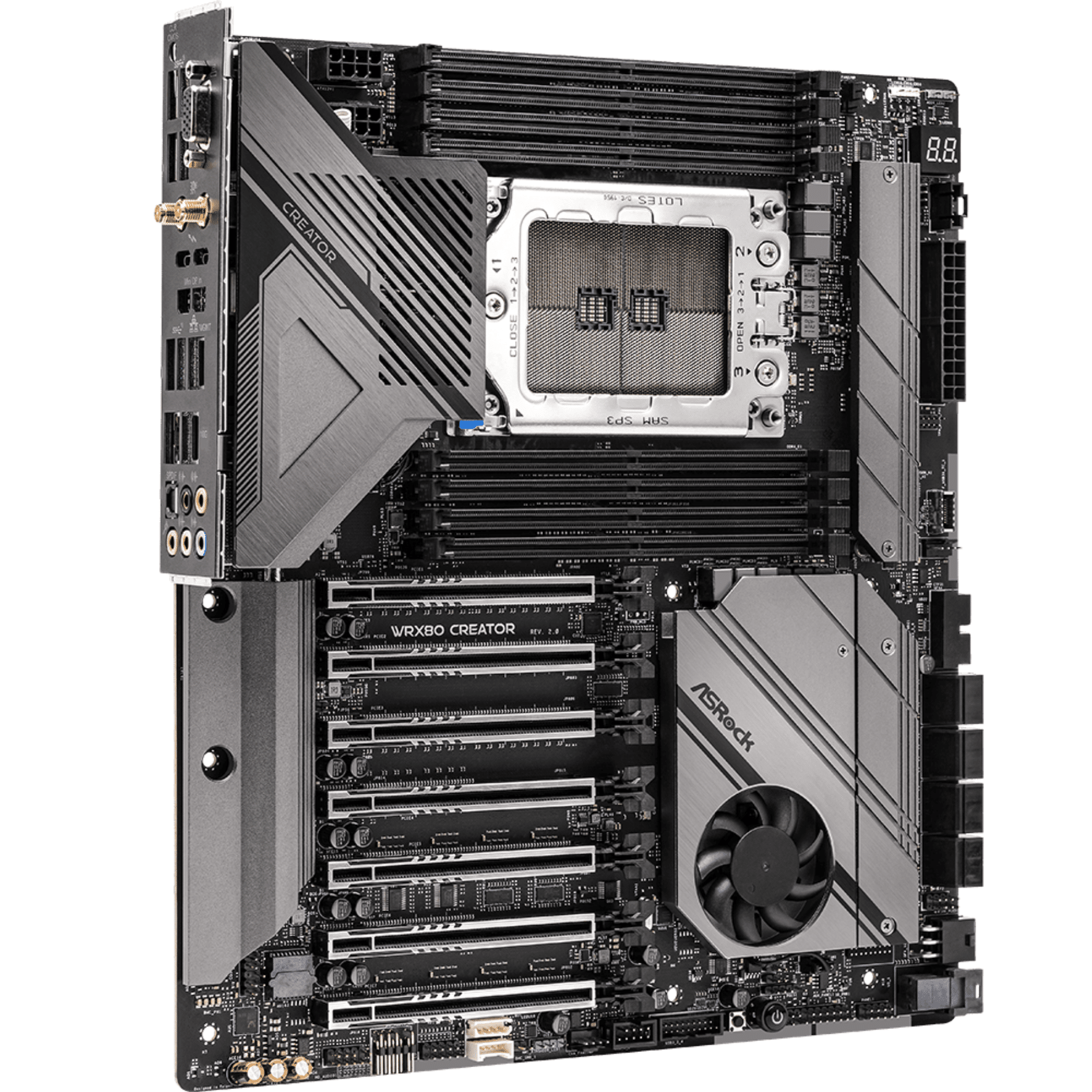

Manufacturer: ASRock, Inc
Manufacturer Part Number: WRX80 CREATOR R2.0
Manufacturer Website Address: http://www.asrock.com
Brand Name: ASRock
Product Model: WRX80 Creator R2.0
Product Name: WRX80 Creator R2.0 Gaming Desktop Motherboard
Marketing Information:

Optimized VRM Design | SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

7W/mK MOSFET Thermal Pads

This thermal pads are much more effective than normal pads. With a 7 watt/mK thermal conductivity it is able to effectively dissipate heat from MOSFET

14 Layer PCB

The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Optimized VRM Design | Composite VRM Heatsink

It is equipped with a composite VRM heatsink combining dual fans, aluminum fin array and heat pipe for maximum heat dissipation.

Server-Grade Low-Loss PCB

The server grade PCB prevents PCB bending and improves signal integrity, giving higher PCIe 4.0 and memory performance as well as system stability, giving a reliable and long-lasting system without any compromise.

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

PCIe Gen4 with Surface Mount Technology

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 4.0 standard.

5 x PCIe Gen4 x16

With AMD Ryzen™ Threadripper™ PRO processors, ASRock WRX80 Creator supports 5 full speed PCIe gen4 x16 slots, deliver all the performance of PCIe 4.0 to your GPU and add-on cards. Fullfill all the professional design, deep learning, simulation and rendering applications.

Thunderbolt Technology | Thunderbolt™ 4/USB4 Type-C

Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Fast Charging Technology

Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!

Nahimic Audio | Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

?Static Noise Suppression

?Echo Cancellation

?Lateral Sound Cancellation

?Voice Stabilizer

Ultimate Gaming Experience

?Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: WRX80
Total Processor Supported: 1
Processor Socket: Socket sWRX8
Processor Supported: Ryzen Threadripper PRO
Memory
Number of Memory Slots: 8
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 2 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported:

• 4400 MHz
• 3200 MHz
• 2933 MHz
• 2667 MHz
• 2400 MHz
• 2133 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Graphics Controller Model: AST2500
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ax
I/O Expansions
Total Number of Expansion Slots: 7
PCI Express Standard: PCI Express 4.0
Total Number of PCI Express Slots: 7
Number of PCI Express x16 Slots: 7

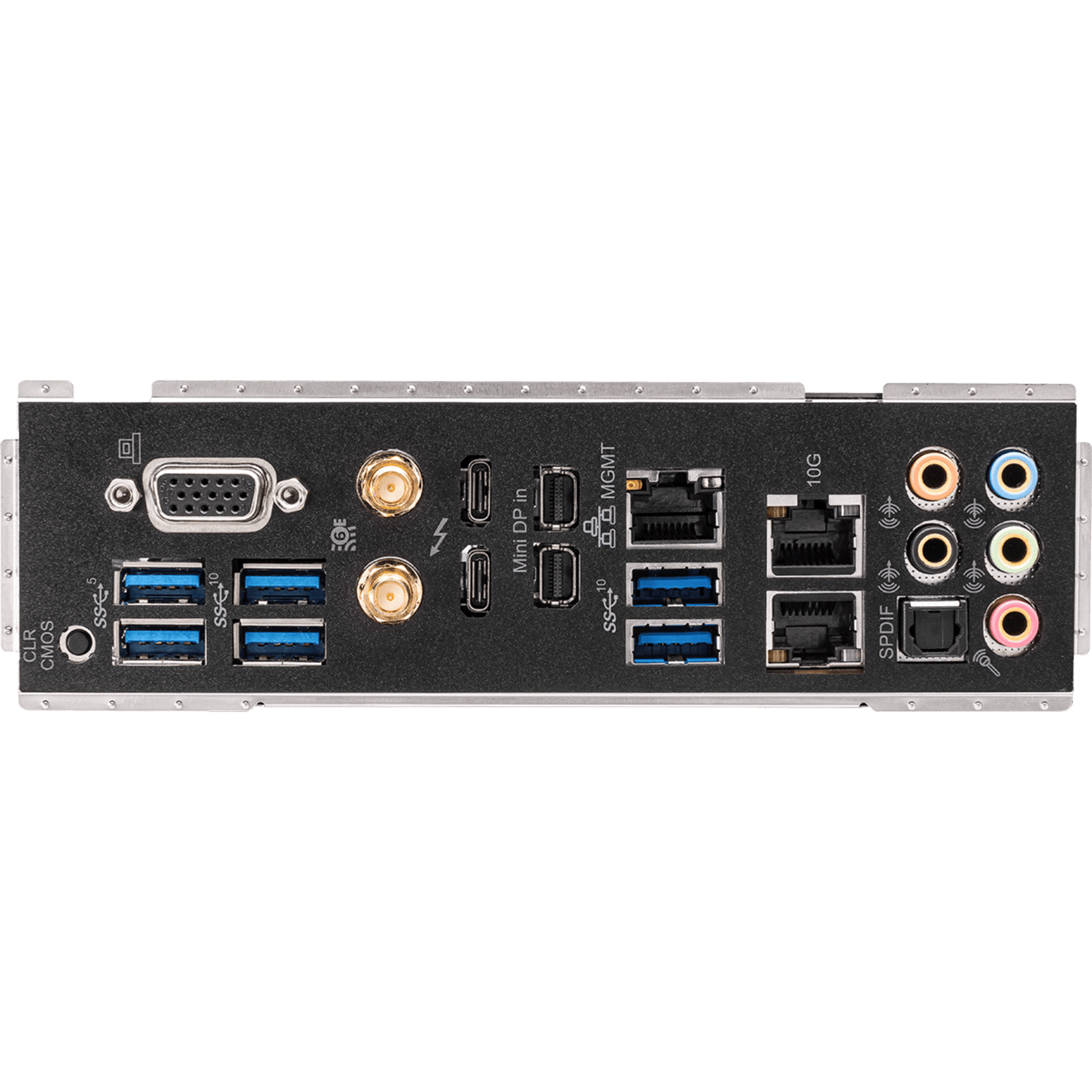

Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Ports: 2
S/PDIF: Yes
VGA: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 3
Thunderbolt: Yes
Onboard Interfaces
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Physical Characteristics
Form Factor: Extended ATX
Width: 12″
Depth: 10.7″
Miscellaneous
Energy Efficiency Compliance:

• Energy-related Products Directive Ready (ErP Ready)
• Energy-using Products Directive Ready (EuP Ready)
