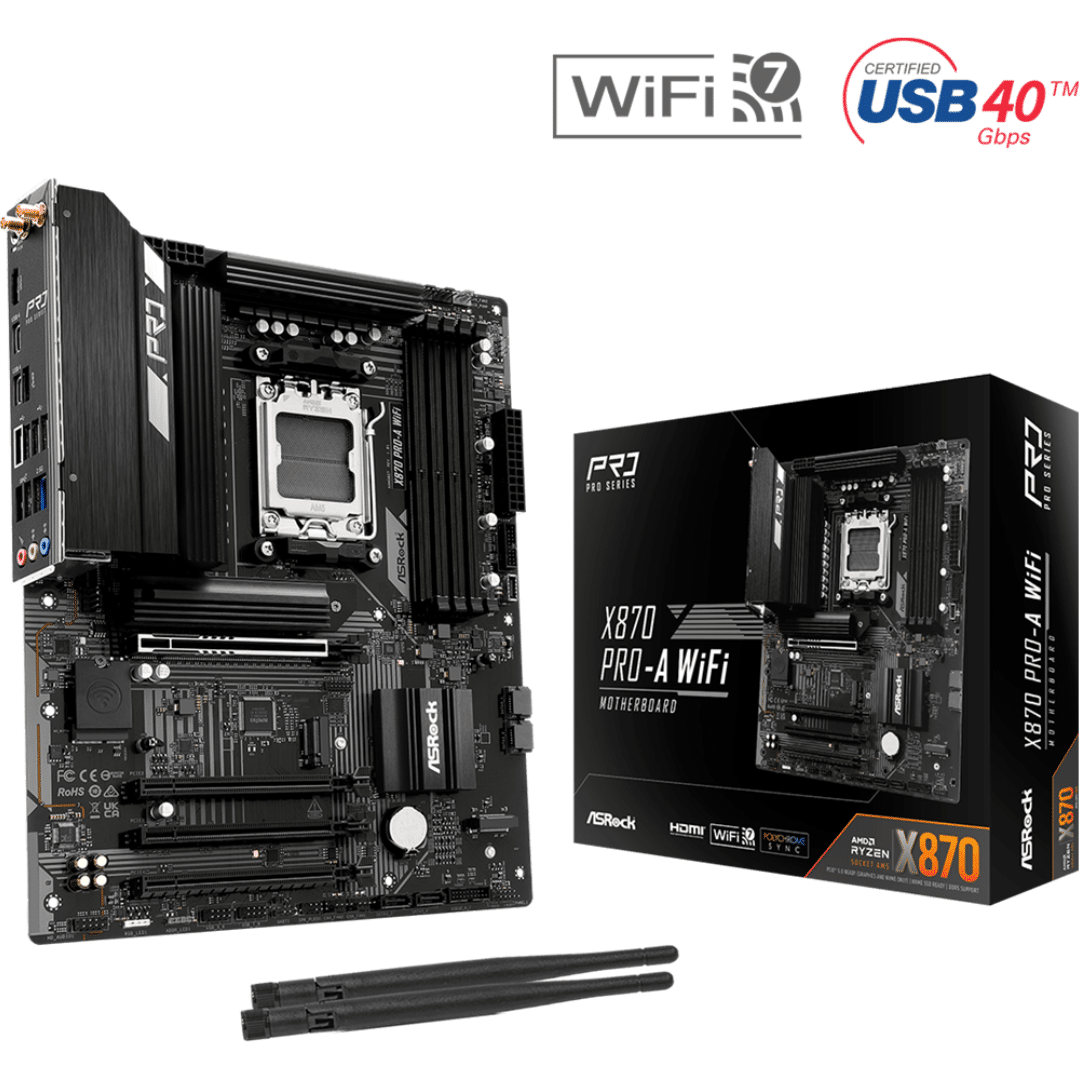

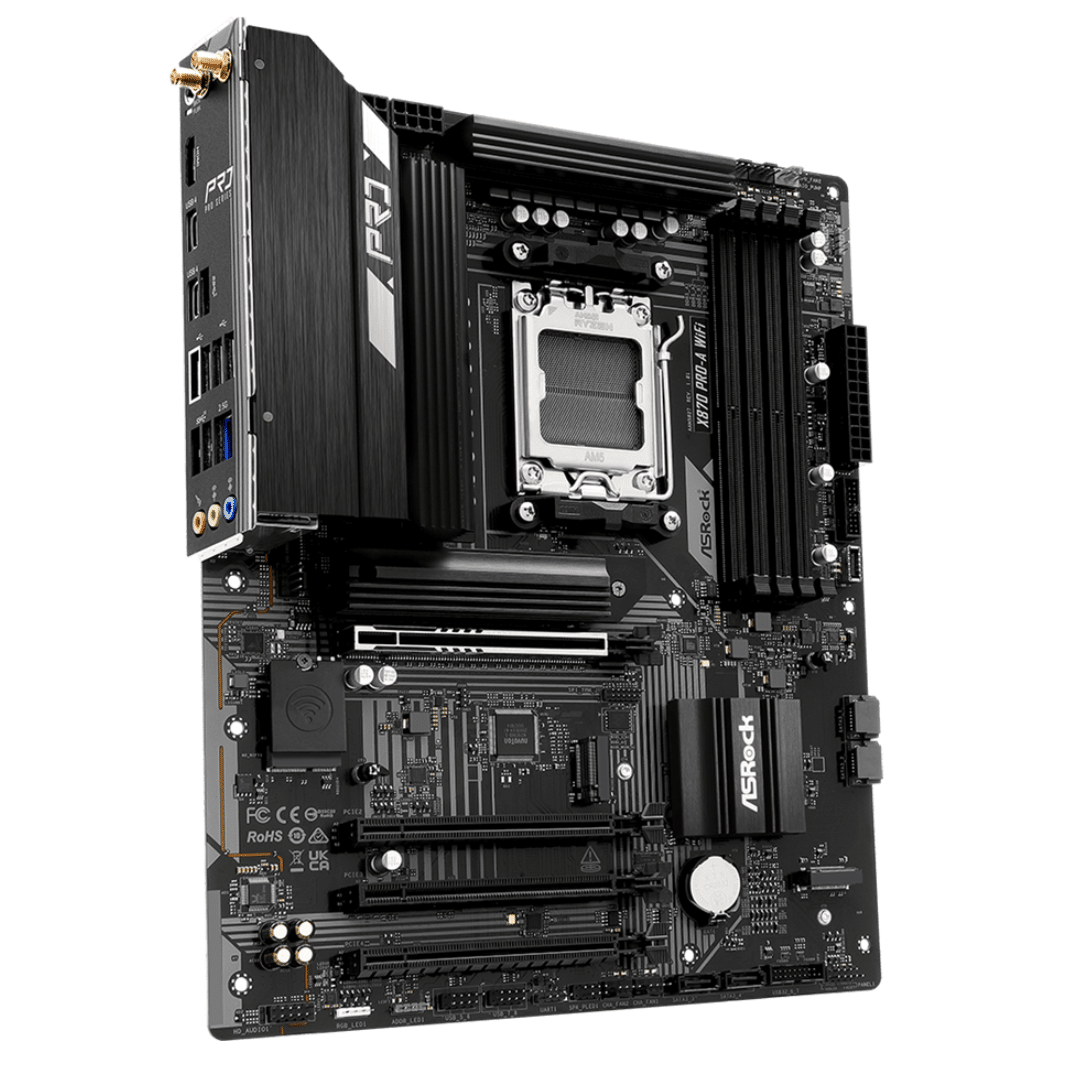

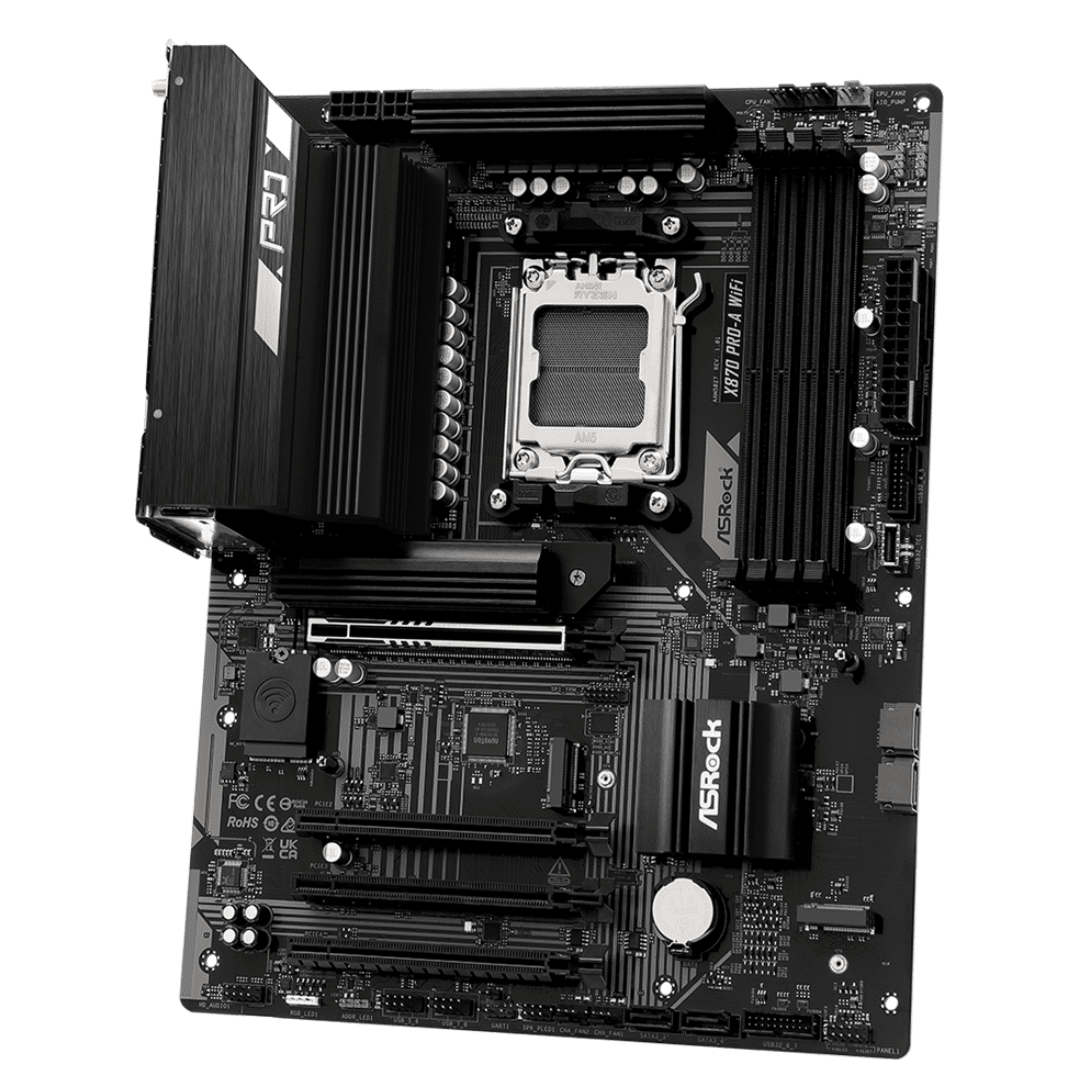

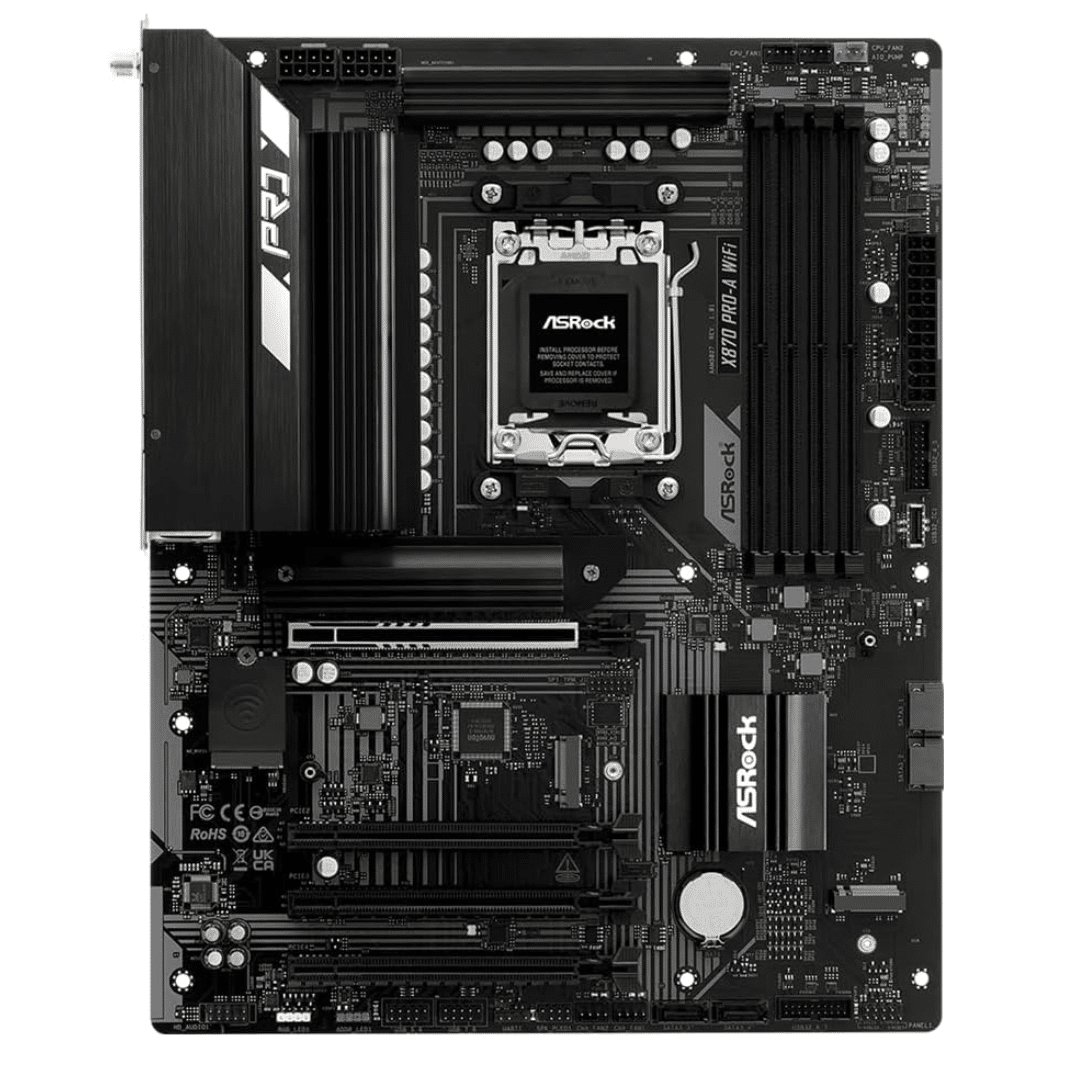

ASRock X870 Pro-A WiFi ATX Motherboard – AMD AM5 Ryzen 9000/8000/7000, DDR5 8000+(OC), PCIe 5.0 x16, Dual USB4 Type-C, Wi-Fi 7, 2.5GbE

Descripci車n Corta IDC-MAYORISTA:

• • Unique Feature
    • • Superb Productivity



    • • PCIe Gen5 (Graphics, M.2)



    • • Dual Channel DDR5



    • • USB4 Type-C Ports (40 Gb/s)



    • • Rock-Solid Durability

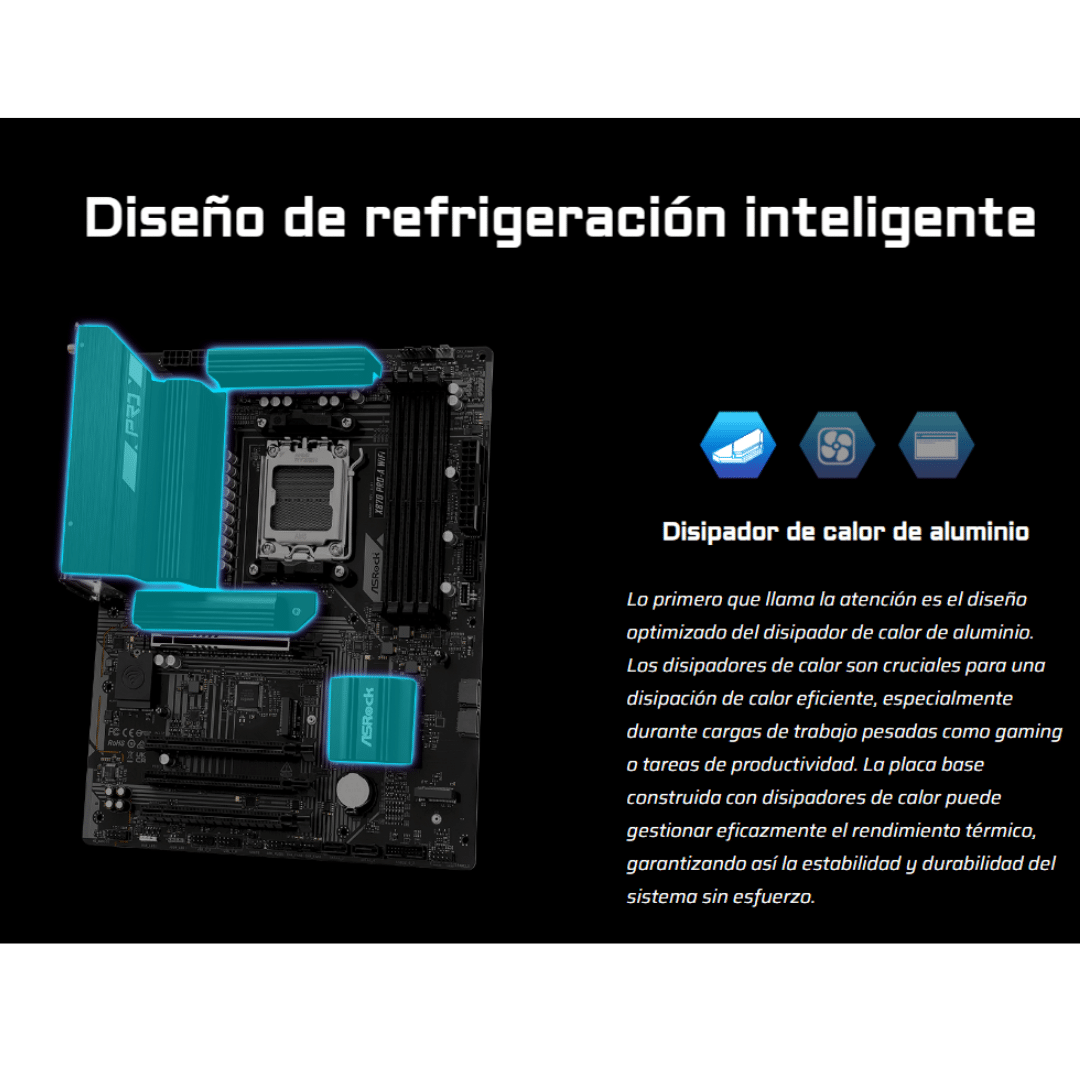

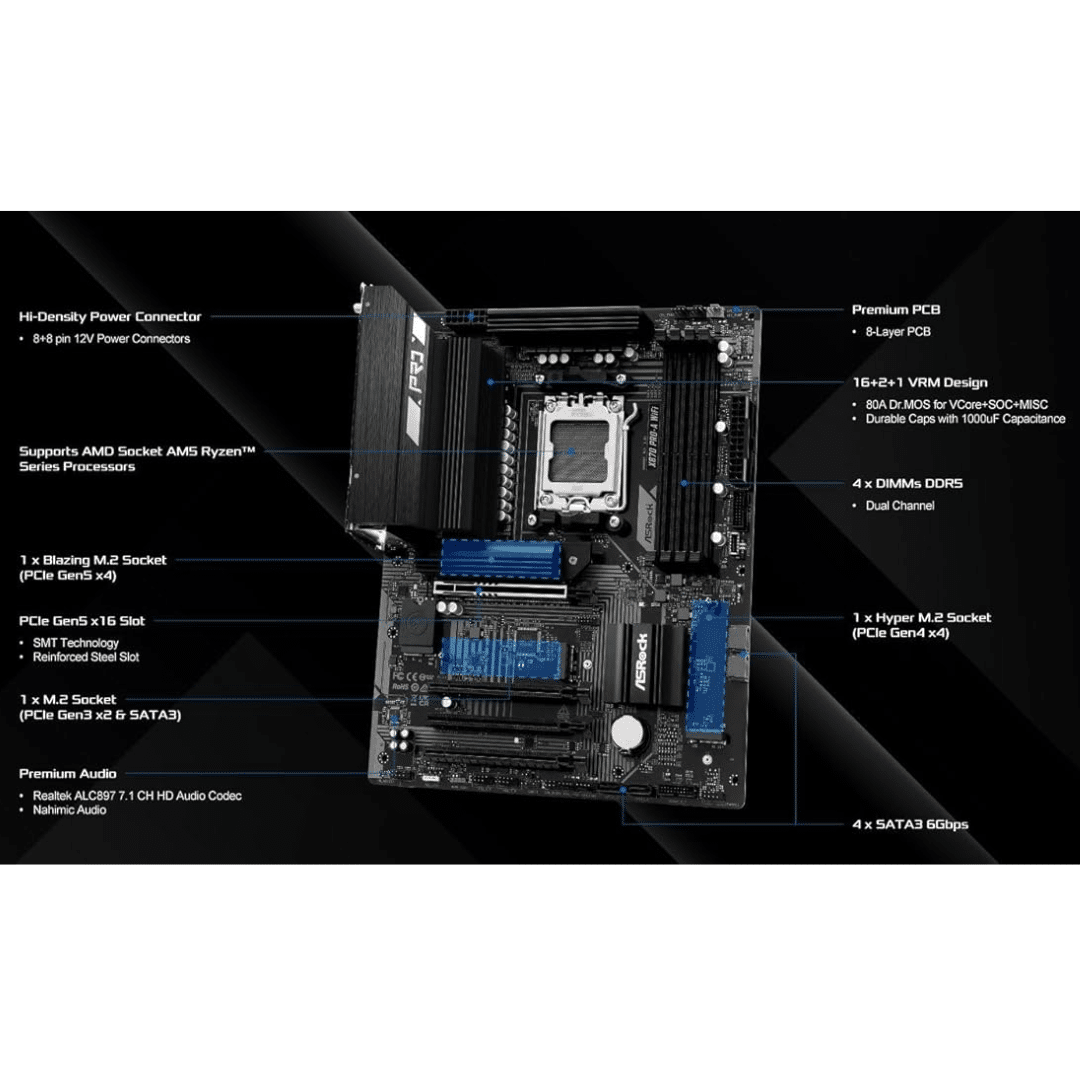

    • • 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor



    • • Flexible Integrated I/O Shield



    • • Ultrafast Connectivity



    • • 2.5G LAN, 802.11be Wi-Fi 7 Module



    • • EZ Update



    • • BIOS Flashback Button



    • • ASRock Auto Driver Installer



    • • EZ Troubleshooter



    • • ASRock Post Status Checker



• • CPU: Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

• • Chipset: AMD X870

• • Memory
    • • Dual Channel DDR5 Memory Technology



    • • 4 x DDR5 DIMM Slots



    • • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)



    • • Max. capacity of system memory: 256GB



    • • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules



• • BIOS: 512Mb AMI UEFI Legal BIOS with GUI support

• Graphics
  • • Integrated AMD RDNA graphics (Actual support may vary by CPU)



  • • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz



  • • 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz





• Audio
  • • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)



  • • Nahimic Audio





• LAN
  • • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s



  • • Dragon RTL8125BG



  • • Supports Dragon 2.5G LAN Software



  • • Smart Auto Adjust Bandwidth Control



  • • Visual User Friendly UI



  • • Visual Network Usage Statistics



  • • Optimized Default Setting for Game, Browser, and Streaming Modes



  • • User Customized Priority Control





• Wireless LAN
  • • 802.11be 2×2 Wi-Fi 7 Module



  • • Supports IEEE 802.11a/b/g/n/ac/ax/be



  • • Supports 2.4GHz/5GHz/6GHz frequency band



  • • Supports 160MHz channel bandwidth with 6GHz frequency band



  • • 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology



  • • Supports Bluetooth 5.4



  • • Supports MU-MIMO





• Slots
  • • CPU:



  • • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode



  • • 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode



  • • Chipset:



  • • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x1 mode



  • • 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode



  • • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module



  • • Supports AMD CrossFire





• Storage
  • • CPU:



  • • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode



  • • Chipset:



  • • 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes



  • • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode



  • • 4 x SATA3 6.0 Gb/s Connectors





• RAID
  • • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices



  • • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices





• USB
  • • CPU:



  • • 2 x USB4 Type-C (Rear)



  • • 2 x USB 3.2 Gen2 Type-A (Rear)



  • • Chipset:



  • • 1 x USB 3.2 Gen1 Type-C (Front)



  • • 5 x USB 3.2 Gen1 Type-A (1 Rear, 4 Front)



  • • 8 x USB 2.0 (4 Rear, 4 Front)





• Connector
  • • 1 x SPI TPM Header



  • • 1 x Power LED and Speaker Header



  • • 1 x RGB LED Header



  • • 3 x Addressable LED Headers

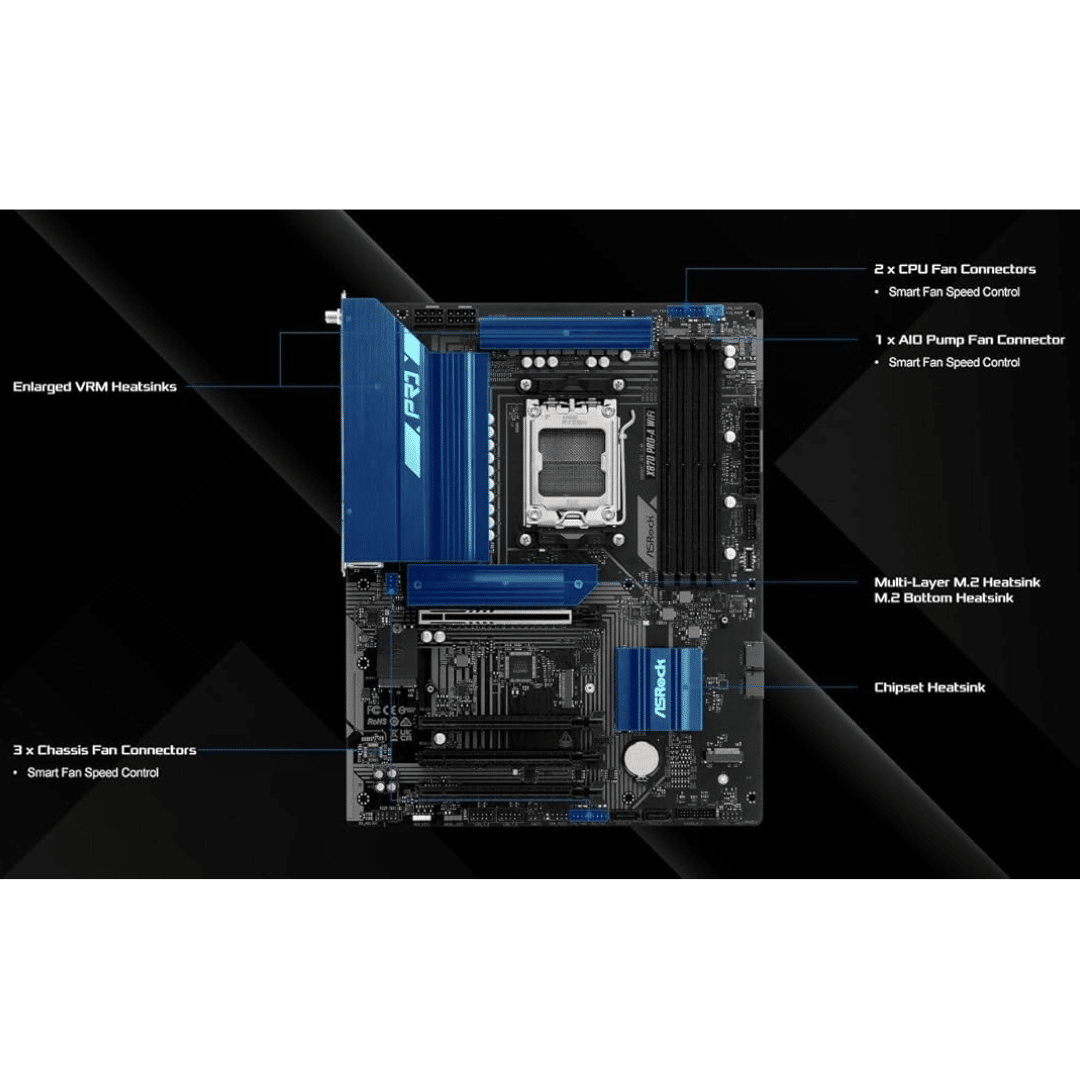

  • • 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)



  • • 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)



  • • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)



  • • 1 x 24 pin ATX Power Connector



  • • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)



  • • 1 x Front Panel Audio Connector



  • • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)



  • • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)



  • • 1 x Front Panel Type C USB 3.2 Gen1 Header

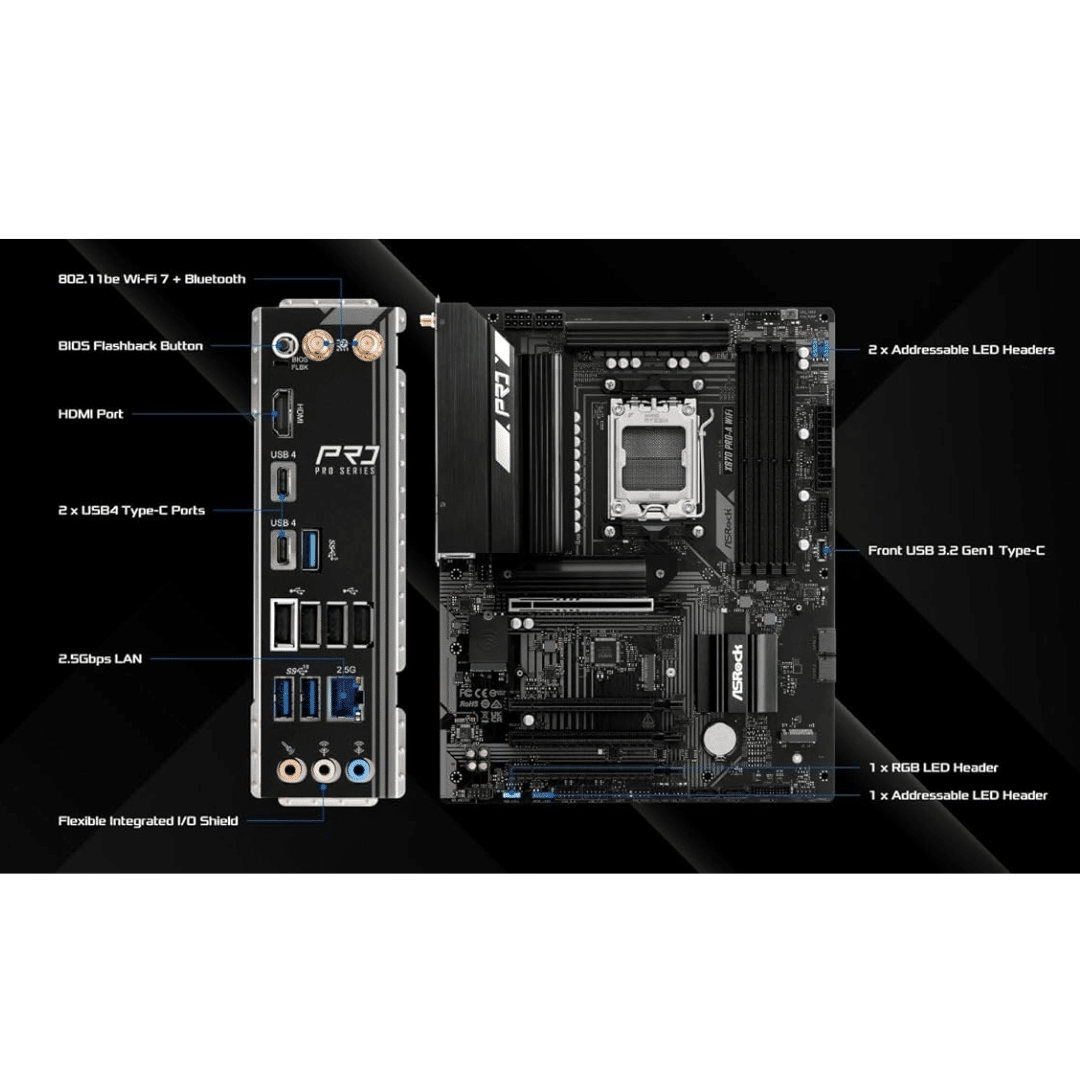

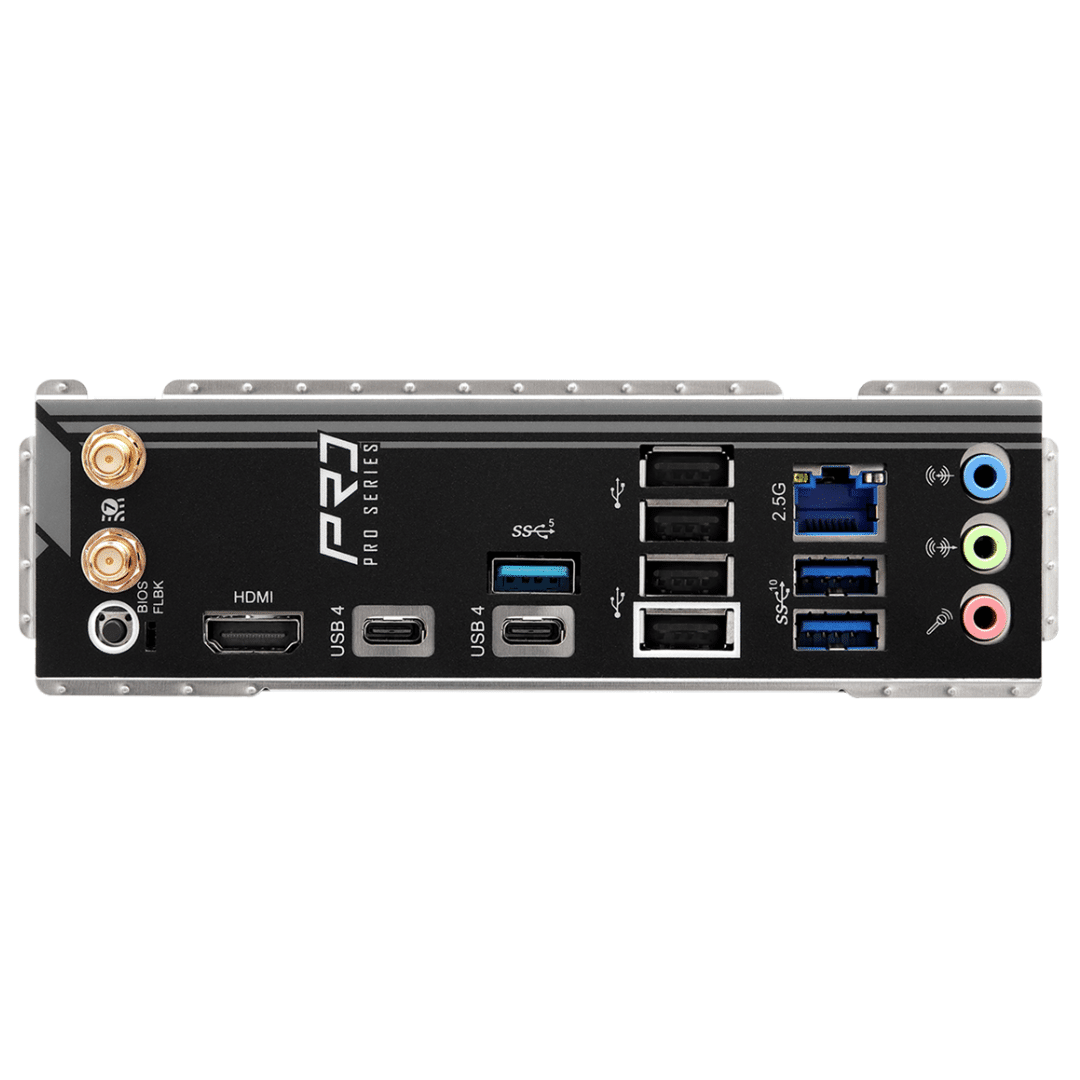

• Rear Panel I/O
  • • 2 x Antenna Ports



  • • 1 x HDMI Port

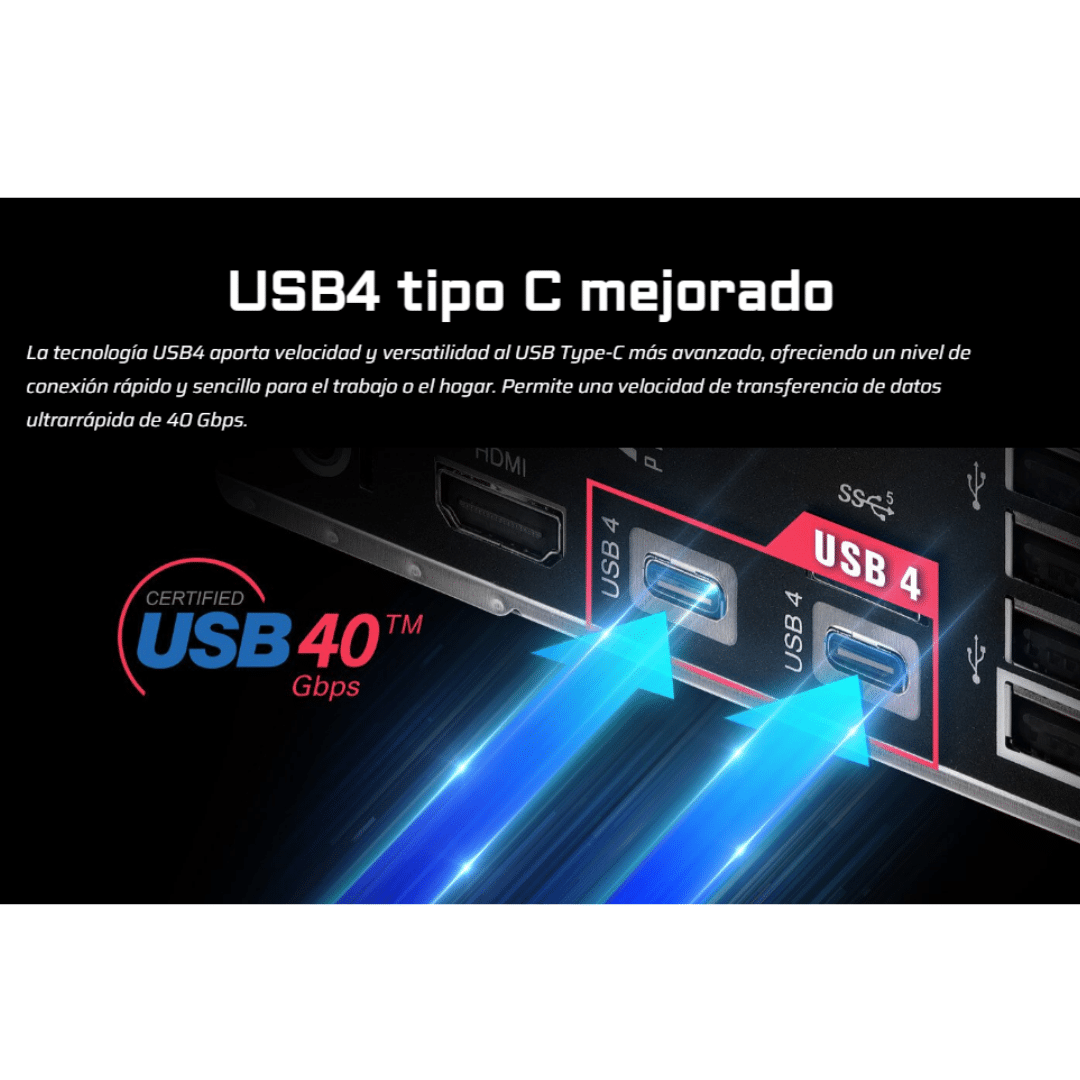

  • • 2 x USB4 Type-C Ports (40 Gb/s)



  • • 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)



  • • 1 x USB 3.2 Gen1 Type-A Port



  • • 4 x USB 2.0 Ports



  • • 1 x RJ-45 LAN Port



  • • 1 x BIOS Flashback Button



  • • HD Audio Jacks: Line in / Front Speaker / Microphone





• Software and UEFI
  • • Software:



  • • ASRock Motherboard Utility (A-Tuning)



  • • ASRock Dragon 2.5G LAN Software



  • • ASRock Polychrome SYNC



  • • UEFI:



  • • ASRock EZ Mode



  • • ASRock Full HD UEFI



  • • ASRock Auto Driver Installer



  • • ASRock Instant Flash





• Accessories
  • • 2 x SATA Data Cables



  • • 2 x ASRock WiFi 2.4/5/6 GHz Antennas



  • • 1 x ARGB Splitter Cable





• Form Factor
  • • ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

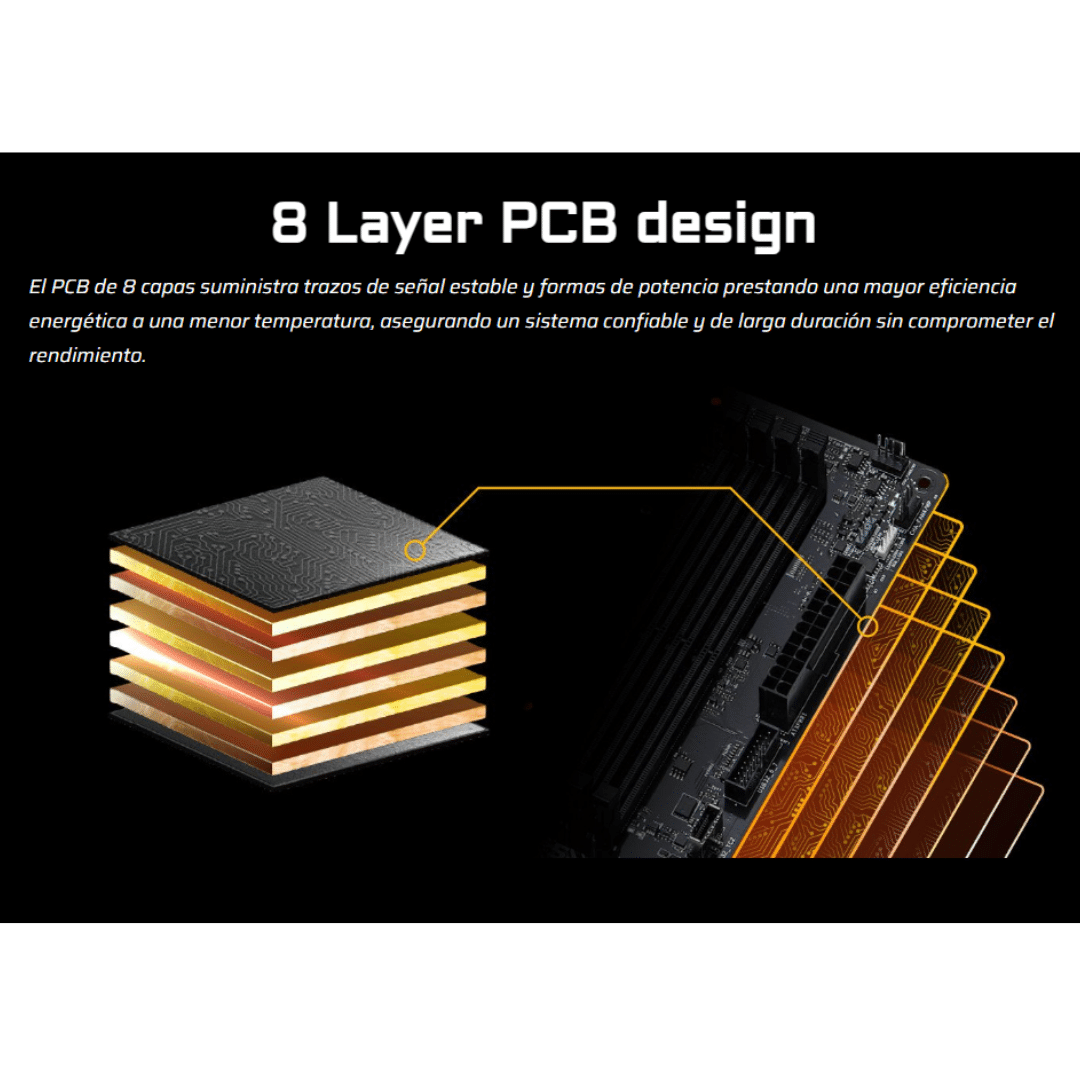

  • • 8 Layer PCB



•
• OS: Microsoft Windows 10 64-bit / 11 64-bit
•
• Certifications
  • • FCC, CE



  • • ErP/EuP ready (ErP/EuP ready power supply is required)



  • • CEC Tier II ready
