• AI-poweredYes
• Chipset ManufacturerIntel
• Chipset ModelQ870
• Total Processor Supported1
• Processor SocketSocket LGA-1851
• Processor SupportedCore Ultra
• Number of Memory Slots4
• Memory Form Factor
  • DIMM
  • UDIMM
• Maximum Memory Supported256 GB
• Memory TechnologyDDR5 SDRAM
• Controller TypeSerial ATA/600
• RAID SupportedYes
• RAID Levels
  • 0
  • 1
  • 5
  • 10
• Onboard VideoCPU Dependent Video
• Audio Channels7.1
• Gigabit EthernetYes
• Total Number of Expansion Slots3
• PCI Express Standard
  • PCI Express 4.0
  • PCI Express 5.0
• Total Number of PCI Express Slots3
• Number of PCI Express x1 Slots1
• Number of PCI Express x16 Slots2
• Total Number of USB Ports6
• HDMIYes
• HDMI Version2.1
• DisplayPortYes
• Number of Network (RJ-45) Ports1
• Number of SATA Interfaces4
• Number of M.2 Interfaces2
• Total Number of Onboard USB Ports7
• Number of Onboard USB 2.0 Ports4
• Form FactorMicro ATX
• Width9.6″
• Depth9.6″
• Brand CompatibilityIntel
• Environmental ComplianceRestriction of Hazardous Substances (RoHS)

General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: PRO Q870M-C-CSM
Manufacturer Website Address: http://usa.asus.com
Brand Name: Asus
Product Line: Pro
Product Model: PRO Q870M-C-CSM

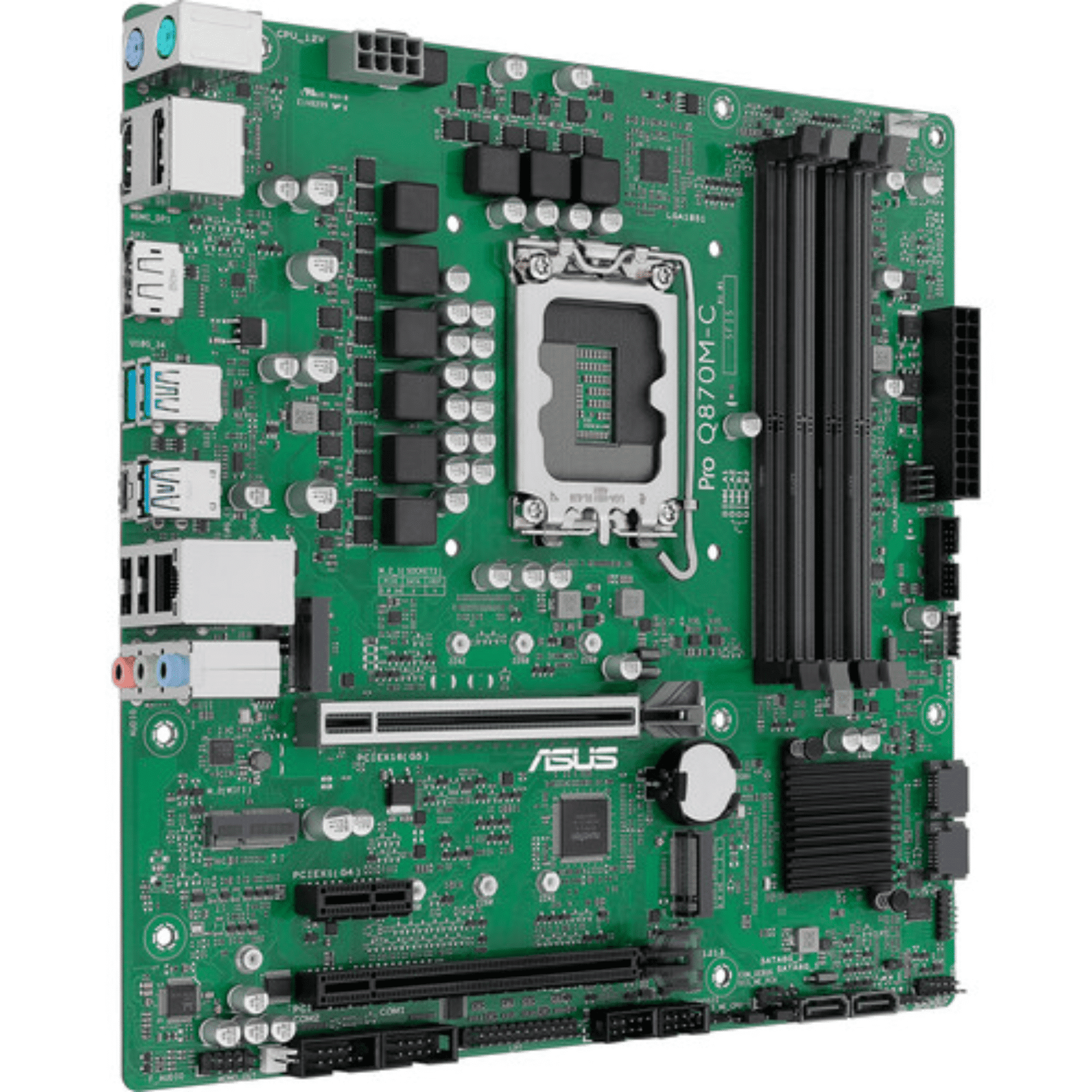

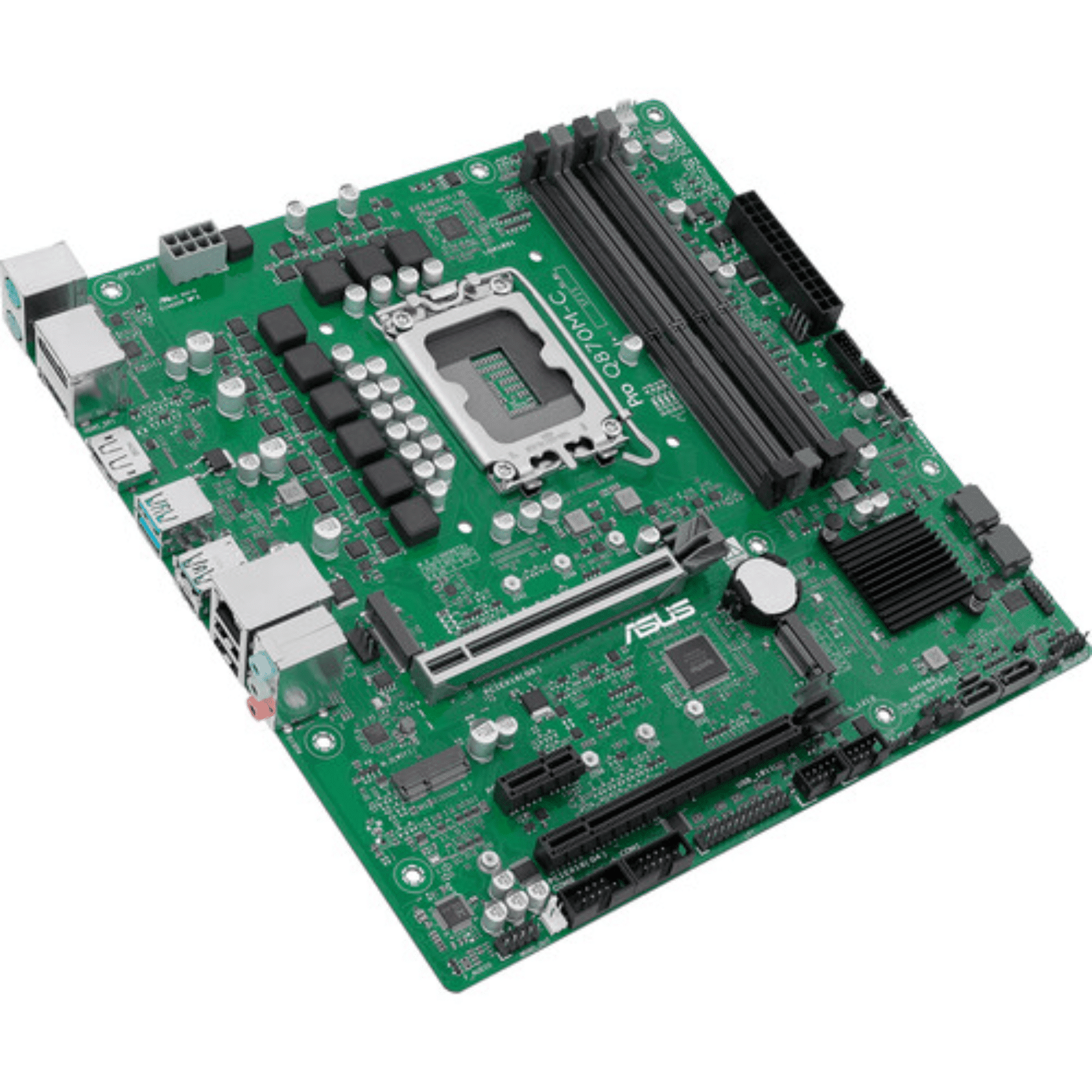

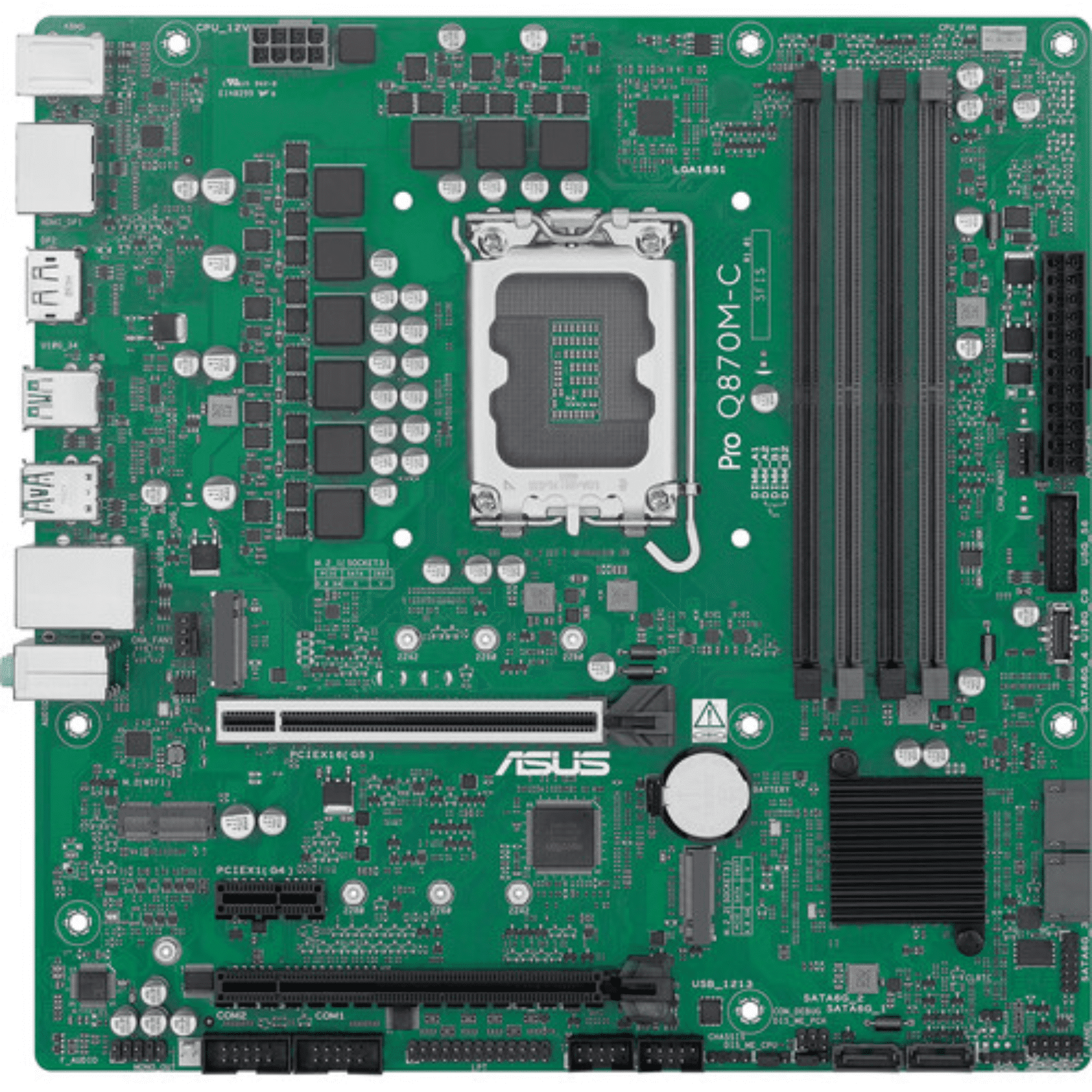

Product Name: PRO Q870M-C-CSM Desktop Motherboard
Marketing Information:

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world’s biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express

DDR5 Support

This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.

PCIe 5.0 SafeSlot

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.

PCIe M.2 5.0

PCIe M.2 5.0 supports data-transfer speeds of up to 128Gbps .This enables quicker boot-up and app load times with OS or application drives.

Product Type: Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Q870
Total Processor Supported: 1
Processor Socket: Socket LGA-1851
Processor Supported: Core Ultra
Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 256 GB
Memory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 3
PCI Express Standard:

• PCI Express 4.0
• PCI Express 5.0

Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2

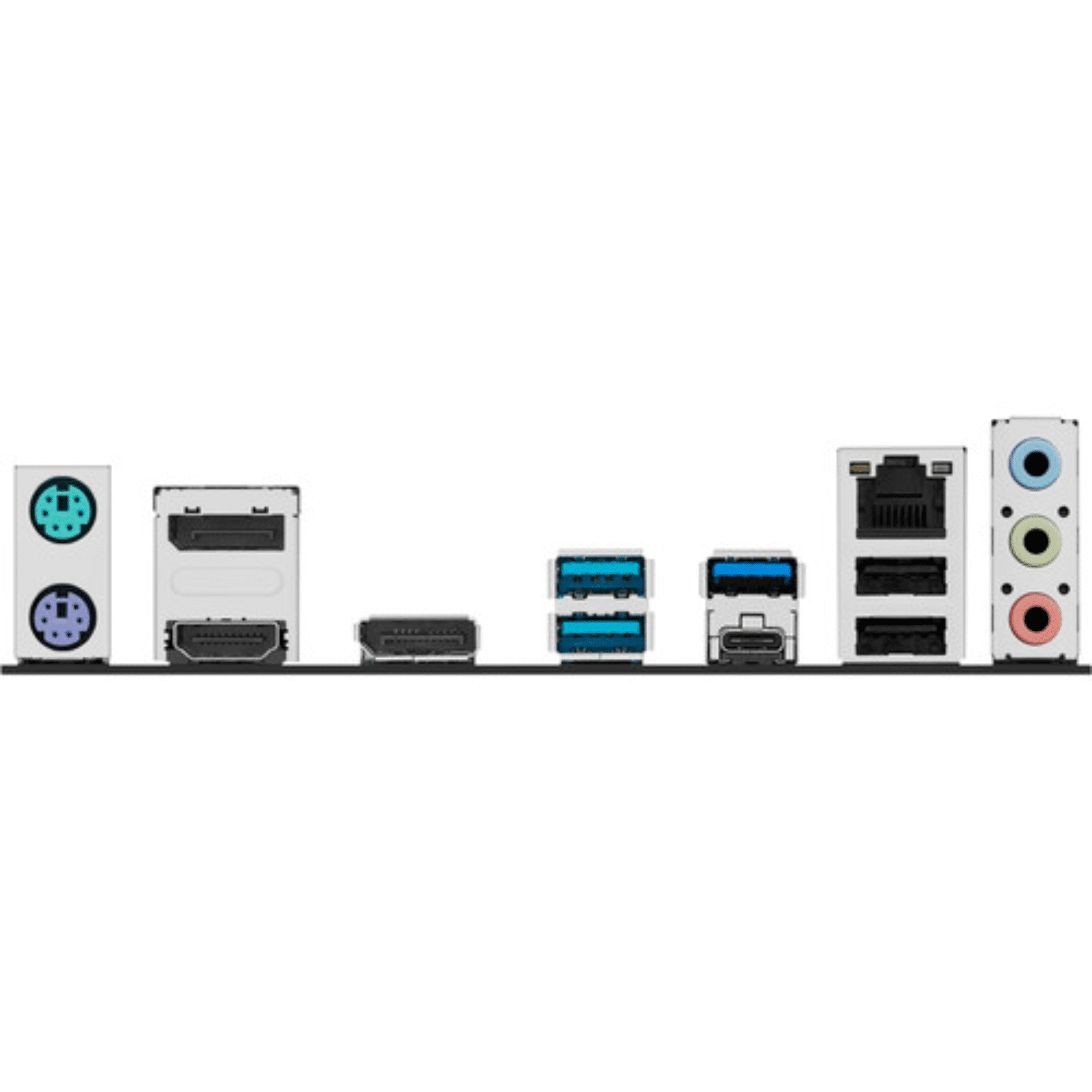

Interfaces/Ports
Total Number of USB Ports: 6
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: Micro ATX
Width: 9.6″
Depth: 9.6″
Miscellaneous
Brand Compatibility: Intel
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
