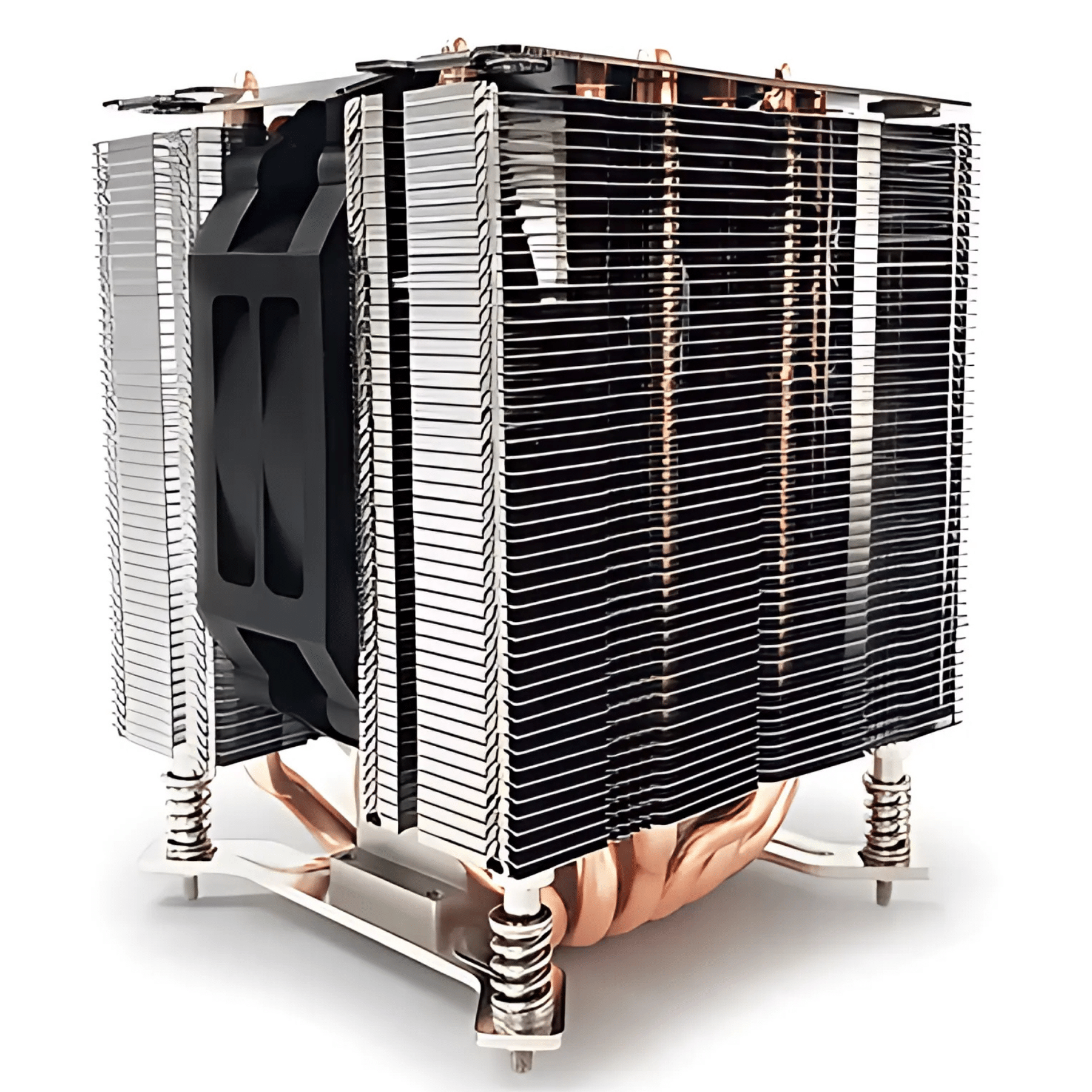

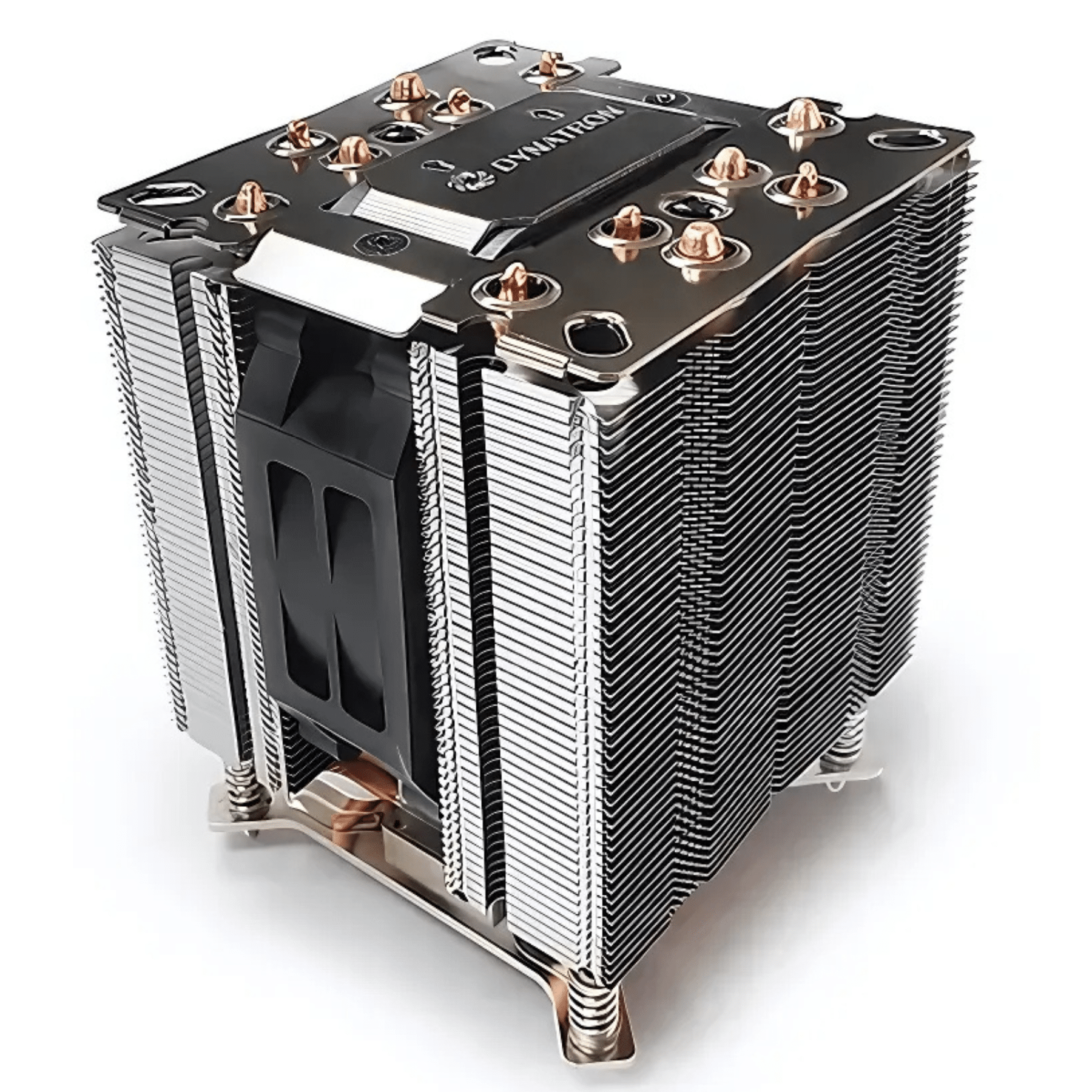

Dynatron Q11P Intel Core 12th -15th Gen Socket FCLGA1851/1700 4U Active Cooler

Descripci車n Corta IDC-MAYORISTA:

• CPU Support: Intel Core 12th -15th Gen
• CPU Socket: Socket FCLGA1851/1700
• Screw Type: M3
• Installation Torque: 5-7 in-lb
• Material: Heatpipes with Aluminum Base and Aluminum Fin Stack
• Solution: 4U Server and Up
• Rated Voltage: 12V
• Bearing: 2 Ball Bearing
• Speed

  • At Duty Cycle 0~20%: 1600 +/- 200 RPM
  • At Duty Cycle 50%: 2300 +/- 10% RPM
  • At Duty Cycle 100%: 3800 +/-10% RPM

• Power

  • At Duty Cycle 0~20%: 0.10 W
  • At Duty Cycle 50%: 0.59 W
  • At Duty Cycle 100%: 4.15 W

• Air Flow

  • At Duty Cycle 0~20%: 30.64 CFM
  • At Duty Cycle 50%: 25.26 CFM
  • At Duty Cycle 100%: 35.03 CFM

• Air Pressure

  • At Duty Cycle 0~20%: 1.66 mm-H2O
  • At Duty Cycle 50%: 3.20 mm-H2O
  • At Duty Cycle 100%: 8.61 mm-H2O

• Acoustical Noise

  • At Duty Cycle 0~20%: 18.6 dBA
  • At Duty Cycle 50%: 29.8 dBA
  • At Duty Cycle 100%: 41.4 dBA

• Lead Wire Pin Out

  • Pin1- (-)
  • Pin2- (+)
  • Pin3- (Tachometer/Signal output)
  • Pin4- (PWM)

• Life – Continuous operating under normal temperature (40 °C or 104 °F): 70,000 Hours
• Dimensions: 95 x 95.0 x 130 mm
• Fan Dimension: 103 x 103 x 30 mm
• Weight: 710 g
