• Chipset ManufacturerAMD
• Chipset ModelB650
• Total Processor Supported1
• Processor SocketSocket AM5
• Processor SupportedRyzen
• Number of Memory Slots4
• Memory Form Factor
  • DIMM
  • UDIMM
• Maximum Memory Supported128 GB
• Memory TechnologyDDR5 SDRAM
• Memory Speed Supported
  • 6666 MHz
  • 6600 MHz
  • 6400 MHz
  • 6200 MHz
  • 6000 MHz
  • 5600 MHz
  • 5200 MHz
  • 4800 MHz
  • 4400 MHz
• Controller TypeSerial ATA/600
• RAID SupportedYes
• RAID Levels
  • 0
  • 10
  • 1
• Onboard VideoCPU Dependent Video
• Audio Channels7.1
• BluetoothYes
• Bluetooth StandardBluetooth 5.2
• Gigabit EthernetYes
• 2.5Gigabit EthernetYes
• Wireless LANYes
• Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
• Total Number of Expansion Slots3
• PCI Express Standard
  • PCI Express 3.0
  • PCI Express 4.0
• Total Number of PCI Express Slots3
• Number of PCI Express x16 Slots3
• Total Number of USB Ports12
• Number of USB 2.0 Ports4
• Number of USB 3.2 Gen 1 Ports5
• Number of USB 3.2 Gen 2 Type-A Ports2
• HDMIYes
• HDMI Version2.1
• DisplayPortYes
• Number of Network (RJ-45) Ports1
• Number of SATA Interfaces4
• Number of M.2 Interfaces2
• Total Number of Onboard USB Ports7
• Number of Onboard USB 2.0 Ports4
• Form FactorATX
• Width12″
• Depth9.6″

Twin Digital VRM Design

PCIe 5.0 Design

EXPO & XMP Support

OC GUIDE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B650
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen
Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 6666 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5600 MHz
• 5200 MHz
• 4800 MHz
• 4400 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 10
• 1

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 3
PCI Express Standard:

• PCI Express 3.0
• PCI Express 4.0

Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3

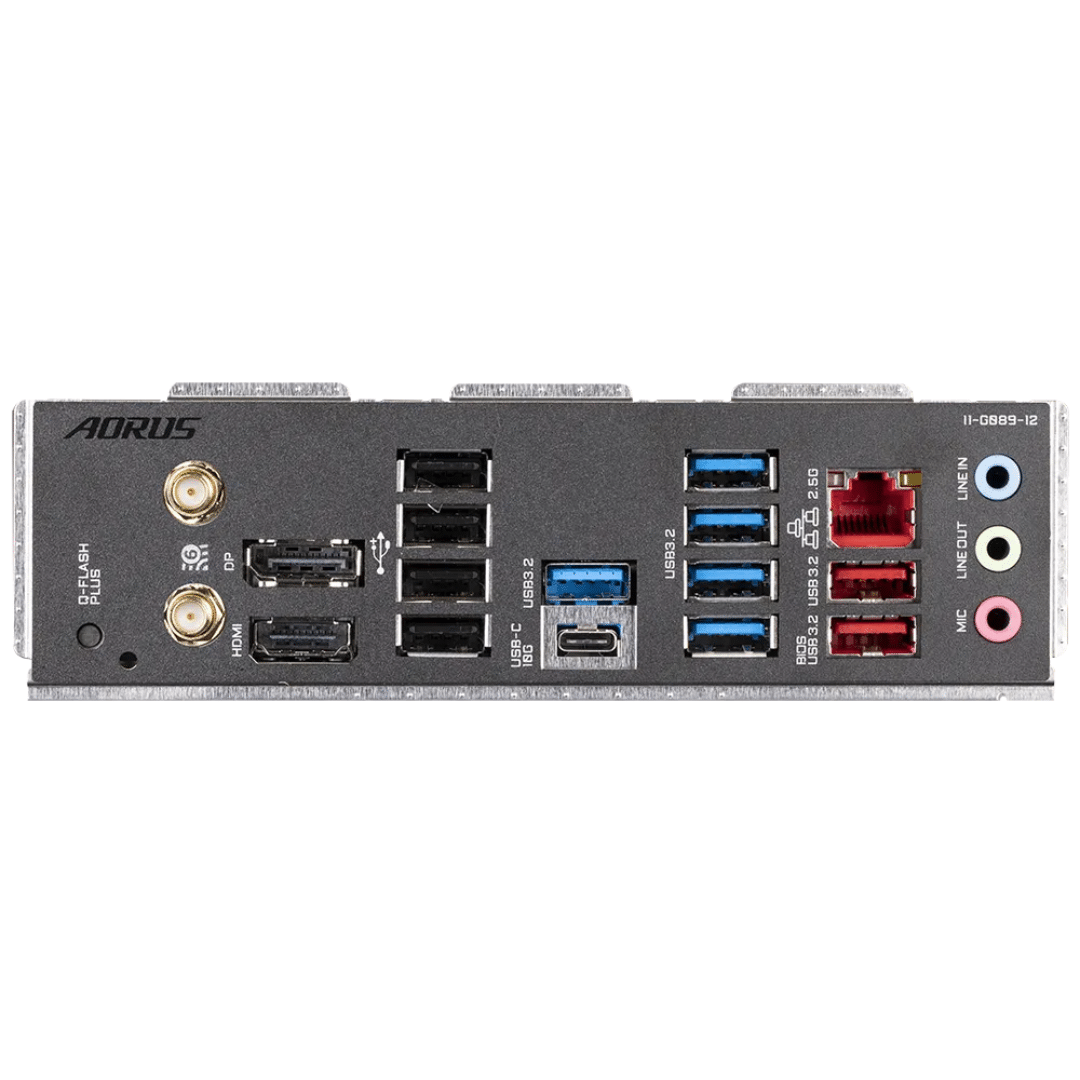

Interfaces/Ports
Total Number of USB Ports: 12
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Ports: 5
Number of USB 3.2 Gen 2 Type-A Ports: 2
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 12″
Depth: 9.6″
