GIGABYTE MZ73-LM2 Motherboard – AMD EPYC 9005/9004 – E-ATX DP PCIe Gen5 cTDP 500W Socket SP5 DDR5 M.2

Descripci車n Corta IDC-MAYORISTA:

• • Form Factor (WxD, mm): E-ATX 304.8 x 335.2

• CPU
  • • AMD EPYC 9005 Series Processors



  • • AMD EPYC 9004 Series Processors



  • • Dual processor, cTDP up to 500W





• Socket
  • • 2 x LGA 6096



  • • Socket SP5



•
• Chipset: System on Chip
•
• Memory
  • • 24 x DIMM slots



  • • DDR5 memory supported



  • • 12-Channel memory per processor



  • • AMD EPYC 9005: RDIMM: Up to 6400 MT/s



  • • AMD EPYC 9004: RDIMM: Up to 4800 MT/s





• LAN
  • • 2 x 10Gb/s LAN (1 x Broadcom BCM57416)



  • • Support NCSI function



  • • 1 x 10/100/1000 Mbps Management LAN





• Video
  • • Integrated in ASPEED AST2600



  • • 1 x VGA port





• Storage Interface
  • • MCIO: 2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA, from CPU_1



  • • SlimSAS: 1 x SlimSAS 4i for 4 x SATA, from CPU_0



  • • M.2: 1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0





• PCIe Expansion Slots
  • • Slot_4: PCIe x16 (Gen5 x16), from CPU_0



  • • Slot_3: PCIe x16 (Gen5 x16), from CPU_0



  • • Slot_2: PCIe x16 (Gen5 x16), from CPU_1



  • • Slot_1: PCIe x16 (Gen5 x16), from CPU_1



  • • 2 x MCIO 8i (PCIe Gen5 x8 or SATA), from CPU_1





• Internal I/O
  • • 1 x 24-pin ATX main power connector



  • • 2 x 8-pin ATX 12V power connectors



  • • 3 x 6-pin ATX 12V power connectors



  • • 2 x CPU fan headers (4pin)



  • • 2 x CPU fan headers (3pin)



  • • 4 x System fan headers



  • • 1 x USB 3.2 Gen1 x2 header



  • • 1 x M.2 slot



  • • 2 x MCIO 8i connectors



  • • 1 x SlimSAS 4i connector



  • • 1 x Front panel header



  • • 1 x Backplane board header



  • • 1 x PMBus connector



  • • 1 x IPMB connector



  • • 1 x TPM header

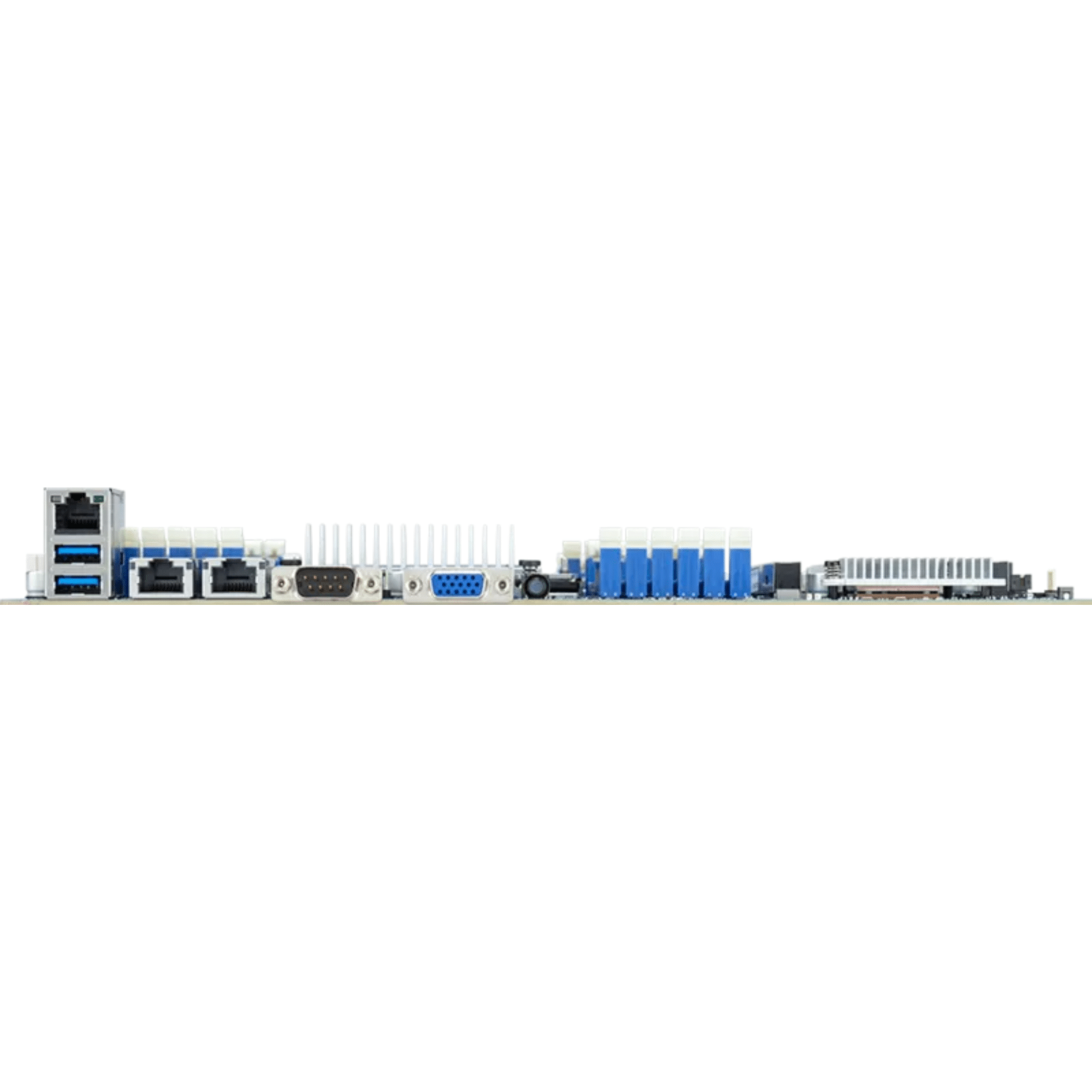

• Rear I/O
  • • 2 x USB 3.2 Gen1 ports (Type-A)



  • • 1 x VGA port



  • • 1 x COM port



  • • 2 x RJ45 ports



  • • 1 x MLAN port



  • • 1 x ID button with LED



•
• Security Modules: 1 x TPM header with SPI interface
•
• Board Management
  • • ASPEED AST2600 Baseboard Management Controller



  • • GIGABYTE Management Console web interface



  • • Dashboard



  • • HTML5 KVM



  • • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)



  • • Sensor Reading History Data



  • • FRU Information



  • • SEL Log in Linear Storage / Circular Storage Policy



  • • Hardware Inventory



  • • Fan Profile



  • • System Firewall



  • • Power Consumption



  • • Power Control



  • • Advanced power capping



  • • LDAP / AD / RADIUS Support



  • • Backup & Restore Configuration



  • • Remote BIOS/BMC/CPLD Update



  • • Event Log Filter



  • • User Management



  • • Media Redirection Settings



  • • PAM Order Settings



  • • SSL Settings



  • • SMTP Settings





• PSU Connectors
  • • 1 x 24-pin ATX main power connector



  • • 2 x 8-pin ATX 12V power connectors



  • • 3 x 6-pin ATX 12V power connectors





• Operating Properties
  • • Operating temperature: 10°C to 40°C



  • • Operating humidity: 8% to 80% (non-condensing)



  • • Non-operating temperature: -40°C to 60°C



  • • Non-operating humidity: 20% to 95% (non-condensing)





• Retail Packaging Content
  • • 1 x MZ73-LM2



  • • 1 x I/O shield



  • • 1 x Quick start guide



  • • 1 x SlimSAS 4i to 4 x SATA cable (600mm)



  • • Single Box dimensions: 409 x 355 x 78 mm
