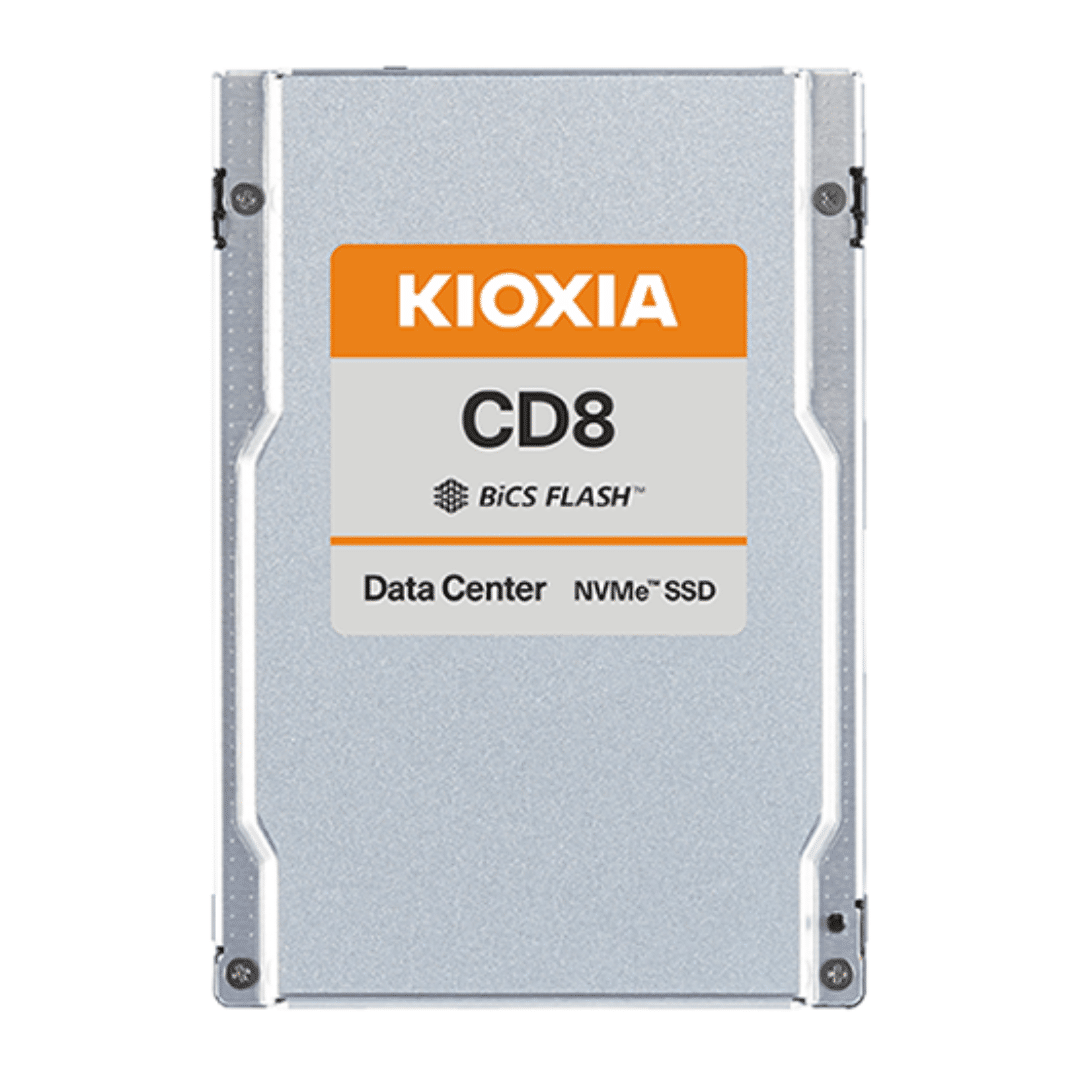

KIOXIA CD8-R Series (2.5-inch) KCD8DRUG1T92 1,920 GB PCIe 4.0 SED SSD

Descripci車n Corta IDC-MAYORISTA:

• Key Features

  • PCIe 4.0, NVMe 1.4 specification compliant
  • Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)
  • Form factor: 2.5-inch, 15mm thickness
  • Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH 3D TLC
  • Single-port design, optimized for data center class workloads
  • Consistent performance and reliability for demanding 24×7 environments
  • Designed for high-density storage deployments
  • Power loss protection (PLP) and end-to-end data correction
  • Security options: SIE, SED

• Capacity: 1,920 GB
• Basic Specifications

  • Form Factor: 2.5-inch, 15mm thickness
  • lnterface: PCIe 4.0, NVMe 1.4
  • Maximum Interface Speed: 64 GT/s (PCIe Gen4 x4)
  • Flash Memory Type: BiCS FLASH TLC

• Performance (Up to)

  • Sustained 128 KiB Sequential Read: 7,200 MB/s
  • Sustained 128 KiB Sequential Write: 3,500 MB/s
  • Sustained 4 KiB Random Read: 1,250K IOPS
  • Sustained 4 KiB Random Write: 150K IOPS

• Power Requirements

  • Supply Voltage: 12 V +/- 10 %, 3.3 V +/- 15 %
  • Power Consumption (Active): 13 W typ.
  • Power Consumption (Ready): 5 W typ.

• Reliability

  • MTTF: 2,500,000 hours
  • DWPD: 1

• Dimensions

  • Thickness: 15 mm +0 / -0.5 mm
  • Width: 69.85 mm +/- 0.25 mm
  • Length: 100.45 mm Max
  • Weight: 130 g Max

• Environmental

  • Temperature (Operating): 0 °C to 75 °C
  • Temperature (Non-operating): -40 °C to 85 °C
  • Humidity (Operating): 5 % to 95 % R.H.
  • Vibration (Operating): 21.27 m/s^2 (2.17 Grms) (5 to 800 Hz)

• Shock (Operating): 9.8 km/s^2 (1,000 G) (0.5 ms)
