• Storage Capacity3.75 TB
• Features
  • Power Loss Protection (PLP)
  • End-to-end Data Protection
• Random 4KB Read1900000IOPS
• Random 4KB Write200000IOPS
• Endurance (DWPD)1
• Endurance TypeRead Intensive
• Maximum Sequential Read11.72 GB/s
• Maximum Sequential Write5.37 GB/s
• Drive InterfacePCI Express NVMe
• Drive Interface StandardPCI Express 5.0 x4
• Drive TypeInternal
• Form Factor2.5″
• Height0.6″
• Width2.8″
• Length4″
• Weight (Approximate)4.59 oz
• Device Supported
  • Data Center
  • Server
  • Workstation
• Limited Warranty5 Year

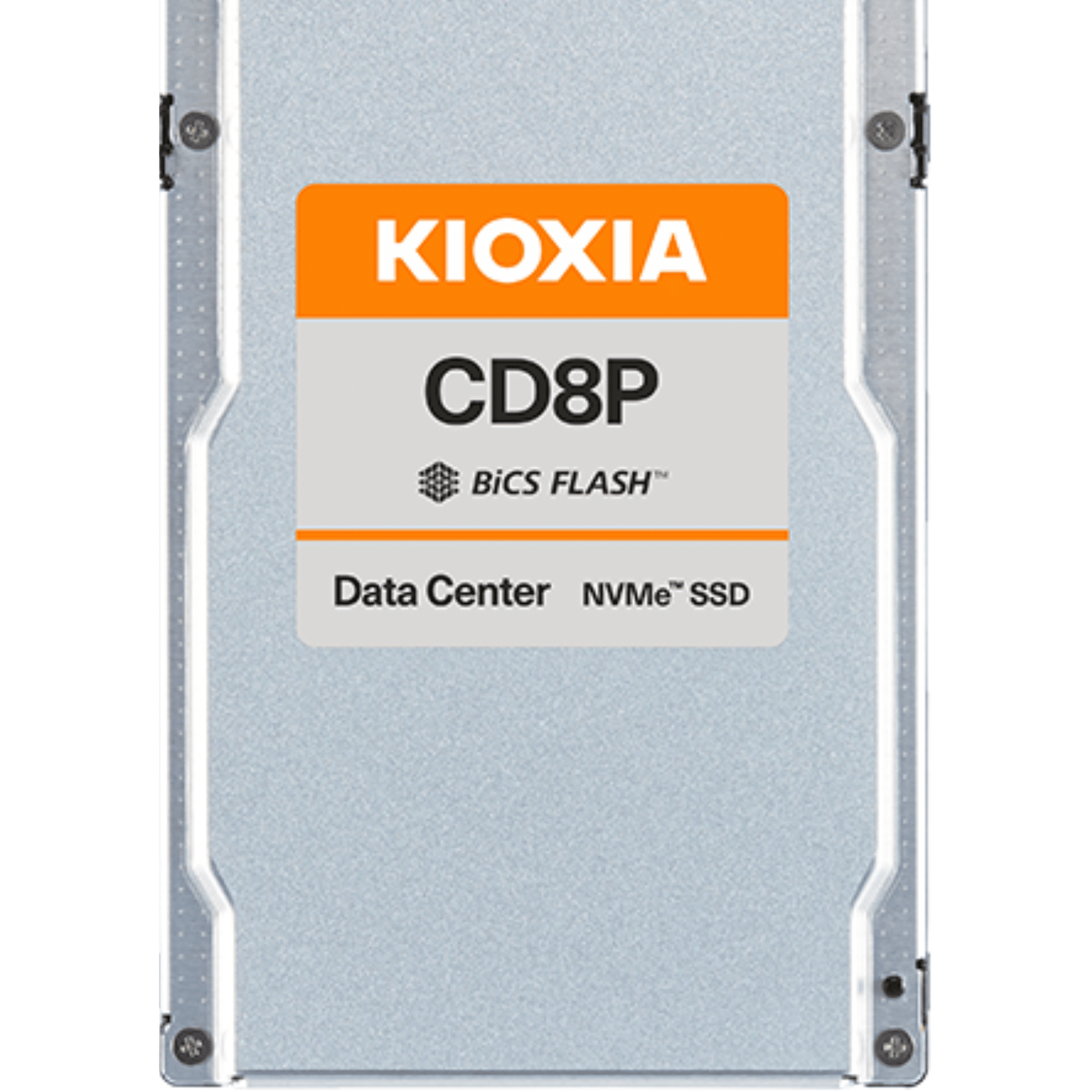

KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe^®5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe^®4.0 SSDs (KIOXIA CD8-R Series).

Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 30.72 TB, making them well-suited for hyperscale data center applications.

Key Features

• PCIe 5.0, NVMe™ 2.0 specification compliant
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15 mm thickness
• Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ generation 5 TLC flash memory
• Single-port design, optimized for data center class workloads
• Consistent performance and reliability for demanding 24×7 environments
• Designed for high-density storage deployments
• Power loss protection (PLP) and end-to-end data correction
• Security options: SIE, SED

Product Type: Solid State Drive
Technical Information
Storage Capacity: 3.75 TB
Features:

• Power Loss Protection (PLP)
• End-to-end Data Protection

Drive Performance
Random 4KB Read: 1900000IOPS
Random 4KB Write: 200000IOPS
Endurance (DWPD): 1
Endurance Type: Read Intensive
Maximum Sequential Read: 11.72 GB/s
Maximum Sequential Write: 5.37 GB/s
Interfaces/Ports
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCI Express 5.0 x4
Physical Characteristics
Drive Type: Internal
Form Factor: 2.5″
Height: 0.6″
Width: 2.8″
Length: 4″
Weight (Approximate): 4.59 oz
Miscellaneous
Device Supported:

• Data Center
• Server
• Workstation

Warranty
Limited Warranty: 5 Year
