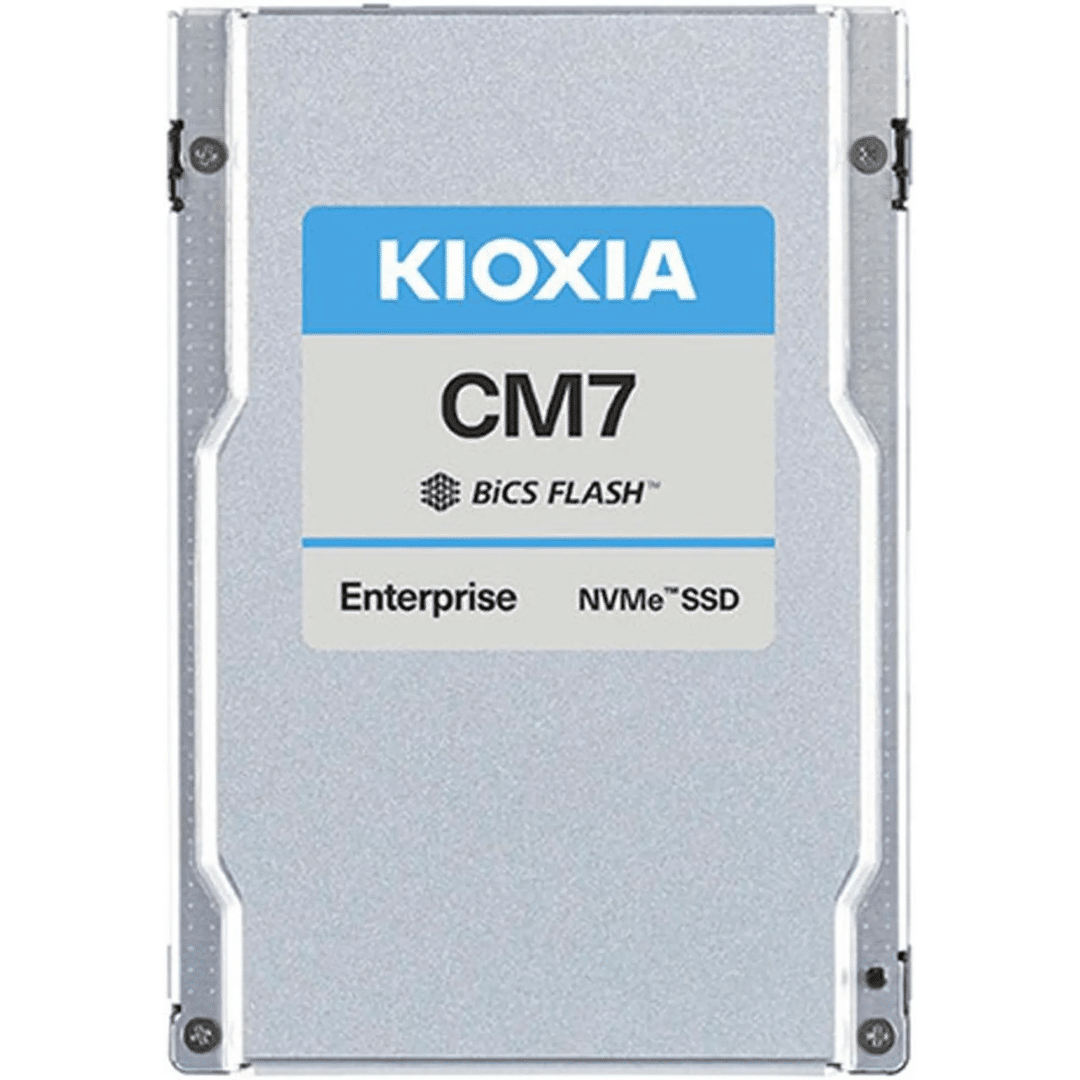

KIOXIA CM7-R Series KCMYDRUG1T92 1920 GB 2.5-inch PCIe 5.0 NVMe 2.0 SSD

Descripci車n Corta IDC-MAYORISTA:

• • Capacity: 1,920 GB

• Basic Specifications
  • • Form Factor: 2.5-inch, 15mm thickness



  • • lnterface: PCIe 5.0, NVMe 2.0



  • • Maximum Interface Speed: 128 GT/s (PCIe Gen5 single x4, dual x2)



  • • Flash Memory Type: BiCS FLASH TLC





• Performance in single port (1×4) mode (Up to)
  • • Sustained 128 KiB Sequential Read: 14,000 MB/s



  • • Sustained 128 KiB Sequential Write: 3,500 MB/s



  • • Sustained 4 KiB Random Read: 2,000K IOPS



  • • Sustained 4 KiB Random Write: 155K IOPS





• Power Requirements
  • • Supply Voltage: 12 V +/- 10 %, 3.3 V +/- 15 %



  • • Power Consumption (Active): 22 W typ.



  • • Power Consumption (Ready): 5 W typ.





• Reliability
  • • MTTF: 2,500,000 hours



  • • DWPD: 1





• Dimensions
  • • Thickness: 15.0 mm +0 / -0.5 mm



  • • Width: 69.85 mm +/- 0.25 mm



  • • Length: 100.45 mm Max



  • • Weight: 130 g Max





• Environmental
  • • Temperature (Operating): 0 °C to 76 °C



  • • Temperature (Non-operating): -40 °C to 85 °C



  • • Humidity (Operating): 5 % to 95 % R.H.



  • • Vibration (Operating): 21.27 m/s^2 { 2.17 Grms } ( 5 to 800 Hz )



  • • Shock (Operating): 9.8 km/s^2 { 1,000 G } ( 0.5 ms )
