• Number of Screens1
• Screen Size Class31″
• Viewable Screen Size31″
• Screen SurfaceAnti-glare
• Panel TechnologyIn-plane Switching (IPS) Technology
• Response Time5 ms
• Response Time Details14 ms Off Mode
• Aspect Ratio3: 2
• Pixel Pitch0.15540 mm x 0.15540 mm
• Horizontal Viewing Angle178°
• Vertical Viewing Angle178°
• Maximum Adjustable Height4.33″
• Tilt Angle-5° to 15°
• Swivel Angle-15° to 15°
• Features
  • DICOM Compliant
  • Hardware Calibration
  • Integrated Front Sensor (IFS)
  • Brightness Uniformity Function
  • Pathology Mode
  • Focus View Mode
  • Picture by Picture
  • Flicker-free
  • Presence Sensor
  • Luminance Sensor
• Stand Adjustments
  • Height
  • Swivel
  • Tilt
• Glass Hardness3H
• Maximum Resolution4200 x 2800
• Native Contrast Ratio1,500:1
• Brightness1080 Nit
• Color Gamut97% sRGB
• USBYes
• DisplayPortYes
• Number of USB Ports4
• Number of DisplayPorts2
• Built-in DevicesUSB Hub
• Input Voltage Range120V to 230V
• Operating Power Consumption180 W
• Frequency
  • 50 Hz
  • 60 Hz
• Maximum Power Consumption180 W
• Weight with Stand (Approximate)30.86 lb
• Environmentally FriendlyYes
• Environmental CertificationWEEE
• Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)

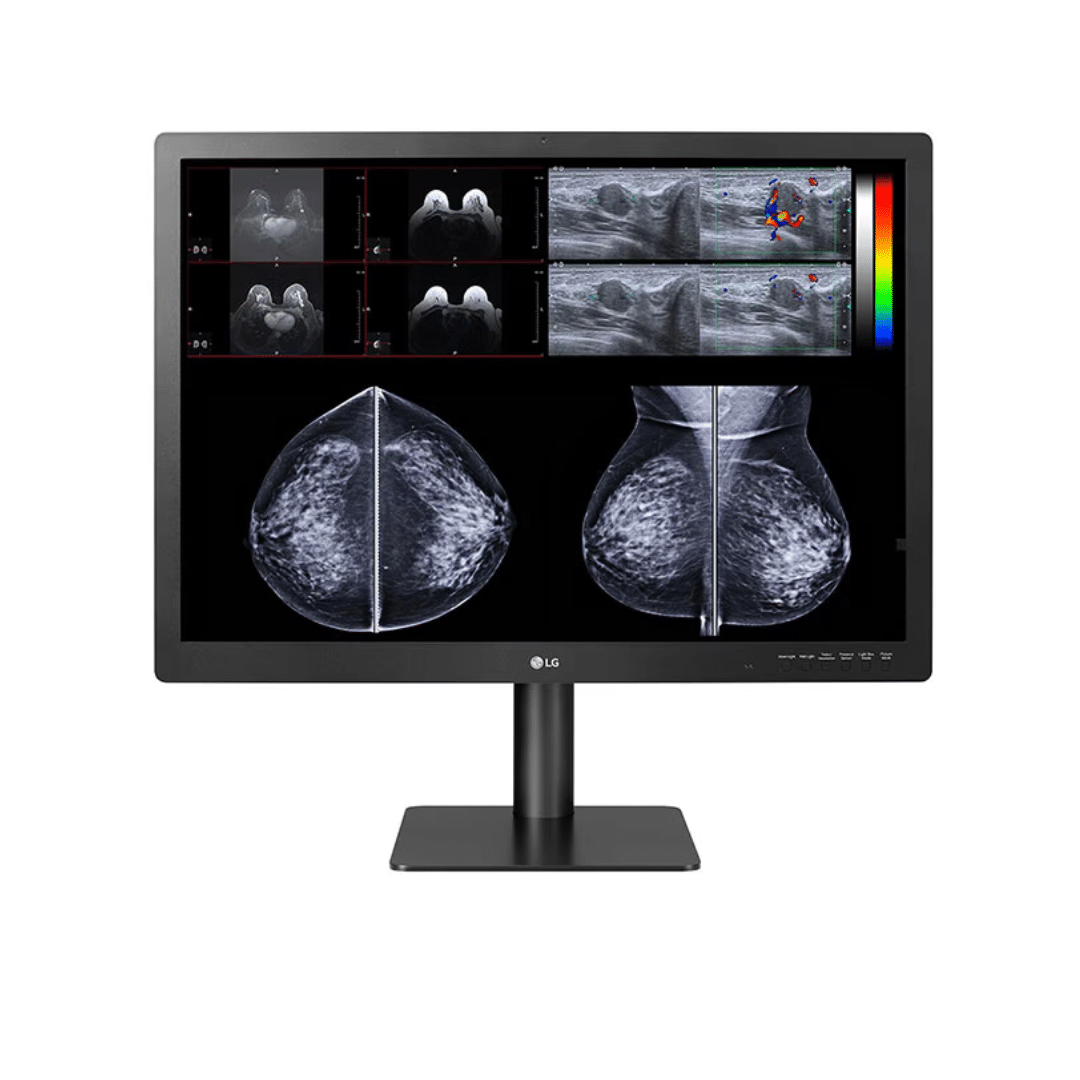

31-inch 12MP IPS Display | Designed for Mammography

The 12MP display creates a clear image that allows details to be visible.

Accuracy

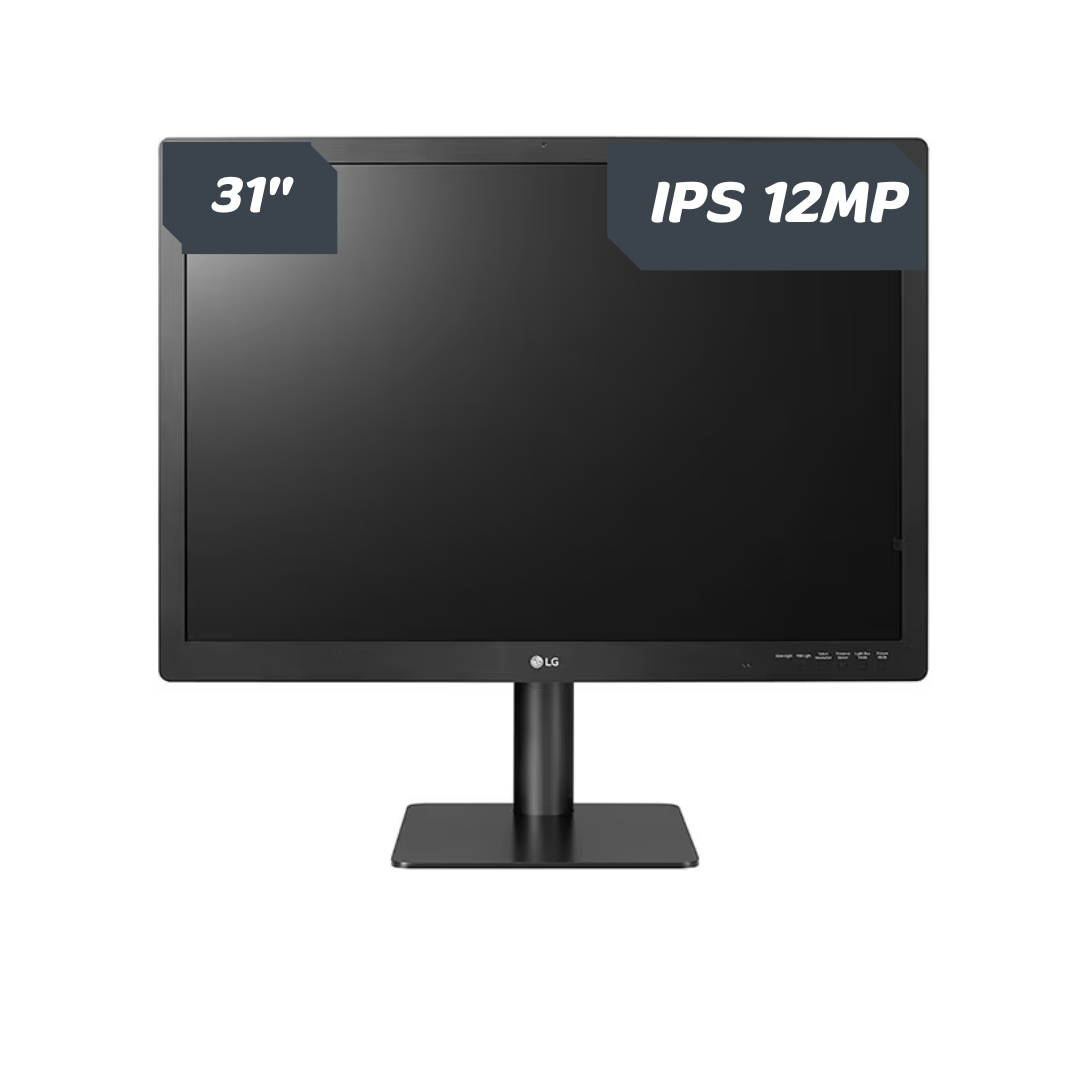

31-inch 12MP IPS Display
Self-calibration with Front Sensor

Efficiency

Focus View
Picture by Picture & Dual Controller

Convenience

6 Hot Key
Ergonomic Design

Accurate Imaging | Multi-resolution Mode | Multi-resolution Mode for Compatibility

Diagnostic monitors often need to be connected to various modalities, sometimes with differing resolutions. The 31HN73D-B has a multi-resolution mode you can adjust to optimize to the connected device.

Pathology Mode | Realistic Color Reproduction

In Pathology Mode, the 31HN713D-B Diagnostic Monitor reproduces virtually the same level of detail and color as seen directly under a microscope.

Self-calibration | Consistency in Medical Images

The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. Get quality and consistency of medical images that are displayed by maintaining accurate values.

Presence Sensor

The Presence Sensor on the 31HN713D-B diagnostic monitor automatically turns off the display when no motion is detected. Be more secure against exposing patient information and other sensitive data with this feature.

Auto Luminance Sensor

Auto Luminance sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by aging for a consistently stable display during the usage life.

Focus View | Fully Focus on the Important part

LG 31HN713D-B includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the important part of the image to help achieve a more accurate and efficient diagnosis.

Down Lighting & Wall Lighting | Optimal Reading Condition

Down and Wall Lighting Modes help reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.

6 Hot Keys | Intuitive Control

The 31HN713D-B’s 6 Hot Keys make changing between screen modes easy. The 6 Hot Keys are quick and easy to operate while working, allowing you to change mode, screen resolution, and lighting settings without disrupting your workflow.

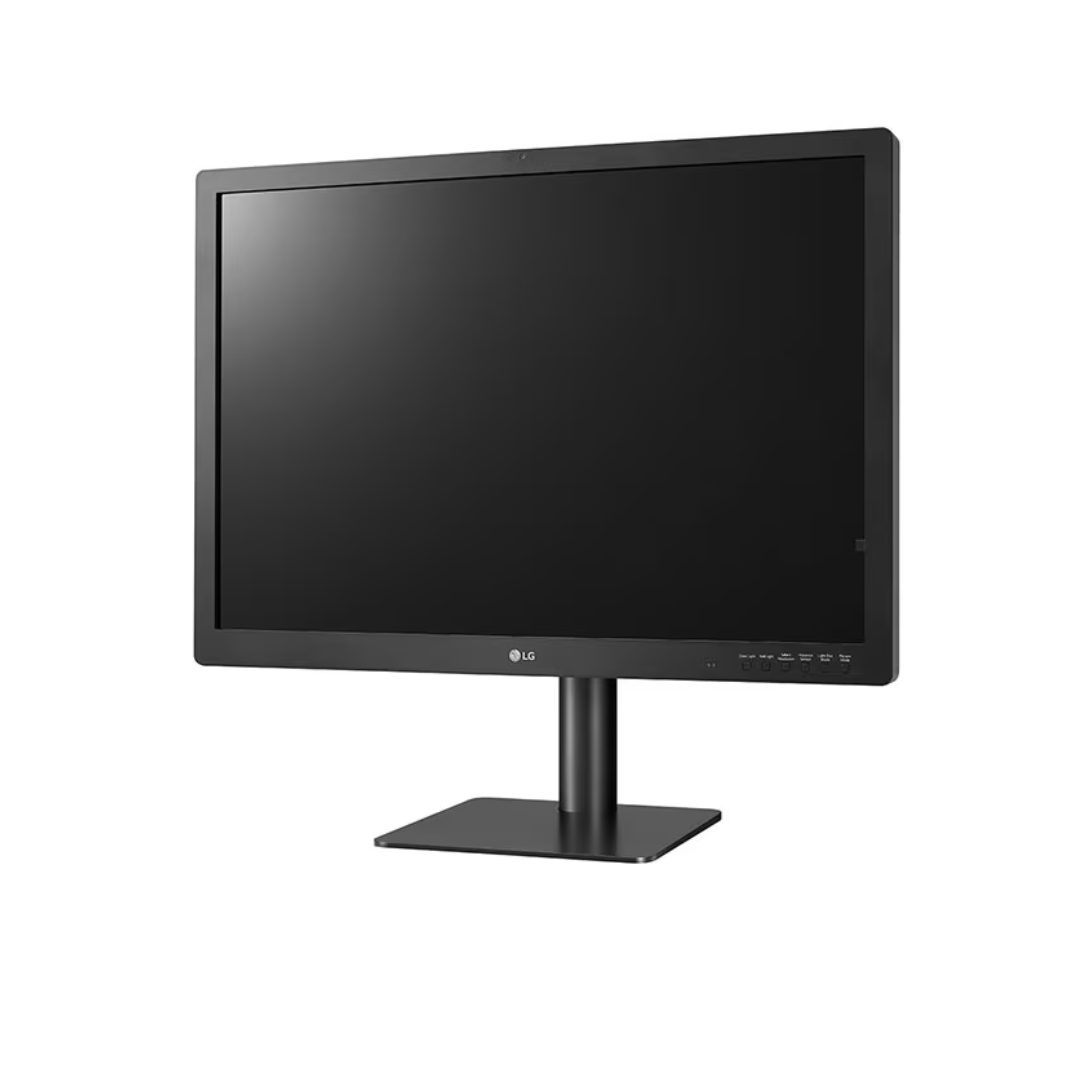

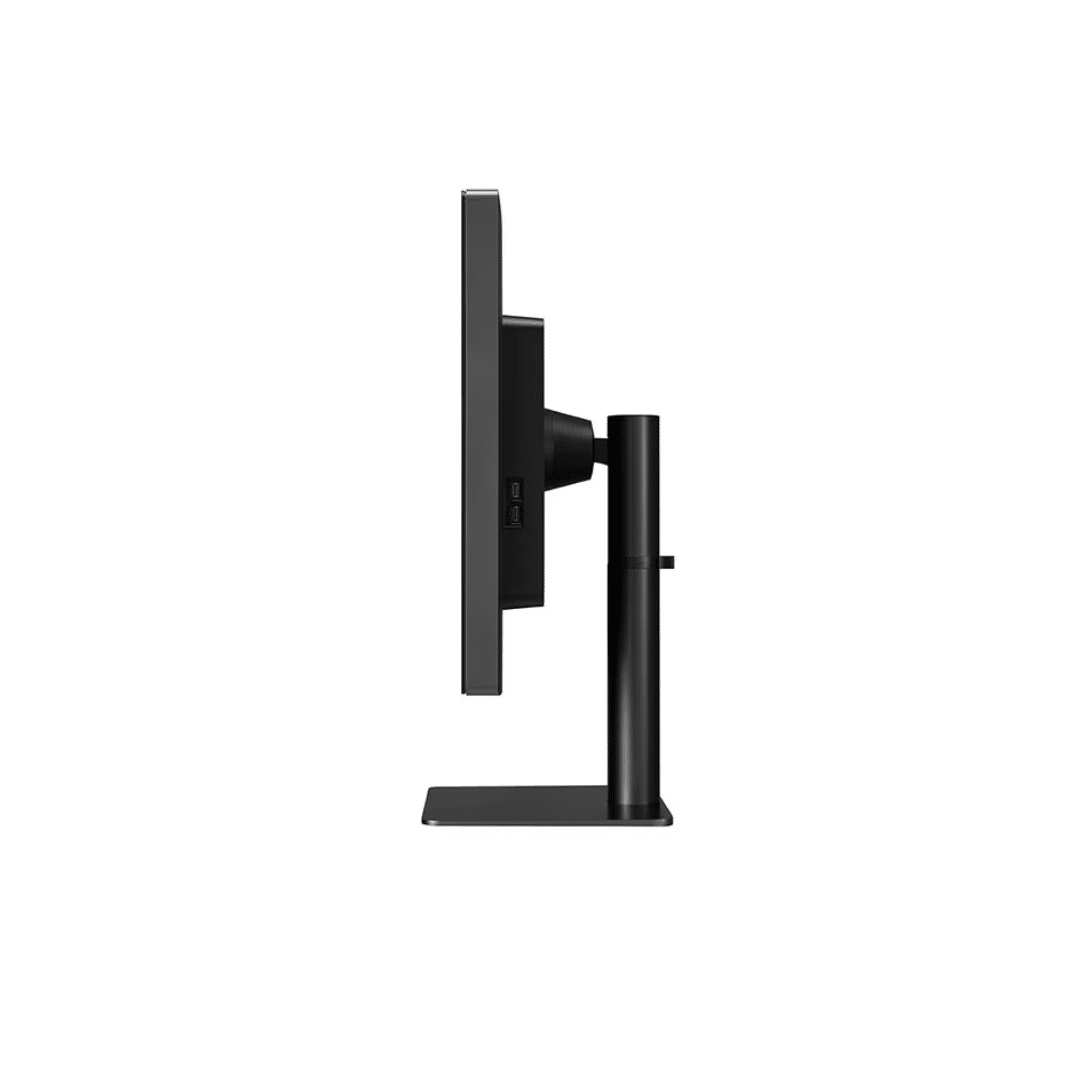

Easy to Install and Ergonomic Design

The One-Click Stand and ultra-lightweight body make installing the 31HN713D-B simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel.

Product Type: LCD Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 31″
Viewable Screen Size: 31″
Screen Surface: Anti-glare
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 5 ms
Response Time Details: 14 ms Off Mode
Aspect Ratio: 3:2
Pixel Pitch: 0.15540 mm x 0.15540 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Maximum Adjustable Height: 4.33″
Tilt Angle: -5° to 15°
Swivel Angle: -15° to 15°
Features:

• DICOM Compliant
• Hardware Calibration
• Integrated Front Sensor (IFS)
• Brightness Uniformity Function
• Pathology Mode
• Focus View Mode
• Picture by Picture
• Flicker-free
• Presence Sensor
• Luminance Sensor

Stand Adjustments:

• Height
• Swivel
• Tilt

Glass Hardness: 3H
Video
Maximum Resolution: 4200 x 2800
Native Contrast Ratio: 1,500:1
Brightness: 1080 Nit
Color Gamut: 97% sRGB
Interfaces/Ports
USB: Yes
DisplayPort: Yes
Number of USB Ports: 4
Number of DisplayPorts: 2
Built-in Devices
Built-in Devices: USB Hub
Power Description
Input Voltage Range: 120V to 230V
Operating Power Consumption: 180 W
Frequency:

• 50 Hz
• 60 Hz

Maximum Power Consumption: 180 W
Physical Characteristics
Weight with Stand (Approximate): 30.86 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: WEEE
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
