• Number of Fans1
• Fan Bearing TypeFluid Dynamic Bearing
• Fan Speed (Max)1600 rpm
• Maximum Airflow71.60 CFM
• Noise Levels (A-Weighted)28.6 dB(A)
• LED ColorARGB
• Maximum Air Pressure2.95mmH2O
• Rated Current130 mA
• Color FamilyBlack
• Product ColorBlack
• Product Material
  • Polybutylene Terephthalate (PBT)
  • Polycarbonate
  • Aluminum
• Maximum Fan Diameter5.51″
• Fan Height5.51″
• Fan Width5.59″
• Fan Depth0.98″
• Application/Usage
  • Case
  • PC
  • Motherboard
• Limited Warranty2 Year

General Information
Manufacturer: Lian Li Industrial Co., Ltd
Manufacturer Part Number: 14RSLIN1B
Manufacturer Website Address: http://www.lian-li.com
Brand Name: Lian Li
Product Line: UNI FAN SL-INF REVERSE BLADE
Product Model: 14RSLIN1B BALCK
Product Name: UNI FAN SL-INF 140 REVERSE BLADE
Marketing Information:

Infinity Mirror ARGB Fan

Introducing a new look to PC fans and a new level of installation simplicity and light effect customizability.

• Infinity Mirror
• Daisy-Chain Design
• Silence at High Fan Speed
• L-Connect 3 Software
• Start/ Stop Fan
• Reversed Blade

AVAILABLE IN TWO COLORS

• 120 Black
• 140 Black
• 120 White
• 140 White

CONSISTENT APPEARANCE

No matter intake or exhaust SL-INF fans

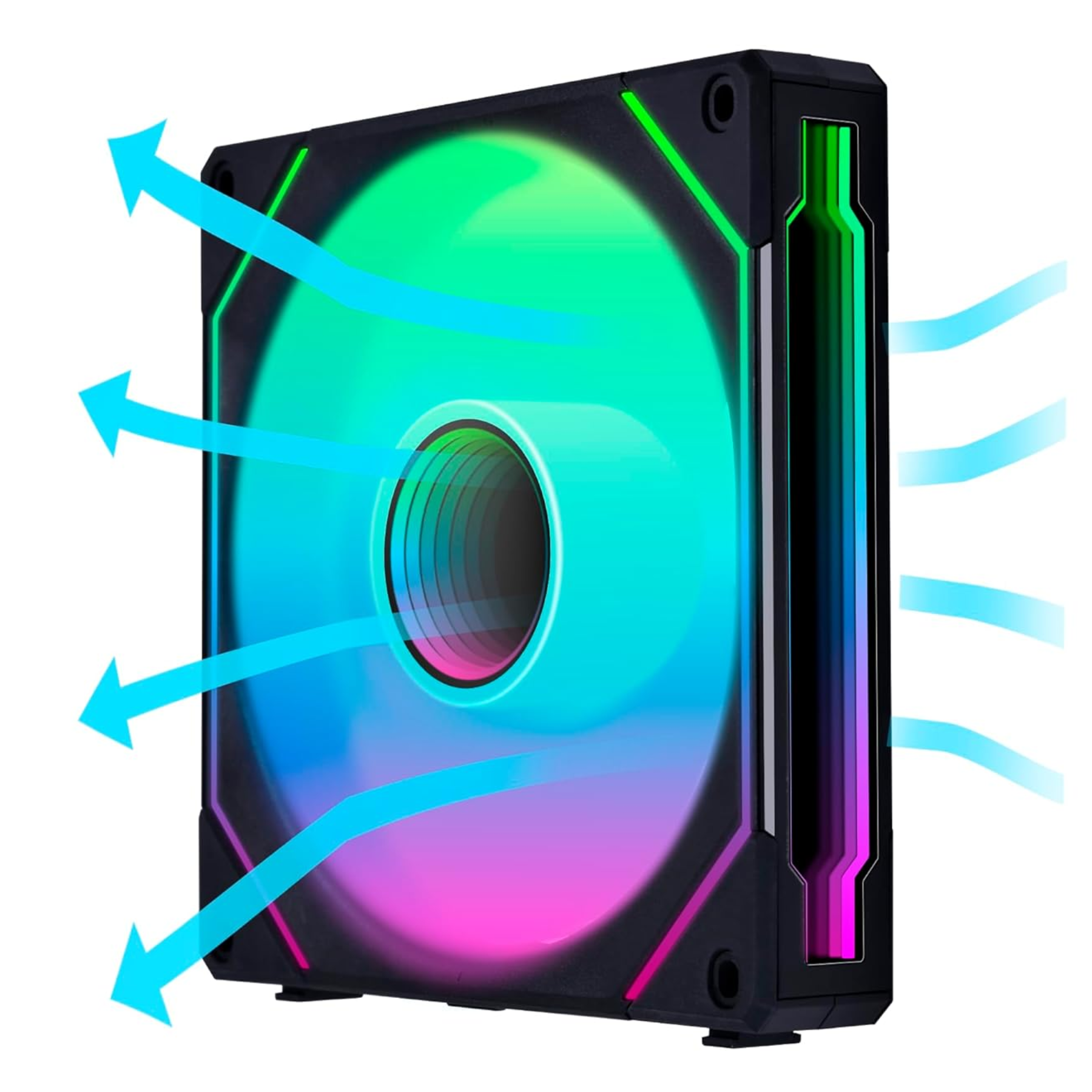

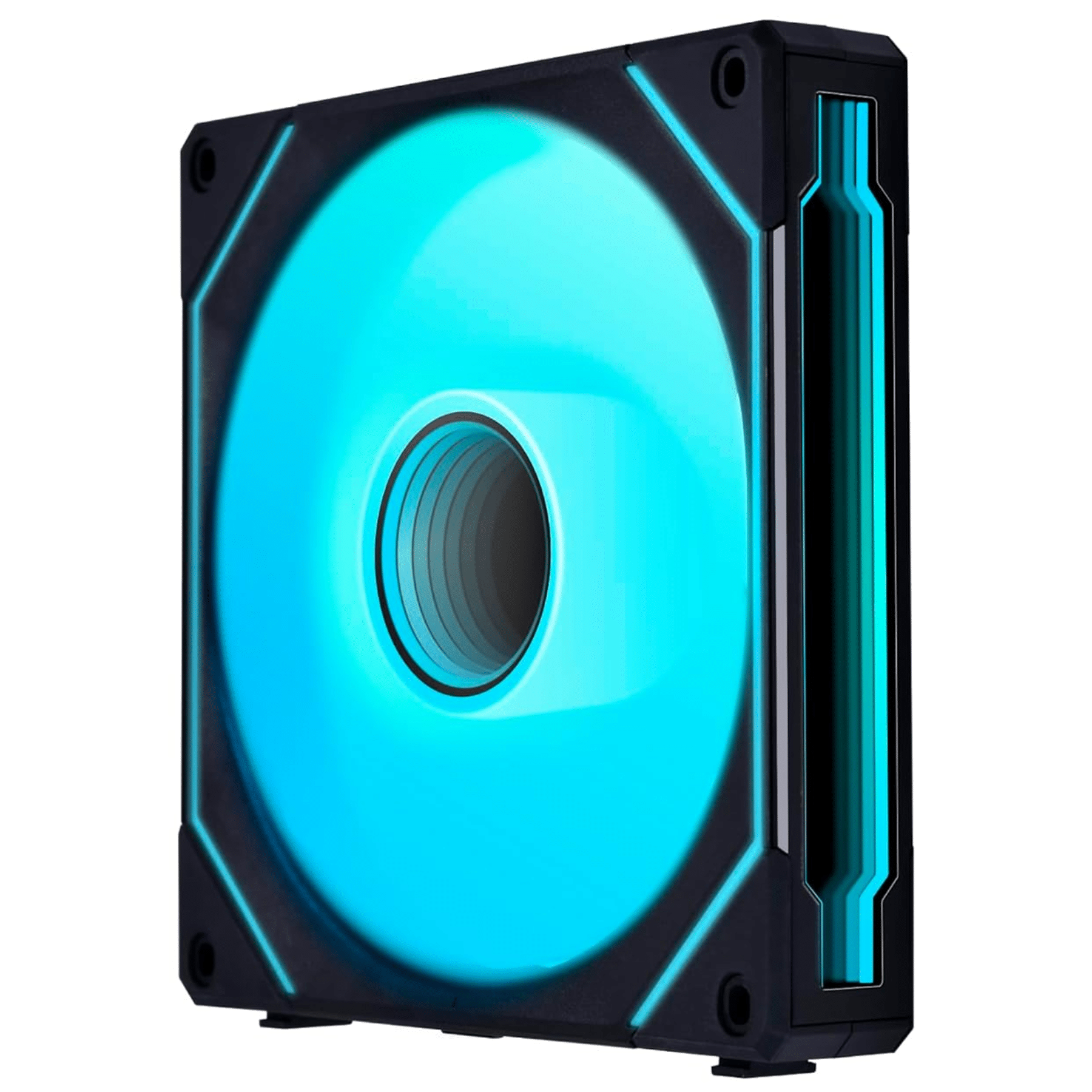

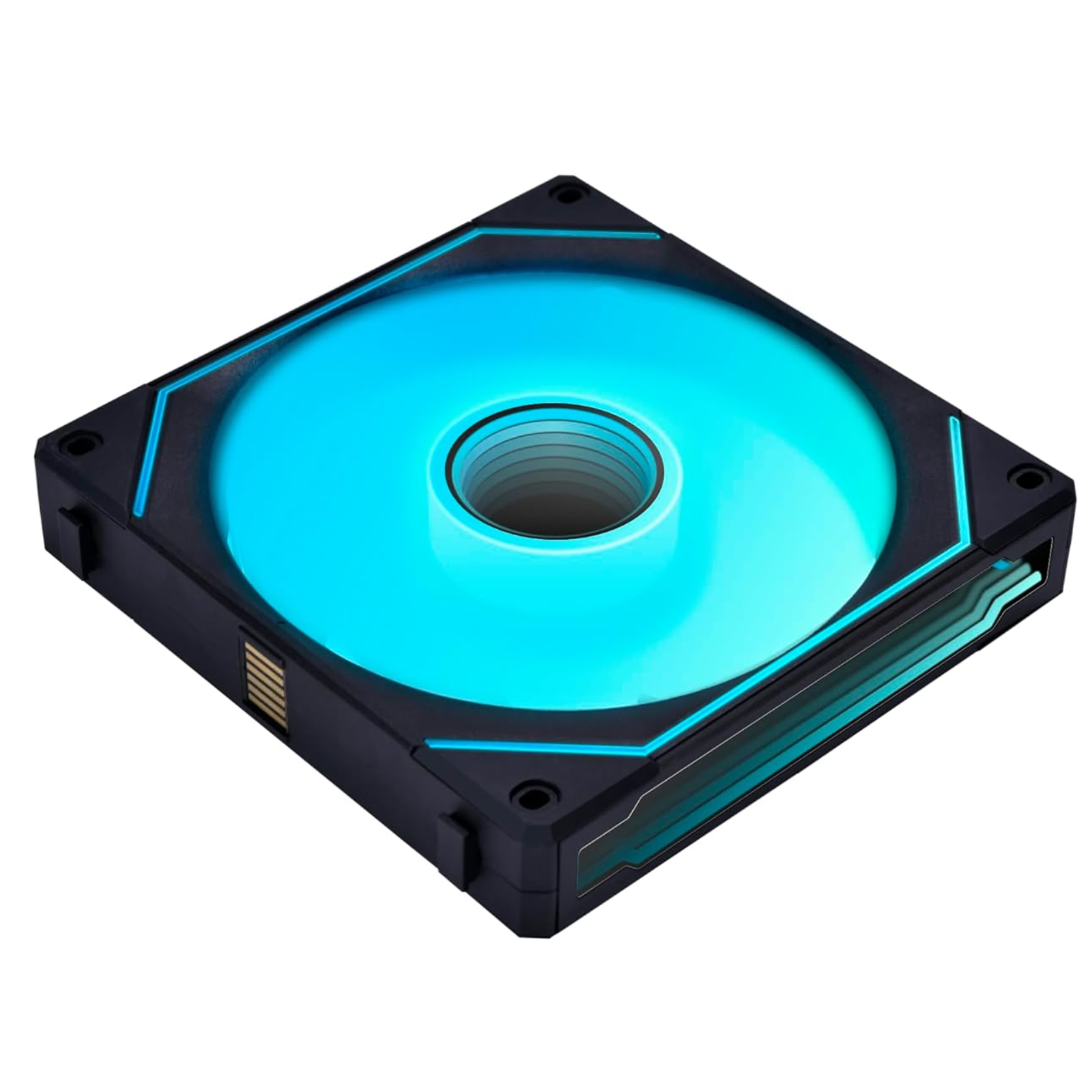

INFINITY MIRROR FAN

A combination of the original UNI FAN SL and AL with a touch of infinity mirror, the SL-Infinity fans glow clear with multi-layer effects from any visible angle.

CENTERED INFINITY MIRROR ARGB

The circular-shaped infinity mirror at the center of the fan is tuned to have multiple layers spaced 0.5mm apart.

SIDE FRAME ARGB

Following the iconic angular lighting style of SL fans, the SL-Infinity fans have 2 thin LED strips on both sides of the fan blade.

ALUMINUM TRIM SURROUNDED INFINITY MIRROR

Surrounding aluminum trims are located on both sides of the frame. The geometric shape of the infinity mirror follows the front ARGB lighting strip in a top and bottom pattern that creates a 3D indented look.

REAR RIM OF LED AROUND THE ALUMINUM LOGO

The circular-shaped infinity mirror at the center of the fan is tuned to have multiple layers spaced 0.5mm apart.

UNPRECEDENTED MODULARITY

The 2nd generation of UNI FAN SL revisits the interlocking style that can connect up to 4 fans in a cluster and makes cable management simpler and improves compatibility with radiators fittings.

DAISY CHAIN FAN

A pin-to-pad contact point passes the signal and power through the fan cluster.

REMOVABLE KEYLOCK

The interlocking key on each fan is now removable to improve compatibility with radiators fittings.

REVERSIBLE CABLE MODULE

The cable module is now placed at the center of the fan and can switch orientation to reduce clearance issues with the radiator inlet and outlet.

UNCOMPROMISED PERFORMANCE

The UNI FAN SL-INF Reverse blade operates with a slightly higher noise level with a better airflow (63.6 CFM Max) comparing to the original UNI FAN SL-INF.

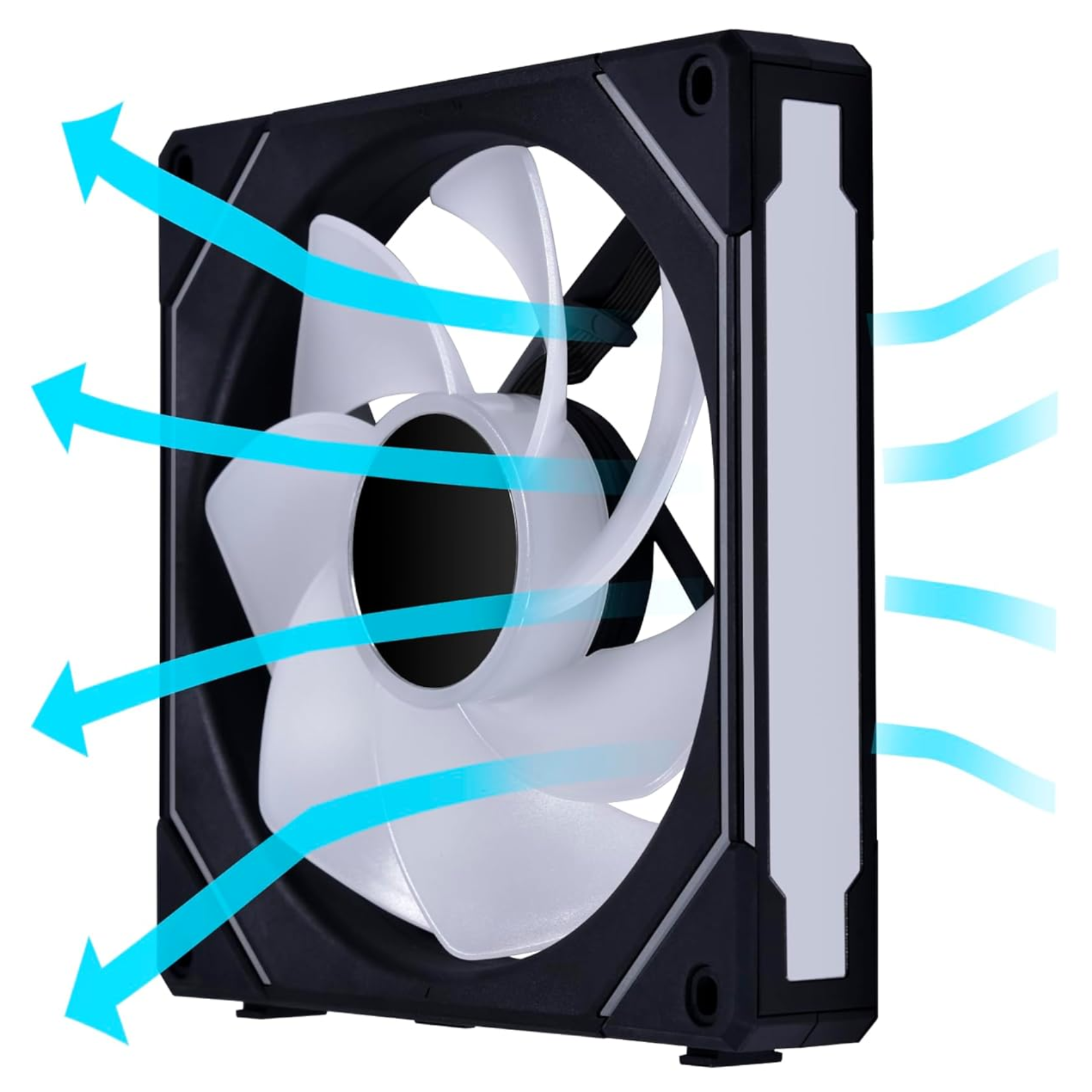

LOWER WIND NOISE

When installed as intake fan with the reverse blade, the wind noise is lower than the regular blade.

HE SAME CONTROLLER AS SL-INF | 16 FANS IN ONE GO FOR EACH GROUP OF FANS

The included controller is in the SLIN120 Triple Pack,supporting up to 16 fans (4 fans in each group) and 2 SM-type connecting devices.

L-CONNECT 3 SOFTWARE TO CONTROL SL-INF FANS

Control and preview with precision the lighting effect of the SL-Infinity fans with the new L-Connect interface.

Product Type: Cooling Fan
Fan Information
Number of Fans: 1
Fan Bearing Type: Fluid Dynamic Bearing
Fan Speed (Max): 1600 rpm
Maximum Airflow: 71.60 CFM
Noise Levels (A-Weighted): 28.6 dB(A)
LED Color: ARGB
Maximum Air Pressure: 2.95mmH2O
Power Description
Rated Current: 130 mA
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material:

• Polybutylene Terephthalate (PBT)
• Polycarbonate
• Aluminum

Maximum Fan Diameter: 5.51″
Fan Height: 5.51″
Fan Width: 5.59″
Fan Depth: 0.98″
Miscellaneous
Application/Usage:

• Case
• PC
• Motherboard

Warranty
Limited Warranty: 2 Year
