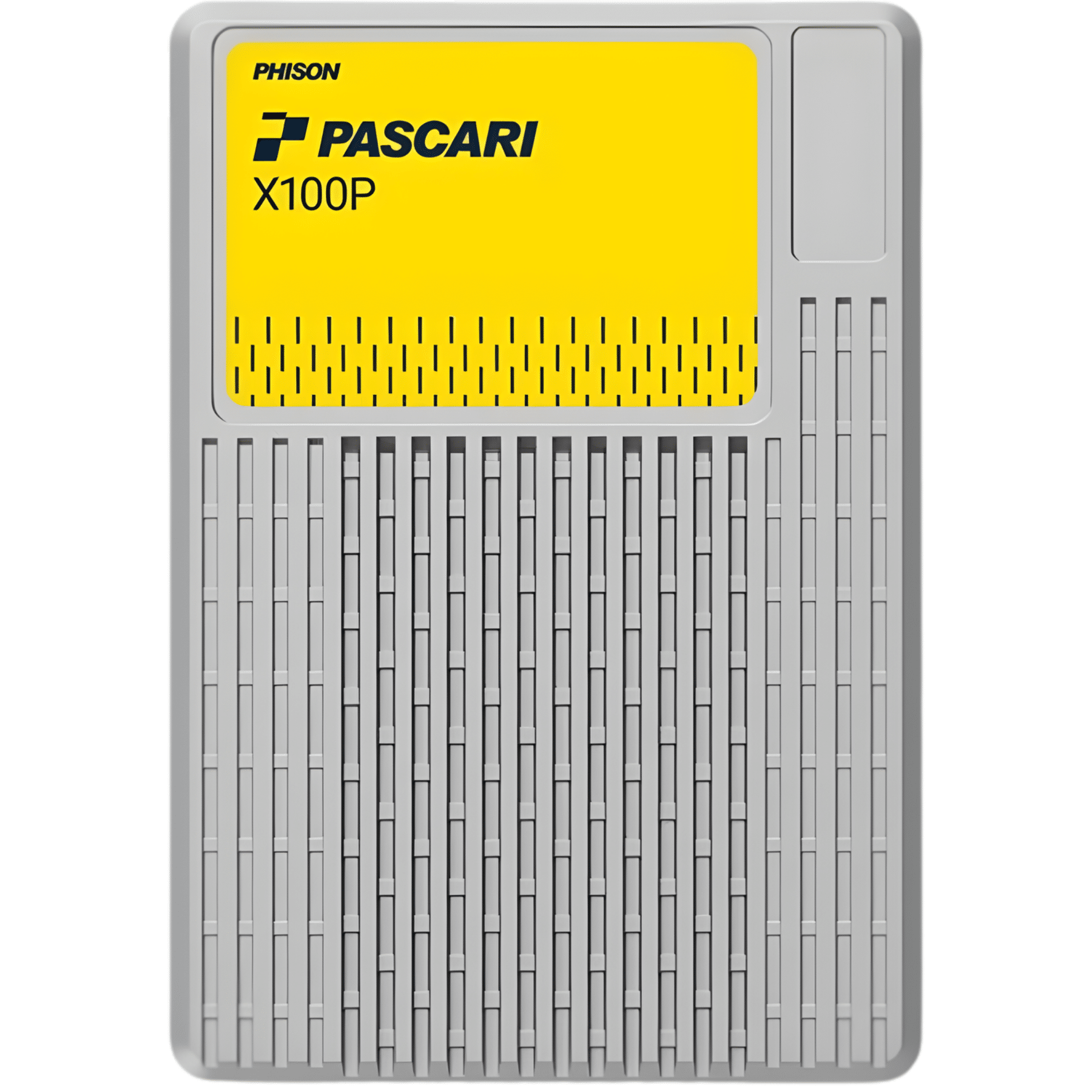

Phison Pascari X100P XP106H0015T3P0116T300 15360GB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD

Descripci車n Corta IDC-MAYORISTA:

• • Capacity: 15360GB

• • Form Factor: U.2

• • Interface: Single Port

• • Security: Non-Opal

• PCIe Interface
  • • PCIe Gen4x4



  • • Single Port x4 lanes



  • • PCIe AER (Advanced Error Reporting)





• Performance
  • • Maximum Sequential Read / Write: 7000MB/s / 6800MB/s



  • • Maximum Random Read / Write: 1600KIOPS / 180KIOPS



  • • Sustained Random Read / Write Latency(µs): 100/15(QD=1, Workers=1); 110/300(QD=32, Workers=1); 450/3800(QD=64, Workers=8)



  • • IOPS Consistency: 95%



  • • QoS (Quality of Service, 99%)Read / Write: 100/12(QD=1, Workers=1); 120/200(QD=32 Workers=1); 600/3000(QD=64, Workers=8)





• Power Consumption
  • • Random Read/Write (Typ): 16.2/19.6 W



  • • Sequential Read/Write (Typ): 12.3/20.1 W



  • • Inrush Current: 1.5A



  • • Idle Power (Typ): 7.32 W



•
• DWPD: 1DWPD
•
• TBW: 28032 TB
•
• LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes
•
• MTBF: 2,500,000 hours
•
• UBER(Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits read
•
• Advanced Flash Management
  • • ECC



  • • Static and Dynamic Wear Leveling



  • • Bad Block Management



  • • Deallocate (TRIM) Command



  • • SMART



  • • Over-Provision



  • • Firmware Upgrade





• Temperature Range
  • • Operation: 0 °C – 70 °C with specified airflow



  • • Storage: -40 °C – 85 °C



•

  RoHS compliant



• Enterprise Features Support List
  • • Namespace



  • • Single Port



  • • Reservation



  • • Metadata Protection Thermal throttling



  • • Power Loss Protection



•

  Hardware AES-XTS 256-bit Encryption



  Support SMBus



  Support NVMe-MI (Management Interface)



• Data Retention: 3 months
•
• Physical Dimension: U.2 100(L)x70(W)x15(H) mm
•
• Compliance
  • • PCIe Express Base 4.0



  • • NVMe 1.4



  • • NVMe Management Interface Rev 1.1



•
