• Number of Hard Drives Supported16
• Number of Hard Drives Installed0
• Number of Solid State Drive Supported16
• Number of Solid State Drive Installed0
• Non-RAID ModeJBOD
• Number of Total Expansion Bays16
• Number of 2.5″/3.5″ Bays16
• Hot Swappable BaysYes
• Drive Interface
  • 12Gb/s SAS
  • SATA/600
• Host InterfaceMini-SAS HD
• Operating System SupportedWindows
• Cooling FanYes
• Form FactorRack-mountable
• Rack Height3U
• Height5.2″
• Width19″
• Depth16.7″
• Weight (Approximate)30.69 lb
• Package Contents
  • TL-R1620SDC Drive Enclosure
  • 2 x Power Cord
  • 2 x Hard disk tray key
  • 2 x 0.5m Mini SAS cable (SFF-8644 to SFF-8644)
  • 48 x Flat head screw (for 2.5″ HDD)
  • 64 x Flat head screw (for 3.5″ HDD)
  • Quick Installation Guide (QIG)
• CompatibilityQnap Storage Systems
• Limited Warranty5 Year

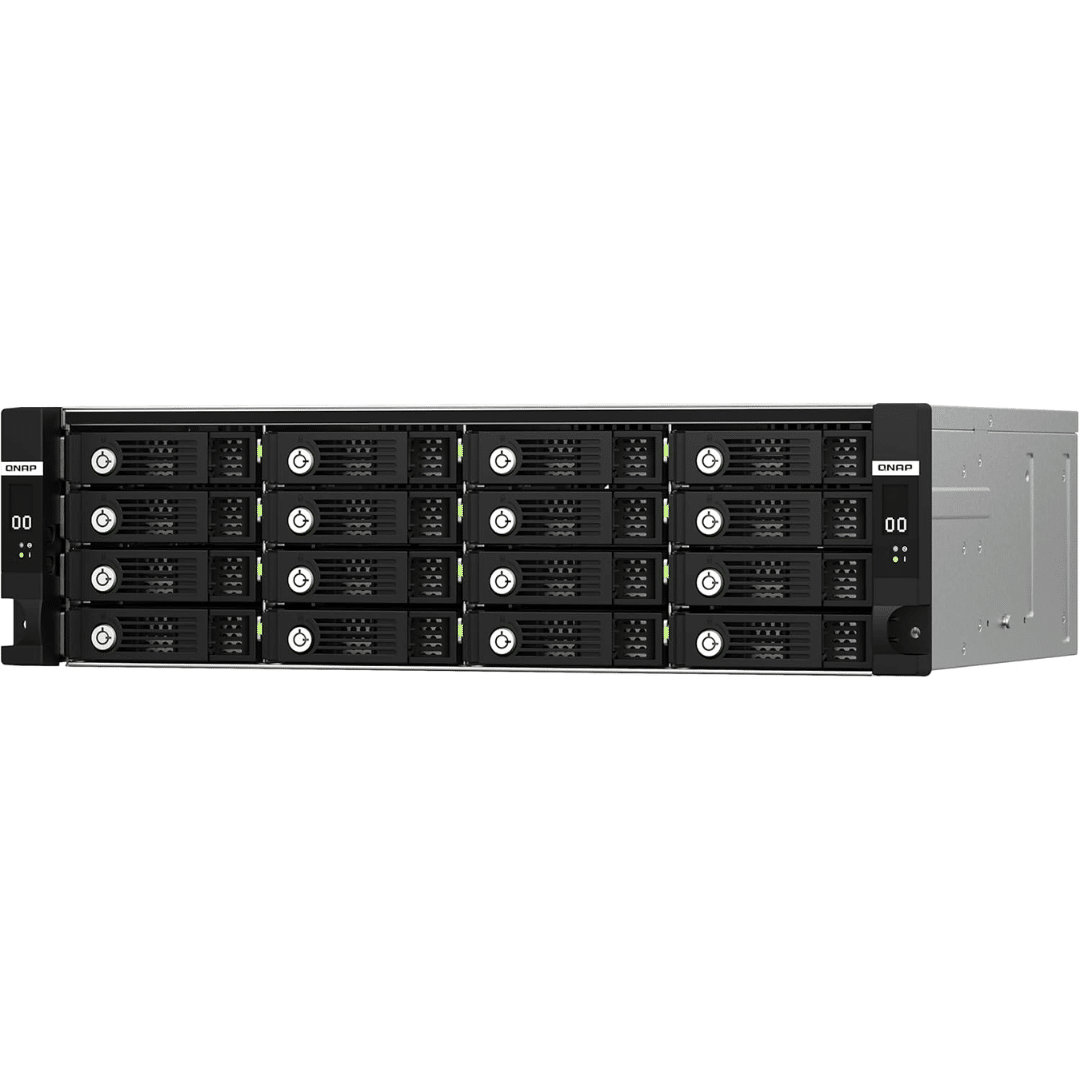

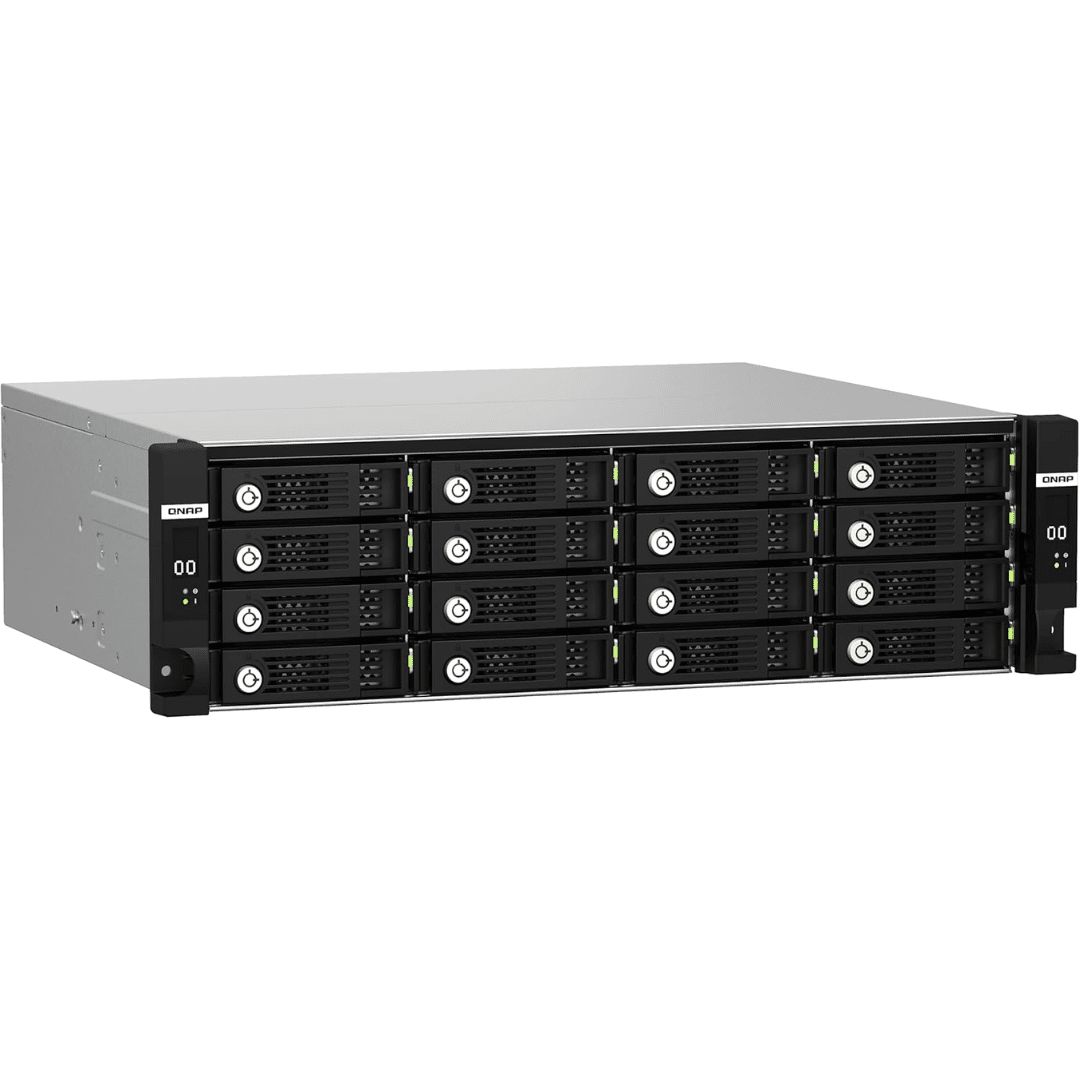

TL-R1620Sdc | Dual-controller SAS 12Gb/s storage expansion for enterprises

Featuring dual controllers, an OLED indicator, and a short-depth rackmount design, the 3U 16-bay TL-R1620Sdc SAS 12Gb/s storage expansion enclosure is ideal for expanding the storage capacity of dual-controller QNAP NAS. Both controllers have three Mini-SAS HD (SFF-8644) ports, supporting 12Gbps SAS and Broadcom® SAS DataBolt™ bandwidth optimization technology. The dual path mini-SAS design sustains continuous operations even if an external JBOD cable is disconnected. Up to 7 TL-R1620Sdc units can be daisy-chained via high-speed Mini-SAS HD cables, providing scalability and high reliability for mission-critical storage of file servers, virtualization, surveillance, medium-sized data center, multimedia, and more.

• 1Flexibly and economically expand the storage space of a dual-controller QNAP NAS for petabyte-level storage capacity.
• 2Dual path mini-SAS design with a redundant power supply for enhanced system reliability.
• 3QNAP dual-controller NAS can detect JBOD connections, and enter missing mode protection to prevent data corruption.
• 4DataBolt™ bandwidth optimization combines two 6Gb/s connections into one 12Gb/s data stream to achieve faster speed with existing 6Gb/s infrastructure.
• 5Manage the storage space and settings of the connected TL-R1620Sdc with Storage Manager on the host NAS.
• 6The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. (Rail kit RAIL-B02 requires optional purchase.)

Failure-resistant with a dual-controller, dual-path design

Connect the TL-R1620Sdc to a dual-controller QNAP NAS and create a redundant cross loop configuration that provides expansion units with redundant paths to the base NAS and protection between JBOD connections. If one or more paths to the TL-R1620Sdc disconnect, other expansion units can still communicate with the base NAS. This is essential for intermachine data protection and capacity scalability for uninterrupted mission-critical enterprise tasks.

Connect up to 7 expansion units for petabyte-level storage capacity

The base NAS requires QES 2.1.1 (or later) and either Mini-SAS HD (SAS 12Gb/s SFF-8644), Mini-SAS (SAS 6Gb/s SFF-8088) ports or a PCIe-based SAS expansion card.

Highly efficient, reliable and scalable

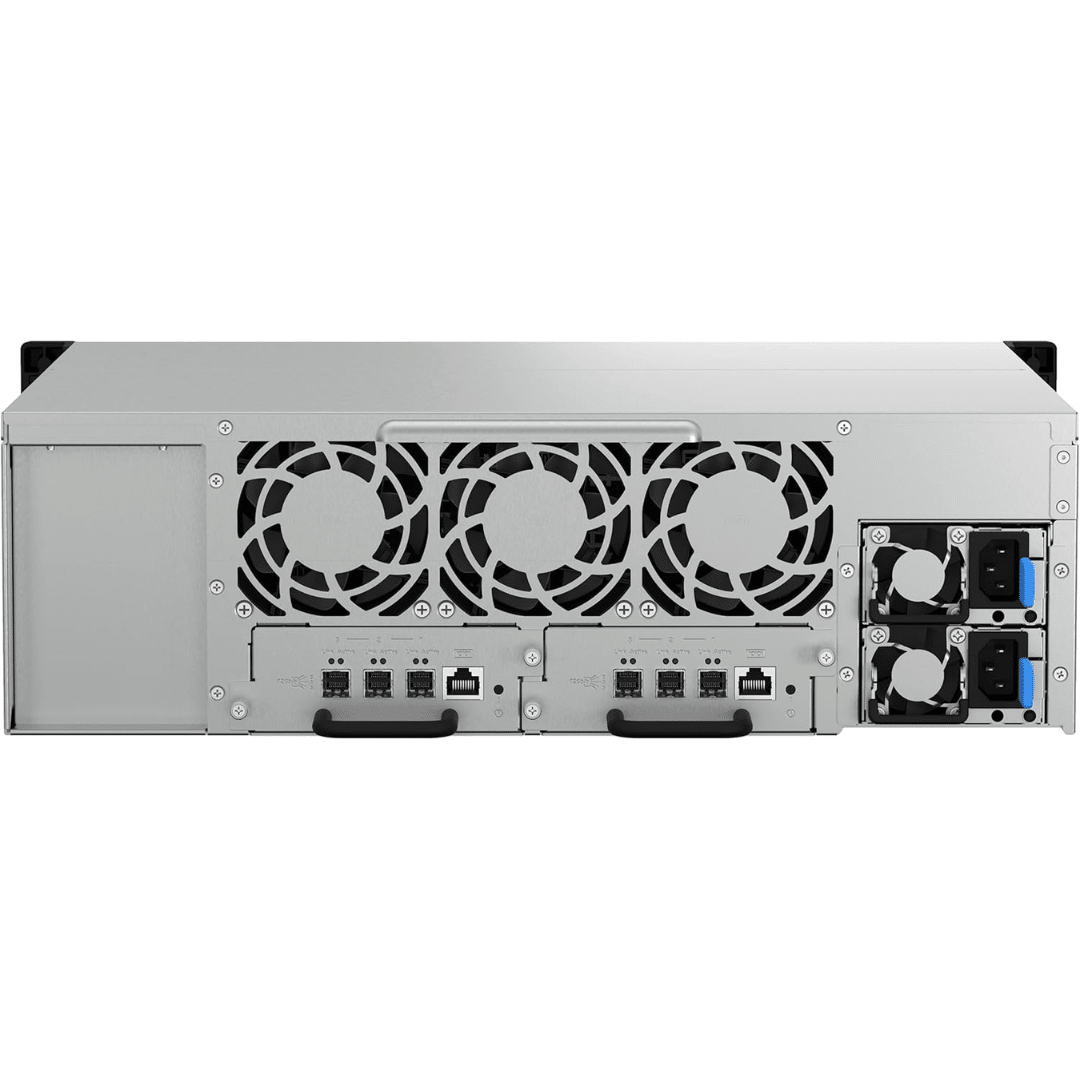

The TL-R1620Sdc is powered by a low-power 28nm SAS35x28R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Both controllers have three Mini-SAS HD (SFF-8644) ports, and each SAS wide port combines four SAS 12Gb/s channels for up to 48Gbps bandwidth.

Supports SAS DataBolt™ technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure

Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sdc has an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sdc uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sdc at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure.

Product Type: Drive Enclosure
Technical Information
Number of Hard Drives Supported: 16
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 16
Number of Solid State Drive Installed: 0
Controllers
Non-RAID Mode: JBOD
I/O Expansions
Number of Total Expansion Bays: 16
Number of 2.5″/3.5″ Bays: 16
Hot Swappable Bays: Yes
Interfaces/Ports
Drive Interface:

• 12Gb/s SAS
• SATA/600

Host Interface: Mini-SAS HD
Software
Operating System Supported: Windows
Physical Characteristics
Cooling Fan: Yes
Form Factor: Rack-mountable
Rack Height: 3U
Height: 5.2″
Width: 19″
Depth: 16.7″
Weight (Approximate): 30.69 lb
Miscellaneous
Package Contents:

• TL-R1620SDC Drive Enclosure
• 2 x Power Cord
• 2 x Hard disk tray key
• 2 x 0.5m Mini SAS cable (SFF-8644 to SFF-8644)
• 48 x Flat head screw (for 2.5″ HDD)
• 64 x Flat head screw (for 3.5″ HDD)
• Quick Installation Guide (QIG)

Compatibility: Qnap Storage Systems
Warranty
Limited Warranty: 5 Year
