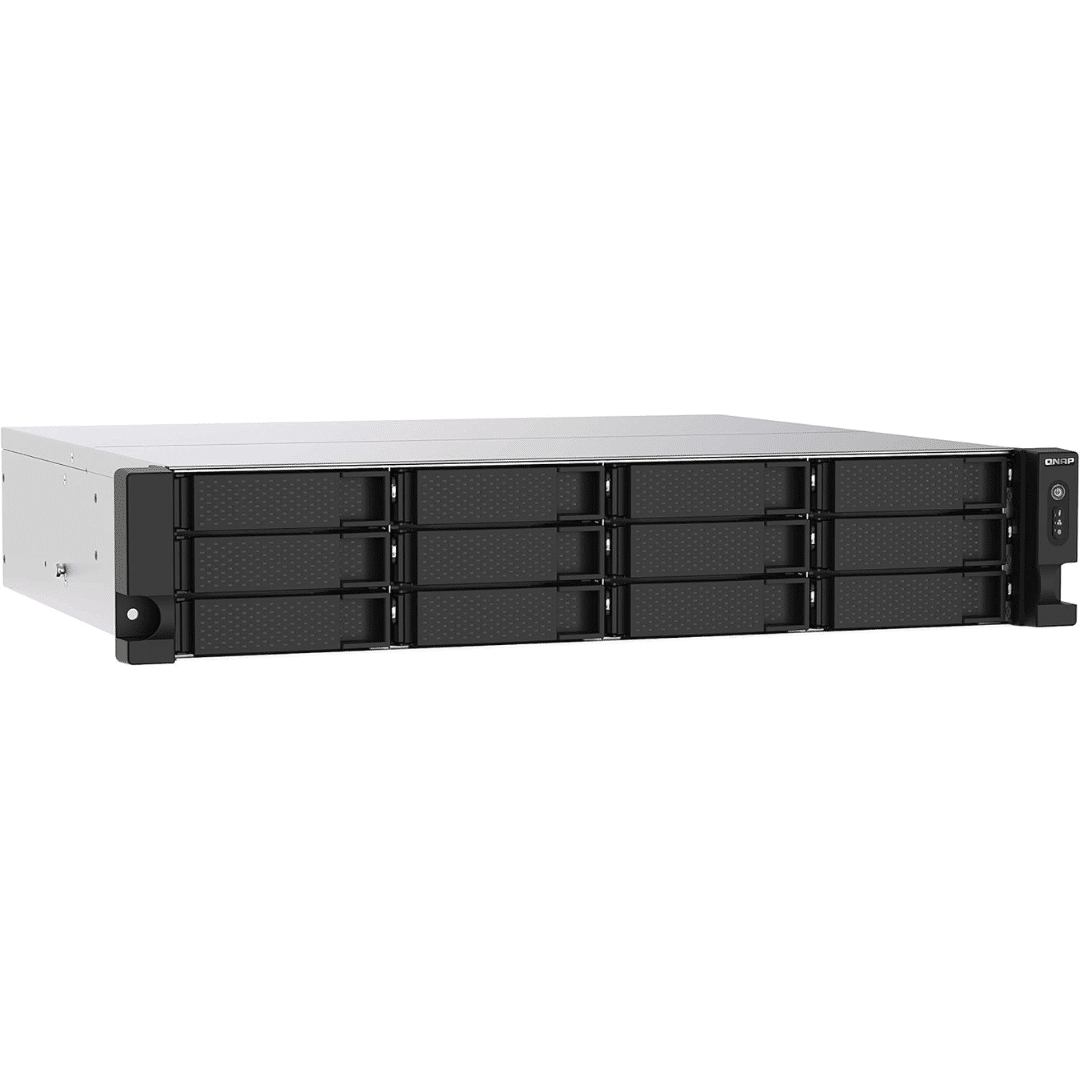

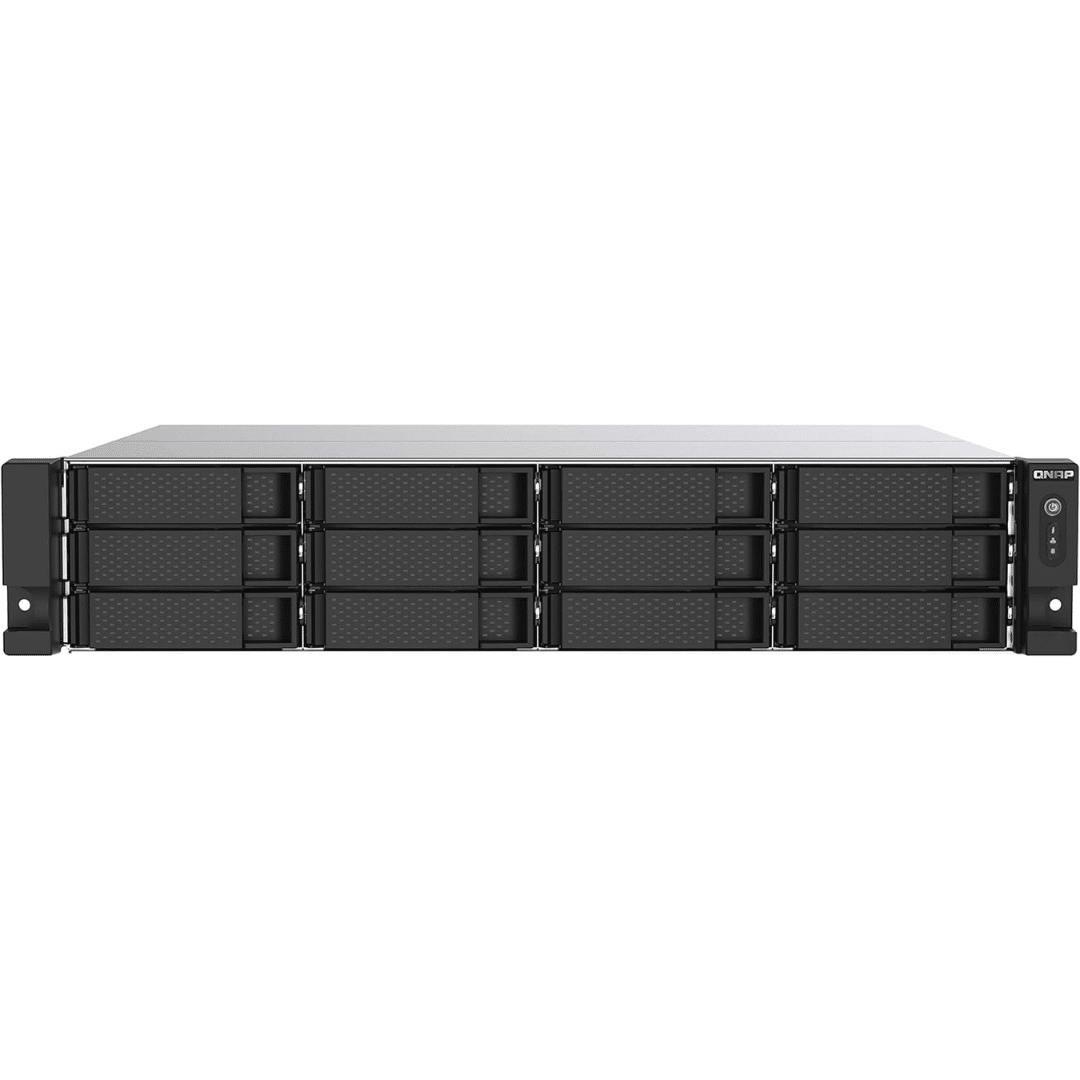

QNAP TS-1273AU-RP – NAS server – 12 bays – rack-mountable – SATA 6Gb/s – RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare – RAM 8 GB – Gigabit Ethernet / 2.5 Gigabit Ethernet – iSCSI support – 2U

Descripción Corta:

Product Description: QNAP TS-1273AU-RP – NAS server
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 2.5 Gigabit Ethernet
Enclosure Type: Rack-mountable – 2U
Installed Devices / Modules Qty: 0 (installed) / 12 (max)
Dimensions (WxDxH): 17 in x 14.6 in x 3.5 in
Weight: 21.36 lbs ()
Localization: United States
Processor: 1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core)
Storage Controller: RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare
Networking: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
RAM: 8 GB
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Yes
Storage Operating System: QNAP QTS 4.4.2
System Requirements: UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10

Descripción Completa:

General:
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 2.5 Gigabit Ethernet
Enclosure Type: Rack-mountable – 2U
Total Storage Capacity: 0 GB
Installed Devices / Modules Qty: 0 (installed) / 12 (max)
Width: 17 in
Depth: 14.6 in
Height: 3.5 in
Weight: 21.36 lbs ()
Localization: United States

Processor / Memory:
Processors Installed: 1 x AMD Ryzen Embedded V1500B 2.2 GHz
Number of Cores: Quad-Core
Max Supported Qty: 1
RAM: 8 GB (installed) / 32 GB (supported) – DDR4
Flash Memory Installed: 5 GB

Storage Controller:
Type: RAID
Interface Type: SATA 6Gb/s
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare

Networking:
Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Network / Transport Protocol: TCP/IP, PPTP, UDP/IP, iSCSI, SMTP, FTP, DHCP, Bonjour, SMB, DDNS
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH
Network Services Compatibility: Microsoft Active Directory (AD), Apple Bonjour Protocol, DHCP, DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV)
Features: NAT support, trunking, LDAP support, wake on LAN (WOL), Syslog support, E-mail alert, print server, IPv6 support, Spanning Tree Protocol (STP) support, download client, file sharing, Trivial File Transfer Protocol (TFTP) support, SSH support, iTunes server, Jumbo Frames support, DHCP server, FTP server, SMS alert, BitTorrent Client, UPnP Media Server, bandwidth control, surveillance station, teaming support, DLNA Media Server, Apple Time Machine compatible, DHCP client, e-mail notification, cloud backup, VPN Server, Apple AirPlay, event notification, push notification, Chromecast support
Encryption Algorithm: SSL, FIPS 140-2, 256-bit AES, AES-NI
Compliant Standards: UPnP

Expansion / Connectivity:
Expansion Bays: 12 (total) / 12 (free) x hot-swap – 2.5″ / 3.5″
Expansion Slots: 2 (total) / 1 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCI Express 3.0 x4

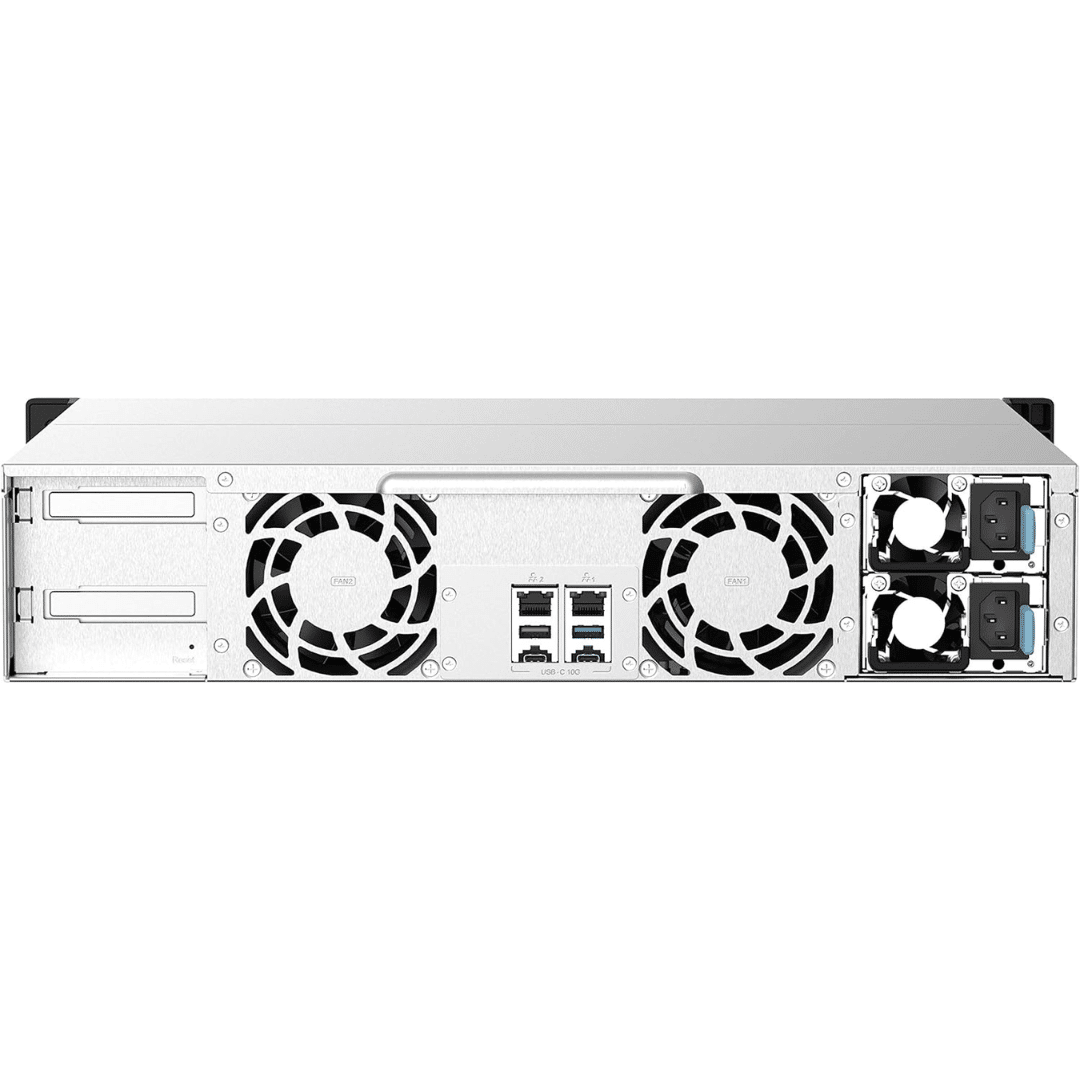

Interfaces: 2 x 2.5 Gigabit Ethernet – RJ-45 ¦ 1 x USB 3.2 Gen 1 – Type A ¦ 2 x USB 3.2 Gen 2 – Type C ¦ 1 x USB 3.2 Gen 2 – Type A

Miscellaneous:
Cables Included: 1 x network cable
Features: Audible alarm, wake on LAN
Included Accessories: 48 x flat head screws (for 3.5″ HDD), 36 x flat head screws (for 2.5″ HDD)

Power:
Power Device: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 78.92 Watt
Power Consumption Stand by: 43.67 Watt
Power Provided: 300 Watt

Software / System Requirements:
Storage Operating System: QNAP QTS 4.4.2
OS Required: UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10

Dimensions & Weight (Shipping):
Shipping Weight: 32.23 lbs

Environmental Parameters:
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 – 95% (non-condensing)
