Super Flower Leadex Titanium SF-2800F14HP 2800W ATX 3.1 Power Supply, Cybenetics Titanium, Native 12V-2×6, ECO Fanless & Silent Mode, Full Modular, Dual Ball Bearing Fan, 200-240Vac

Descripci車n Corta IDC-MAYORISTA:

• Feature

  • 200~240Vac Only
  • Cybenetics Titanium Certified, 93% & <95% overall efficiency (230 INPUT)
  • Tight Voltage Regulation (12 V, 5 V and 3.3 V) [+/- 1%]
  • Compliant with ATX 3.1 standard & PCIe Gen 5 ready and 16-Pin PCIe Gen 5 Cable (12V-2×6), resisting transient power spikes
  • Copper shaft around the bearing which provides stability and durability
  • Full modular design with all ribbon cables to maximize flexibility
  • 140mm Dual Ball Bearing Fan
  • Complete Japanese Capacitor
  • Capable of powering 4×5090 Graphic Cards
  • LLC Topology with DC-to-DC Conversion

• Wattage: 2800W
• Efficiency: Cybenetics Titanium 230V Input Certified (Overall Efficiency: >= 93% to <95%)
• Intel Power Design Guide: ATX 12V v2.32, EPS 12V v2.92, ATX 3.1
• AC Input | Frequency: Single Voltage 230V | 50 / 60HZ

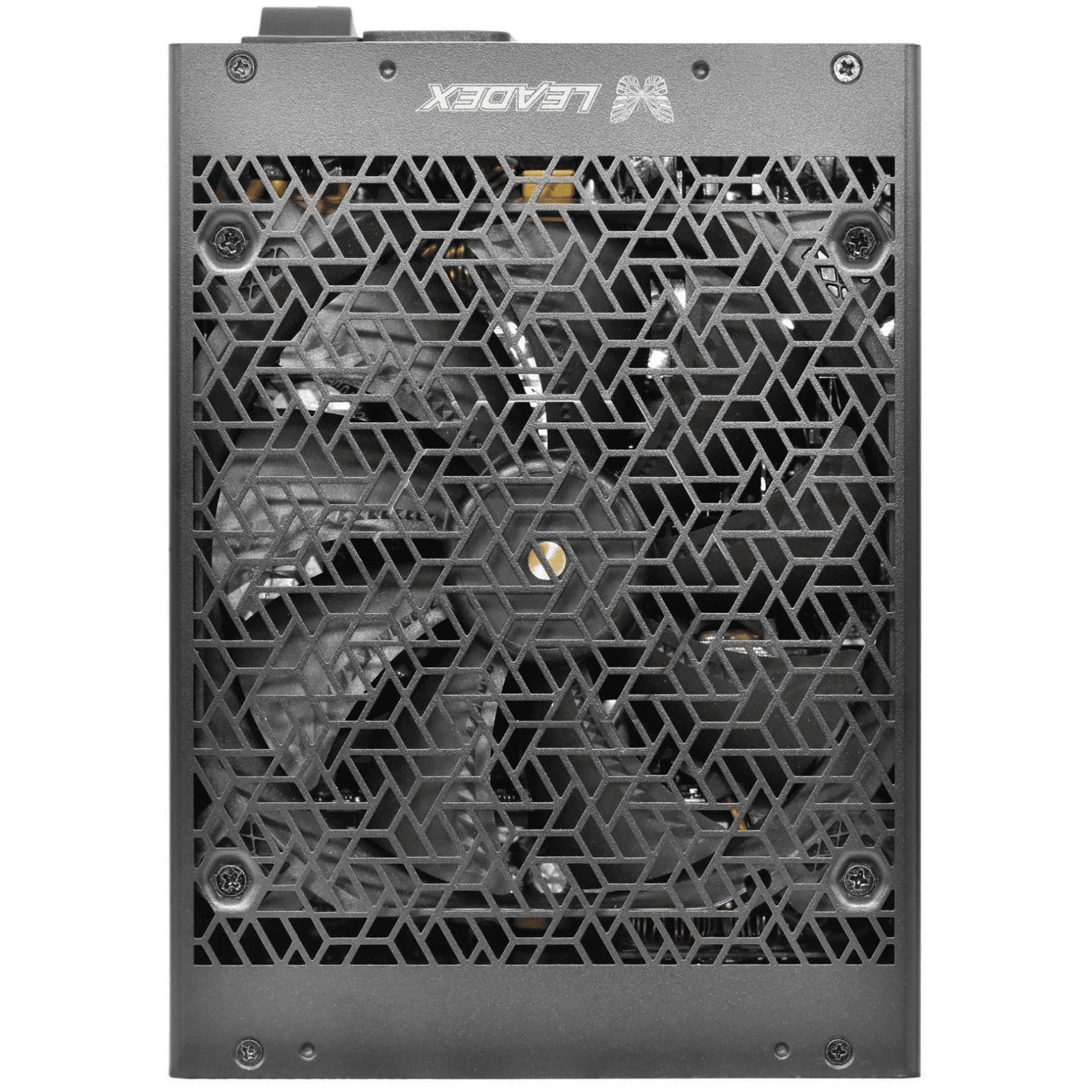

• Fan Size: 140mm Double Ball Bearing Cooling Fan
• Dimension: 200mm(L) x 150mm(W) x 86mm(H)
• Protection: OVP, OCP, OPP, SCP, UVP, OTP, LVP, NLO, SLP
• Safety: cTÜVus / TÜV / CB / CE / FCC / UKCA / RoHS / KCC / EAC / CQC
• Temprature: Passed 50°C Hot Testing
• Cooling Method: Air
• PSU Connector Quantity: 11
• PSU Connector Type: 24 Pin ATX Main Power Cable
• PSU Modular Format: Full
• Efficiency/Standby Power Shutoff: 80 Plus Gold
• Item Length: 5.9 Inches
• Item Width: 5.9 Inches
• Item Height: 3.4 Inches
• Item Weight: 4.3 Pounds
• Item Package Length: 13.5 Inches
• Item Package Height: 4.6 Inches
• Item Package Width: 7.15 Inches
• Package Weight: 6.8 Pounds

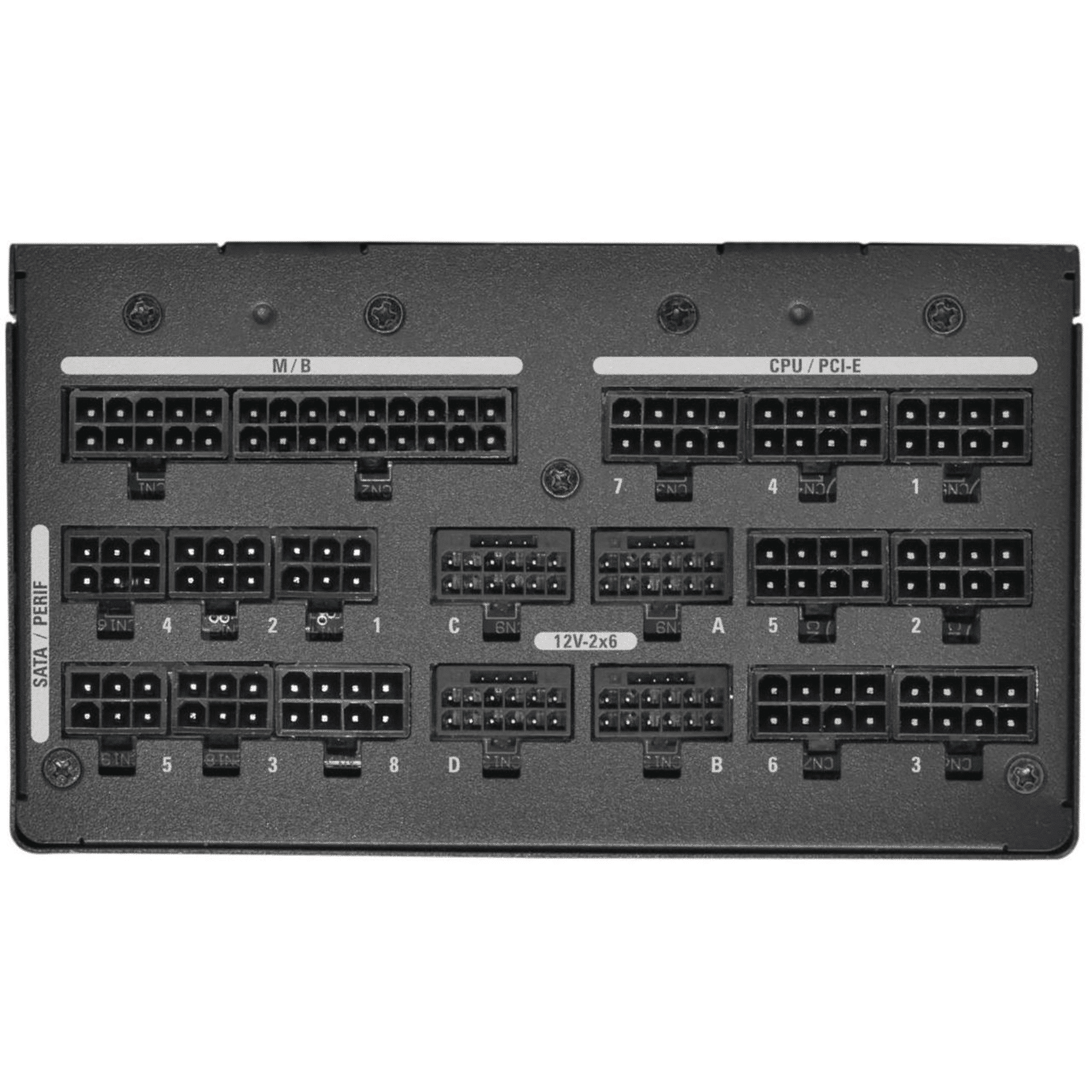

• Cable Spec

  • 20+4Pin: one cable (600mm)
  • (4+4Pin) CPU: two cables (750mm)
  • PCI-E 6+2Pin: six cables (750mm)
  • (12+4Pin) VGA: four cables (700mm)
  • 4SATA: four cables (550+110+110+110mm)
  • 4Molex: One cable (550+100+100+100mm)

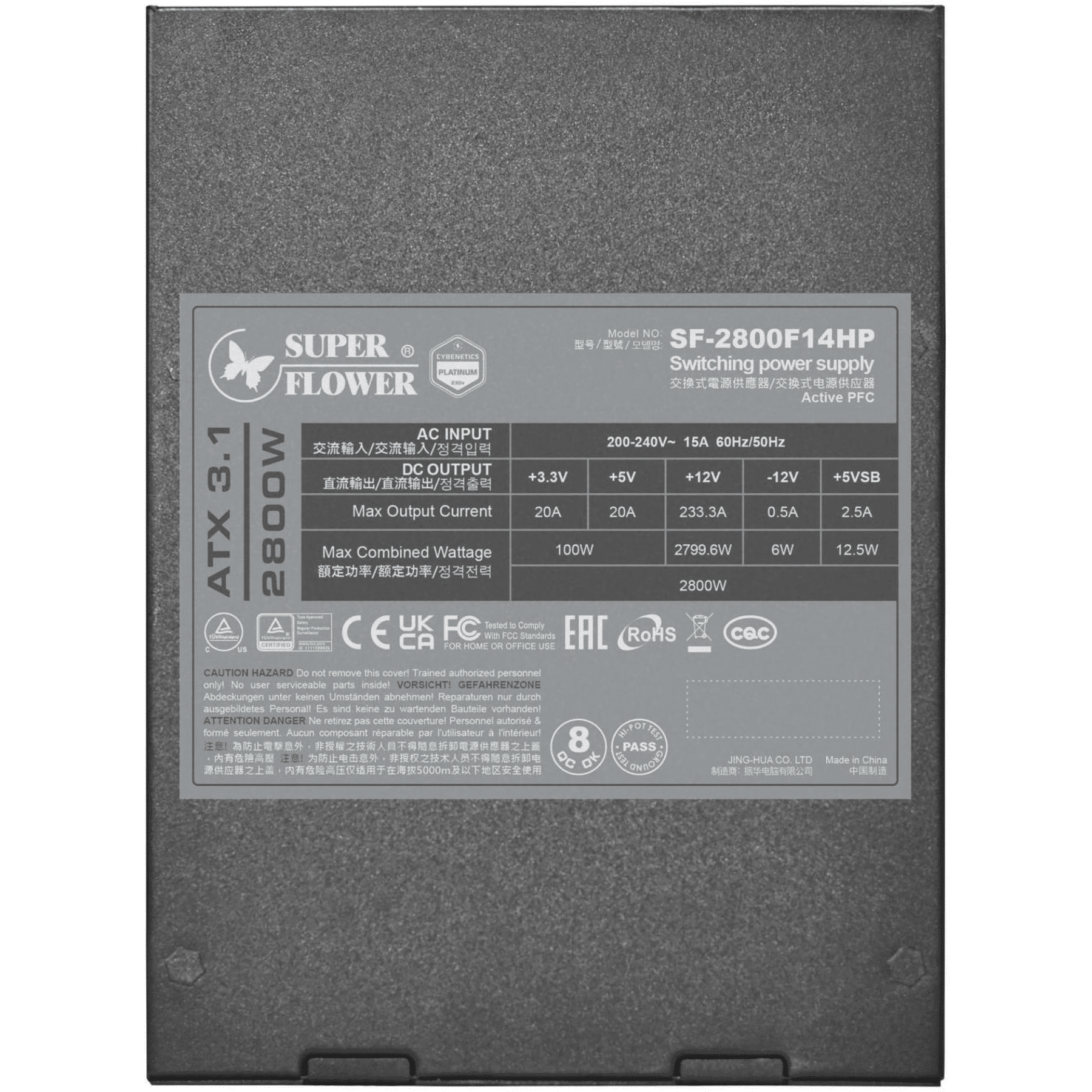

• AC Input: 200-240V 15A 60Hz/50Hz
• DC Output: +3.3V; +5V; +12V; -12V; +5VSB
• Max Output Current: 20A; 20A; 233.3A; 0.5A; 2.5A
• Max Combined Wattage

  • 100W; 2799.6W; 6W; 12.5W
  • 2800W
