• Specification Compliance
  • ATX 3.0
  • EPS 2.92
• Efficiency90%
• Number of Fans1
• Protection Type
  • Over Power
  • Over Voltage
  • Under Voltage
  • Short Circuit
  • Over Current
  • Over Temperature
• Number of +12V Rails1
• Input Voltage
  • 120 V AC
  • 230 V AC
• Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V SB
• Output Voltage Detail
  • 3.3 V DC @ 20 A
  • 5 V DC @ 20 A
  • -12 V DC @ 0.5 A
  • 5 V SB @ 3 A
  • 12 V DC @ 70.8 A
• Output Current
  • 70.80 A
  • 20 A
  • 500 mA
  • 3 A
• Output Power850 W
• Input Frequency60Hz
• Maximum Operating Temperature122°F (50°C)
• Form FactorInternal
• Height3.4″
• Width5.9″
• Environmentally FriendlyYes
• Energy Efficiency Certification80 Plus Gold
• Environmental ComplianceRestriction of Hazardous Substances (RoHS)

General Information
Manufacturer: Super Flower Computer, Inc
Manufacturer Part Number: SF850F14XG
Manufacturer Website Address: http://www.super-flower.de
Brand Name: Super Flower
Product Line: LEADEX VII XG
Product Model: SF-850F14XG
Product Name: LEADEX VII XG SF-850F14XG 850W Power Supply
Product Type: Power Supply
Technical Information
Specification Compliance:

• ATX 3.0
• EPS 2.92

Efficiency: 90%
Number of Fans: 1
Protection Type:

• Over Power
• Over Voltage
• Under Voltage
• Short Circuit
• Over Current
• Over Temperature

Power Description
Number of +12V Rails: 1
Input Voltage:

• 120 V AC
• 230 V AC

Output Voltage:

• 3.3 V DC
• 5 V DC
• 12 V DC
• -12 V DC
• 5 V SB

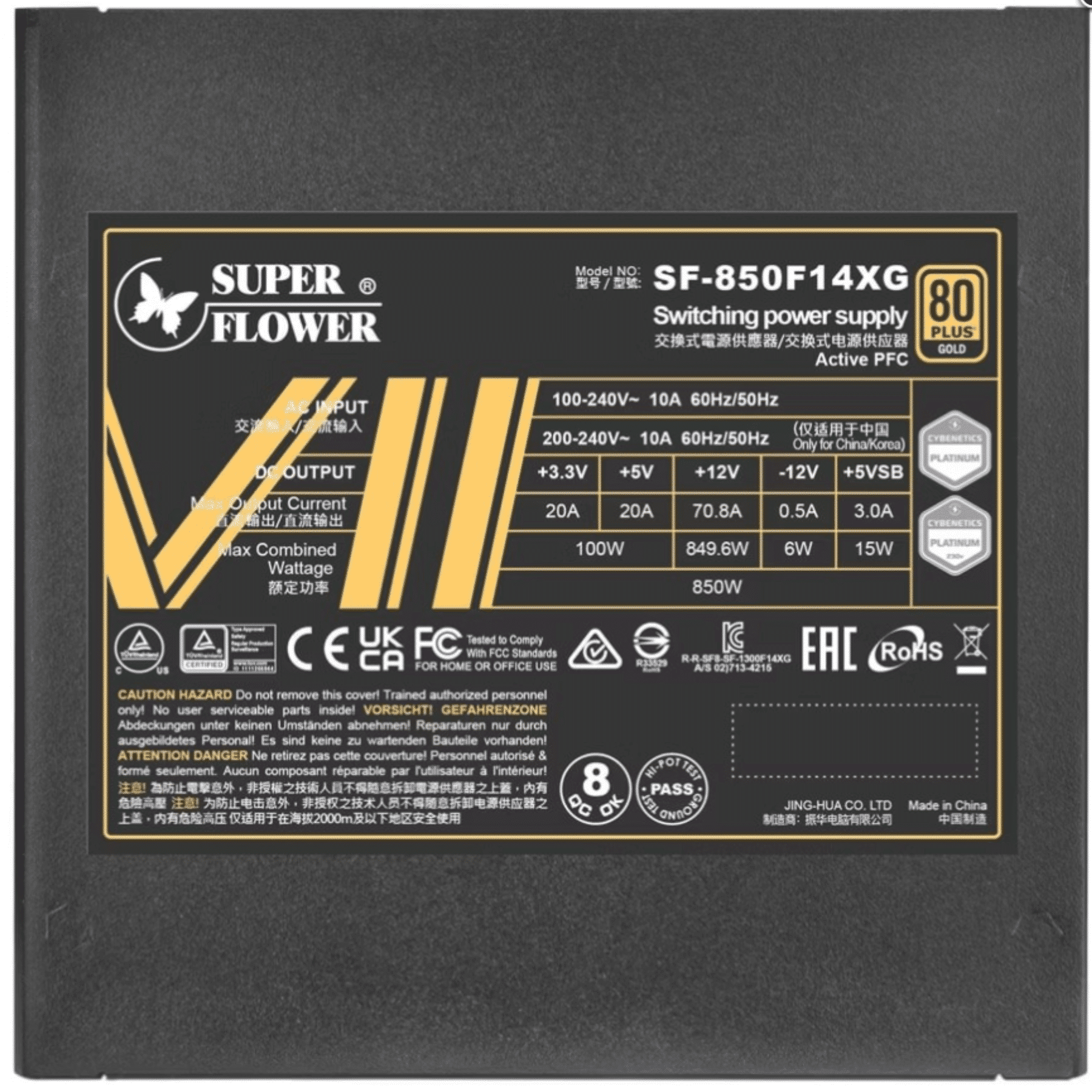

Output Voltage Detail:

• 3.3 V DC @ 20 A
• 5 V DC @ 20 A
• -12 V DC @ 0.5 A
• 5 V SB @ 3 A
• 12 V DC @ 70.8 A

Output Current:

• 70.80 A
• 20 A
• 500 mA
• 3 A

Output Power: 850 W
Input Frequency: 60Hz
Environmental Conditions
Maximum Operating Temperature: 122°F (50°C)
Physical Characteristics
Form Factor: Internal
Height: 3.4″
Width: 5.9″
Miscellaneous
Environmentally Friendly: Yes
Energy Efficiency Certification: 80 Plus Gold
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
