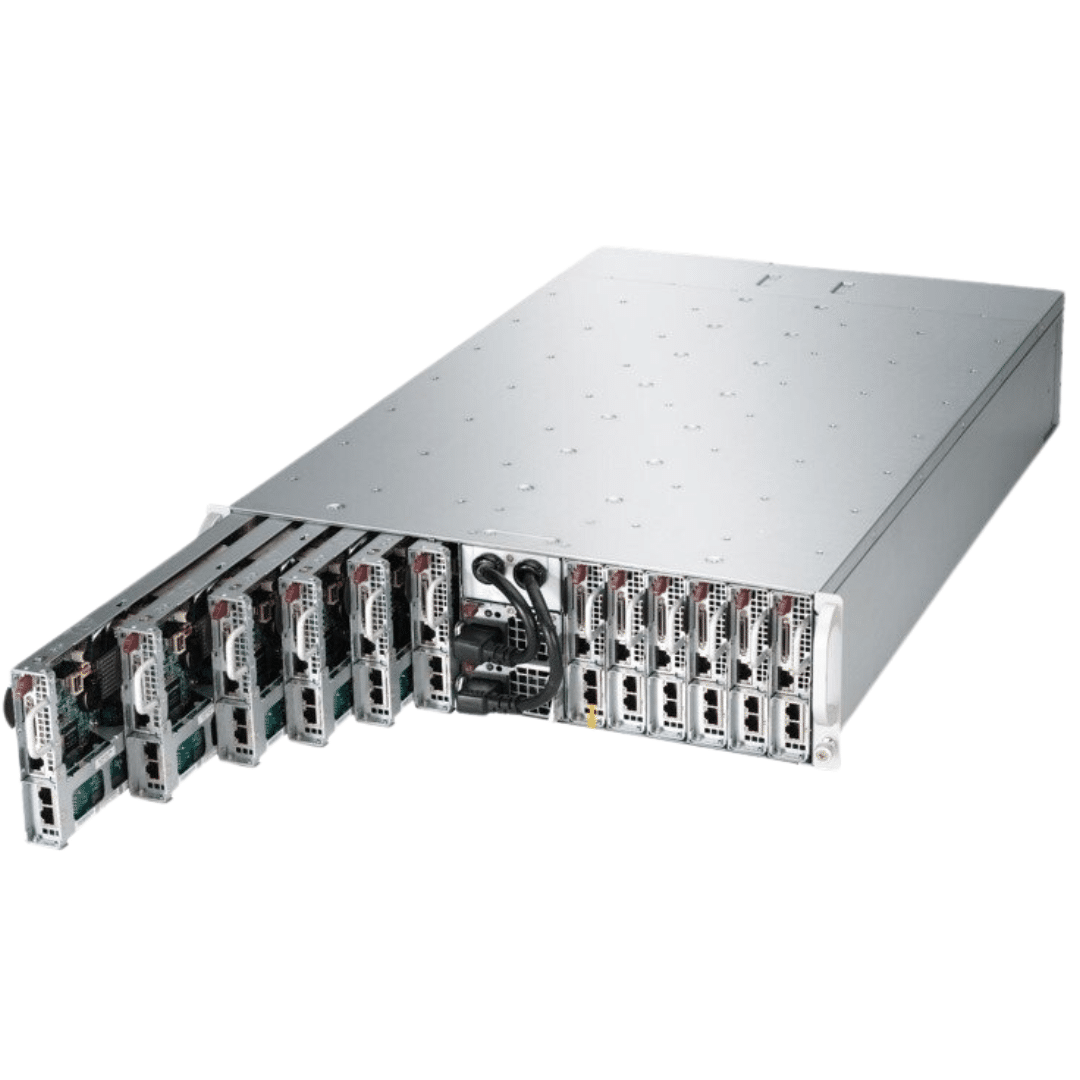

Supermicro SuperServer 5038ML-H12TRF – 12 nodes – cluster – rack-mountable 3U – 1-way – no CPU up to – RAM 0 GB – no HDD – AST2400 – Gigabit Ethernet – monitor: none – black

Descripción Corta:

Product Description: Supermicro SuperServer 5038ML-H12TRF – rack-mountable no CPU – 0 GB – no HDD
Type: Cluster (12 nodes) – rack-mountable
Height (Rack Units): 3U
Server Scalability: 1-way
Processor: No CPU
Processor Socket: LGA2011 Socket
RAM: 0 GB (installed) / 32 GB (max) – DDR3 SDRAM – ECC
Storage Controller: SATA (SATA 6Gb/s)
Hard Drive: No HDD
Optical Storage: No optical drive
Graphics Controller: ASPEED AST2400
Networking: 1GbE
Cluster Configuration: 12 – computing node
Color: Black
Dimensions (WxDxH): 17.5 in x 29.5 in x 5.2 in
Weight: 95 lbs
Manufacturer Warranty: Limited warranty – labor – 3 years ¦ Limited warranty – parts – 1 year

Descripción Completa:

General:
Type: Cluster (12 nodes)
Product Form Factor: Rack-mountable – 3U
Server Scalability: 1-way
Cluster Configuration: 12 – computing node
Color: Black

Processor / Chipset:
CPU: No CPU
Max CPU Qty: 1
CPU Upgradability: Upgradable
CPU Socket: LGA2011 Socket
Chipset Type: Intel C224

RAM:
Installed Size: 0 GB (installed) / 32 GB (max)
Technology: DDR3 SDRAM – ECC
Form Factor: DIMM 240-pin
Slots: 4 (total) / 4 (empty)
Features: Unbuffered, very low profile

Hard Drive:
Type: No HDD

Storage Controller:
Type: 1 x SATA – integrated
Controller Interface Type: SATA 6Gb/s
Channel Qty: 4
RAID Level: RAID 0, RAID 1, RAID 10

Optical Storage:
Type: No optical drive

Monitor:
Monitor Type: None.

Graphics Controller:
Type: Integrated
Graphics Processor: ASPEED AST2400
Video Interfaces: VGA

Networking:
Type: Integrated
Ethernet Ports: 2 x Gigabit Ethernet
Ethernet Controller: Intel I350
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: DMI 2.3
Features: ACPI support, KVM over IP support

Cluster:

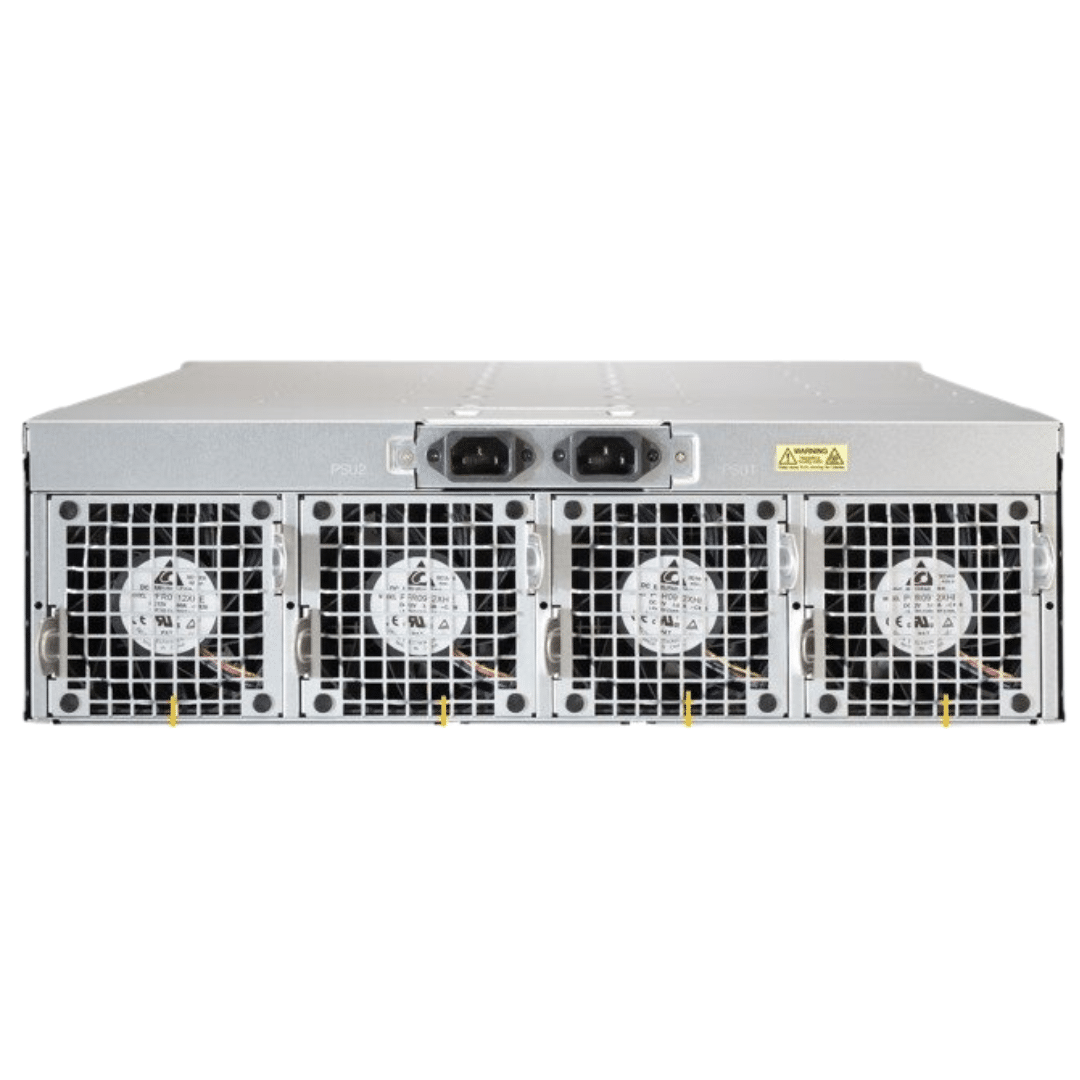

Shared Storage Power Supply: 2 redundant hot plug power supplies
Power Supply Capacity: 2×1620 Watt

Expansion / Connectivity:
Bays: 2 (total) / 2 (free) x hot-swap 3.5″
Slots: 1 (total) / 1 (free) x CPU ¦ 4 (total) / 4 (free) x DIMM 240-pin
Interfaces: 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 1 x VGA ¦ 1 x USB 3.0 (1 internal) ¦ 2 x USB 2.0

Miscellaneous:
Included Accessories: 12 x CPU heatsinks
Compliant Standards: Plug and Play, ACPI 2.0, RoHS

Power:
80 PLUS Certification: 80 PLUS Platinum

Manufacturer Warranty:
Service & Support: Limited warranty – labor – 3 years ¦ Limited warranty – parts – 1 year

Dimensions & Weight:
Width: 17.5 in
Depth: 29.5 in
Height: 5.2 in
Weight: 95 lbs

Environmental Parameters:
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 8 – 90% (non-condensing)
