• Number of Hard Drives Supported8
• Number of Hard Drives Installed0
• Number of Solid State Drive Supported8
• Number of Solid State Drive Installed0
• Processor ManufacturerAMD
• Processor TypeRyzen
• Processor ModelV1780B
• Processor CoreQuad-core (4 Core)
• Processor Speed3.35 GHz
• Standard Memory8 GB
• Memory TechnologyDDR4 SDRAM
• Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
• Number of Total Expansion Bays8
• Number of 2.5″/3.5″ Bays8
• Total Number of Expansion Slots1
• Expansion Slot TypePCI Express 3.0 x8
• Controller TypeSerial ATA
• RAID SupportedYes
• RAID Levels0, 1, 5, 6, 10, Basic, Hybrid RAID, JBOD
• Total Number of USB Ports3
• Number of USB 3.2 Gen 1 Ports3
• Network (RJ-45)Yes
• Number of Network (RJ-45) Ports3
• eSATAYes
• Operating SystemDiskStation Manager
• Protocols
  • AFP
  • FTP
  • iSCSI
  • NFS
  • SMB
  • WEBDAV
  • SMB 1.0
  • CIFS
  • SMB 2.0
  • SMB 3.0
  • NFSv3
  • NFSv4
  • NFSv4.1
  • HTTP
  • HTTPS
  • SNMP
  • LDAP
  • CalDAV
• Number of Power Supplies Installed1
• Maximum Power Supply Wattage250 W
• Height6.5″
• Width13.5″
• Depth9.6″
• Form FactorDesktop
• Weight (Approximate)13.67 lb
• Package Contents
  • DiskStation DS1823XS+ SAN/NAS Storage System
  • Power Adapter
  • 1 x Accessory Pack
  • 1 x AC Power Cord
  • 2 x RJ-45 LAN Cable
  • 1 x Quick Installation Guide
• Environmentally FriendlyYes
• Environmental ComplianceRestriction of Hazardous Substances (RoHS)
• Limited Warranty5 Year
• Additional Warranty Information

  The DS1823xs+ is backed by Synology’s 5-year limited warranty

General Information
Manufacturer: Synology, Inc
Manufacturer Part Number: DS1823XS
Manufacturer Website Address: http://www.synology.com
Brand Name: Synology
Product Line: DiskStation
Product Series: Plus
Product Model: DS1823XS+
Product Name: DiskStation DS1823XS+ SAN/NAS Storage System
Marketing Information:

DiskStation^® DS1823xs+ | Flexible large-scale storage for small and medium-sized businesses

Private data center on your desk

The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide secure data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in environments where no dedicated server rack or data center is available.

Desktop-sized powerhouse

Over 3,100/2,600 MB/s seq. read/write, built-in 10GbE, and up to 144 TB raw storage before expansion.

Flexible configuration

Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed.

Versatile applications

Back up 300 endpoints, manage 75 IP cameras, or safely sync and share files between devices and sites.

Safe, dependable, and scalable

Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient.

Data integrity protection

The Btrfs file system helps prevent data corruption and loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards.

Efficient remote management

Monitor, manage, and replace drives and storage online in Synology DiskStation Manager (DSM). Remotely reboot, reset, or view logs while the system is down thanks to out-of-band management (OOB).

Plug-and-play expansion

The DS1823xs+ can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.

The performance you need

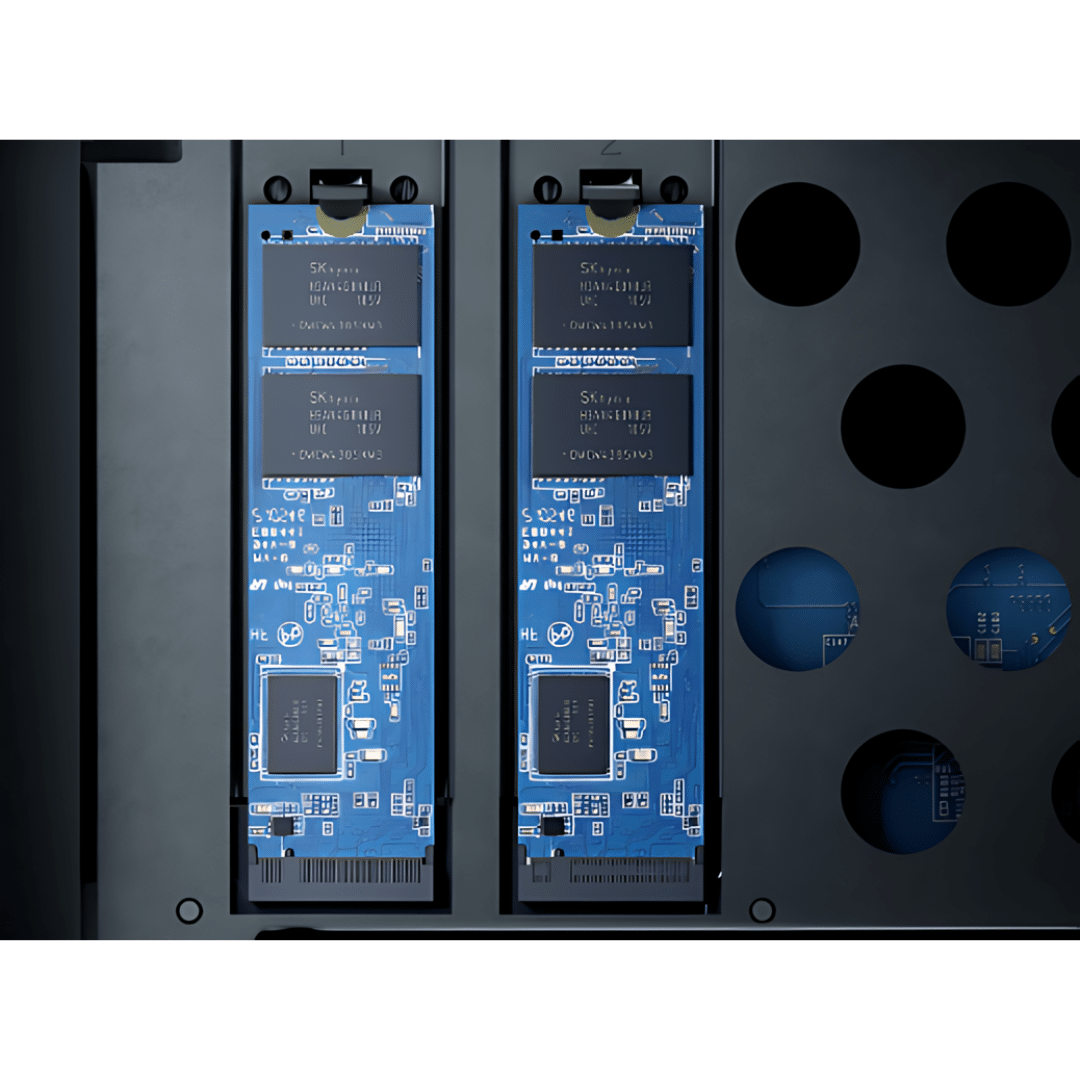

Configure the DS1823xs+ to handle any workload. Easily add 1/10/25GbE or Fibre Channel ports and designate NVMe or SATA SSD volumes as read/write cache to boost HDD performance.

Simply faster

Experience faster file indexing and higher sequential throughput with Synology Drive.

Store, share, and protect

Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.

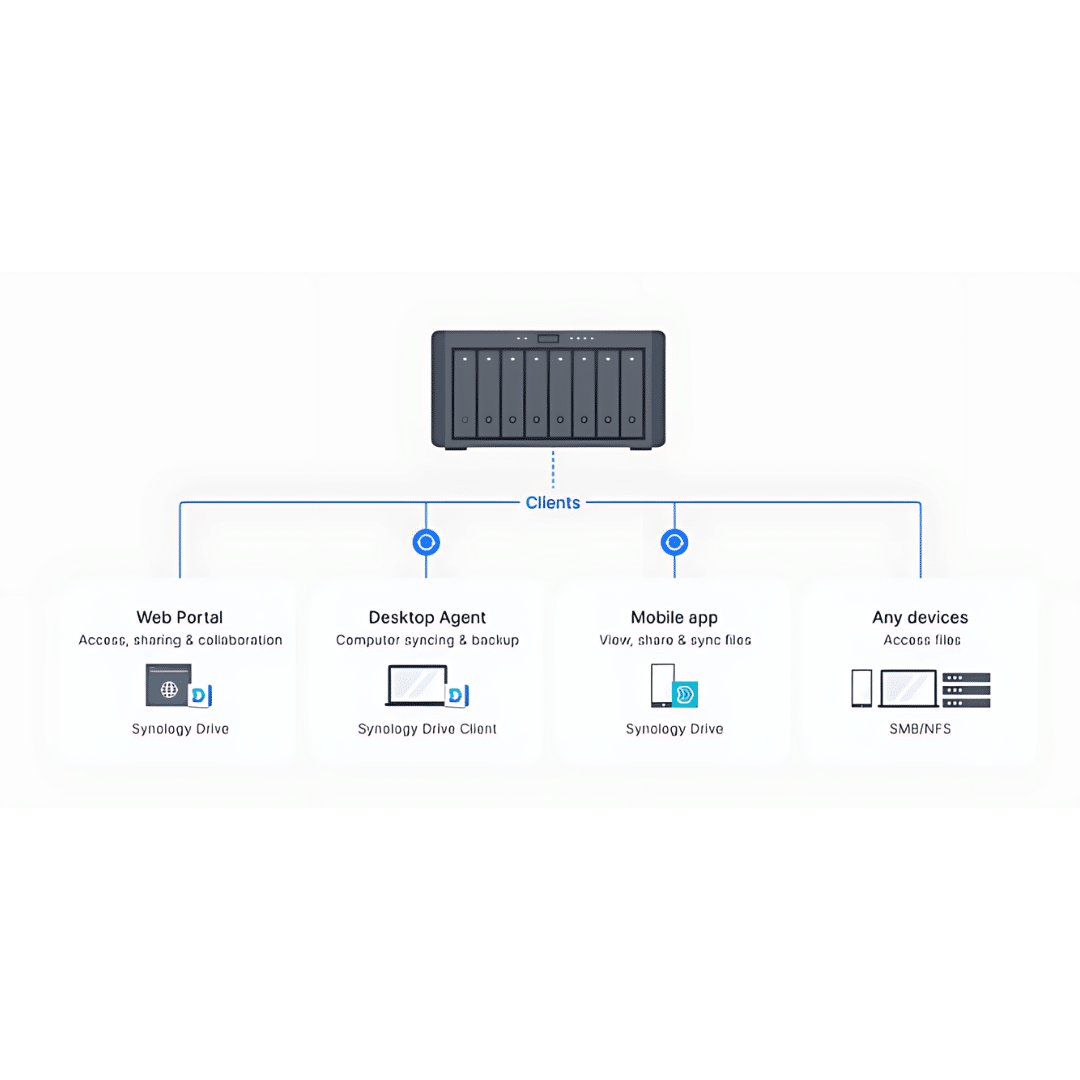

Flexible file server

Use the DS1823xs+ as a central file repository and data sharing hub. Provide easy access to business data from PCs, phones, and other devices, and set up powerful cross-site syncing to empower collaboration between offices or branches.

Private Cloud | A private cloud suite for file sharing

Empower your entire organization with streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track changes to file share settings with detailed records in the Synology Drive Admin

Dependable and secure network storage

Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes, removal, or even malware attacks with built-in snapshot technology and other backup options.

Packaged Quantity: 1
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 8
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 8
Number of Solid State Drive Installed: 0
Processor & Chipset
Processor Manufacturer: AMD
Processor Type: Ryzen
Processor Model: V1780B
Processor Core: Quad-core (4 Core)
Processor Speed: 3.35 GHz
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

I/O Expansions
Number of Total Expansion Bays: 8
Number of 2.5″/3.5″ Bays: 8
Total Number of Expansion Slots: 1
Expansion Slot Type: PCI Express 3.0 x8
Controllers
Controller Type: Serial ATA
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, Basic, Hybrid RAID, JBOD
Interfaces/Ports
Total Number of USB Ports: 3
Number of USB 3.2 Gen 1 Ports: 3
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 3
eSATA: Yes
Software
Operating System: DiskStation Manager
Management & Protocols
Protocols:

• AFP
• FTP
• iSCSI
• NFS
• SMB
• WEBDAV
• SMB 1.0
• CIFS
• SMB 2.0
• SMB 3.0
• NFSv3
• NFSv4
• NFSv4.1
• HTTP
• HTTPS
• SNMP
• LDAP
• CalDAV

Power Description
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 250 W
Physical Characteristics
Height: 6.5″
Width: 13.5″
Depth: 9.6″
Form Factor: Desktop
Weight (Approximate): 13.67 lb
Miscellaneous
Package Contents:

• DiskStation DS1823XS+ SAN/NAS Storage System
• Power Adapter
• 1 x Accessory Pack
• 1 x AC Power Cord
• 2 x RJ-45 LAN Cable
• 1 x Quick Installation Guide

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
Additional Warranty Information:

The DS1823xs+ is backed by Synology’s 5-year limited warranty
