• Number of Hard Drives Supported24
• Number of Hard Drives Installed0
• Total Hard Drive Capacity Supported184.32 TB
• Number of Solid State Drive Supported24
• Number of Solid State Drive Installed0
• Total Solid State Drive Capacity Supported184.32 TB
• Number of Processors Installed2
• Processor TypeXeon Silver
• Processor Model4110
• Processor CoreOcta-core (8 Core)
• Processor Speed2.10 GHz
• Standard Memory32 GB
• Memory TechnologyDDR4 SDRAM
• Ethernet Technology10 Gigabit Ethernet
• Number of Total Expansion Bays24
• Number of 2.5″ Bays24
• Total Number of Expansion Slots2
• Expansion Slot TypePCI Express 3.0 x8
• Controller TypeSerial Attached SCSI (SAS)
• RAID SupportedYes
• RAID Levels0, 1, 5, 6, 10, Basic, JBOD, RAID F1
• Number of SAS Ports (External)1
• Total Number of USB Ports2
• Number of USB 3.0 Ports2
• Network (RJ-45)Yes
• Number of Network (RJ-45) Ports4
• Operating SystemDiskStation Manager
• Protocols
  • iSCSI
  • CIFS
  • AFP
  • NFS
  • FTP
  • WEBDAV
  • SMB 1.0
  • SMB 2.0
  • SMB 3.0
  • NFSv3
  • NFSv4
  • NFSv4.1
  • HTTP
  • HTTPS
  • SNMP
  • LDAP
  • CalDAV
• Number of Power Supplies Installed2
• Maximum Power Supply Wattage800 W
• Redundant Power SupplyYes
• Height3.5″
• Width19″
• Depth28.5″
• Form FactorRack-mountable
• Rack Height2U
• Weight (Approximate)38.05 lb
• Country of OriginTaiwan

General Information
Manufacturer: Synology, Inc
Manufacturer Part Number: FS6400
Manufacturer Website Address: http://www.synology.com
Brand Name: Synology
Product Line: FlashStation
Product Series: FS
Product Model: FS6400

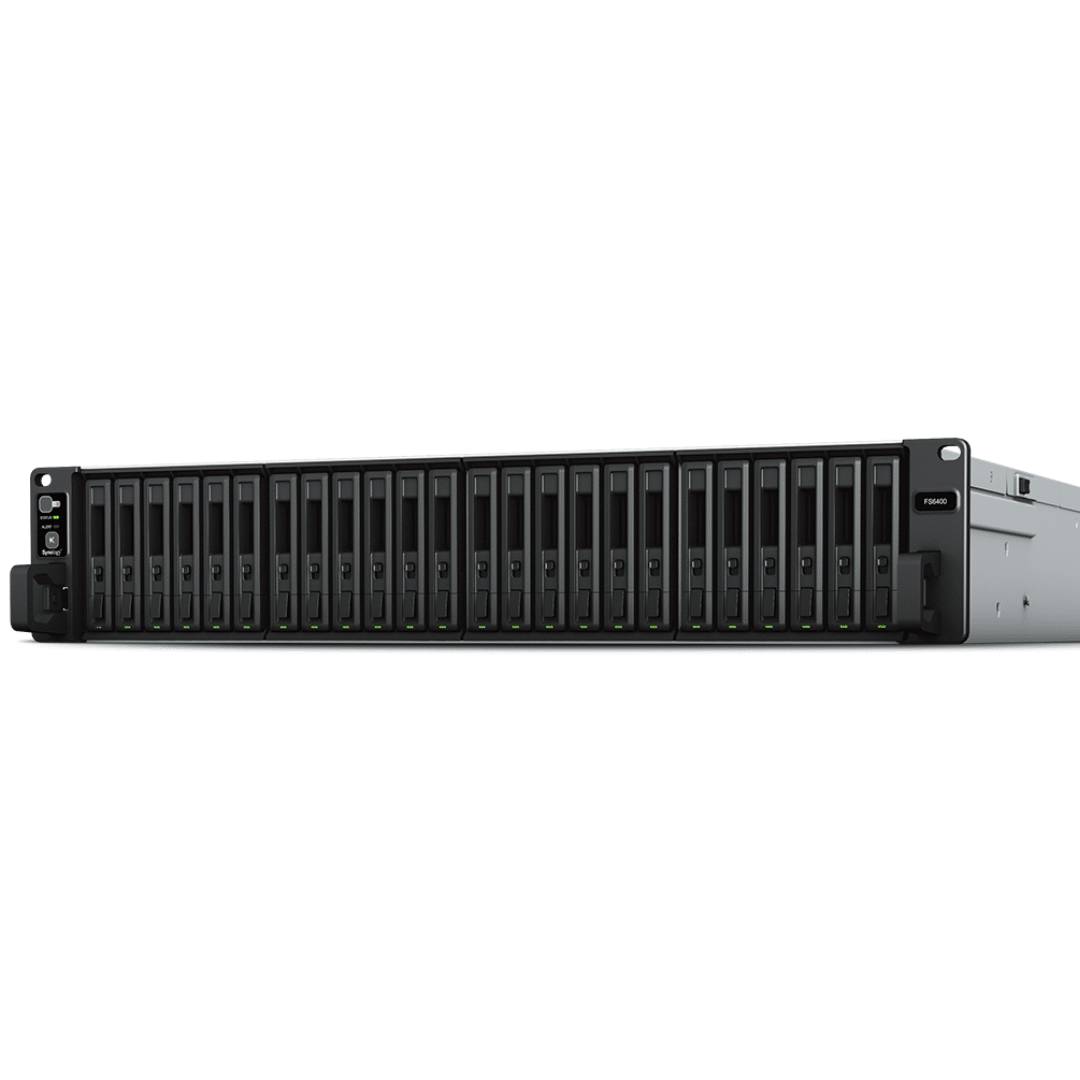

Product Name: FlashStation FS6400 SAN/NAS Storage System
Marketing Information:

Uncompromising performance

Synology FlashStation FS6400 is a 2U rackmount server designed for I/O-intensive and latency-sensitive tasks, ideal for multimedia post-production, virtual machines, online transaction processing, or database applications.

Fast and reliable networking

With multi-LAN design, FS6400 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, two optional Ethernet add-in cards can be installed on PCIe 3.0 slots to provide fast data transmission.

Complete iSCSI and virtualization solutions

Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder to enhance work efficiency. You can run and manage multiple virtual machines on Windows, Linux, or DSM using Virtual Machine Manager.

Next-generation file system for better data protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.

Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders

Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots

File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses

Automatic file self-healing detects and recovers corrupted files without user intervention

RAID F1

Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.

Digital asset protection

Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes. Learn more

Security Advisor

Analyze system settings, password strength and network preferences, and remove any possible malware.

AppArmor

A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.

AES 256-bit encryption

Encrypt shared folders and network data transmission to avoid unauthorized data access.

2-step verification

Prevent others from logging in to your DSM by generating a six-digit one-time password (OTP) on your mobile device.

Trust level

Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.

5-year warranty

As we’re committed to improving product innovation and quality, Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

Packaged Quantity: 1
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 24
Number of Hard Drives Installed: 0
Total Hard Drive Capacity Supported: 184.32 TB
Number of Solid State Drive Supported: 24
Number of Solid State Drive Installed: 0
Total Solid State Drive Capacity Supported: 184.32 TB
Processor & Chipset
Number of Processors Installed: 2
Processor Type: Xeon Silver
Processor Model: 4110
Processor Core: Octa-core (8 Core)
Processor Speed: 2.10 GHz
Memory
Standard Memory: 32 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 24
Number of 2.5″ Bays: 24
Total Number of Expansion Slots: 2
Expansion Slot Type: PCI Express 3.0 x8
Controllers
Controller Type: Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, Basic, JBOD, RAID F1
Interfaces/Ports
Number of SAS Ports (External): 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
Software
Operating System: DiskStation Manager
Management & Protocols
Protocols:

• iSCSI
• CIFS
• AFP
• NFS
• FTP
• WEBDAV
• SMB 1.0
• SMB 2.0
• SMB 3.0
• NFSv3
• NFSv4
• NFSv4.1
• HTTP
• HTTPS
• SNMP
• LDAP
• CalDAV

Power Description
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 800 W
Redundant Power Supply: Yes
Physical Characteristics
Height: 3.5″
Width: 19″
Depth: 28.5″
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 38.05 lb
Miscellaneous
Country of Origin: Taiwan
