• Number of Hard Drives Supported12
• Number of Hard Drives Installed0
• Total Hard Drive Capacity Supported240 TB
• Number of Solid State Drive Supported12
• Number of Solid State Drive Installed0
• Total Solid State Drive Capacity Supported240 TB
• Processor ManufacturerIntel
• Processor TypeAtom
• Processor ModelC3558R
• Processor CoreQuad-core (4 Core)
• Processor Speed2.40 GHz
• Standard Memory8 GB
• Memory TechnologyDDR4 SDRAM
• Ethernet Technology2.5 Gigabit Ethernet
• Number of Total Expansion Bays12
• Number of 2.5″/3.5″ Bays12
• Controller TypeSerial ATA
• RAID SupportedYes
• Drive InterfaceSerial ATA
• Total Number of USB Ports2
• Network (RJ-45)Yes
• Number of Network (RJ-45) Ports2
• Operating SystemTOS 5
• Protocols
  • TCP/IP
  • IPv4
  • IPv6
  • CIFS/SMB
  • NFS
  • FTP
  • SFTP
  • HTTPS
  • SSH
  • iSCSI
  • SNMP
  • DLNA
  • UPnP
  • DDNS
  • LDAP
  • WEBDAV
  • SMB
• Maximum Power Supply Wattage500 W
• Height13.1″
• Width6.4″
• Depth11.6″
• Weight (Approximate)22.71 lb
• Package Contents
  • T12-450 12-bay High Speed Network Storage Server
  • 1 x Power cord
  • 1 x RJ-45 network cable
  • 1 x Quick Installation Guide
  • 1 x Limited Warranty Note
  • Screws
• Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
• Limited Warranty2 Year

Built for High-speed Storage

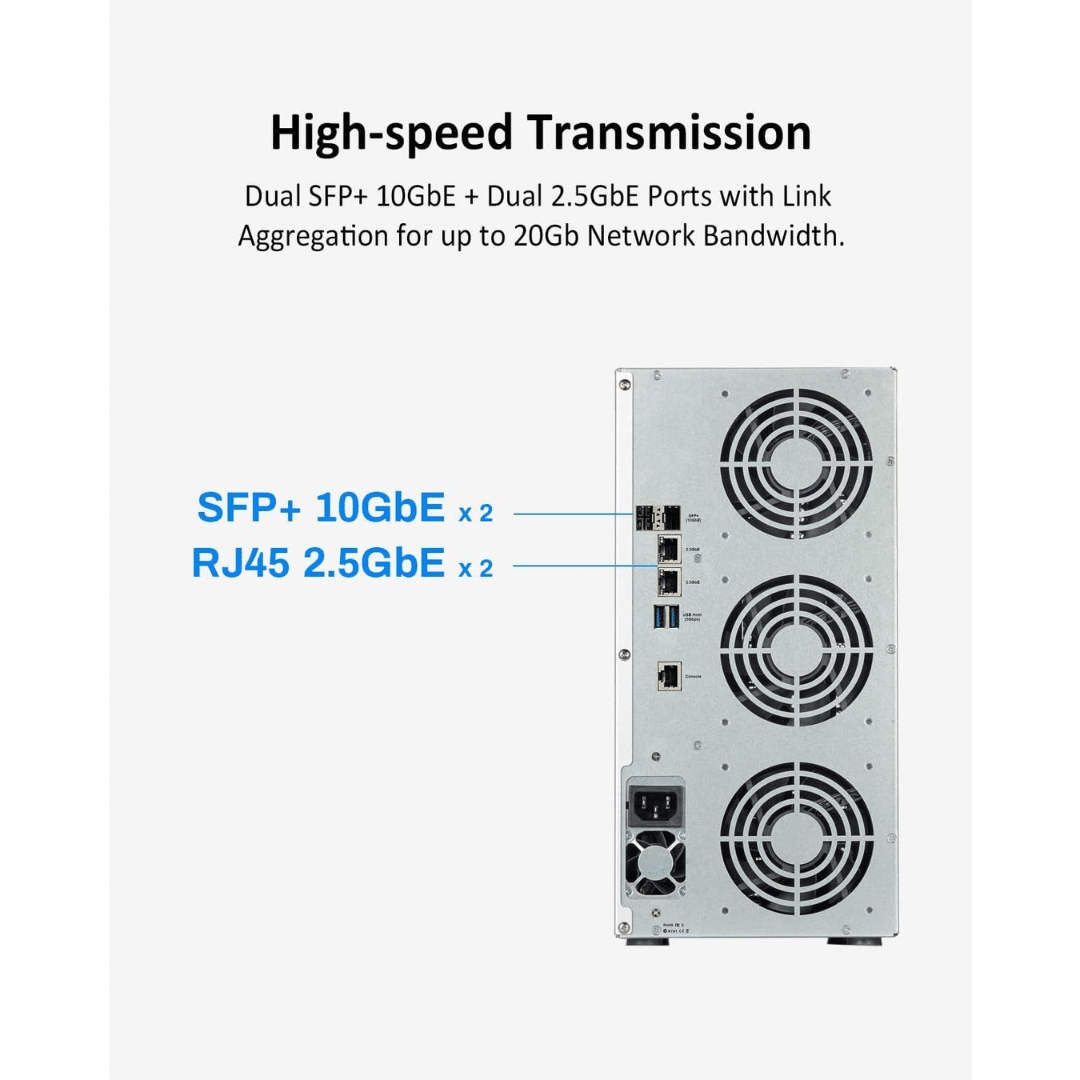

The T12-450 is powered by an Intel Atom C3558R quad-core processor, with main frequency of up to 2.4GHz. It is also equipped with a 8GB DDR4 dual-channel memory (expandable up to 32GB); dual SFP+ 10Gb ethernet interfaces; and dual 2.5GbE interfaces, providing up to 20Gb transmission bandwidth through Link Aggregation. In addition, the transmission performance of the T12-450 has been doubled by the installation of dual M.2 NVMe SSD slots in combination with TerraMaster Hyper Cache SSD cache acceleration technology. The T12-450 has been specifically developed for users who require high-speed storage, which can meet the stringent demands of 4K image editing, virtualization, databases, and other applications with high storage performance requirements.

Teamwork

By building a 10-gigabit network, multiple Windows/Mac workstations can connect to T12-450 simultaneously for easier collaborative operations of online editing of multi-track 4K material, special effects, video composition, and shot clip import and output, which greatly improves the work efficiency and significantly reduces the production time.

New Operating System

T12-450 runs the new operating system TOS 5, which adds more than 50 new functions and 600 improvements compared with the previous generation. The new features meet more business requirements, as well as significantly improving response speed, security, and ease of use.

An Abundance of Data Storage Space

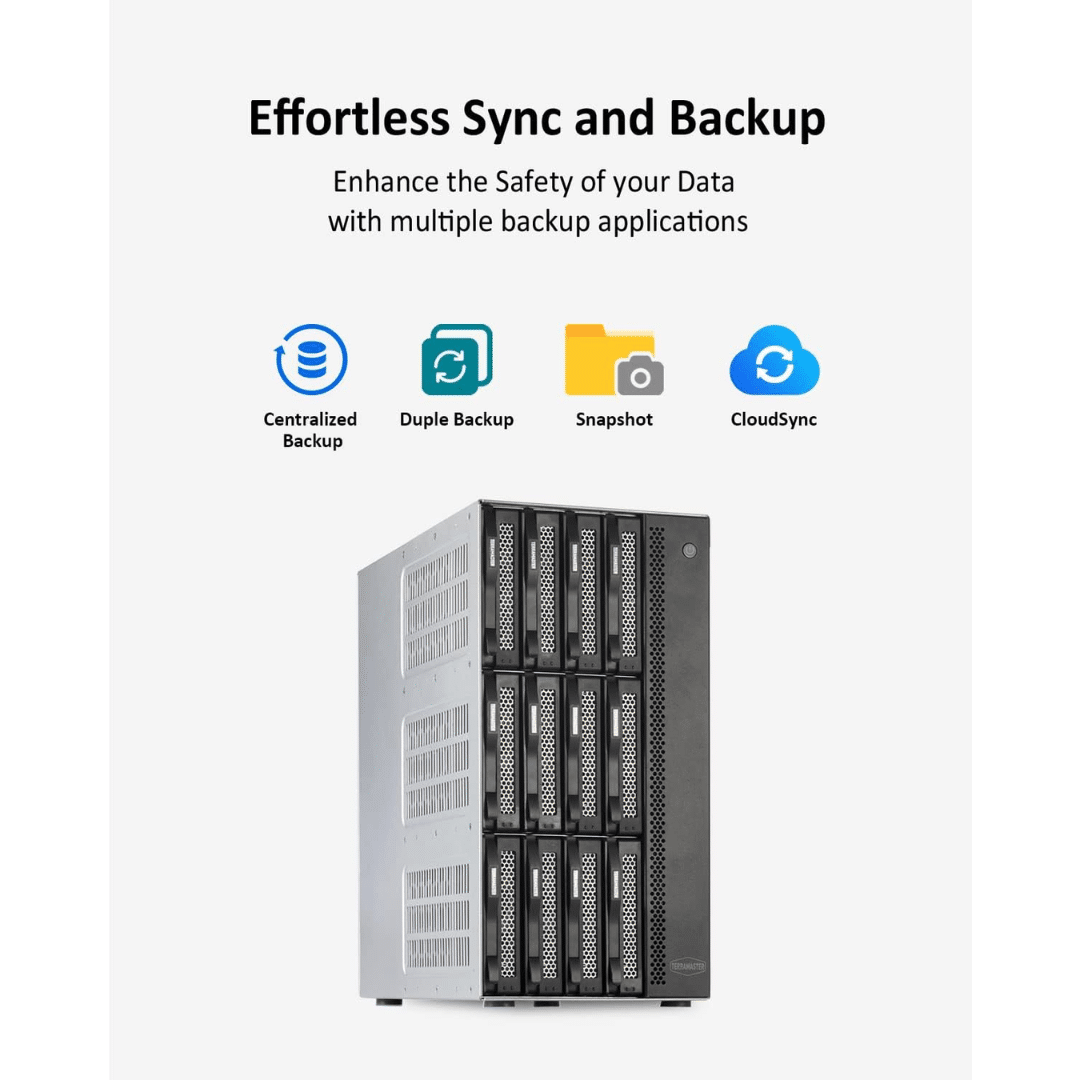

The T12-450 supports up to 20TB of hard drive, and the total capacity can reach 240TB. It can store 90 million HD photos,48 million working documents, 120,000 HD movies, and 12 million downloadable music, enabling you to back up the data in Windows PC, MAC computer, mobile phone, HDD enclosure, and network disk to TNAS for centralized management. This adequately protects users from data loss resulting from hardware malfunction or ransomware.

Unique Hyper Cache SSD Cache Acceleration Technology

Hyper Cache is a unique SSD cache acceleration technology developed by TerraMaster. Compared with the traditional SSD cache, the Hyper Cache offers the user a choice of three alternative cache modes designed to suit different usage requirements. It can also improve the cache speed and security through the creation of disk arrays for the SSDs. The TerraMaster Hyper Cache could improve storage performance by 100%, providing the user with more efficient and reliable hybrid storage.

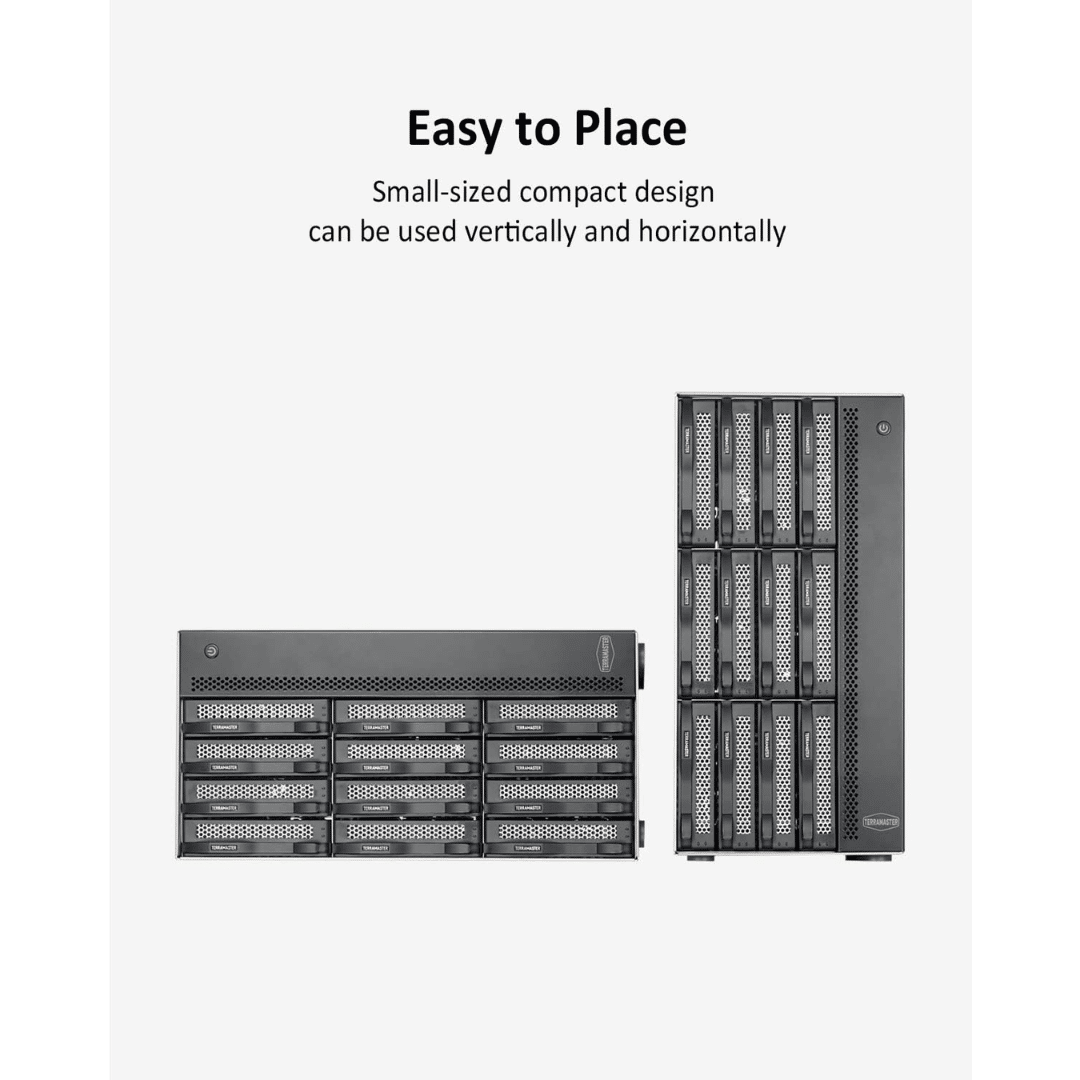

Small-sized Compact Design

Structural optimization has remarkably reduced the space occupied by the T12-450, thus realizing product miniaturization. By adopting both vertical and horizontal designs, the T12-450 better satisfies the usage requirements of small-sized business users with limited space.

Flexible Storage Space Management

TRAID is the abbreviation of TerraMaster RAID. TRAID is a flexible disk array management tool developed by TerraMaster. It has features such as the automatic combination of disk space, hard disk failure redundancy protection, and automatic capacity expansion. All these functions do not require manual configuration by the user, and the system will automatically complete the configuration according to the properties of the hard disk. TRAID provides users with an optimized, flexible and elastic disk array management solution, especially suitable for new users who are not proficient in how to configure a disk array.

Across-Platform File Services

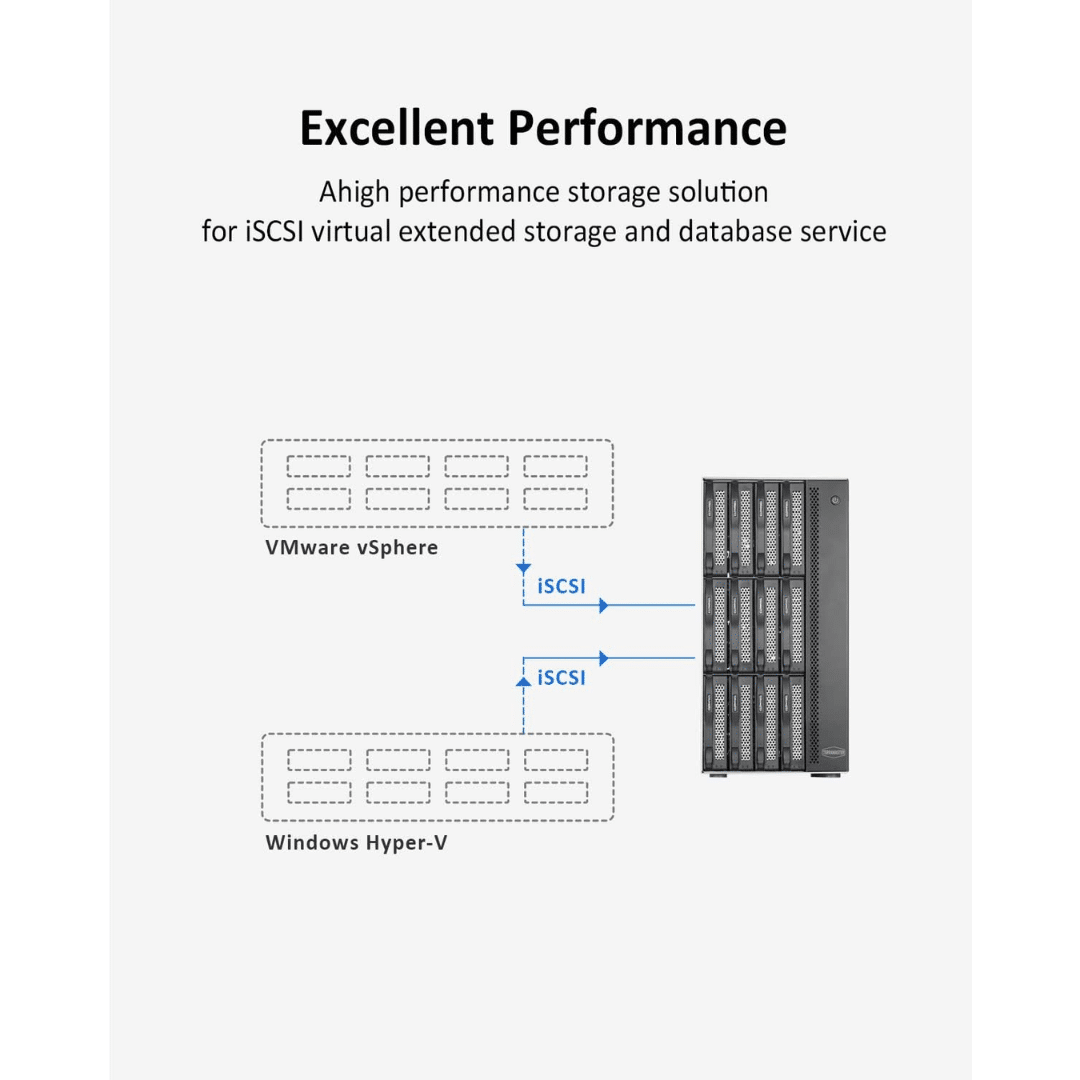

The T12-450supports all mainstream file services: SMB, NFS, SFTP/FTP, AFP, iSCSI, WebDAV; and is provided with multiple permission management of users, user groups, and folder, meeting across-platform file service
Packaged Quantity: 1
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 12
Number of Hard Drives Installed: 0
Total Hard Drive Capacity Supported: 240 TB
Number of Solid State Drive Supported: 12
Number of Solid State Drive Installed: 0
Total Solid State Drive Capacity Supported: 240 TB
Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Atom
Processor Model: C3558R
Processor Core: Quad-core (4 Core)
Processor Speed: 2.40 GHz
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 12
Number of 2.5″/3.5″ Bays: 12
Controllers
Controller Type: Serial ATA
RAID Supported: Yes
Interfaces/Ports
Drive Interface: Serial ATA
Total Number of USB Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Software
Operating System: TOS 5
Management & Protocols
Protocols:

• TCP/IP
• IPv4
• IPv6
• CIFS/SMB
• NFS
• FTP
• SFTP
• HTTPS
• SSH
• iSCSI
• SNMP
• DLNA
• UPnP
• DDNS
• LDAP
• WEBDAV
• SMB

Power Description
Maximum Power Supply Wattage: 500 W
Physical Characteristics
Height: 13.1″
Width: 6.4″
Depth: 11.6″
Weight (Approximate): 22.71 lb
Miscellaneous
Package Contents:

• T12-450 12-bay High Speed Network Storage Server
• 1 x Power cord
• 1 x RJ-45 network cable
• 1 x Quick Installation Guide
• 1 x Limited Warranty Note
• Screws

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
