• Number of Fans2
• Fan Speed (Min)500 rpm
• Fan Speed (Max)2000 rpm
• Maximum Airflow57.05 CFM
• Noise Levels (A-Weighted)25.8 dB(A)
• LED ColorARGB
• Maximum Air Pressure2.23mmH2O
• Cooler TypeLiquid Cooler
• Compatible Intel Socket
  • R4 LGA-2066
  • LGA 2011-v3
  • R LGA-2011
  • LGA-1700
  • LGA-1200
  • H LGA-1156
  • H2 LGA-1155
  • H4 LGA-1151
  • H3 LGA-1150
  • LGA-115X
• Compatible AMD Socket
  • AM5
  • AM4
  • FM2
  • FM1
  • AM2 PGA-940
  • AM2+ PGA-940
  • AM3+
  • AM3 PGA-941
• Connectors
  • 4-pin PWM
  • 3-pin ARGB
• Rated Current310 mA
• Product ColorBlack
• Radiator MaterialAluminum
• Material Details
  • Water Block Material: Copper
  • Tube Material: Rubber
• Maximum Fan Diameter4.72″
• Radiator Height10.87″
• Radiator Width4.72″
• Radiator Depth1.06″
• Fan Height4.72″
• Fan Width4.72″
• Fan Depth0.98″
• Package Contents
  • TH240 V2 Ultra ARGB Sync All-In-One Liquid Cooler
  • Brackets for Latest Intel and AMD CPU Sockets
  • 1 x 900mm PWM Cable
  • 1 x 900mm ARGB Cable
• Application/Usage
  • Chassis
  • Processor
  • Motherboard
  • CPU

General Information
Manufacturer: Thermaltake Technology Co., Ltd
Manufacturer Part Number: CLW383PL12SWA
Manufacturer Website Address: http://www.thermaltakeusa.com
Brand Name: Thermaltake
Product Line: TH240 V2 Ultra ARGB Sync

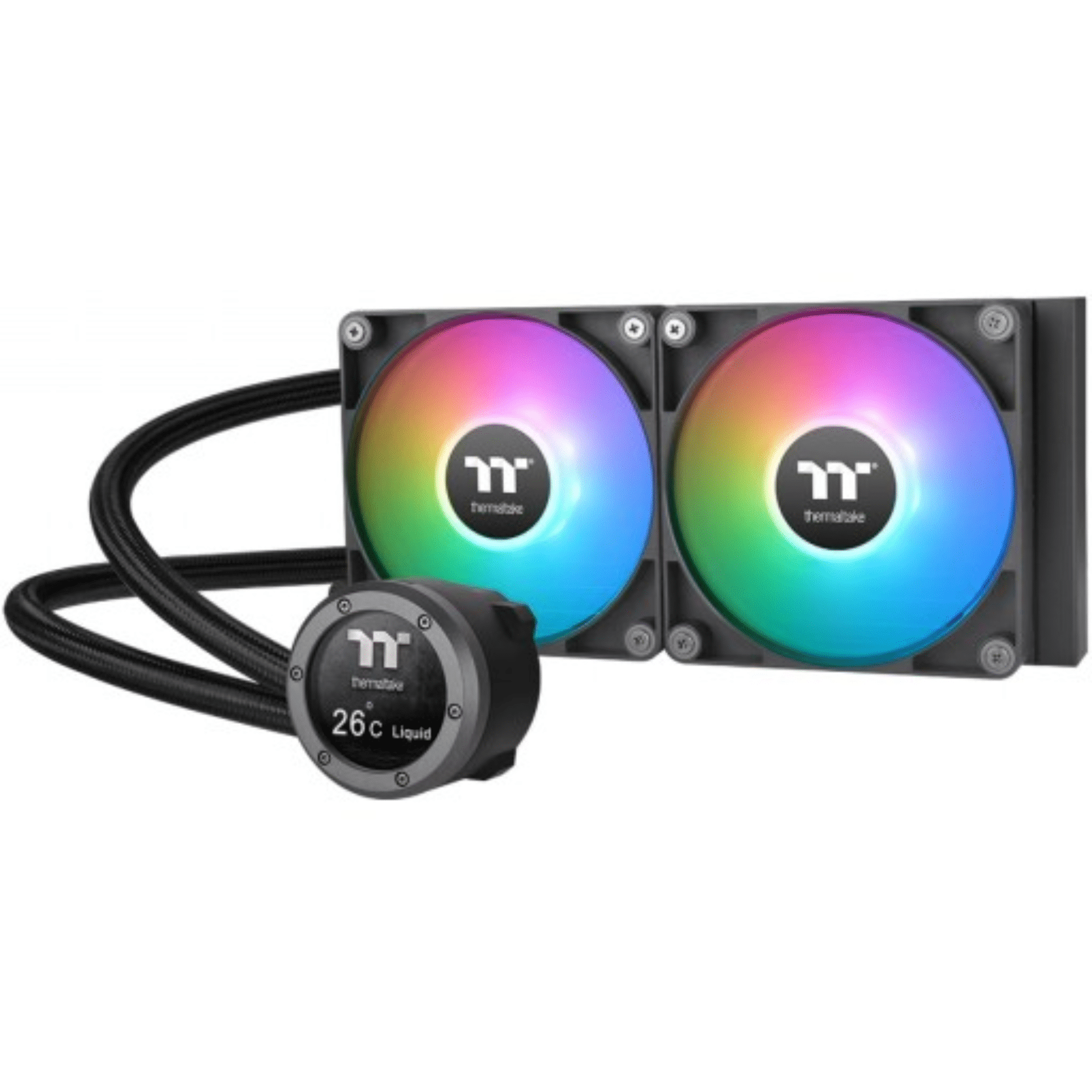

Product Name: TH240 V2 Ultra ARGB Sync All-In-One Liquid Cooler
Marketing Information:

No matter the build, We’ve got you covered

The TH V2 Ultra ARGB Series covers various types of builds; the series has two 120mm fan models, including the TH 240/ 360 V2 Ultra ARGB, and two 140mm fan models, including TH 280/ 420 V2 Ultra ARGB.

New Design, Same Quality

TH V2 Ultra ARGB was given an industrial look to freshen up the 2.1″ LCD Display. With its 480*480 high resolution, you can easily show off 16.8M color videos or photos.

Personalize Your LCD Display

The TH V2 Ultra LCD Display is highly customizable, from presenting real-time information to playing JPG, GIF, PNG, MP4, MOV, and AVI files or even showing local time and weather information on the display; it can all bring great visual aesthetics to your build.

Sync with CT120 ARGB Fans

Utilizing the CT120 ARGB Fans on this model, not only you can match up some of our chassis’ pre-installed fans, but you can unify your fans with your build!

The CT120 ARGB provides an 57.05 CFM air flow with 2.23 mm-H2O static pressure while maintaining 25.8 dB-A noise levels.

Enhanced Cooling Surface With A Compact Design

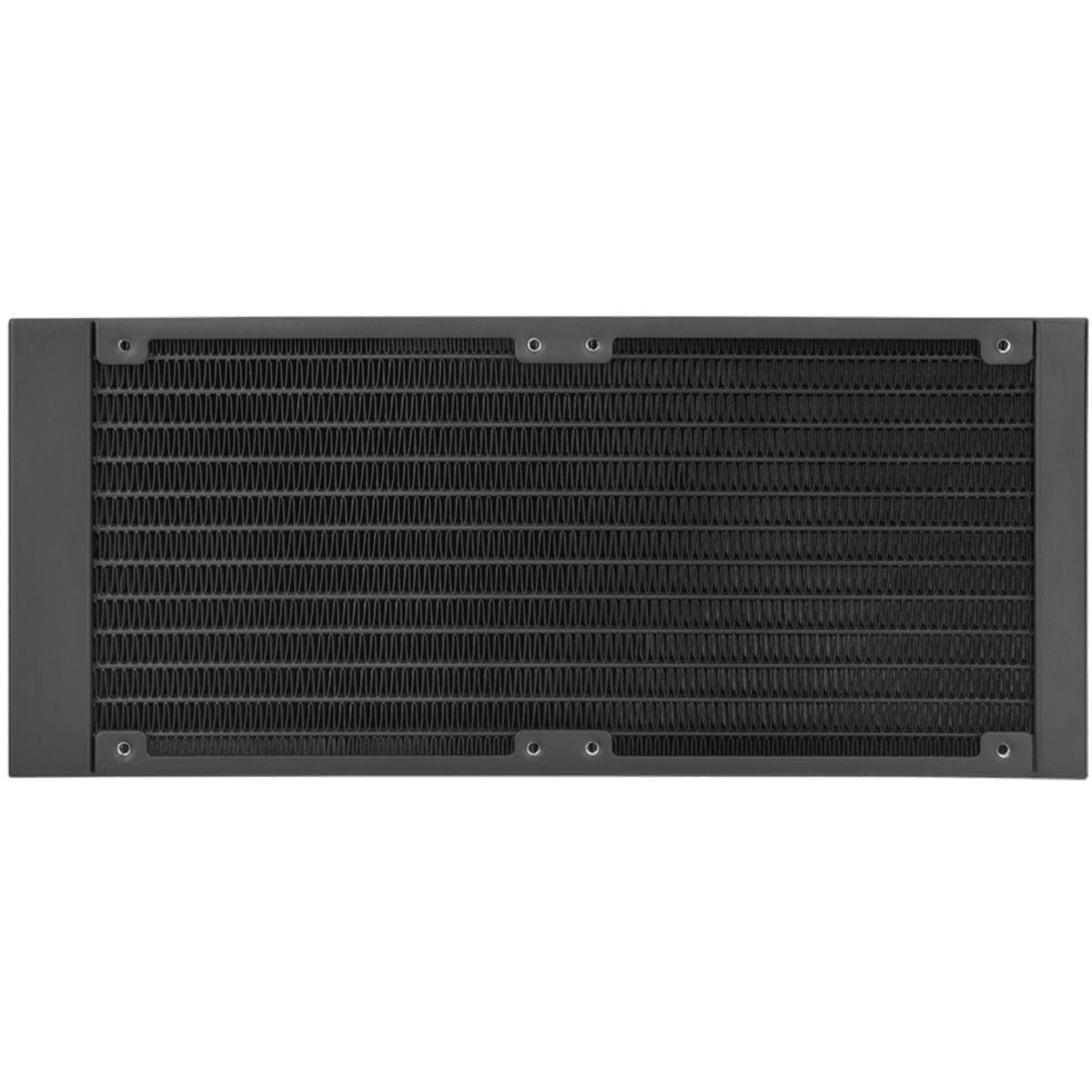

The TH V2 Ultra ARGB Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Less Cable, Less Mess

The new cable-integrated daisy-chain design allows the fans to be directly connected, so it minimizes demands of 4-pin PWM and 3-pin ARGB ports on your motherboard and shortens the cable length between the fans. We’ve also included one 900mm PWM cables and one 900mm ARGB cable for you to easily manage your cables while assembling your build.

Keeping Your Cables in Place

You might have experienced easily detached 5V ARGB cables when you assemble your builds. Worry not; this 5V ARGB Connector Clip can guarantee that the cables are correctly connected and won’t get loose in unexpected conditions.

Keep it COLD with Copper

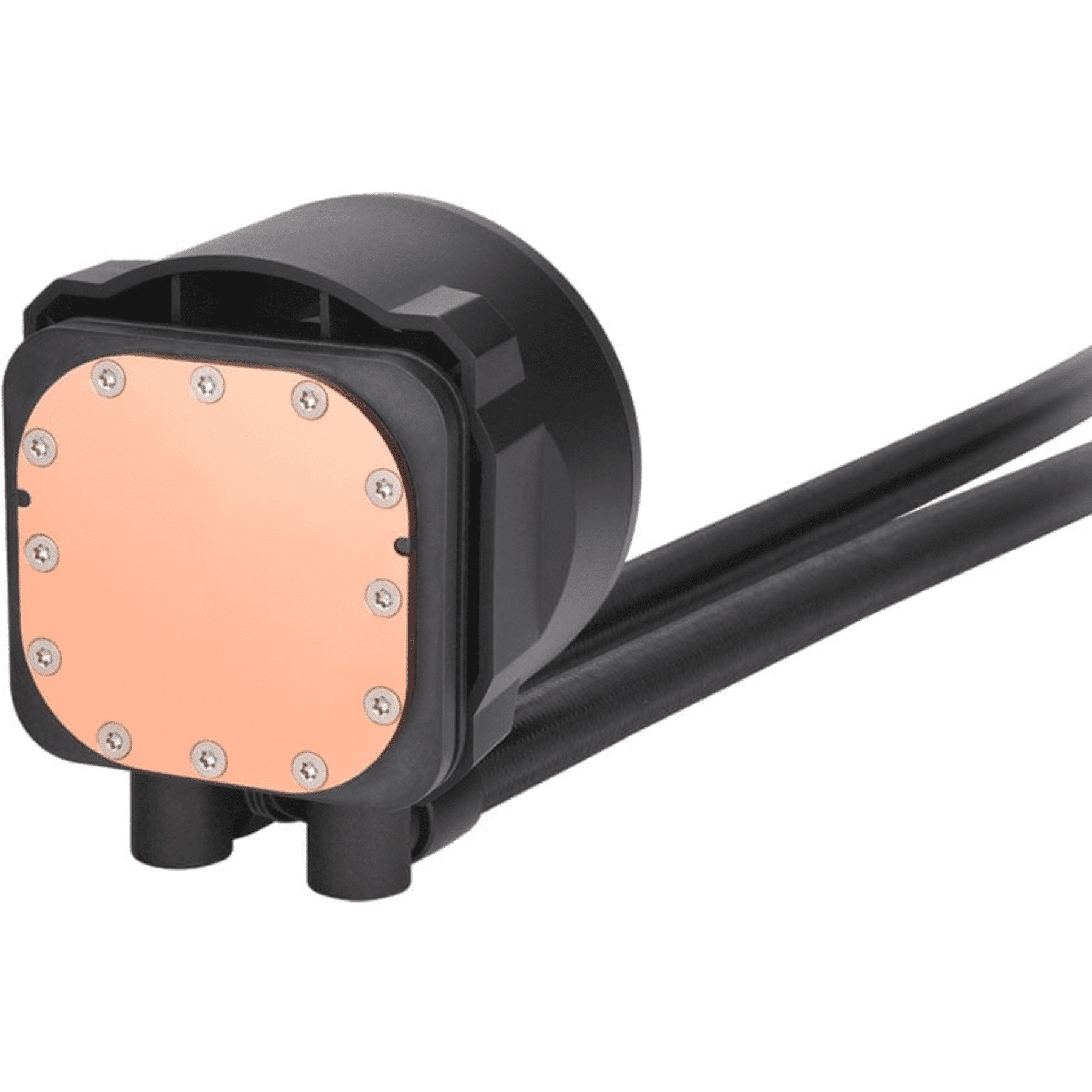

The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

Fully Customizable with TT RGB Plus 2.0

Monitor frequency and real-time temperature directly from the 2.1″ LCD display, or customize start-up and standby screens by uploading images or GIFs to add extra flair with the TT RGB Plus 2.0 software.

Any CPU Can Be the Right CPU

The package includes brackets for the latest Intel and AMD CPU sockets to be compatible with the most modern CPU platforms, including the latest Intel LGA1700 and AMD AM5 CPUs.

More from the Manufacturer

Product Type: Cooling Fan/Radiator/Water Block/Pump
Fan Information
Number of Fans: 2
Fan Speed (Min): 500 rpm
Fan Speed (Max): 2000 rpm
Maximum Airflow: 57.05 CFM
Noise Levels (A-Weighted): 25.8 dB(A)
LED Color: ARGB
Maximum Air Pressure: 2.23mmH2O
Heatsink Information
Cooler Type: Liquid Cooler
Compatible Intel Socket:

• R4 LGA-2066
• LGA 2011-v3
• R LGA-2011
• LGA-1700
• LGA-1200
• H LGA-1156
• H2 LGA-1155
• H4 LGA-1151
• H3 LGA-1150
• LGA-115X

Compatible AMD Socket:

• AM5
• AM4
• FM2
• FM1
• AM2 PGA-940
• AM2+ PGA-940
• AM3+
• AM3 PGA-941

Interfaces/Ports
Connectors:

• 4-pin PWM
• 3-pin ARGB

Power Description
Rated Current: 310 mA
Physical Characteristics
Product Color: Black
Radiator Material: Aluminum
Material Details:

• Water Block Material: Copper
• Tube Material: Rubber

Maximum Fan Diameter: 4.72″
Radiator Height: 10.87″
Radiator Width: 4.72″
Radiator Depth: 1.06″
Fan Height: 4.72″
Fan Width: 4.72″
Fan Depth: 0.98″
Miscellaneous
Package Contents:

• TH240 V2 Ultra ARGB Sync All-In-One Liquid Cooler
• Brackets for Latest Intel and AMD CPU Sockets
• 1 x 900mm PWM Cable
• 1 x 900mm ARGB Cable

Application/Usage:

• Chassis
• Processor
• Motherboard
• CPU
