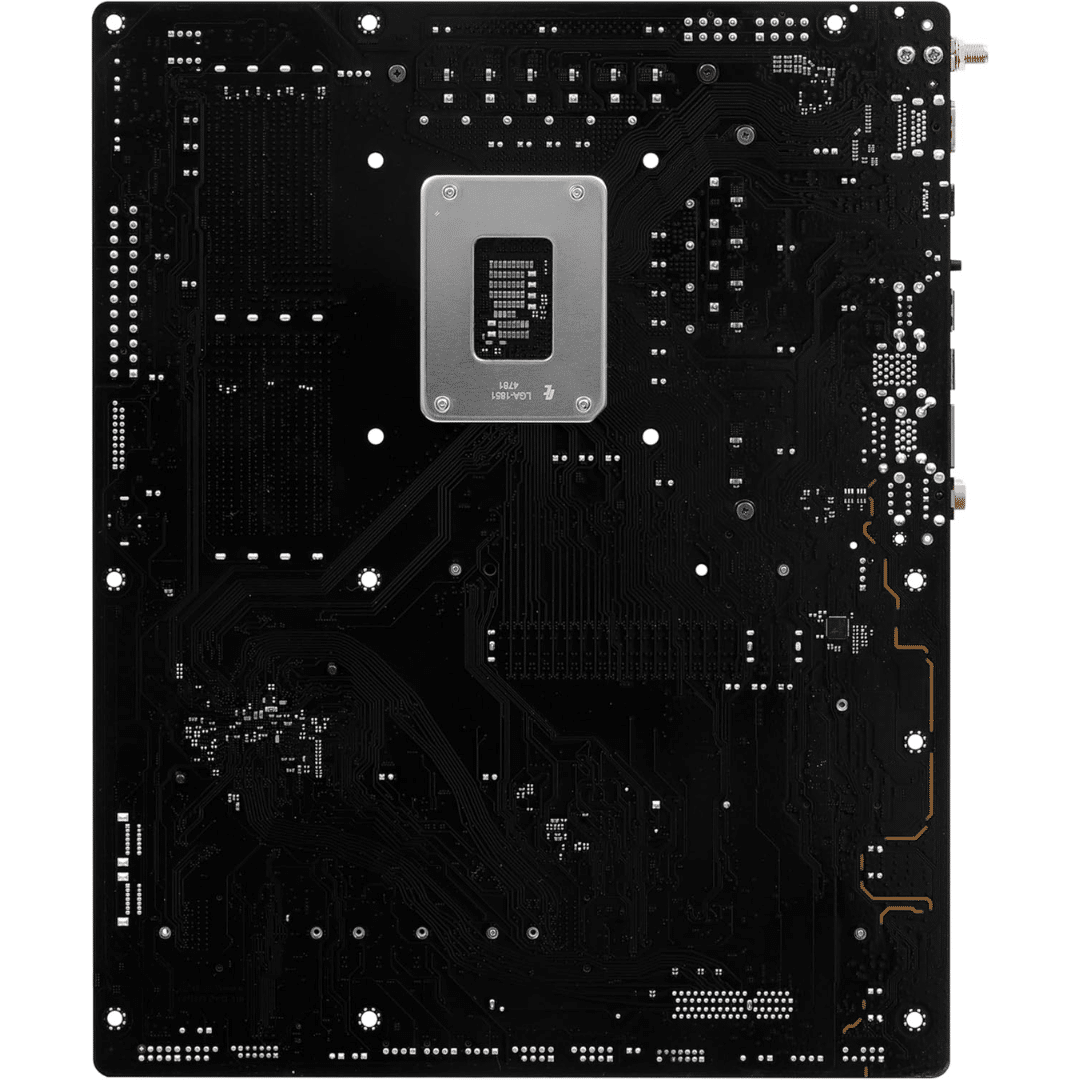

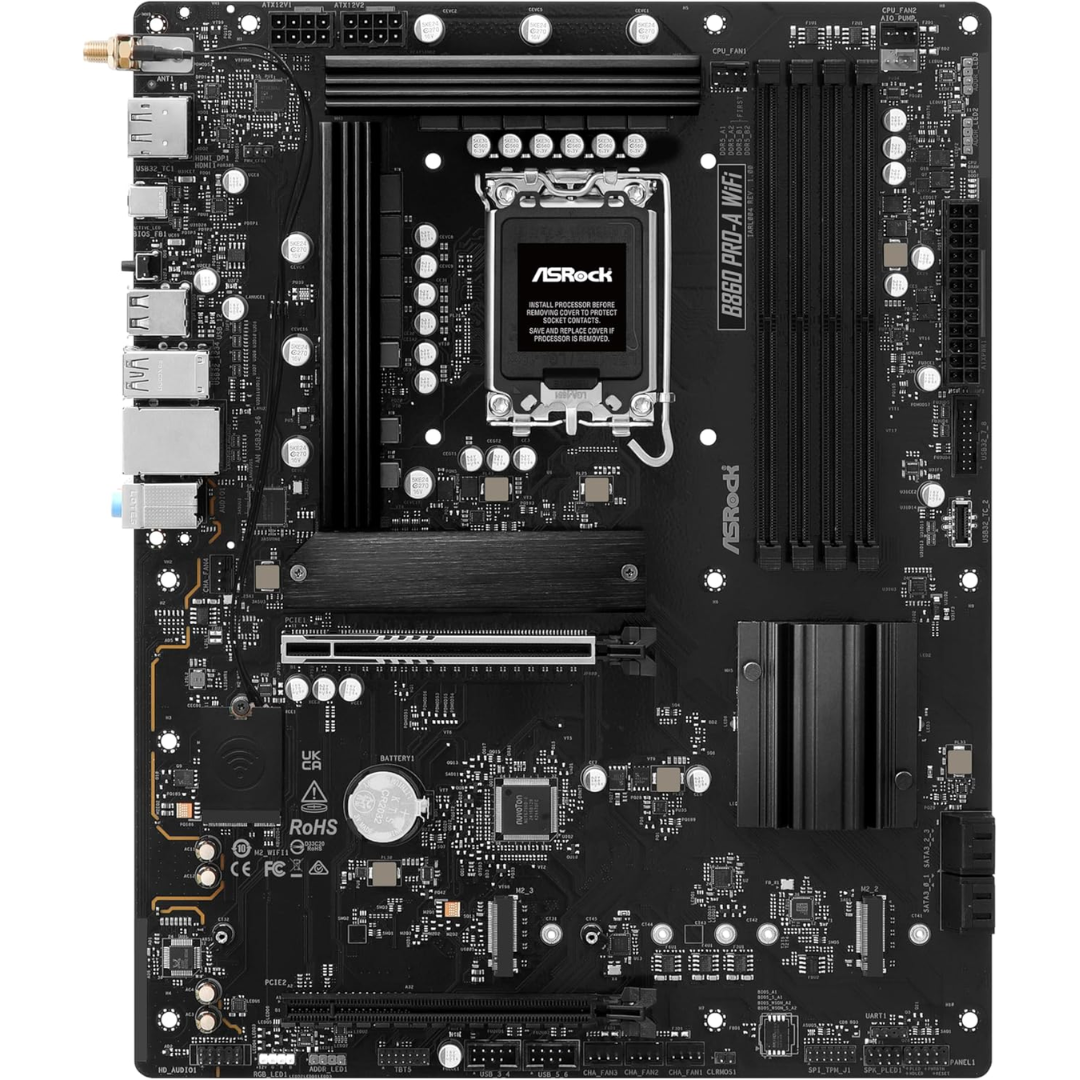

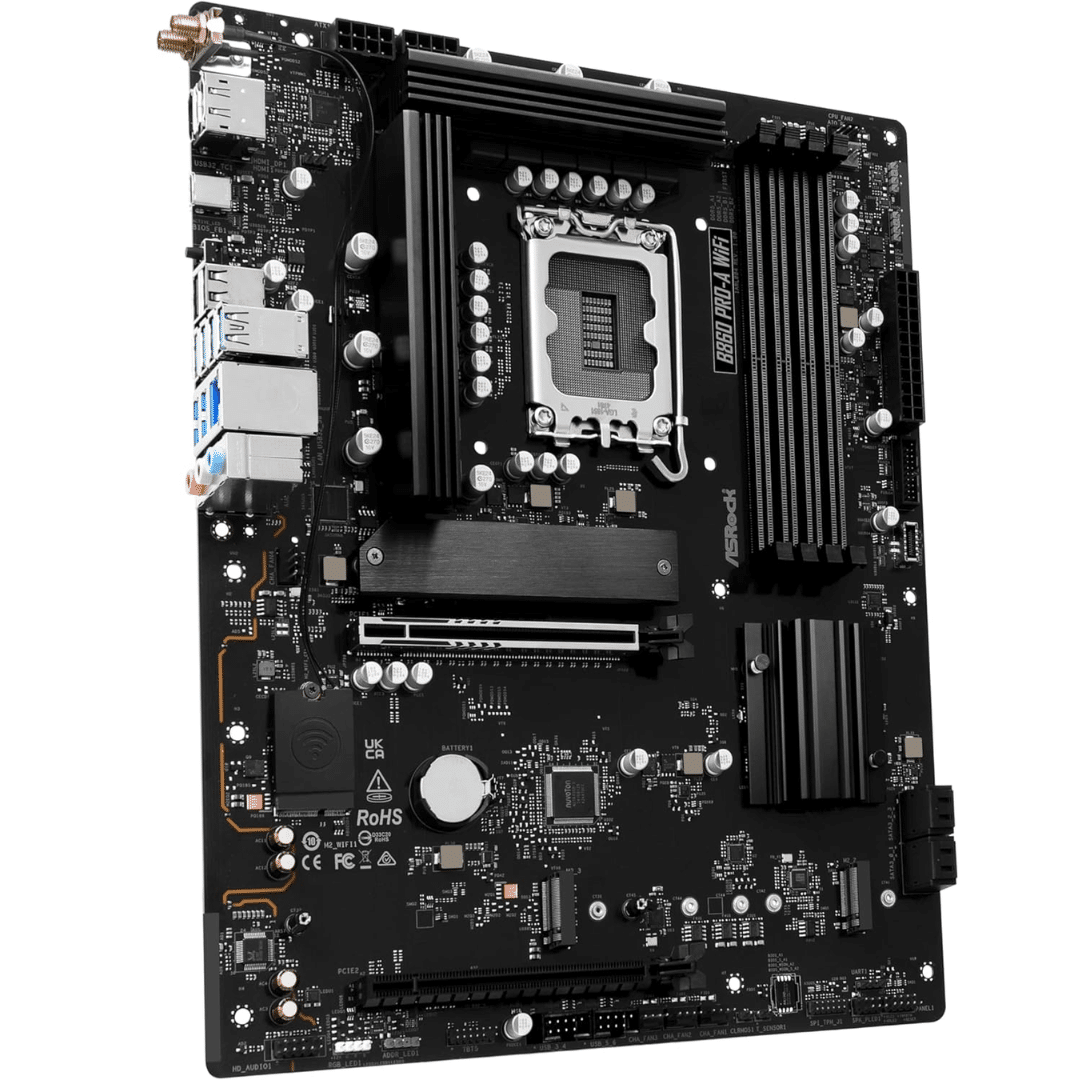

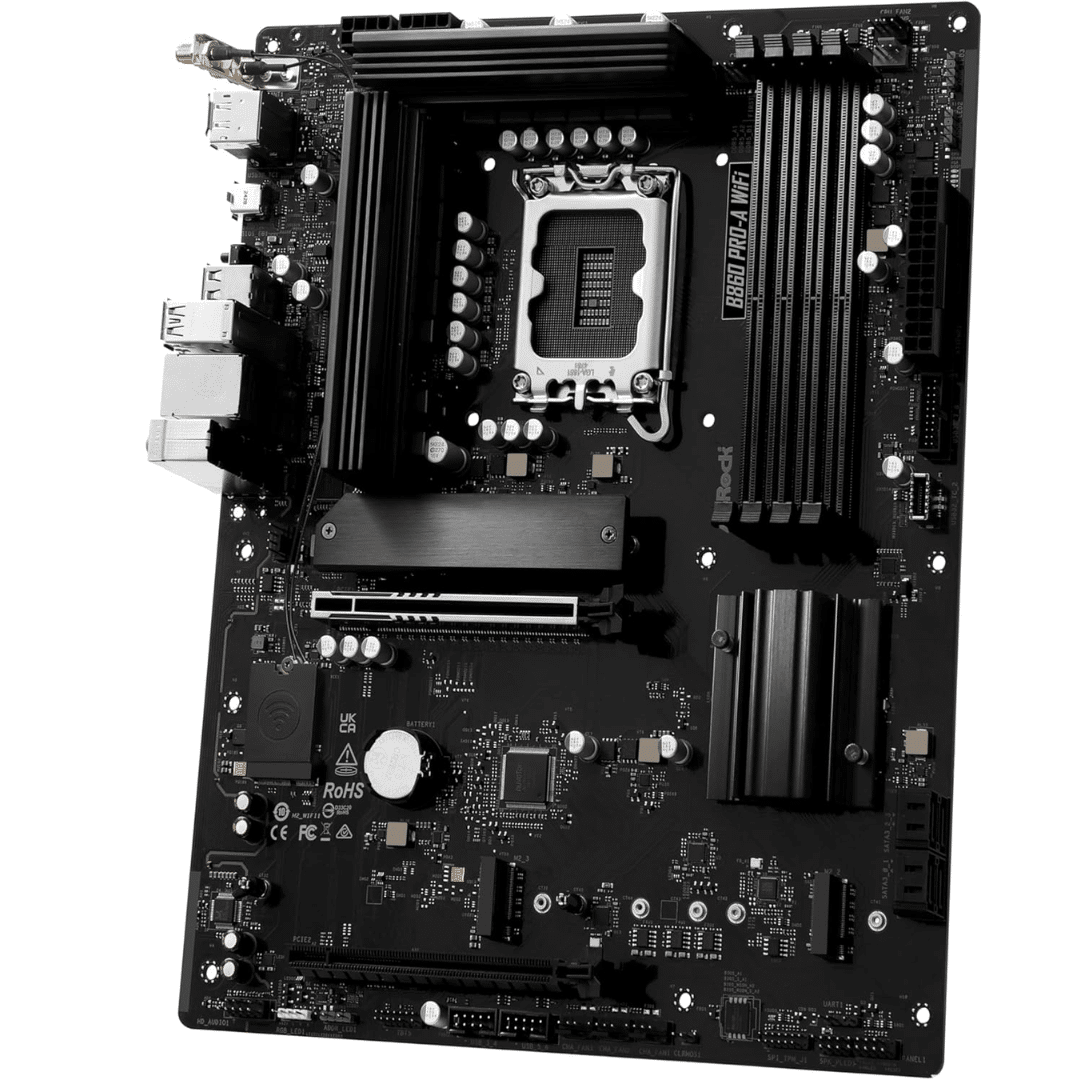

ASRock B860 Pro-A WiFi LGA 1851 Intel B860 SATA 6Gb/s DDR5 Intel Core Ultra ATX Motherboard

Descripci車n Corta IDC-MAYORISTA:

• Unique Feature

  • Superb Productivity
  • PCIe Gen5 (Graphics, M.2)
  • Dual Channel DDR5
  • Rock-Solid Durability
  • 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
  • Ultrafast Connectivity
  • 2.5G LAN, 802.11axe Wi-Fi 6E Module
  • EZ Update
  • BIOS Flashback Button
  • ASRock Auto Driver Installer
  • EZ Troubleshooter
  • ASRock Post Status Checker

• CPU

  • Supports Intel Core Ultra Processors (Series 2) (LGA1851)
  • Supports Intel Hybrid Technology
  • Supports Intel Turbo Boost Max 3.0 Technology
  • Supports Intel Thermal Velocity Boost (TVB)
  • Supports Intel Adaptive Boost Technology (ABT)
  • Integrated NPU for dedicated AI acceleration

• Chipset: Intel B860
• Memory

  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Max. capacity of system memory: 256GB
  • Supports Intel Extreme Memory Profile (XMP) 3.0x

4400 MHz Natively.

• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics

  • Intel Xe LPG Graphics Architecture
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN

  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control

• Wireless LAN

  • 802.11axe Wi-Fi 6E Module
  • Supports IEEE 802.11a/b/g/n/ac/ax/axe
  • Supports Dual-Band 2×2 with extended 6GHz band support
  • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.3
  • Supports MU-MIMO

• Slots

  • CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
  • Chipset:
  • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

• Storage

  • CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  • Chipset:
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 4 x SATA3 6.0 Gb/s Connectors

Supports NVMe SSD as boot disks

• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB

  • CPU:
  • 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 8 x USB 3.2 Gen1 (6 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)

• Connector

  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
  • 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header

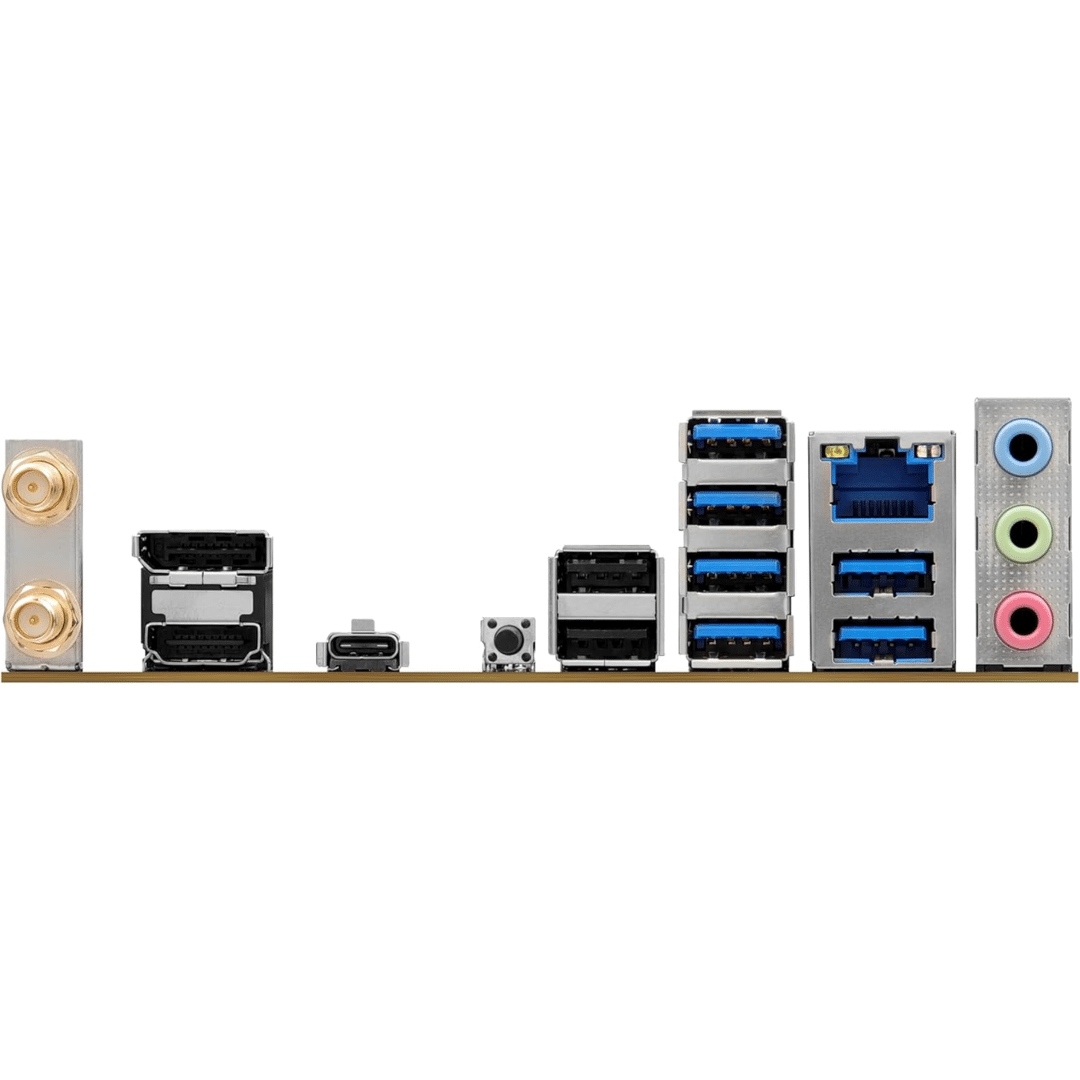

• Rear Panel I/O

  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  • 6 x USB 3.2 Gen1 Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

  • Software:
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
  • UEFI:
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash

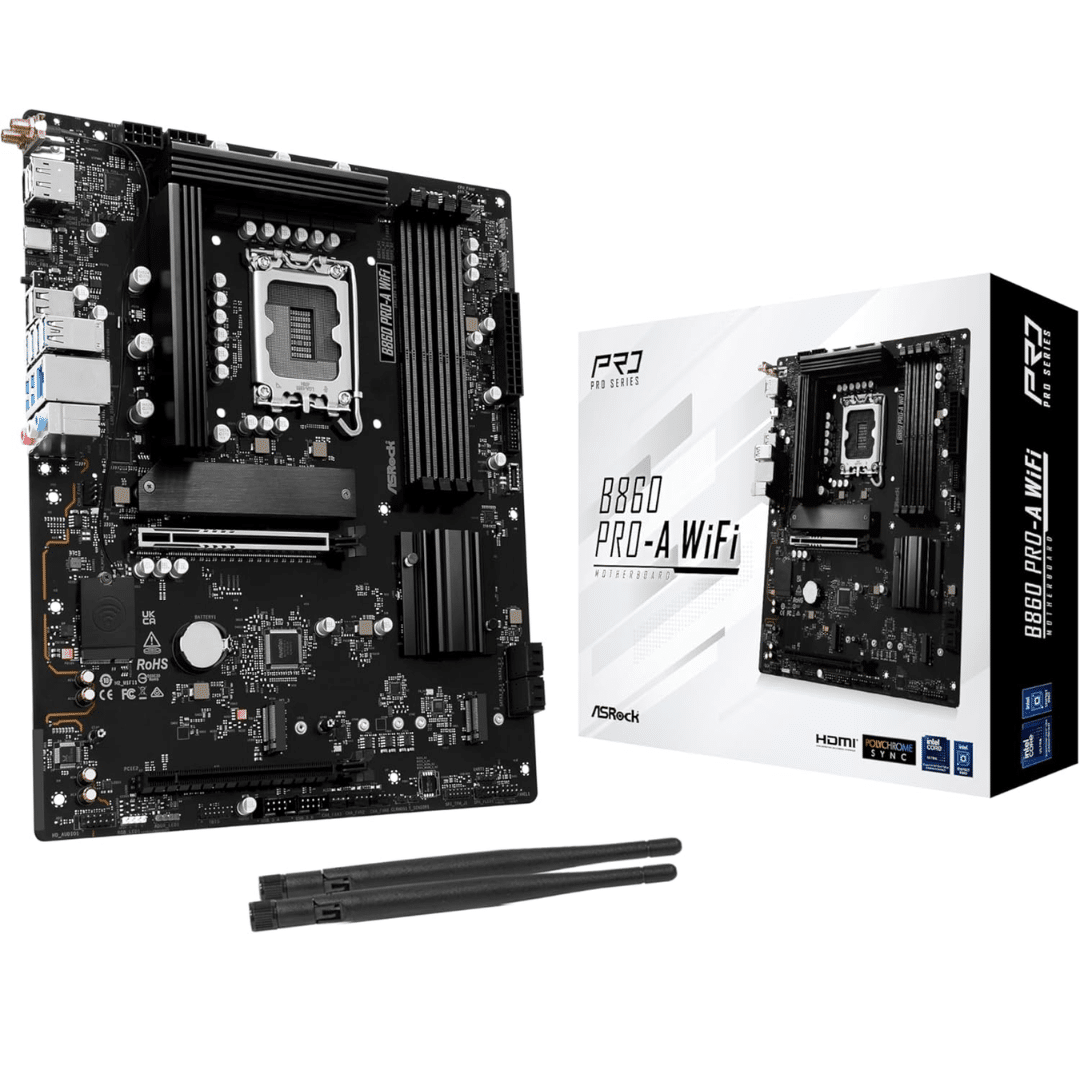

• Accessories

  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 2 x ASRock WiFi 2.4/5/6 GHz Antennas

• Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• OS: Microsoft Windows 11 64-bit
• Certifications

  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
