• Storage Capacity6.25 TB
• Maximum Read Transfer Rate14000 MB/s
• Maximum Write Transfer Rate6750 MB/s
• Random 4KB Read2450000IOPS
• Random 4KB Write550000IOPS
• Endurance (DWPD)3
• Endurance TypeMixed Use
• Drive InterfacePCI Express NVMe
• Drive Interface StandardPCI Express NVMe 5.0 x2
• Drive TypeInternal
• Form Factor2.5″
• Height0.6″
• Width2.8″
• Length4″
• Weight (Approximate)4.59 oz
• Device Supported
  • Workstation
  • Server

General Information
Manufacturer: Toshiba
Manufacturer Part Number: KCMYXVUG6T40
Manufacturer Website Address: http://www.toshiba.com
Brand Name: KIOXIA
Product Series: CM7-V
Product Model: KCMYXVUG6T40
Product Name: Enterprise NVMe Mixed Use SSD
Marketing Information:

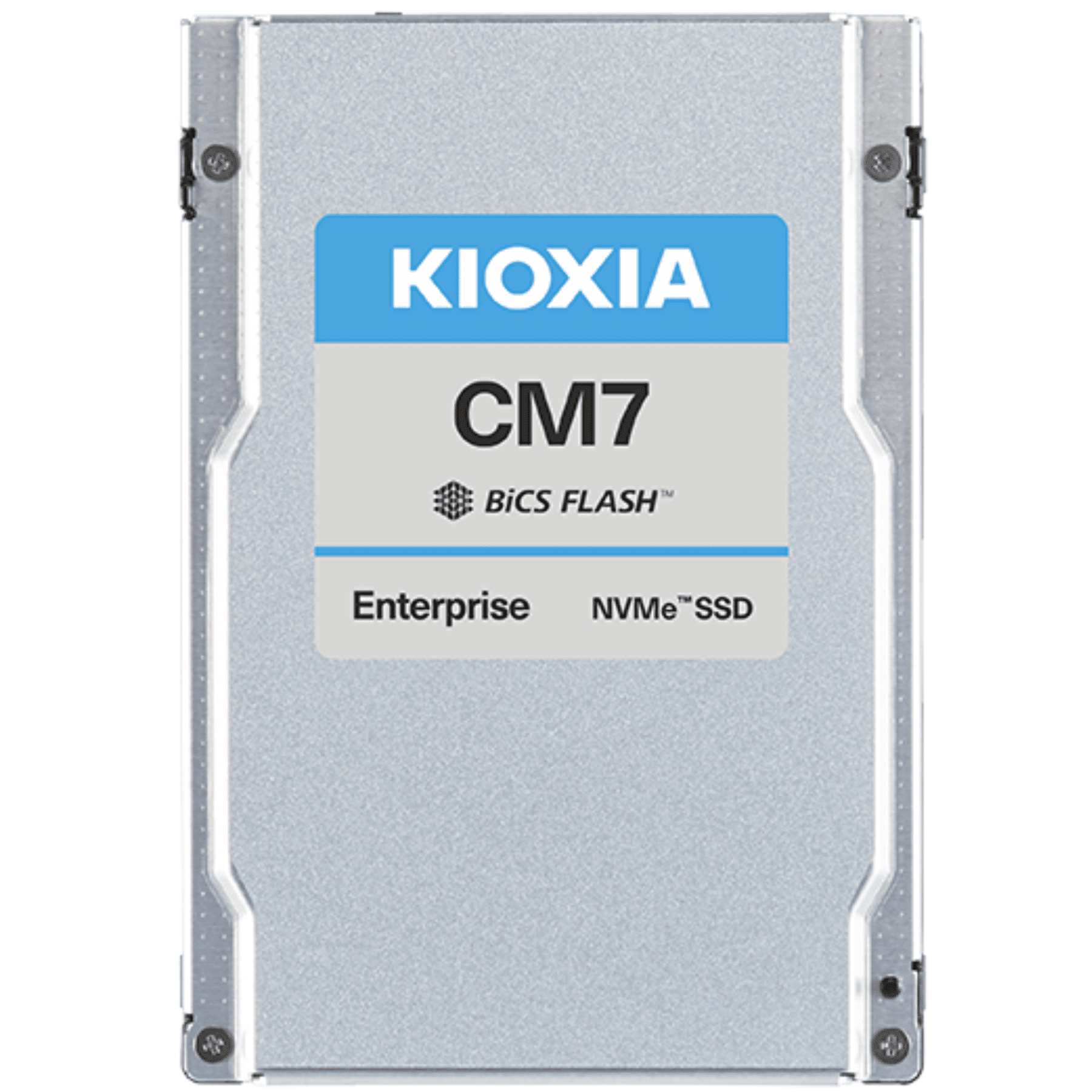

KIOXIA CM7-V Series is a mixed use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including high performance computing, online transaction processing, IoT and edge computing, media streaming. Built on PCIe^®5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 600K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-V Series of enterprise NVMe™ SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 12.8 TB, making them ideally suited for read and write mixed use enterprise applications.

Key Features

• PCIe 5.0, NVMe 2.0 specification compliant
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15 mm thickness
• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
• SFF-TA-1001 conformant (U.3)
• Dual-port design for high availability applications
• High performance with lower power consumption
• Power loss protection (PLP) and end-to-end data protection
• Suited for 24×7 enterprise workloads
• Security options: SIE, SED, FIPS SED

Key Applications

• Software defined storage and virtualization
• Data warehousing
• Online transaction processing (OLTP)
• (transactional and relational databases)
• Business intelligence
• Artificial intelligence and machine learning

Product Type: Solid State Drive
Technical Information
Storage Capacity: 6.25 TB
Drive Performance
Maximum Read Transfer Rate: 14000 MB/s
Maximum Write Transfer Rate: 6750 MB/s
Random 4KB Read: 2450000IOPS
Random 4KB Write: 550000IOPS
Endurance (DWPD): 3
Endurance Type: Mixed Use
Interfaces/Ports
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCI Express NVMe 5.0 x2
Physical Characteristics
Drive Type: Internal
Form Factor: 2.5″
Height: 0.6″
Width: 2.8″
Length: 4″
Weight (Approximate): 4.59 oz
Miscellaneous
Device Supported:

• Workstation
• Server
