• Number of Hard Drives Supported18
• Number of Hard Drives Installed0
• Number of Solid State Drive Supported18
• Number of Solid State Drive Installed0
• Flash Memory Capacity5 GB
• Processor ManufacturerIntel
• Processor TypeXeon
• Processor ModelD-1622
• Processor CoreQuad-core (4 Core)
• Processor Speed2.60 GHz
• Standard Memory32 GB
• Memory TechnologyDDR4 SDRAM
• Ethernet Technology
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
• Number of Total Expansion Bays18
• Number of 2.5″ Bays6
• Number of 2.5″/3.5″ Bays12
• Total Number of Expansion Slots5
• Expansion Slot Type
  • SFP+
  • PCI Express 2.0 x8
  • PCI Express 3.0 x8
  • PCI Express 3.0 x4
• Controller TypeSerial ATA/600
• RAID SupportedYes
• RAID Levels0, 1, 5, 6, 10, 50, 60, JBOD
• Total Number of USB Ports2
• Number of USB 3.2 Gen 1 Ports2
• Network (RJ-45)Yes
• Number of Network (RJ-45) Ports4
• Operating SystemQTS 5.1.7
• Protocols
  • LDAP
  • HTTPS
  • L2TP
  • SFTP
  • DHCP
  • SSH
  • IPSec
  • FTPS
  • AFP
  • CIFS/SMB
  • FTP
  • SNMPv2
  • IPv4
  • WEBDAV
  • Telnet
  • SSL
  • iSCSI
  • TLS
  • NFS
  • HTTP
  • TFTP
  • FXP
  • DDNS
  • IPv6
  • PPTP
• Number of Power Supplies Installed2
• Maximum Power Supply Wattage550 W
• Redundant Power SupplyYes
• Height3.5″
• Width17″
• Depth20.1″
• Form FactorRack-mountable
• Rack Height2U
• Weight (Approximate)31.97 lb
• Package Contents
  • TS-H1886XU-RP-R2-D1622-32G SAN/NAS Storage System
  • 1 x Ethernet Cable x 1
  • 2 x Power Cord x 2
  • 48 x Flat head screw (for 3.5″ HDD)
  • 64 x Flat head screw (for 2.5″ HDD)
  • Quick Installation Guide (QIG)
• Limited Warranty3 Year
• Additional Warranty Information

  The TS-h1886XU-RP R2 is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Cost-effective 10GbE-ready ZFS storage for virtualization and data-intensive enterprise applications

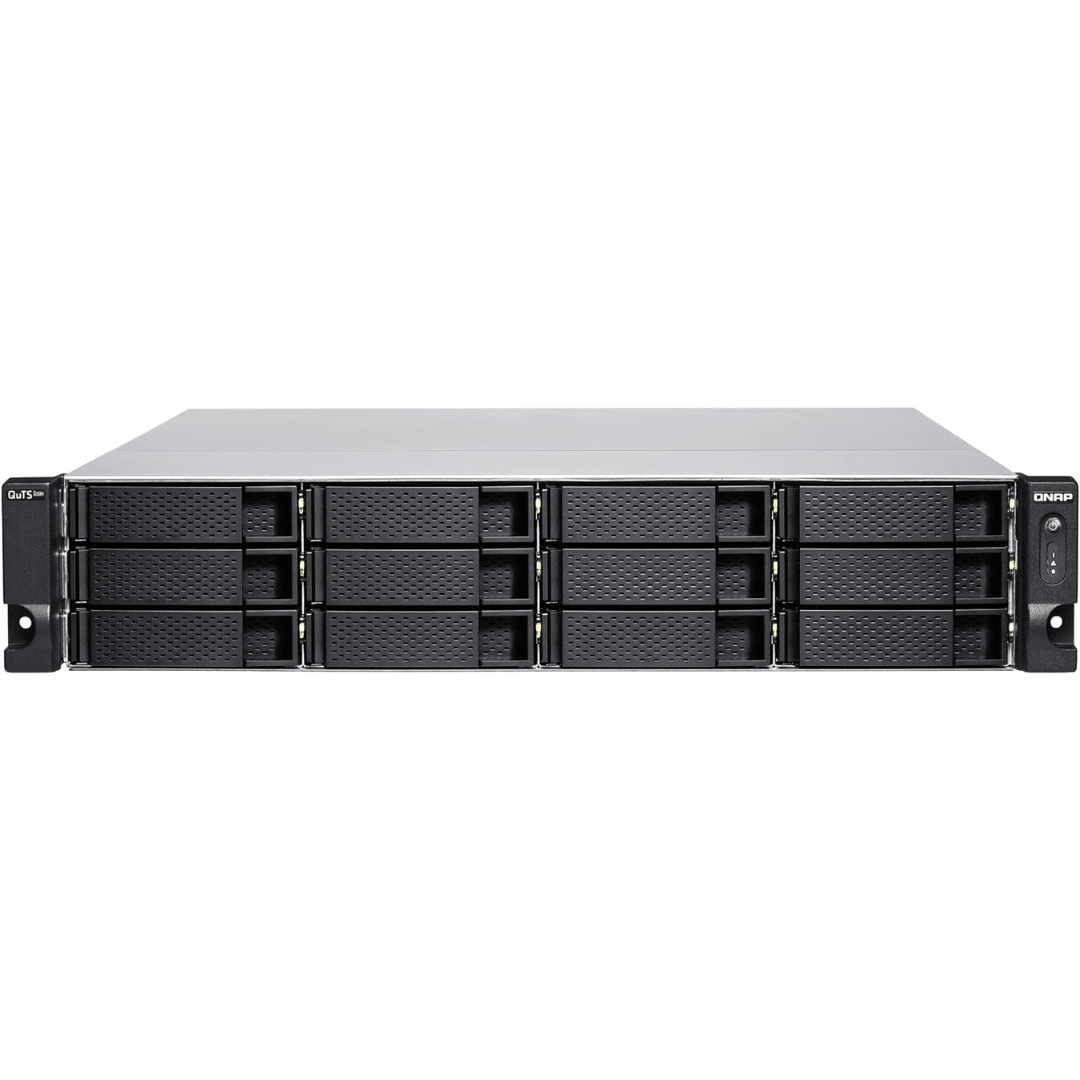

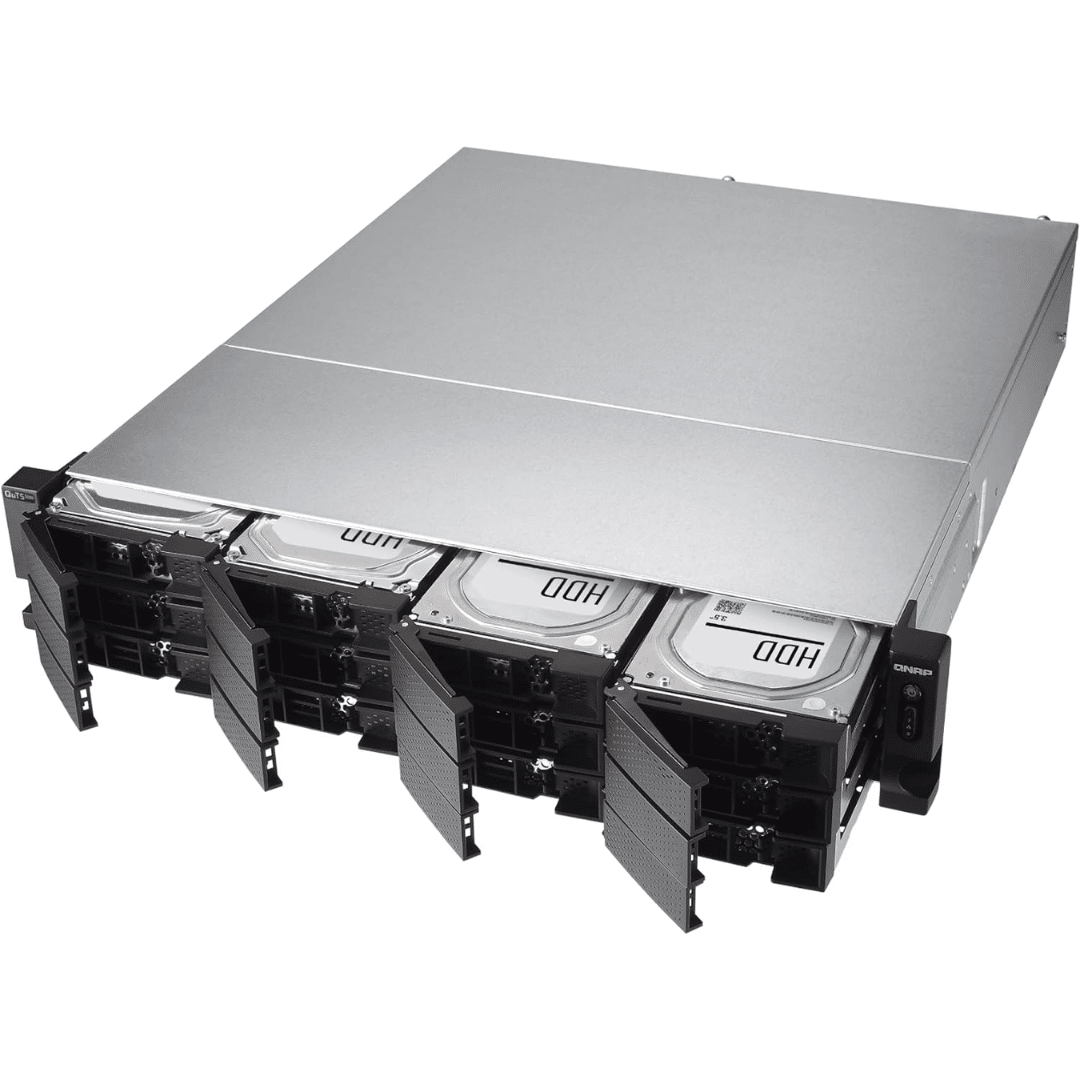

The 2U rackmount TS-h1886XU-RP R2 has twelve 3.5-inch SATA 6Gb/s drive-bays, six 2.5-inch SATA 6Gb/s SSD slots, supports 10GbE and four 2.5GbE connectivity, and features an Intel® Xeon® D-1622 quad-core processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory. Running on the ZFS-based QuTS hero operating system, the TS-h1886XU-RP R2 realizes server-grade performance with dependable reliability. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the three-year warranted TS-h1886XU-RP R2 delivers a high-performance yet cost-effective NAS solution.

• Petabyte-level storage capacity

  Connect to multiple expansion units and achieve PB-level scalability.

• Built-in 10GbE connectivity

  Two 10GbE SFP+ SmartNIC ports with RDMA boost large file sharing and intensive data transfer.

• Up to 128 GB DDR4 ECC memory

  Up to 128 GB DDR4 ECC memory that can detect and correct single-bit memory errors, demonstrating high reliability for crucial applications.

• Dual redundant power supply

  Dual redundant power supplies for enhanced system reliability.

• Optimal virtual machine experience

  Supports storage for virtualization and can natively host independent virtual machines and containerized apps.

• ZFS-based QuTS hero

  Ensure data integrity and enhance data security with the ZFS-based QuTS hero operating system.

Intel® Xeon® D processor and up to 128 GB DDR4 ECC memory. Powerful and reliable

The TS-h1886XU-RP R2 features an Intel® Xeon® D-1622 quad-core processor, 32 GB DDR4 ECC memory (dual-channel module, four Long-DIMM slots, upgradable to 128 GB), and dual redundant power supplies to deliver a cost-efficient NAS solution with server-grade performance and the utmost reliability. By connecting multiple QNAP expansion enclosures, the storage capacity of the TS-h1886XU-RP R2 can be easily expanded to satisfy fast-growing data and budget flexibility.

ECC memory forestalls data corruption to assure reliability

The TS-h1886XU-RP R2 uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-h1886XU-RP R2 supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-h1886XU-RP R2 can leverage the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 128 GB RAM) of the TS-h1886XU-RP R2 for greater performance to tackle dynamically-changing workloads, such as virtualization.

Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 18
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 18
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 5 GB
Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: D-1622
Processor Core: Quad-core (4 Core)
Processor Speed: 2.60 GHz
Memory
Standard Memory: 32 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology:

• 10 Gigabit Ethernet
• 2.5 Gigabit Ethernet

I/O Expansions
Number of Total Expansion Bays: 18
Number of 2.5″ Bays: 6
Number of 2.5″/3.5″ Bays: 12
Total Number of Expansion Slots: 5
Expansion Slot Type:

• SFP+
• PCI Express 2.0 x8
• PCI Express 3.0 x8
• PCI Express 3.0 x4

Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, JBOD
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
Software
Operating System: QTS 5.1.7
Management & Protocols
Protocols:

• LDAP
• HTTPS
• L2TP
• SFTP
• DHCP
• SSH
• IPSec
• FTPS
• AFP
• CIFS/SMB
• FTP
• SNMPv2
• IPv4
• WEBDAV
• Telnet
• SSL
• iSCSI
• TLS
• NFS
• HTTP
• TFTP
• FXP
• DDNS
• IPv6
• PPTP

Power Description
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 550 W
Redundant Power Supply: Yes

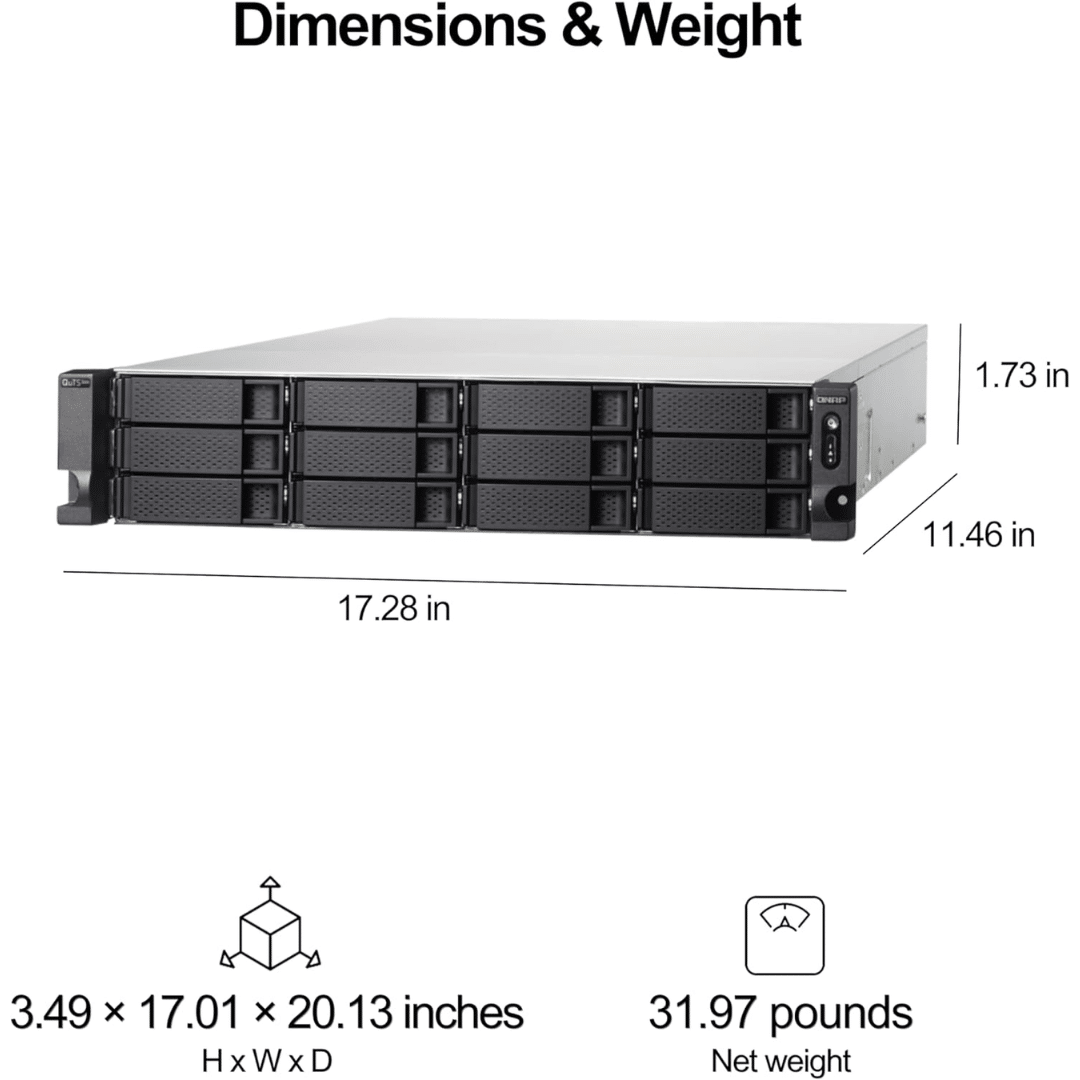

Physical Characteristics
Height: 3.5″
Width: 17″
Depth: 20.1″
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 31.97 lb
Miscellaneous
Package Contents:

• TS-H1886XU-RP-R2-D1622-32G SAN/NAS Storage System
• 1 x Ethernet Cable x 1
• 2 x Power Cord x 2
• 48 x Flat head screw (for 3.5″ HDD)
• 64 x Flat head screw (for 2.5″ HDD)
• Quick Installation Guide (QIG)

Warranty
Limited Warranty: 3 Year
Additional Warranty Information:

The TS-h1886XU-RP R2 is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
