Supermicro Mainstream A+ Server AS -3015A-I UP mid-tower workstation for SMB and content creation

Descripci??n Corta IDC-MAYORISTA:

• Motherboard: Super H13SAE-MF
• Processor

  • CPU: Single processor(s); AMD EPYC 4004 or AMD Ryzen 7000 / 9000 Series Processors
  • Core Count: Up to 16C/32T
  • Note: Supports up to 170W TDP CPUs (Air Cooled)

• GPU

  • Max GPU Count: Up to 1 double-width GPU
  • Supported GPU: NVIDIA PCIe: RTX 2000 Ada, RTX 4070, RTX 4000 Ada Generation, RTX A4000, RTX A2000, RTX 6000 Ada Generation; AMD PCIe: Radeon Pro W7500, Radeon Pro W7800

• System Memory

  • Memory: Slot Count: 4 DIMM slots; Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
  • Memory Voltage: 1.1V

• On-Board Devices

  • SATA: SATA (6Gbps); RAID 0/1 support
  • NVMe: NVMe; RAID 0/1 support(Native)
  • Chipset: AMD B650

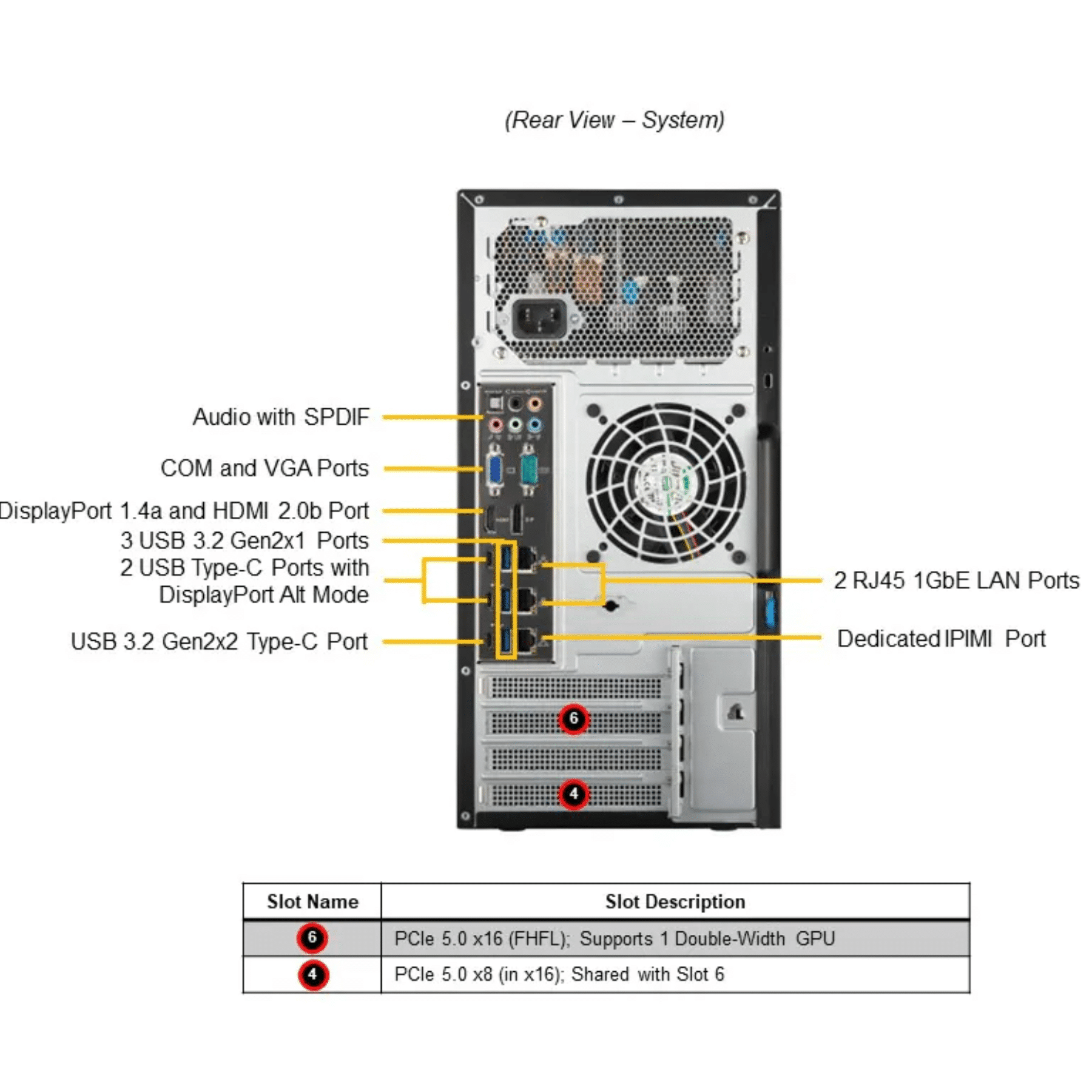

  • Network Connectivity: 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI); 2 RJ45 1GbE with Intel I210-AT

• Input / Output

  • Video: 1 VGA port; 1 HDMI 2.0b port; 1 DisplayPort 1.4a port
  • Audio: Rear Audio

• System BIOS: BIOS Type: AMI 32MB SPI Flash
• Management

  • Software:
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
  • Power configurations: ACPI 6.0 Power Management

• Security

  • Hardware: Trusted Platform Module (TPM) 2.0; Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Features: Supply Chain Security: Remote Attestation; Runtime BMC Protections

• PC Health Monitoring: Voltage: +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature

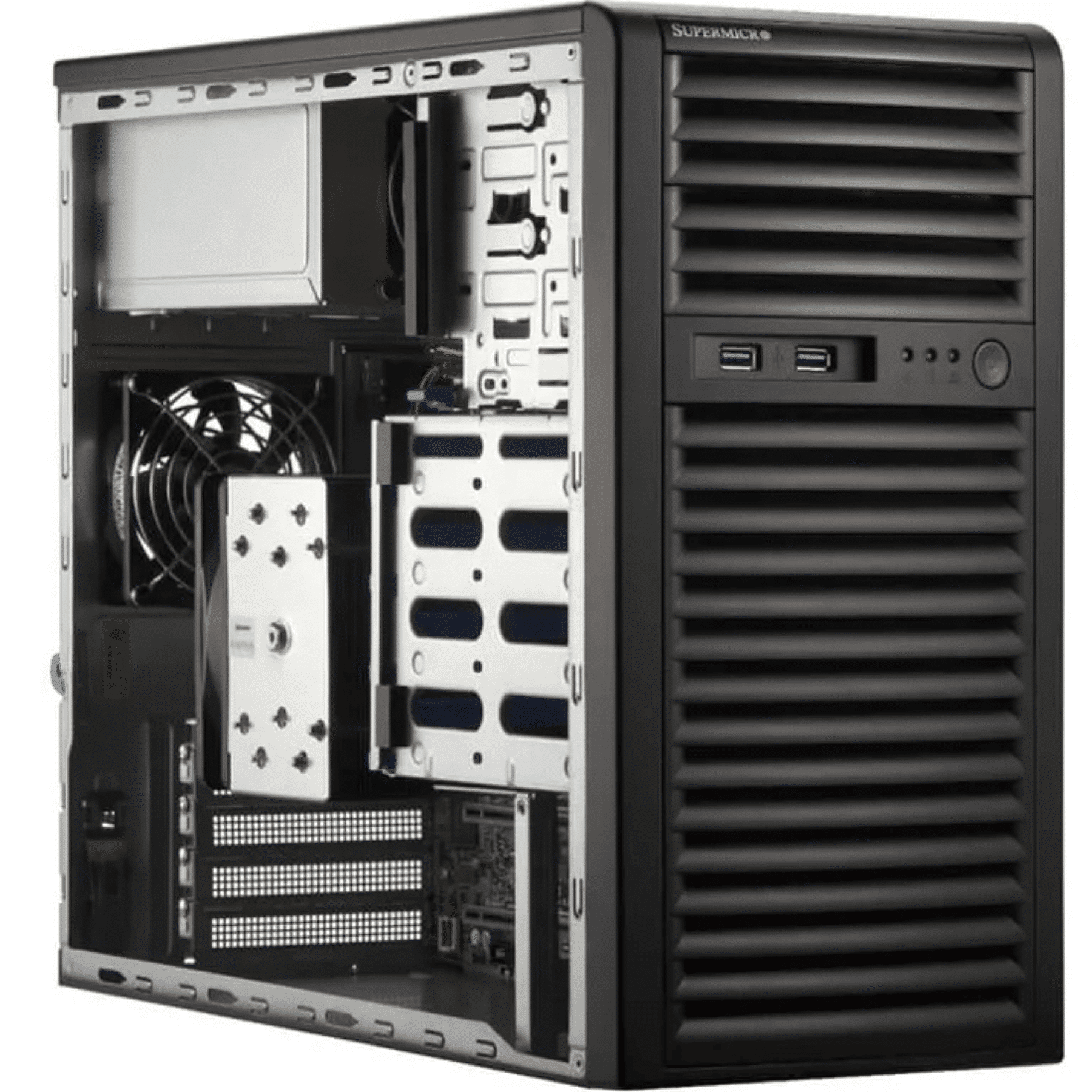

• Chassis

  • Form Factor: Mini-Tower
  • Model: CSE-731i-668B

• Dimensions and Weight

  • Height: 14.25″ (362 mm)
  • Width: 7.25″ (184 mm)
  • Depth: 16.75″ (425 mm)
  • Package: 20″ (H) x 11″ (W) x 21″ (D)
  • Weight: Gross Weight: 22 lbs (9.98 kg); Net Weight: 18 lbs (8.16 kg)
  • Available Color: Black

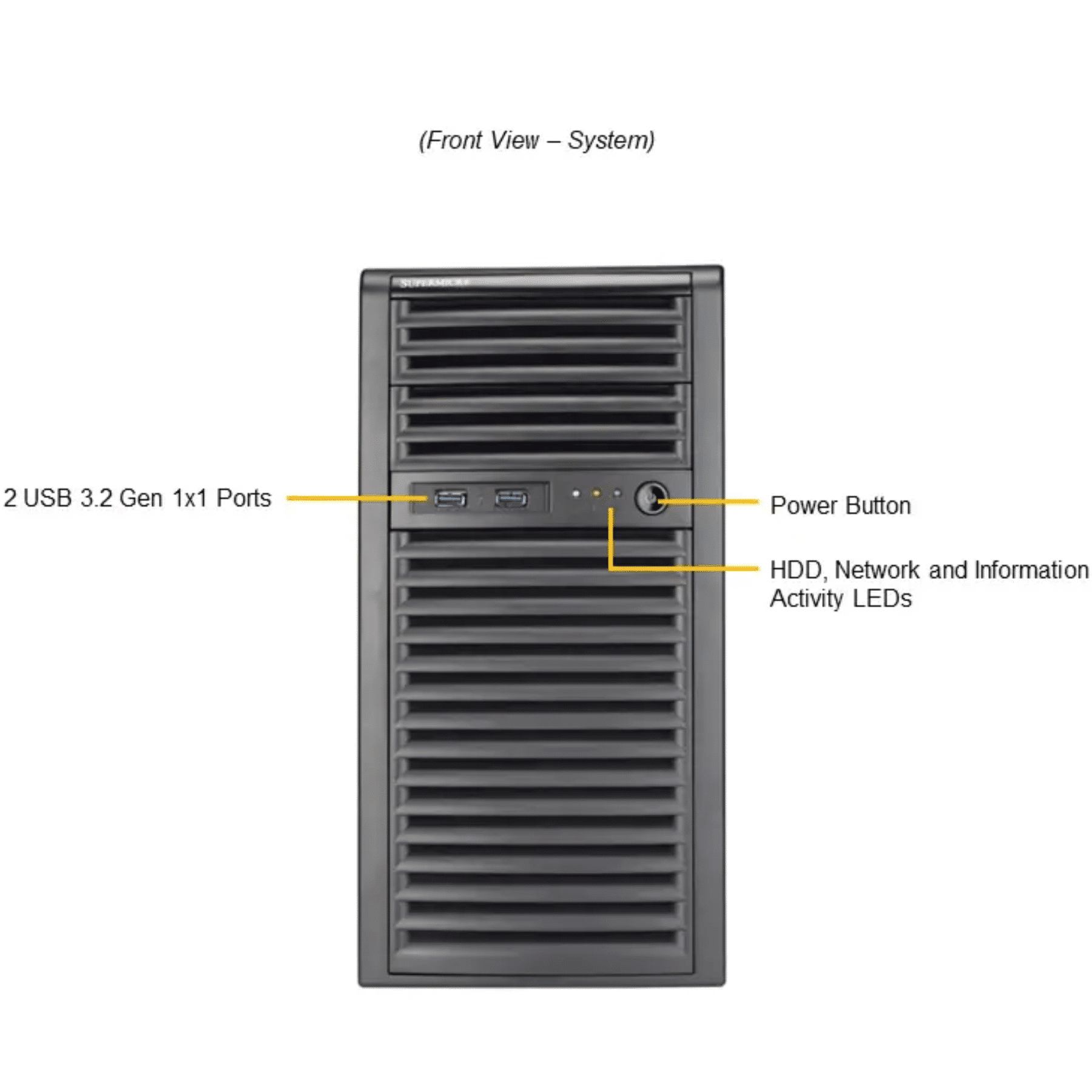

• Front Panel

  • LED: HDD activity LED; Network activity LEDs; Power LED; System Overheat LED
  • Buttons: Power On/Off button
  • Port: USB 3.0 Port(s)

• Expansion Slots

  • PCI-Express (PCIe) Configuration:
  • Default: 1 PCIe 5.0 x16 FHFL slot
  • Option A: 2 PCIe 5.0 x8 FHFL slots

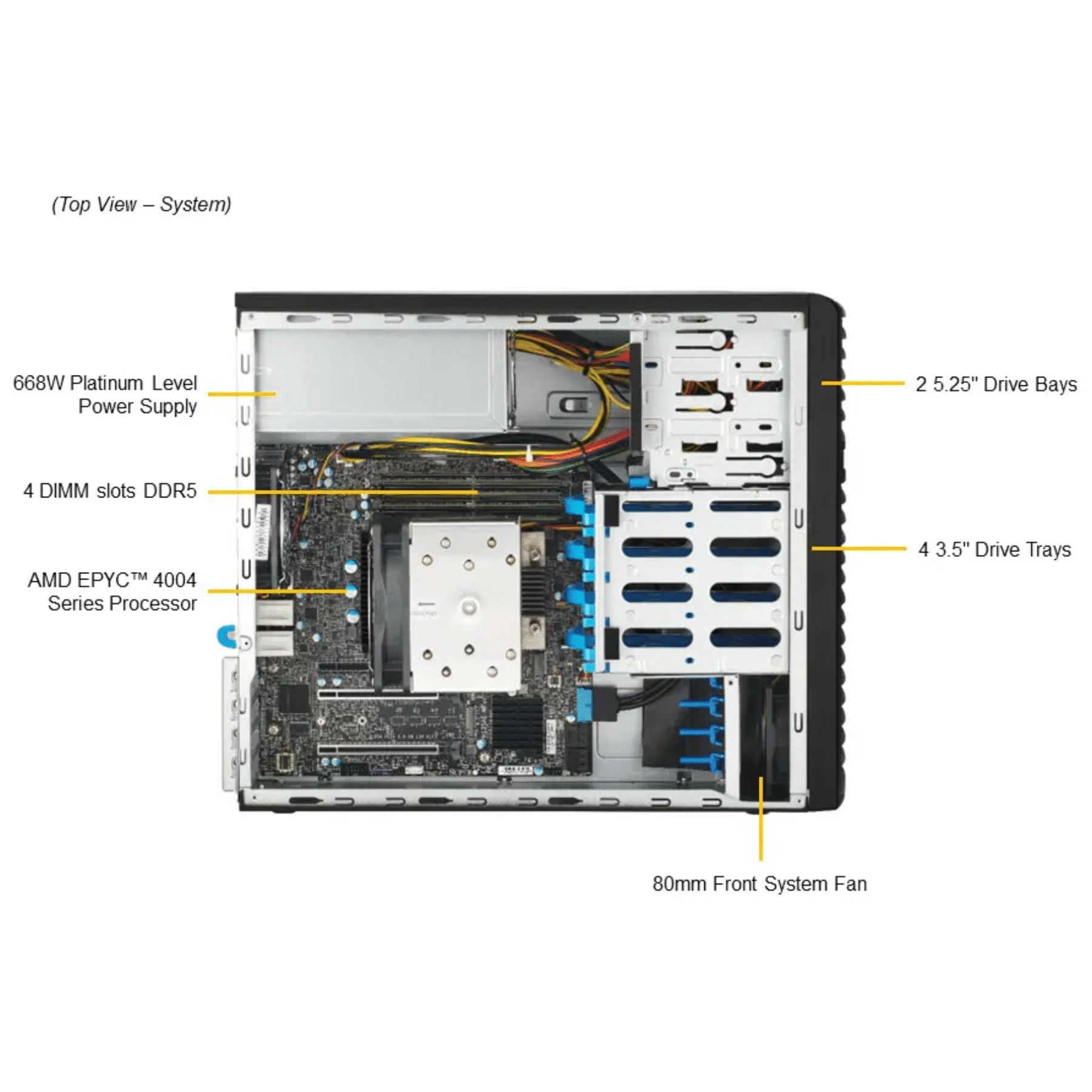

• Drive Bays / Storage

  • Drive Bays Configuration:
  • Default: Total 4 bays; 4 front fixed 3.5″ SATA drive bays
  • Option A: Total 4 bays; 4 front fixed 2.5″ SATA drive bays
  • M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
  • Peripheral Bays: 2 5.25″ peripheral bays

• System Cooling

  • Fans: 1x 90mm Fan(s); 1x 80mm Fan(s)
  • Air Shroud: 1 Air Shroud

• Power Supply: 1x 668W Platinum Level (92%) power supply
• Dimension (WxHxL): 150 x 86 x 185 mm
• Input: 100-240Vac; 668W: 100-240Vac / 50-60Hz
• +12V: Max: 54A / Min: 0.2A (100Vac-240Vac); Max: 54A (100Vdc-240Vdc)
• 5V SB: Max: 2A / Min: 0A
• Output Type: 24pin ATX
• Operating Environment

  • ROHS: RoHS Compliant
  • Environmental Spec.:
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
