• Number of Hard Drives Supported4
• Number of Hard Drives Installed0
• Number of Solid State Drive Supported4
• Number of Solid State Drive Installed0
• Number of Processors Installed1
• Processor ManufacturerAMD
• Processor TypeRyzen
• Processor ModelV1500B
• Processor CoreQuad-core (4 Core)
• Processor Speed2.20 GHz
• Standard Memory2 GB
• Memory TechnologyDDR4 SDRAM
• Ethernet TechnologyGigabit Ethernet
• Number of Total Expansion Bays4
• Number of 2.5″/3.5″ Bays4
• Total Number of Expansion Slots1
• Expansion Slot TypePCI Express
• Controller TypeSerial ATA
• RAID SupportedYes
• RAID Levels0, 1, 5, 6, 10, Basic, Hybrid RAID, JBOD
• Drive InterfaceSerial ATA
• Total Number of USB Ports2
• Number of USB 3.2 Gen 1 Ports2
• Network (RJ-45)Yes
• Number of Network (RJ-45) Ports4
• Operating SystemDiskStation Manager
• Protocols
  • SMB
  • FTP
  • NFS
  • WEBDAV
  • AFP
  • NFSv4.1
  • CalDAV
  • HTTPS
  • LDAP
  • SMB 1.0
  • CIFS
  • SNMP
  • iSCSI
  • SMB 3.0
  • SMB 2.0
  • HTTP
  • NFSv4
  • NFSv3
  • Kerberos
  • SFTP
• Maximum Power Supply Wattage150 W
• Redundant Power SupplyYes
• Height1.7″
• Width18.9″
• Depth20.4″
• Form FactorRack-mountable
• Rack Height1U
• Weight (Approximate)17.64 lb

General Information
Manufacturer: Synology, Inc
Manufacturer Part Number: RS822RP+
Manufacturer Website Address: http://www.synology.com
Brand Name: Synology
Product Line: RackStation
Product Model: RS822RP+
Product Name: RackStation RS822RP+ SAN/NAS Storage System
Marketing Information:

RackStation RS822+/RS822RP+

Reliable data management for remote and branch offices

An all-in-one edge storage solution

The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.

Performance

2103/1074 MB/s sequential read/write throughput

Scalability

Scale up to 8 drives with Synology Expansion Unit RX418

Connectivity

Built-in 4 x 1GbE ports with 10/25 GbE expansion option

Memory

Up to 32 GB DDR4 ECC

Built for reliability

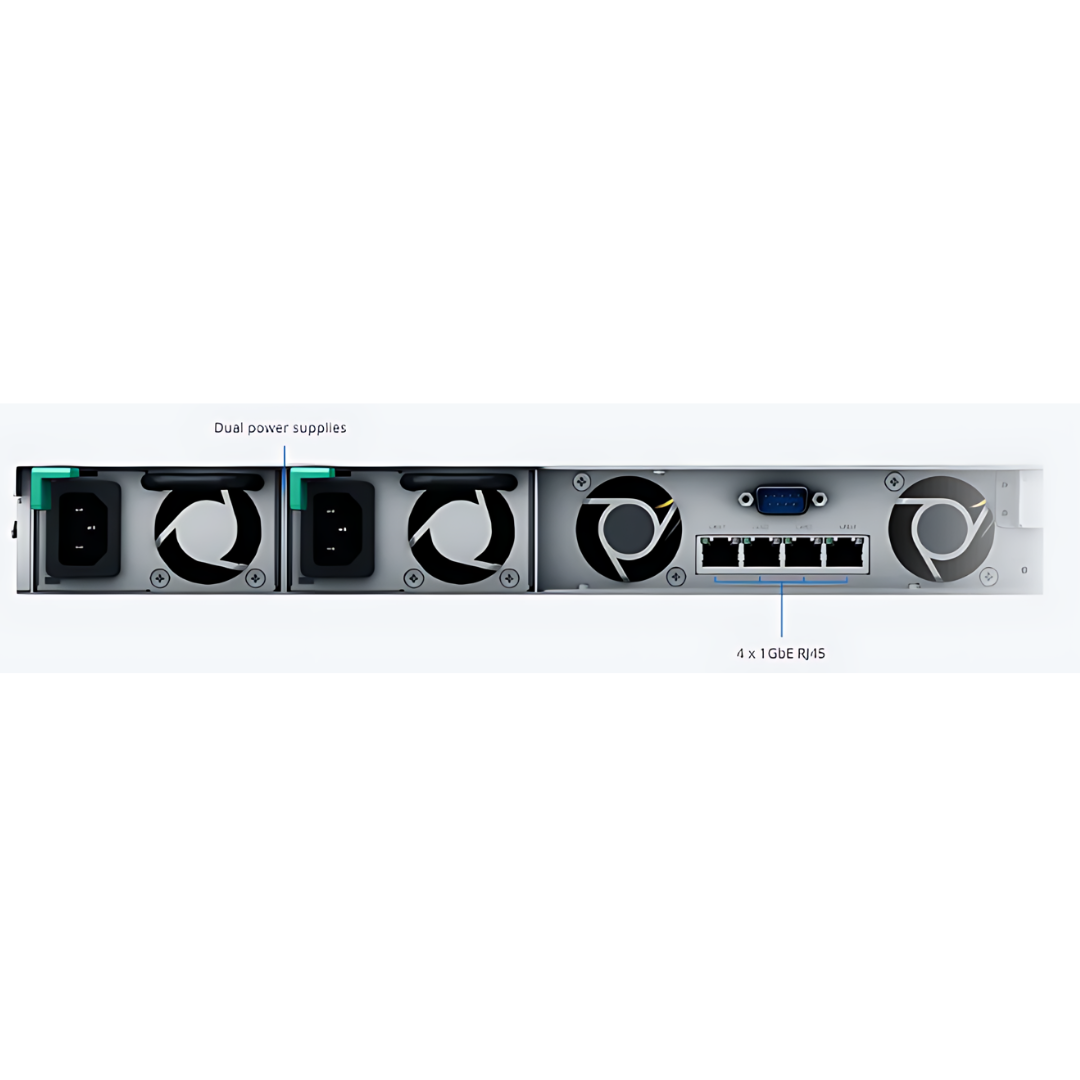

RS822+/RS822RP+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Two RS822+/RS822RP+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.

Furthermore, the RS822RP+ features a redundant power supply for an extra edge in service continuity.

Room for expansion

Easily adjust the RS822+/RS822RP+ to match your usage environment, whether it needs performance, faster networking, or higher storage capacity.

Storage expansion

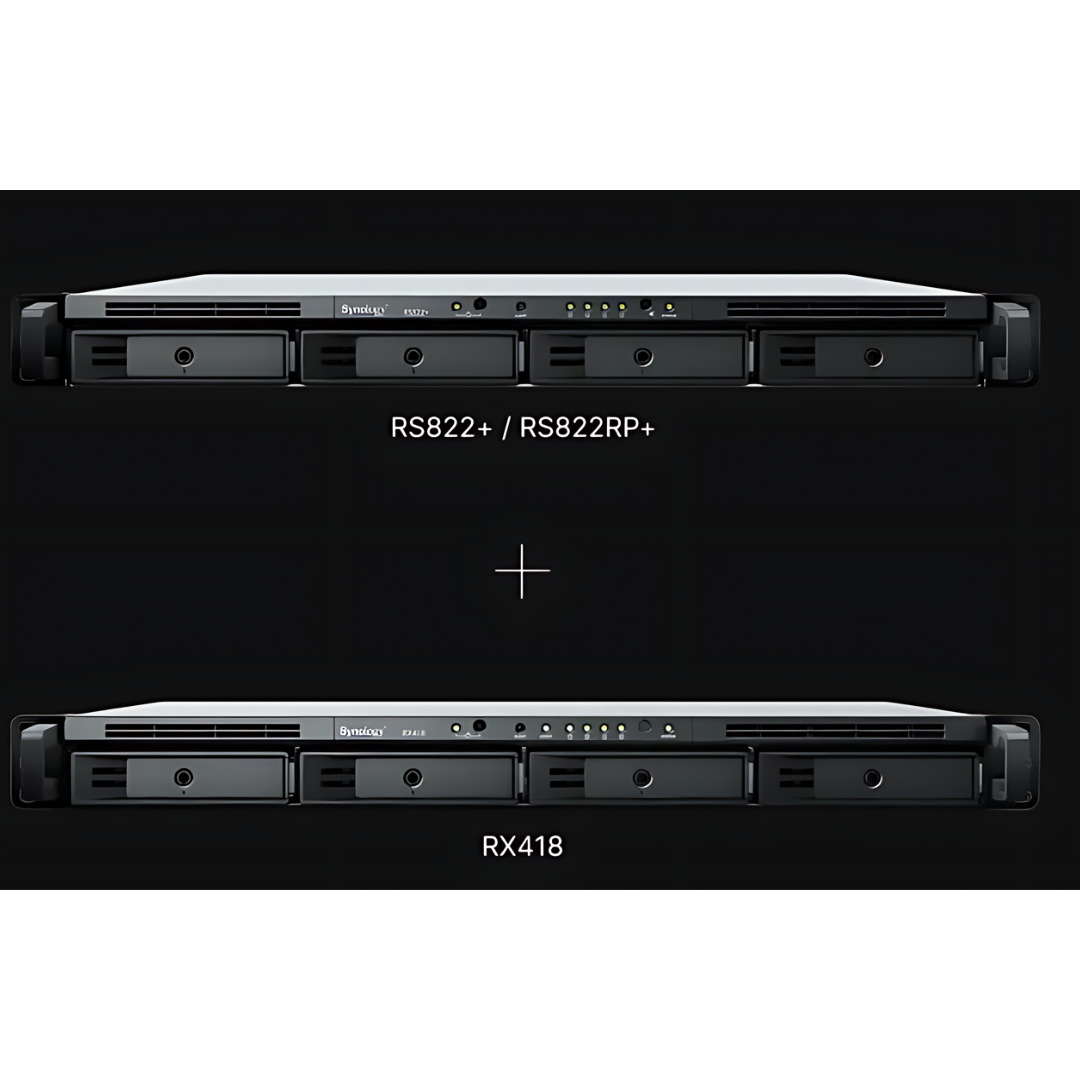

Expand to 8 drive bays with one RX418 expansion unit.

SSD cache

Boost read/write IOPS over HDD-only arrays by 16 times or more with NVMe or SATA SSD Cache.

10/25GbE ready

Improve I/O with faster SFP+/SFP28 or RJ-45 networking.

All-in-one data management platform

The RS822+/RS822RP+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.

Edge storage for distributed teams

Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.

Private file cloud | Enable effective collaboration with Synology Drive

Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.

Multi-platform support

Access personal and shared data from mobile app, desktop client, web browser, or another Synology system: Any changes you make are automatically synced to other devices as soon as they are connected.

Collaborate in real time

Integrate with Synology Office to enable concurrent editing on documents, spreadsheets, and slides, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.

Multi-endpoint data protection

Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.

Consolidated backup server | Endpoint, VM, and NAS/SAN protection

Securely back up Windows and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.

Microsoft 365 and Google Workspace

Centralize backups of Microsoft 365 and Google Workspace data to protect it from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.

Packaged Quantity: 1
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 4
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 4
Number of Solid State Drive Installed: 0
Processor & Chipset
Number of Processors Installed: 1
Processor Manufacturer: AMD
Processor Type: Ryzen
Processor Model: V1500B
Processor Core: Quad-core (4 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 2 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 4
Number of 2.5″/3.5″ Bays: 4
Total Number of Expansion Slots: 1
Expansion Slot Type: PCI Express
Controllers
Controller Type: Serial ATA
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, Basic, Hybrid RAID, JBOD
Interfaces/Ports
Drive Interface: Serial ATA
Total Number of USB Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
Software
Operating System: DiskStation Manager
Management & Protocols
Protocols:

• SMB
• FTP
• NFS
• WEBDAV
• AFP
• NFSv4.1
• CalDAV
• HTTPS
• LDAP
• SMB 1.0
• CIFS
• SNMP
• iSCSI
• SMB 3.0
• SMB 2.0
• HTTP
• NFSv4
• NFSv3
• Kerberos
• SFTP

Power Description
Maximum Power Supply Wattage: 150 W
Redundant Power Supply: Yes
Physical Characteristics
Height: 1.7″
Width: 18.9″
Depth: 20.4″
Form Factor: Rack-mountable
Rack Height: 1U
Weight (Approximate): 17.64 lb
