• Number of Hard Drives Supported12
• Number of Solid State Drive Supported12
• Processor TypeXeon
• Processor ModelD-1541
• Processor CoreOcta-core (8 Core)
• Processor Speed2.10 GHz
• Standard Memory8 GB
• Memory TechnologyDDR4 SDRAM
• Ethernet Technology
  • 10 Gigabit Ethernet
  • Gigabit Ethernet
• Number of Total Expansion Bays12
• Number of 2.5″/3.5″ Bays12
• Total Number of Expansion Slots1
• Expansion Slot TypePCI Express 3.0 x8
• Controller TypeSerial Attached SCSI (SAS)
• RAID SupportedYes
• RAID Levels0, 1, 5, 6, 10, Basic, JBOD, RAID F1
• Total Number of USB Ports2
• Number of USB 3.0 Ports2
• Network (RJ-45)Yes
• Number of Network (RJ-45) Ports3
• Fibre ChannelYes
• Operating SystemDiskStation Manager
• Protocols
  • iSCSI
  • CIFS
  • AFP
  • FTP
  • WEBDAV
  • Kerberos
  • SMB 1.0
  • SMB 2.0
  • SMB 3.0
  • NFSv3
  • NFSv4
  • NFSv4.1
  • HTTP
  • HTTPS
  • SNMP
  • LDAP
  • CalDAV
• Maximum Power Supply Wattage500 W
• Redundant Power SupplyYes
• Height3.5″
• Width19″
• Depth28.5″
• Form FactorRack-mountable
• Rack Height2U
• Weight (Approximate)43.43 lb

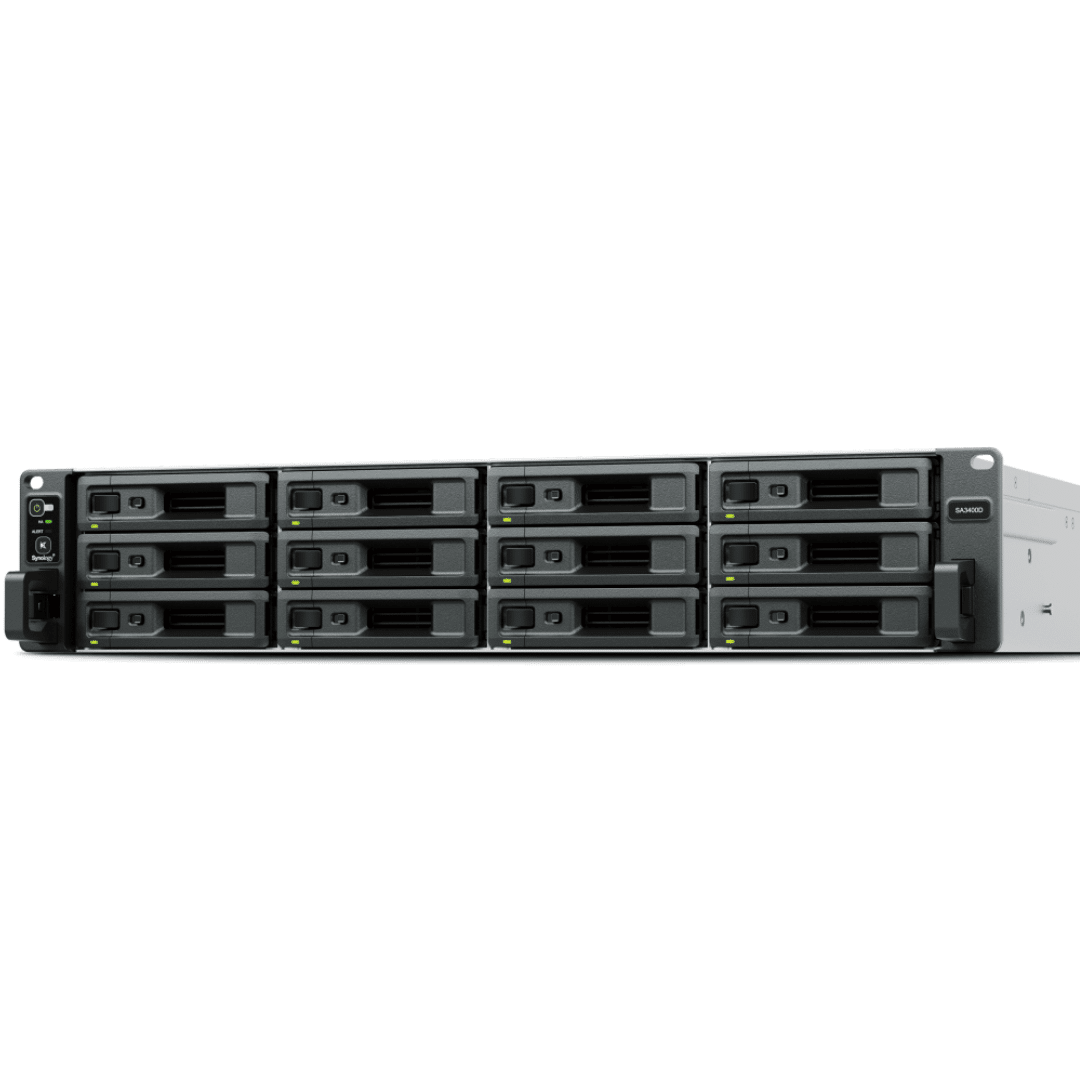

SA3400D

Keep services online with efficient high-availability storage

High-availability file and block storage solution | Accessible and convenient

Maintain data availability with an active-passive high availability dual-controller module

Versatile applications

Manage, distribute, and protect data, back up endpoints, and guard physical premises

Fast and efficient

Over 3,500/2,900 MB/s seq. read/write throughput and over 500 TB maximum storage capacity

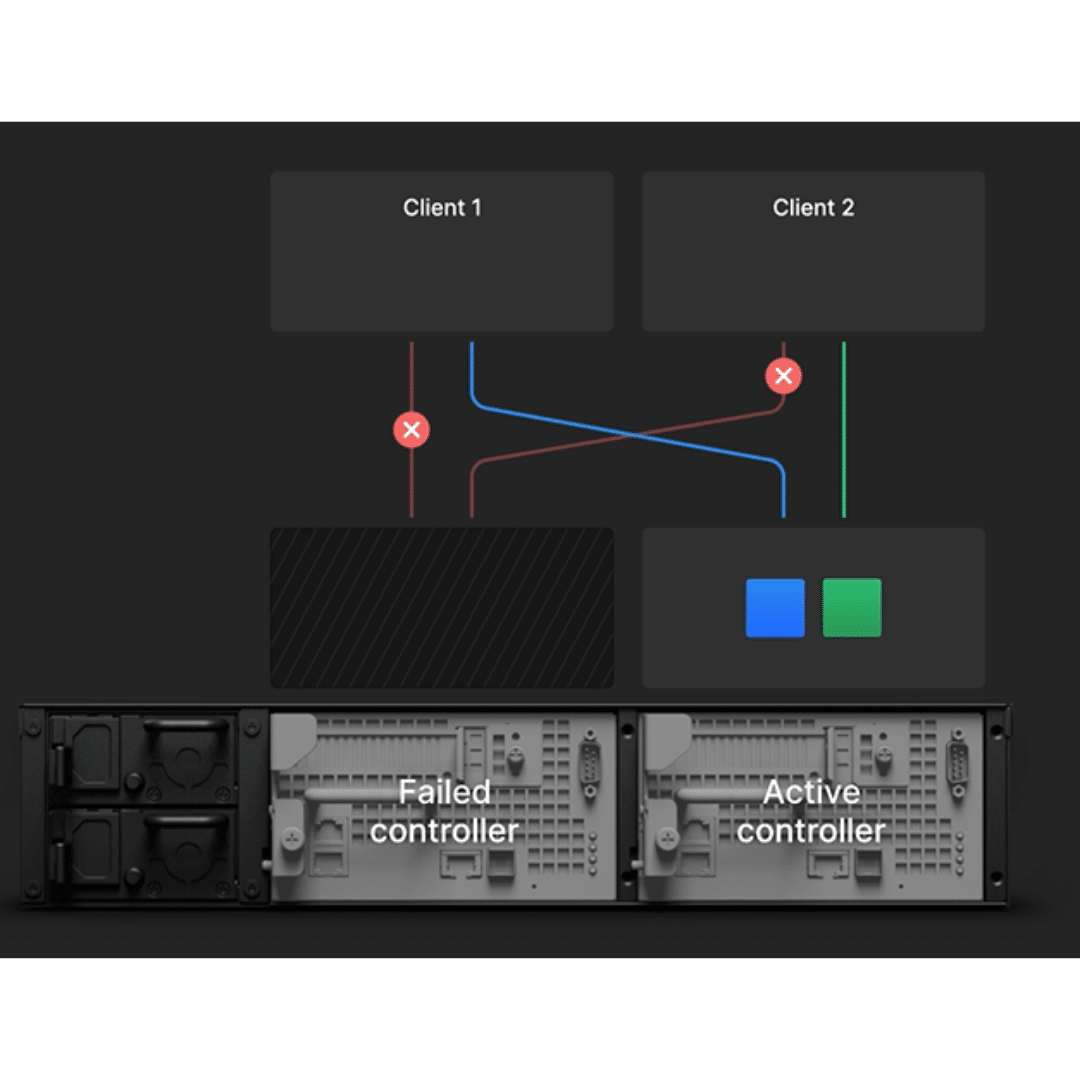

Built-in High Availability

Keep file sharing services, block storage, backups, and other office applications online with automatic minute-level failover. Defend against operational disruptions with two independent and hot-swappable controllers operating in an active-passive configuration.

Made for demanding environments

The SA3400D is engineered to provide outstanding performance in both NAS and SAN storage roles. Its throughput and random I/O performance support efficient SMB and NFS file serving as well as a range of iSCSI and Fibre Channel block storage applications.

Consolidate your data infrastructure

Manage, protect, and share data with versatile business solutions. Empower team collaboration, sandbox applications, and provide VM storage on a unified platform.

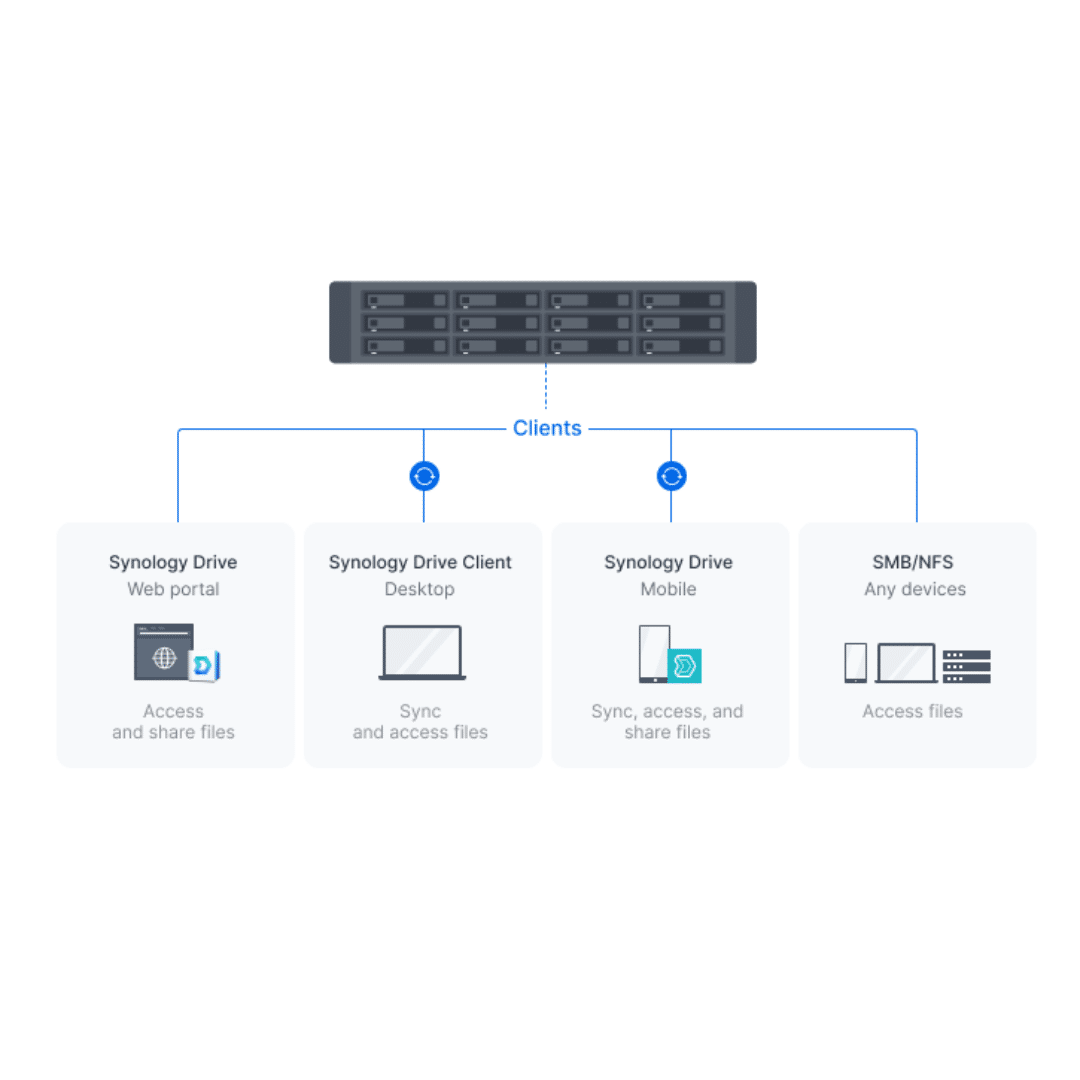

Private cloud management | Efficient and secure folder sharing

View, edit, and share data through desktop, mobile, and web-based applications. Enable user access to shared folders over SMB or NFS and leverage Microsoft AD or LDAP integration for efficient user access and permissions management.

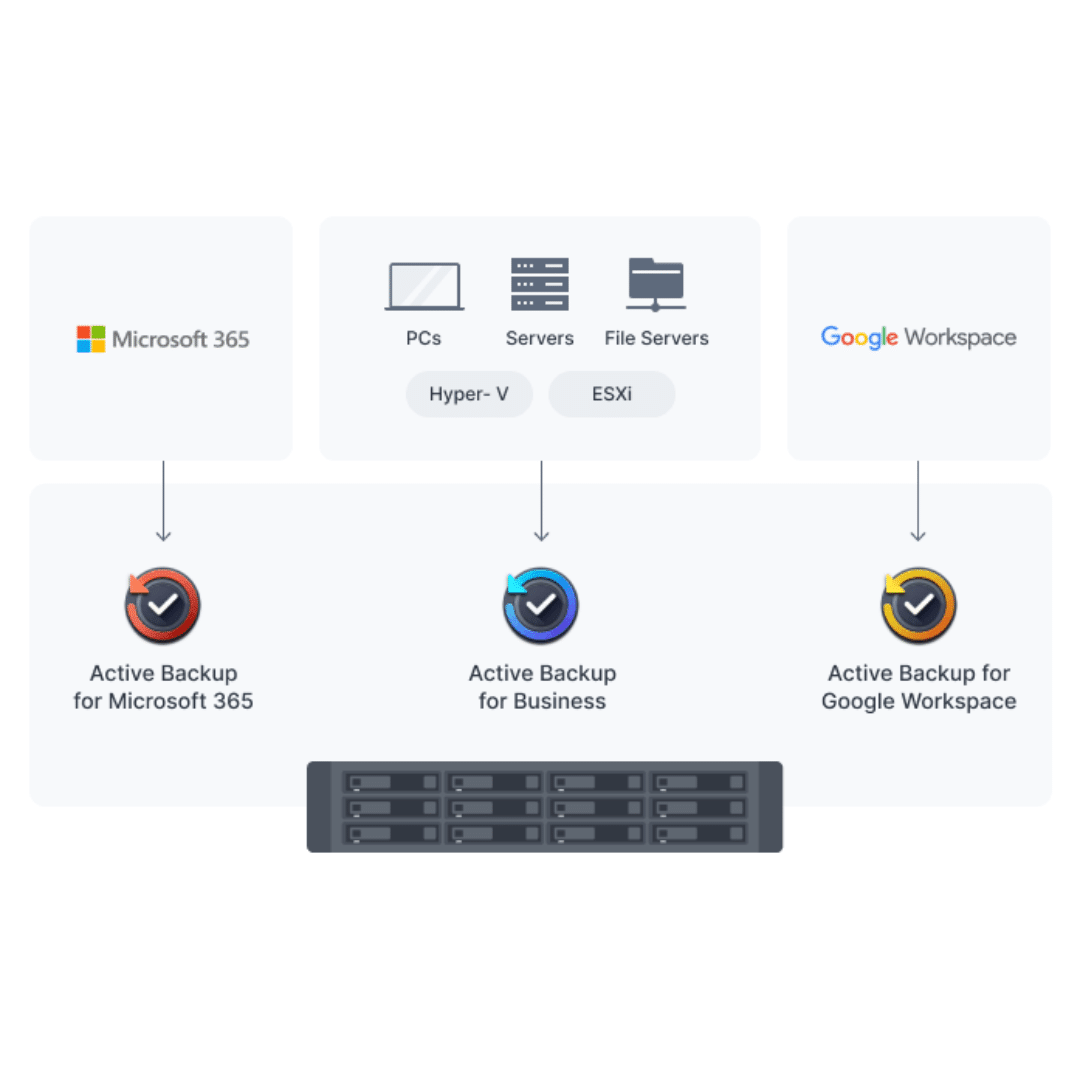

Built-in data protection | Back up PCs, servers, SaaS accounts, and VMs

Consolidate and automate backup tasks for PCs, servers, VMs, SaaS applications, and more with Active Backup Suite. Manage all backup tasks from a central console and quickly restore specific files, entire devices, virtual services, and employee SaaS accounts to keep your business running.

Business productivity solutions | Boost team productivity with collaborative tools

Improve collaboration in the workplace with Synology productivity solutions. Create, edit, and share documents across teams in real time with Synology Office. Host an on-premises mail server with MailPlus, providing web-based email access while retaining full data ownership. And stay connected via secure one-on-one chats, public channels, encrypted private channels, and group conversations in Synology Chat.

Flexible options to meet changing needs

Flexibly scale storage capacity, optimize I/O performance, and meet different network needs with a range of expansion options.

Add storage capacity on demand

Scale server capacity up to 576 TB when your data storage needs increase by adding two 12-bay RXD1219sas expansion units.

Boost network and I/O performance

Add 10/25GbE connectivity with optional add-in cards. Create all-flash storage volumes with SAS SSD for lightening-fast I/O, or boost IOPS and cut down latency on HDD volumes by creating SAS SSD read/write cache volumes.

Performance backed by Synology drives

Engineered to handle intensive workloads, Synology hard drives consistently deliver top-grade performance.

Packaged Quantity: 1
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 12
Number of Solid State Drive Supported: 12
Processor & Chipset
Processor Type: Xeon
Processor Model: D-1541
Processor Core: Octa-core (8 Core)
Processor Speed: 2.10 GHz
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology:

• 10 Gigabit Ethernet
• Gigabit Ethernet

I/O Expansions
Number of Total Expansion Bays: 12
Number of 2.5″/3.5″ Bays: 12
Total Number of Expansion Slots: 1
Expansion Slot Type: PCI Express 3.0 x8
Controllers
Controller Type: Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, Basic, JBOD, RAID F1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 3
Fibre Channel: Yes
Software
Operating System: DiskStation Manager
Management & Protocols
Protocols:

• iSCSI
• CIFS
• AFP
• FTP
• WEBDAV
• Kerberos
• SMB 1.0
• SMB 2.0
• SMB 3.0
• NFSv3
• NFSv4
• NFSv4.1
• HTTP
• HTTPS
• SNMP
• LDAP
• CalDAV

Power Description
Maximum Power Supply Wattage: 500 W
Redundant Power Supply: Yes
Physical Characteristics
Height: 3.5″
Width: 19″
Depth: 28.5″
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 43.43 lb
