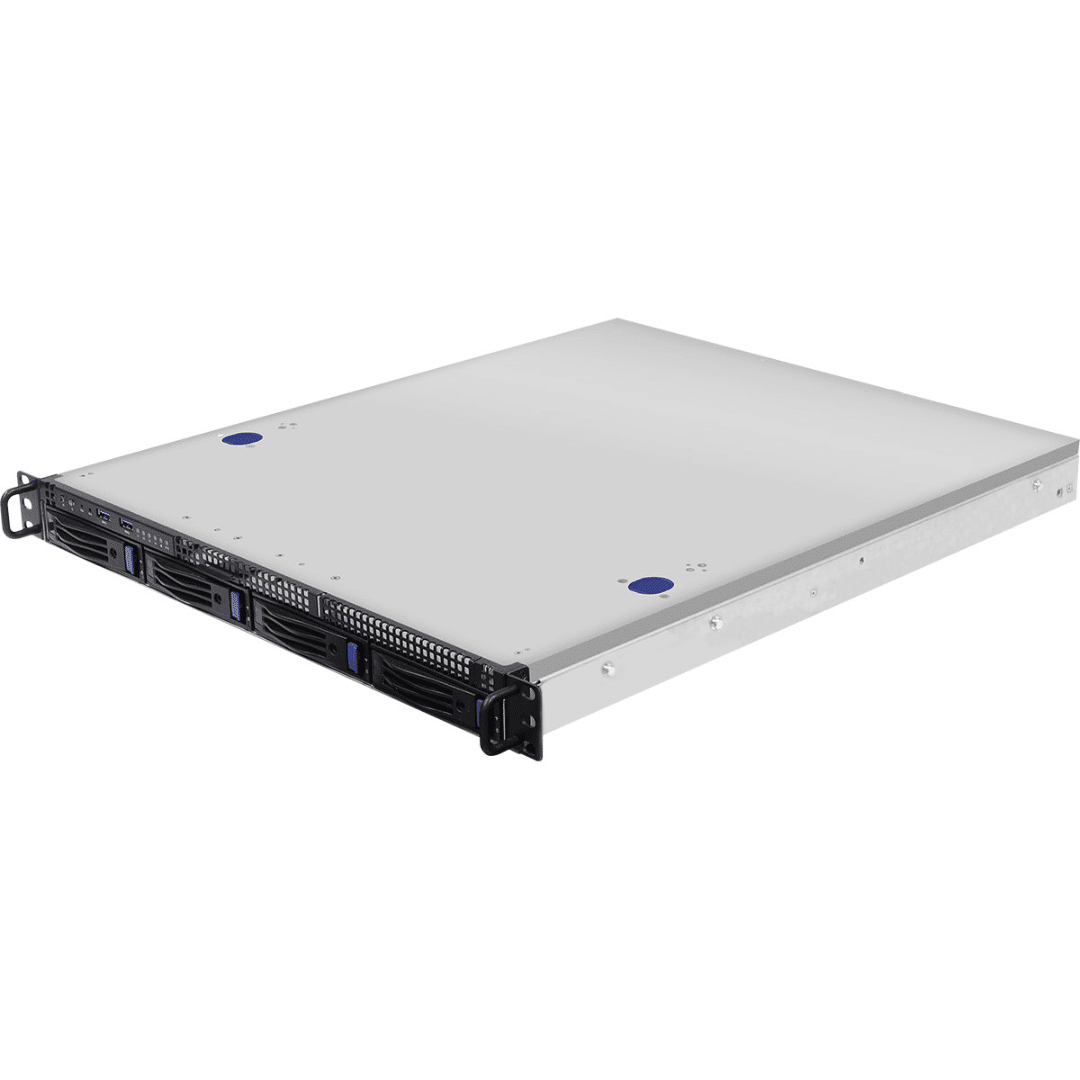

AsRock Rack 1U4LW-B650/2L2T 1U Rackmount General Purpose/Storage Server Barebone Single Socket AM5 (LGA 1718) AMD Ryzen 7000 series processors 4 SATA bays Dual 10G Lan Dual 1G Lan

Descripci車n Corta IDC-MAYORISTA:

• System

  • Form Factor: 1U Rackmount
  • Dimensions: 534.35 x 430 x 43.3 mm (21″ x 16.9″ x 1.7″)
  • Support MB: B650D4U-2L2T/BCM

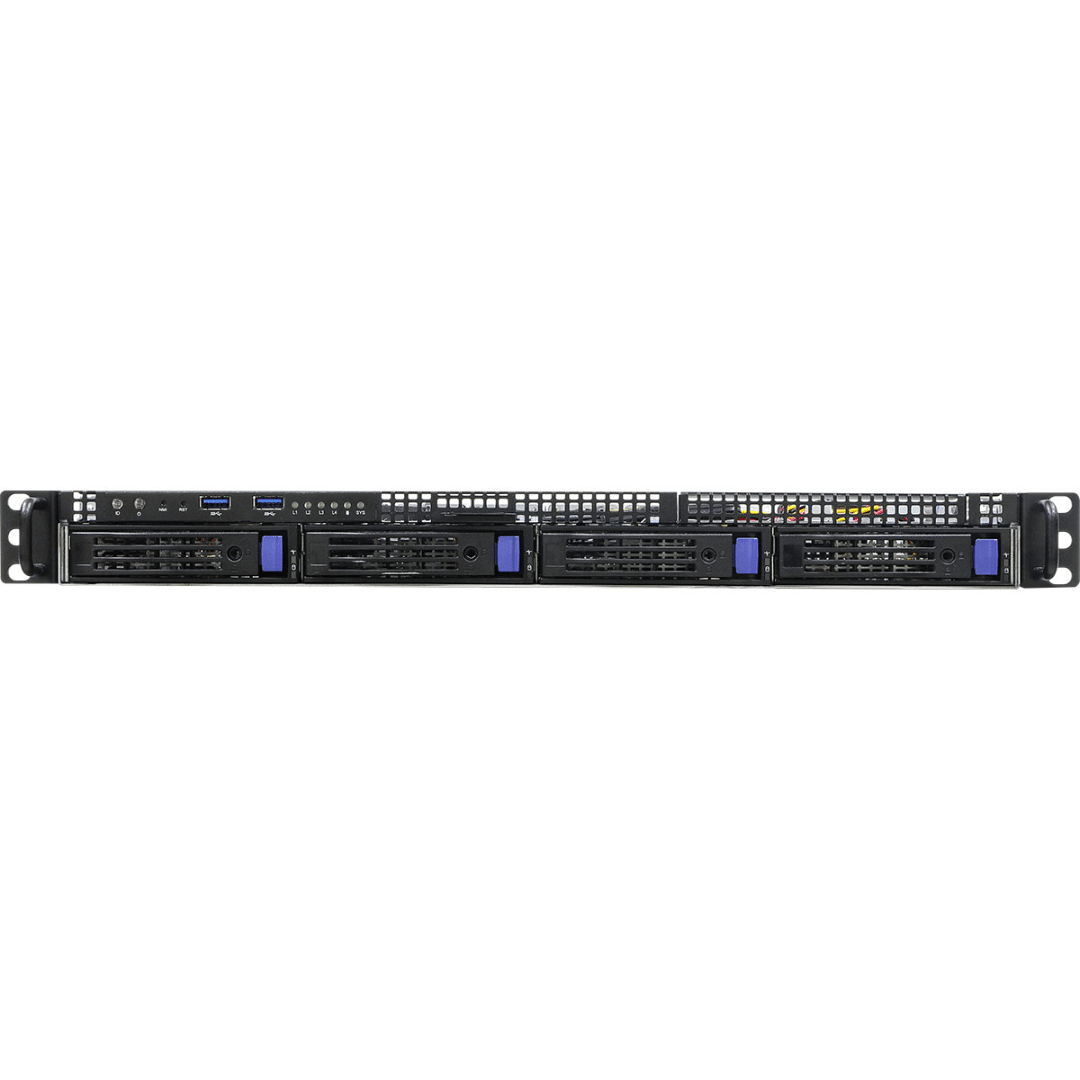

• Front Panel

  • Buttons: Power w/ LED, UID w/LED, System reset
  • LEDs: LANs, HDD activity, System health
  • I/O Ports: 2 Type-A (USB3.2 Gen1)

• External Drive Bay / Storage

  • Front Side Drive Bay: 4 Hot-swap 3.5″ SATA drive bays
  • Internal Side: 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]

• Power Supply

  • Type: Single PSU
  • Output Watts: 400W
  • Efficiency: 80-PLUS Gold

• System Fan

  • Fan: 5 PWM Hot-swap 40×28 mm fans

• Processor System

  • CPU: Supports AMD EPYC 4004 and AMD Ryzen 9000/8000/7000 Series Processors
  • Socket: Single Socket AM5 (LGA 1718)
  • Thermal Design Power: Up to 170W *Based on Cinebench R23 tool to meet AMD criteria
  • Chipset: AMD B650

• System Memory

  • Supported DIMM Quantity: 4 DIMM slots (2DPC)
  • Supported Type: DDR5 288-pin ECC/non-ECC UDIMM
  • Max. Capacity per DIMM: 48GB
  • Max. DIMM Frequency: 5200 MHz (1DPC); 3600 MHz (2DPC)
  • Voltage: 1.1V

• PCIe Expansion Slots (SLOT7 close to CPU)

  • PCIe x 16: Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4

• Ethernet

  • Additional GbE Controller: Broadcom BCM57416: 2 RJ45 (10GbE)
  • Intel i210: 2 RJ45 (1GbE)

• Server Management

  • BMC Controller: ASPEED AST2600
  • IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN

• Graphics

  • Controller: ASPEED AST2600:
  • 1 DB15 (VGA), 1 (15-pin) header
  • AMD Processors with Graphics:
  • 1 HDMI, 1 DisplayPort

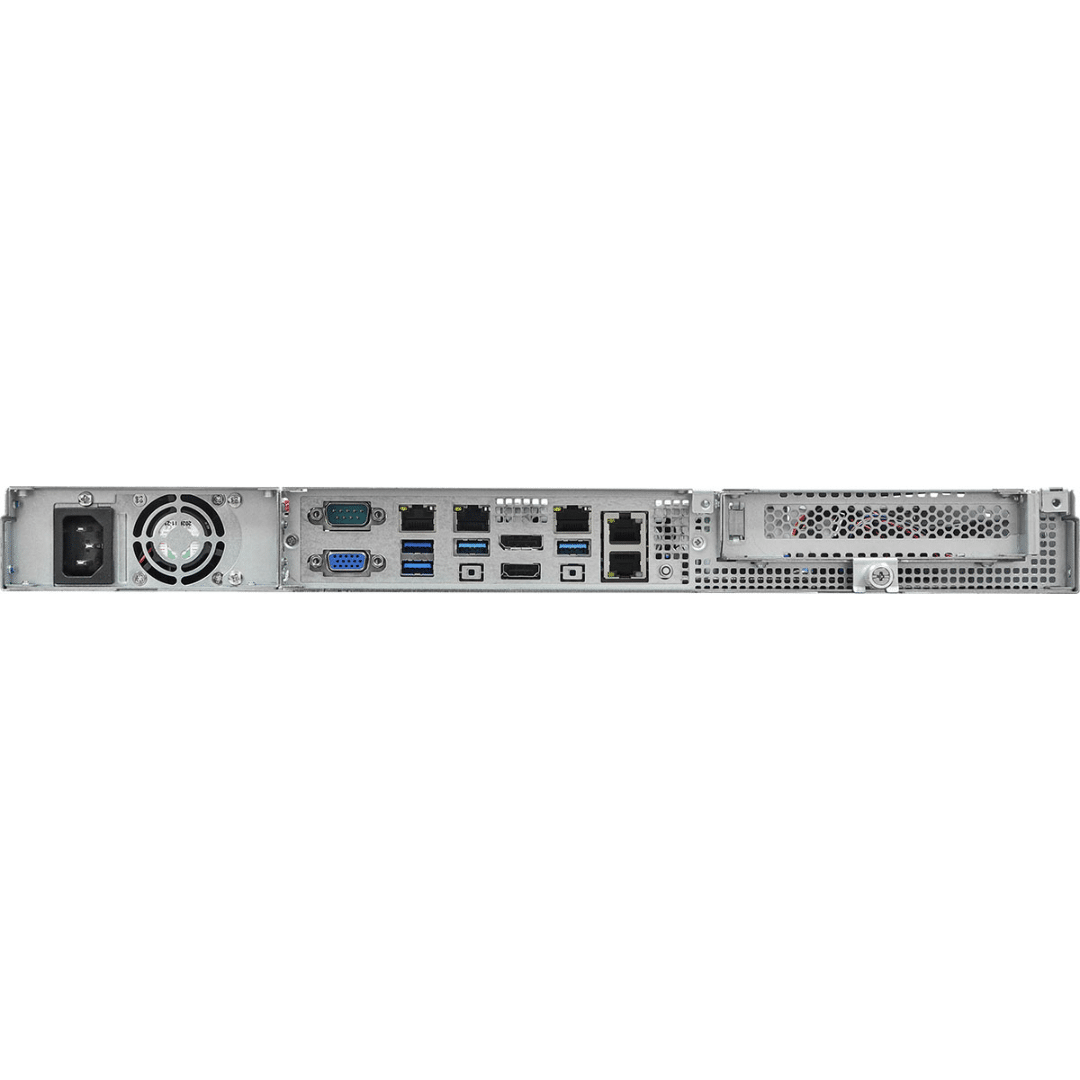

• Rear I/O

  • UID Button/LED: 1 UID button w/ LED
  • VGA Port: 1 DB15 (VGA), 1 DisplayPort, 1 HDMI
  • Serial Port: 1 DB9 (COM)
  • USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)
  • RJ45: 2 RJ45 (10GbE)
  • 2 RJ45 (1GbE)
  • 1 dedicated IPMI

• System BIOS

  • BIOS Type: AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
  • BIOS Features: Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5

• Hardware Monitor

  • Temperature: CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot
  • Fan: Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
  • Voltage: VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V

• Supported OS

• OS

  • Microsoft Windows:
  • Windows 10 (64 bit)
  • Windows 11 (64 bit)
  • Linux:
  • RedHat Enterprise Linux Server 8.7 (64bit)
  • CentOs 8.5 ( 64 bit)
  • SUSE SLES 15.4(64 bit) / 15.2(64 bit)
  • UBuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)
  • Hypervisor:
  • VMWare ESXi 8.0 / 7.0 U3g

• Environment

  • Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
  • Humidity: Non operation humidity: 20% ~ 90% (Non condensing)
