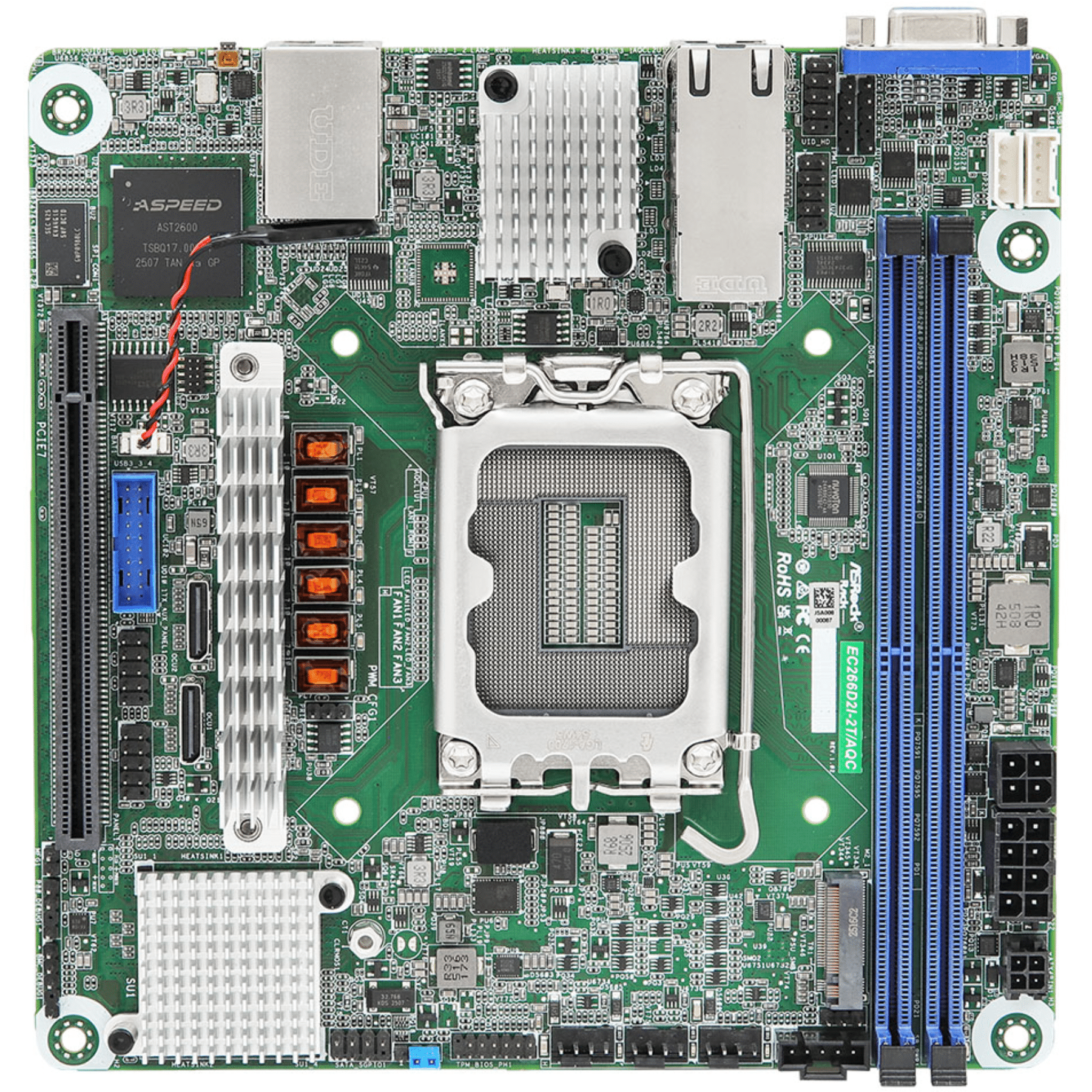

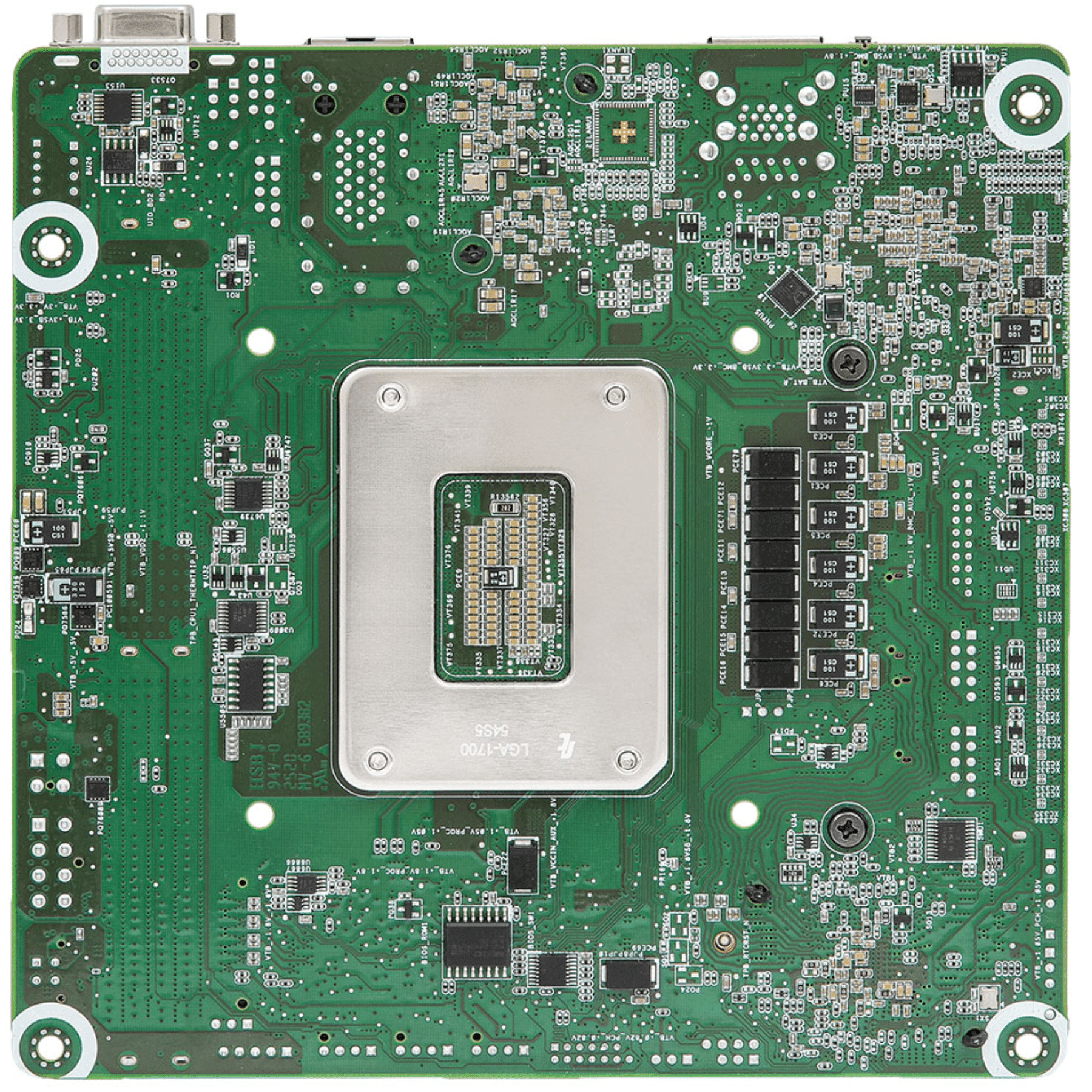

ASRock Rack EC266D2I-2T/AQC Mini-ITX Server Motherboard, Intel Xeon 6300-series, Xeon E-2400 series, and Pentium Gold G7400/G7400T processors PCIe5.0 x16

Descripci車n Corta IDC-MAYORISTA:

• Physical Status

  • Form Factor: mini-ITX
  • Dimensions: 6.7″ x 6.7″ (170.18 mm x 170.18 mm)

• Processor System

  • CPU: Supports Intel Xeon 6300-series, Xeon E-2400 series, and Pentium Gold G7400/G7400T processors
  • Socket: Single Socket LGA 1700
  • Chipset: Intel C266

• System Memory

  • Supported DIMM Quantity: 2 DIMM slots (1DPC)
  • Supported Type: Supports DDR5 288-pin ECC UDIMM
  • Max. Capacity per DIMM: 32GB
  • Max. DIMM Frequency: 4800MT/s
  • Voltage: 1.1V

• PCIe Expansion Slots (SLOT7 close to CPU)

  • PCIe x 16: SLOT7: PCIe5.0 x16 [CPU]

• Other PCIe Expansion Connectors

  • M.2 slot: 1 M-key (PCIe4.0 x4); support 2280 form factor [CPU]
  • OCuLink:
  • 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
  • 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]

• SATA/SAS Storage

  • PCH Built-in Storage:
  • Intel C266 (8 SATA 6Gb/s; RAID 0/1/5/10):
  • 2 OCuLink

• Ethernet

  • Additional GbE Controller: 2 RJ45 (10GbE) by Marvell AQC113

• Server Management

  • BMC Controller: ASPEED AST2600: iKVM, vMedia support
  • IPMI Dedicated GLAN: 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F

• Graphics

  • Controller: ASPEED AST2600:
  • 1 DB15 (VGA)

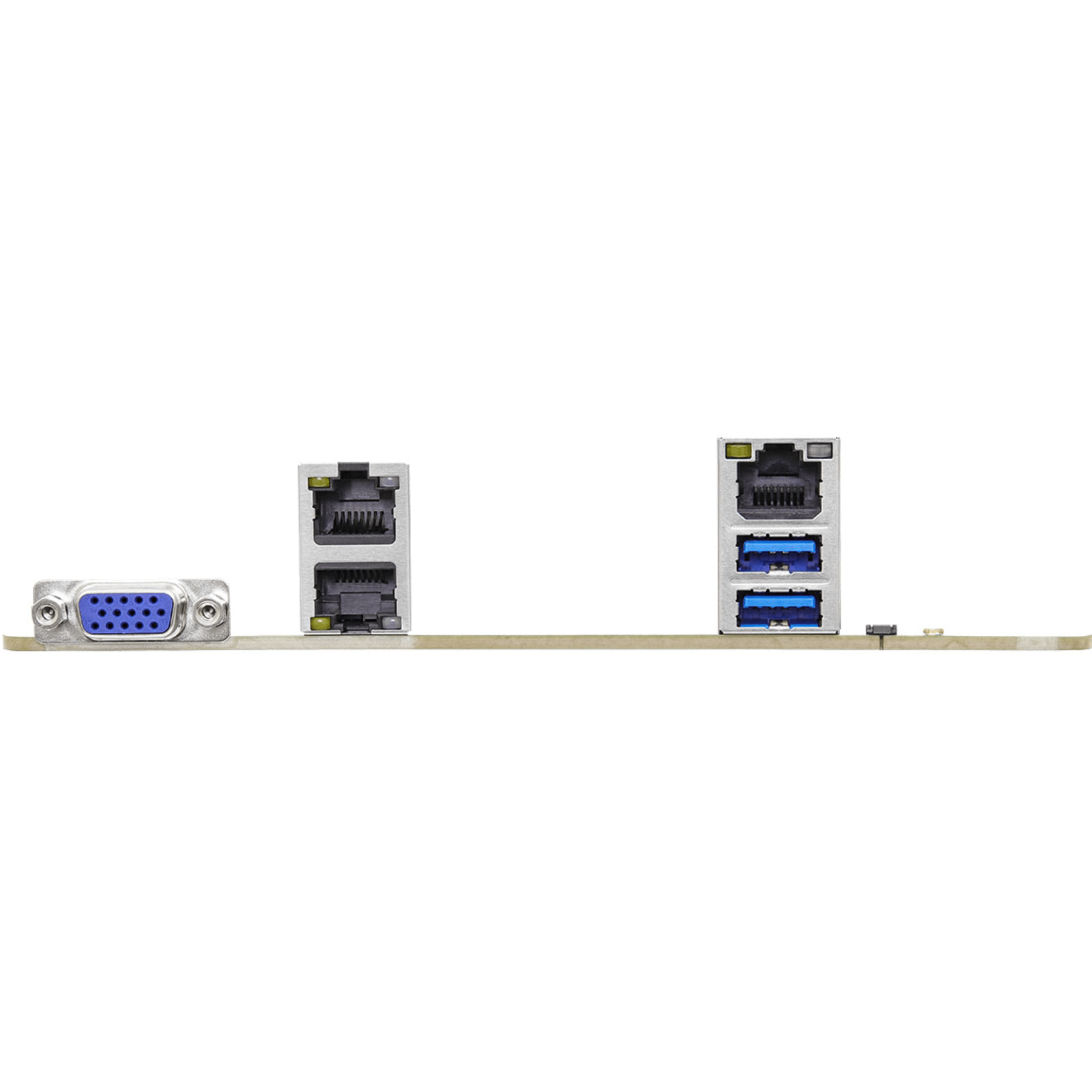

• Rear I/O

  • UID Button/LED: 1 UID button, 1 UID LED
  • Video Port: 1 DB15 (VGA)
  • USB 3.2 Gen1 Port: 2 Type A (USB3.2 Gen1)
  • RJ45: 2 RJ45(10GbE), 1 dedicated IPMI

• Internal Connector/Headers

  • Power Connector: 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 1 (8-pin, ATX 12V) support 12V DC-in
  • Other Power Connectors: 1 ATX (4-pin) for HDD power when using 12V DC-in power source
  • Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED
  • System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
  • COM Header: 1(9-pin)
  • Fan Header: 3 (4-pin)
  • Thermal Sensor Header: 1
  • TPM Header: 1 (13-pin, SPI)
  • SGPIO Header: 1
  • SMBus header: 1
  • PMBus header: 1
  • IPMB Header: 1
  • Clear CMOS: 1 (contact pads)
  • Others: 1 UID header (4-pin), 1 IPMI LAN LED Header (4-pin)
  • USB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1)
  • NC-SI: 1 header (9-pin)

• LED Indicators

  • Standby PWR LED: 1 (5VSB)
  • Fan Fail LED: 3
  • BMC heartbeat LED: 1

• System BIOS

  • BIOS Type: AMI 256Mb SPI Flash ROM
  • BIOS Features: Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash

• Hardware Monitor

  • Temperature: CPU, MB, Card side, M.2, TR1 Temperature sensing
  • Fan:
  • Fan Tachometer
  • CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
  • Fan Multi-Speed Control
  • Voltage: 3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, BAT, 3V, 5V, 12V, 1.05V_PROC, 1.8V_PROC

• Supported OS

  • OS:
  • icrosoft Windows
  • Server 2022 (64 bit)
  • Linux
  • Red Hat Enterprise Linux Server 8.5 (64 bit) / 8.7 (64 bit) / 9.2 (64 bit)
  • CentOs 8.5 (64 bit)
  • SUSE Enterprise Linux Server 15 SP3 (64 bit) / 15 SP5 (64 bit)
  • Ubuntu 20.10 (64 bit) / 21.04 (64 bit) / 22.04.2 (64 bit) / 23.04 (64 bit)

• Environment

  • Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
  • Humidity: Non operation humidity: 20% ~ 90% (Non condensing)
