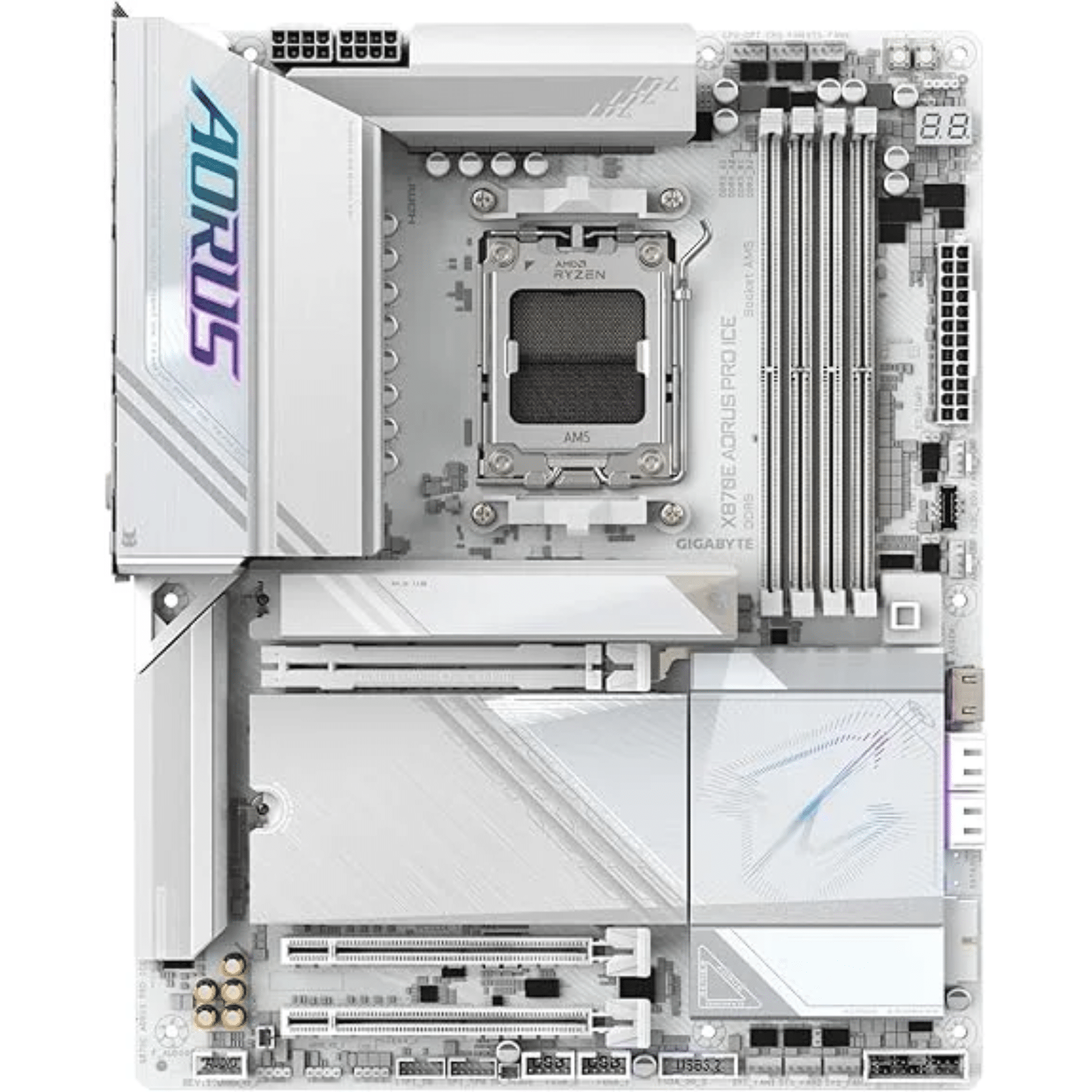

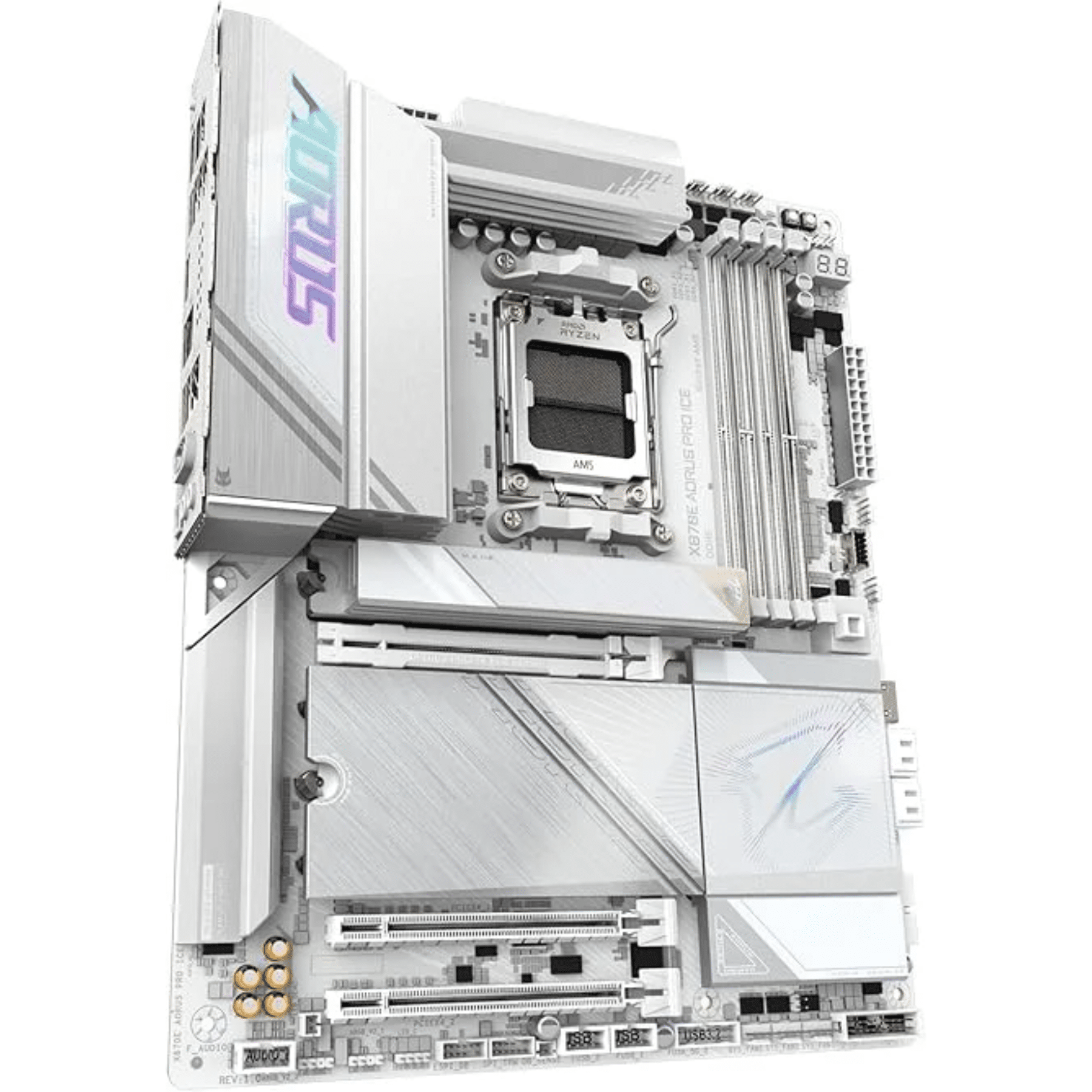

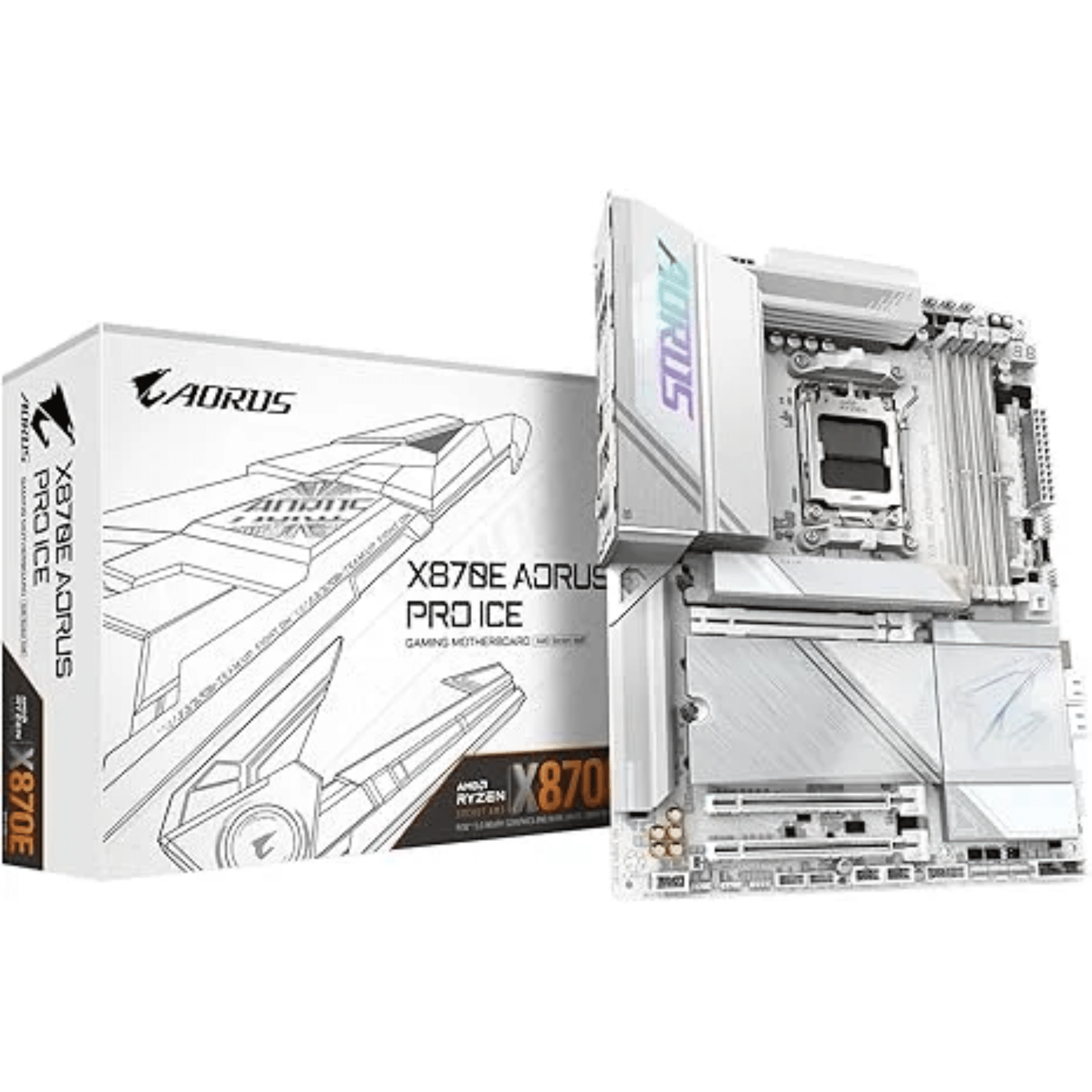

GIGABYTE X870E AORUS PRO X3D ICE AMD AM5 LGA 1718 ATX Motherboard, AMD Ryzen 7000/8000/9000 Series Processors, DDR5, 4X M.2, PCIe 5.0, USB4, WIFI7, 2.5GbE LAN, EZ-Latch

Descripci車n Corta IDC-MAYORISTA:

• • CPU
    • • AMD Socket AM5, support for:



    • • AMD Ryzen 9000 Series Processors/



    • • AMD Ryzen 8000 Series Processors/



    • • AMD Ryzen 7000 Series Processors



• • Chipset: AMD X870E

• Memory
  • • Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.



  • • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory



  • • Dual channel memory architecture



  • • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules



  • • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules





• Onboard Graphics
  • • Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:



  • • 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz



  • • Integrated Graphics Processor with AMD Radeon Graphics support:



  • • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz



  • • 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz





• Audio
  • • Realtek ALC1220 CODEC



  • • High Definition Audio



  • • 2/4/5.1/7.1-channel



  • • Support for S/PDIF Out



•
• LAN: Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
•
• Wireless Communication module
  • • Qualcomm Wi-Fi 7 QCNCM865



  • • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands



  • • BLUETOOTH 5.4



  • • Support for 11be 320MHz wireless standard





• Expansion Slots
  • • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:



  • • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode



  • • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode



  • • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode



  • • Chipset:



  • • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)



  • • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)





• Storage Interface
  • • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:



  • • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs



  • • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs



  • • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs



  • • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:



  • • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs



  • • 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs



  • • 4 x SATA 6Gb/s connectors



  • • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices



  • • RAID 0, RAID 1, and RAID 10 support for SATA storage devices





• USB
  • • CPU+ASMedia USB4 controller:



  • • 2 x USB4 USB Type-C ports on the back pane



  • • CPU:



  • • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support





• Chipset+USB 3.2 Gen 1 Hub
  • • 4 x USB 3.2 Gen 1 ports available through the internal USB headers



  • • Chipset:



  • • 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)



  • • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support



  • • 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel



  • • 3 x USB 3.2 Gen 1 ports on the back panel



  • • 4 x USB 2.0/1.1 ports available through the internal USB headers





• Internal I/O Connectors
  • • 1 x 24-pin ATX main power connector



  • • 2 x 8-pin ATX 12V power connectors



  • • 1 x PCIe power connector



  • • 1 x CPU fan header



  • • 1 x CPU fan/water cooling pump header



  • • 4 x system fan headers



  • • 2 x system fan/water cooling pump headers



  • • 3 x addressable RGB Gen2 LED strip headers



  • • 1 x RGB LED strip header



  • • 4 x SATA 6Gb/s connectors



  • • 4 x M.2 Socket 3 connectors



  • • 1 x front panel header



  • • 1 x front panel audio header



  • • 1 x USB Type-C header, with USB 3.2 Gen 2×2 support



  • • 2 x USB 3.2 Gen 1 headers



  • • 2 x USB 2.0/1.1 headers



  • • 1 x noise detection header



  • • 1 x HDMI port (Note)



  • • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)



  • • 2 x temperature sensor headers



  • • 1 x reset jumper



  • • 1 x Clear CMOS jumper

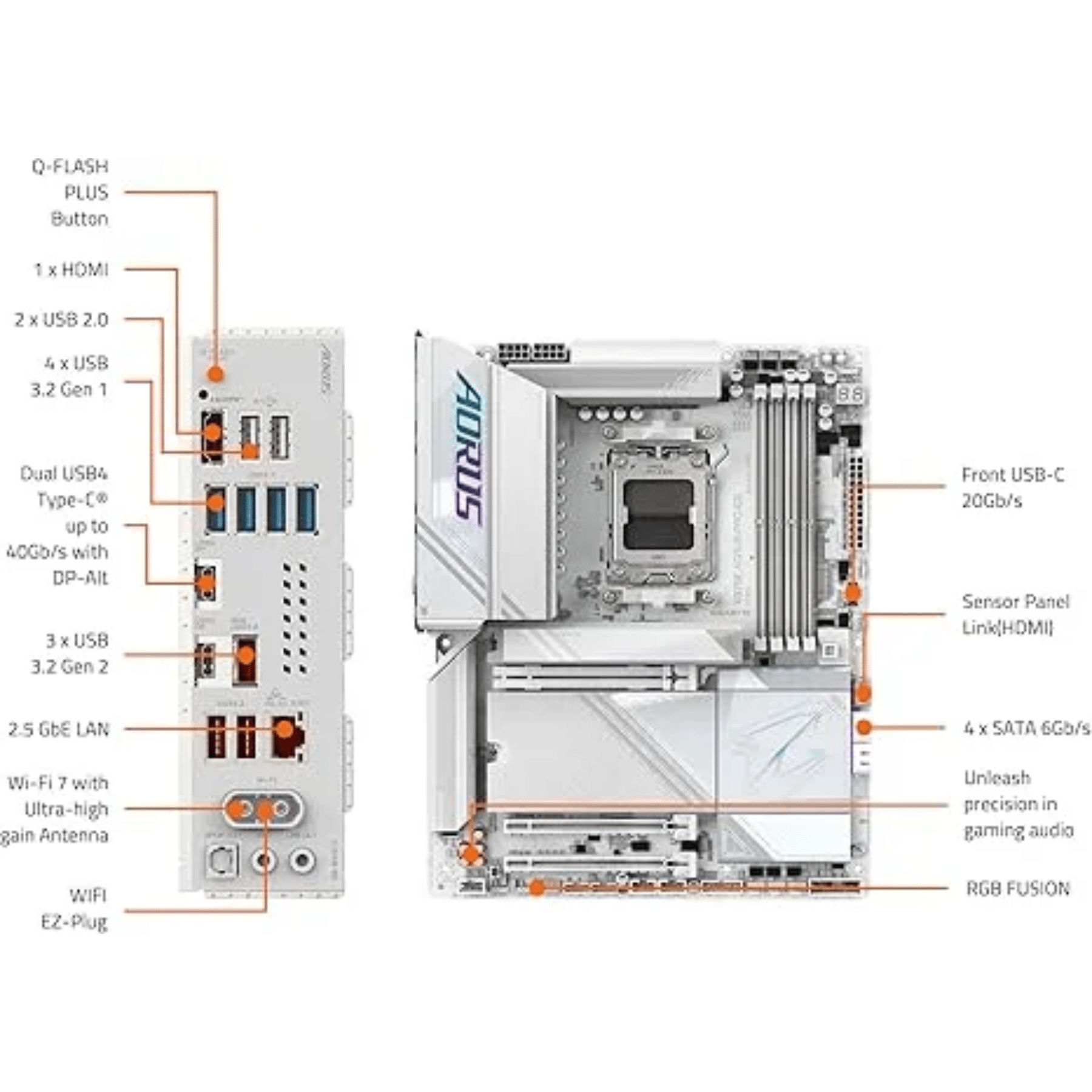

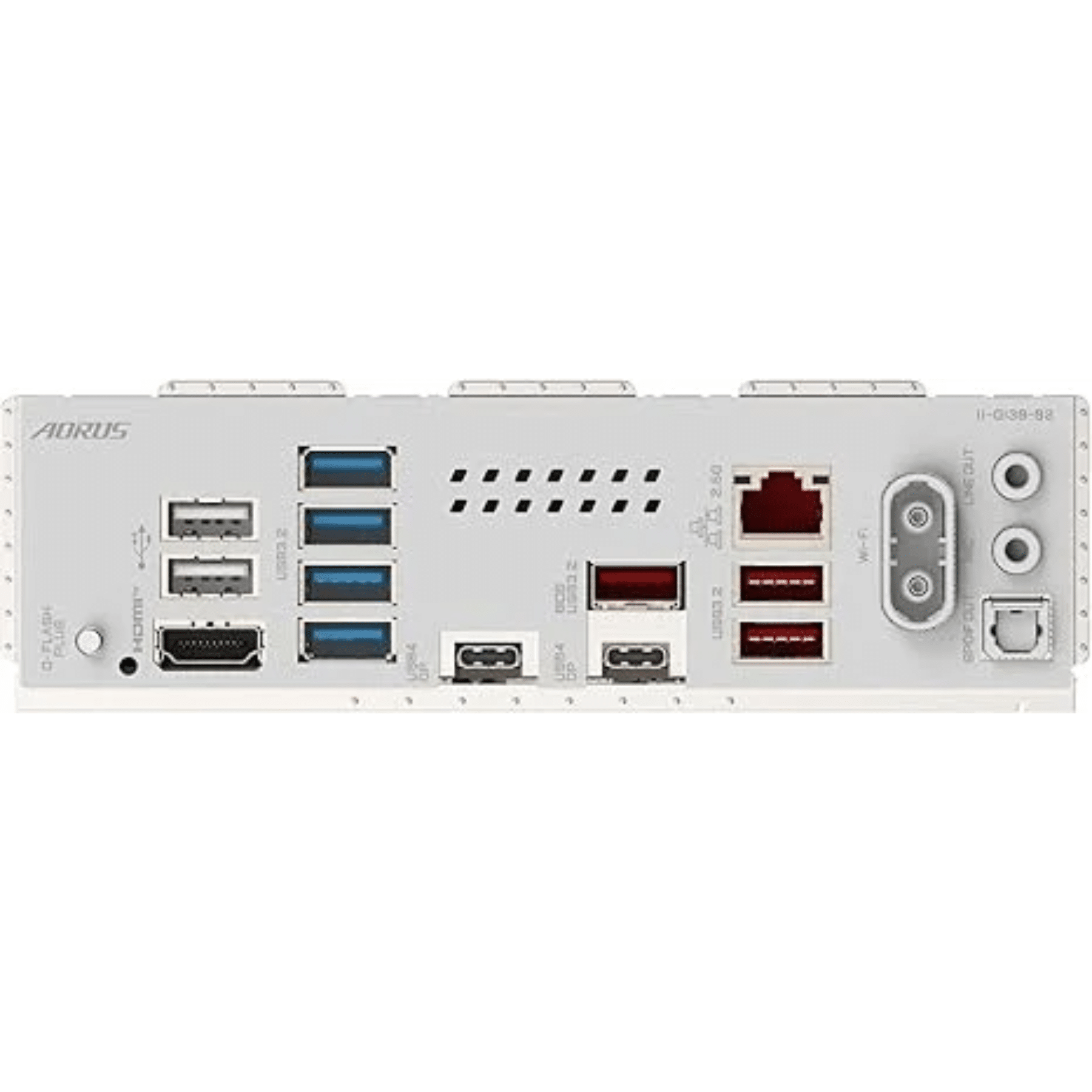

• Back Panel Connectors
  • • 1 x HDMI port (Note)



  • • 1 x reset button



  • • 1 x power button



  • • 1 x Clear CMOS button



  • • 1 x Q-Flash Plus button



  • • 5 x USB 3.2 Gen 2 Type-A ports (red)



  • • 2 x USB Type-C ports, with USB 3.2 Gen 2 support



  • • 2 x USB4 USB Type-C ports (DisplayPort (Note))



  • • 1 x RJ-45 port



  • • 3 x USB 3.2 Gen 1 ports



  • • 2 x antenna connectors (2T2R)



  • • 2 x audio jacks



  • • 1 x optical S/PDIF Out connector



•
• I/O Controller: iTE I/O Controller Chip
•
• H/W Monitoring
  • • Voltage detection



  • • Temperature detection



  • • Fan speed detection



  • • Water cooling flow rate detection



  • • Fan fail warning



  • • Fan speed control



  • • Noise detection





• BIOS
  • • 1 x 512 Mbit flash



  • • Use of licensed AMI UEFI BIOS



  • • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0





• Unique Features
  • • Support for GIGABYTE Control Center (GCC)



  • • Support for Q-Flash



  • • Support for Q-Flash Plus



  • • Support for Smart Backup



•
• Bundled Software: Norton Internet Security (OEM version)
•
• Operating System: Support for Windows 11 64-bit
•
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm
•
