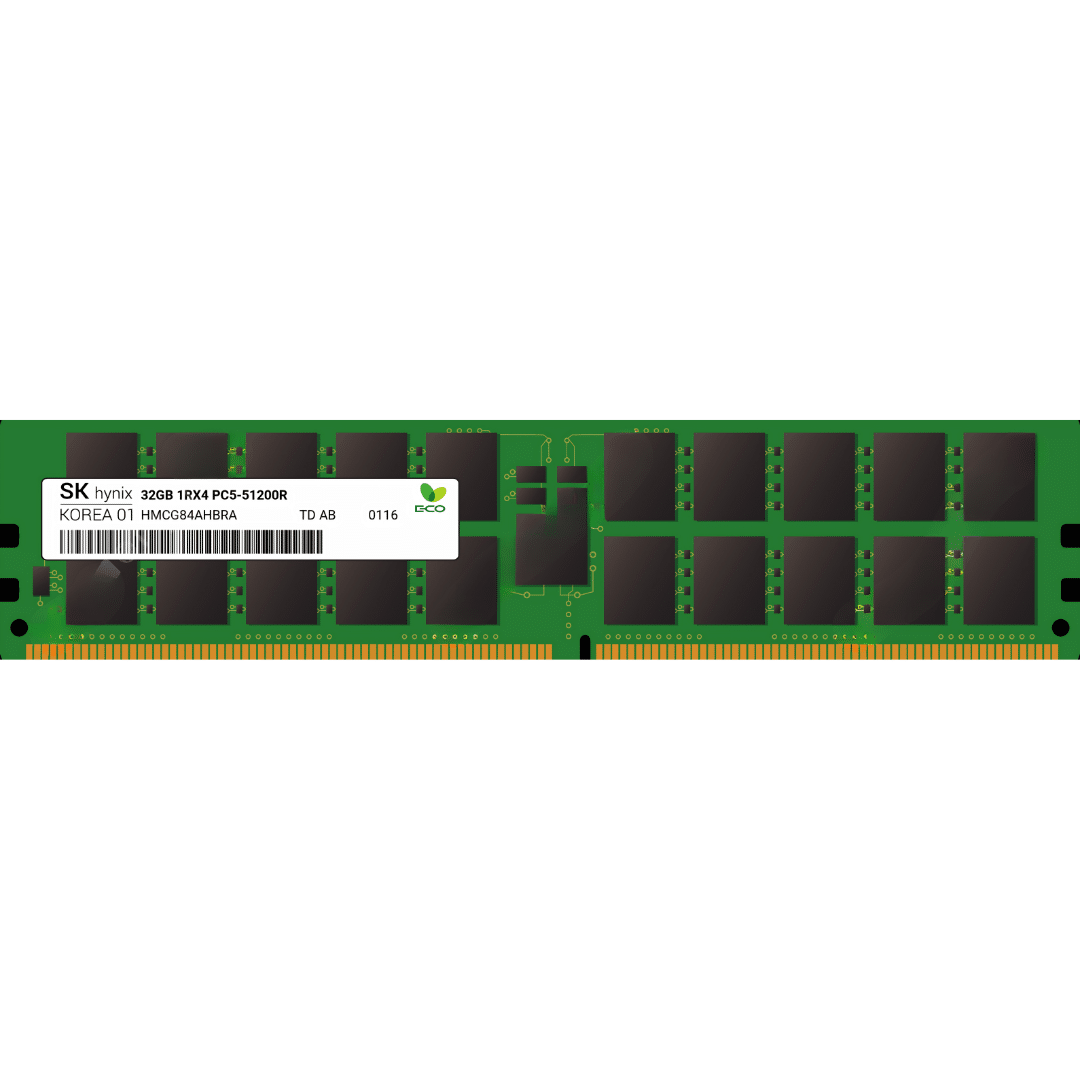

HYNIX HMCG84AHBRA E/R 1R*4 32Gb, Low Profile, DDR5 6400 SDRAM RDIMM

Descripci車n Corta IDC-MAYORISTA:

• • Features
    • • DRAM VDD/VDDQ = 1.1V (-33mV / +67mV)



    • • DRAM VPP = 1.8V (–54mV / +108mV)



    • • 32 Bank with x4/x8



    • • 16 Bank with x16



    • • 8 BG(Bank Group) for X4/X8/X16 configurations



    • • BL16, BC8 OTF, BL32, BL32 OTF supported



    • • Temperature Encoding



    • • Same Bank Refresh



    • • VrefDQ / VrefCA / VrefCS Training



    • • Hard/Soft Post Package Repair



    • • Input Clock Frequency Change



    • • Maximum Power Saving Mode (MPSM)



    • • Multi-Purpose Command (MPC)



    • • Per DRAM Addressability (PDA)



    • • Read Training Mode



    • • CA Training Mode



    • • CS Training Mode



    • • Per Pin VREFDQ Training



    • • Write Leveling Training Mode



    • • Connectivity Test (CT)



    • • ZQ Calibration



    • • DFE (Decision Feedback Equalization) for DQ



    • • DQS Interval Oscillator



    • • 1N / 2N Mode support for Commands



    • • On-Die ECC



    • • ECC Transparency and Error Scrub



    • • CRC (Cyclic Redundancy Check)



    • • Loopback for multiple purposes -monitor data, BER(Bit Error Rate) analysis, etc.



    • • Package Output Driver Test Mode



    • • Training Modes:



    • • VrefDQ / VrefCA / VrefCS Training



    • • Read Training Mode



    • • CA Training Mode



    • • CS Training Mode



    • • Per Pin VREFDQ Training



    • • Write Leveling Training Mode



    • • Duty Cycle Adjuster (DCA) for Read -Global



    • • Per Pin DCA(Duty Cycle Adjuster) for Read -Per Pin(DQ)



    • • NOT required RFM



• • Density: 32GB

• • Organization: 4Gx80

• • Component Composition: 4Gx8(H5CG44AHBDXxxx)*20

• • # of ranks: 1

• • MT/s: DDR5-6400

• • Grade: HB

• • tCK (ns): 0.312

• • CAS Latency (tCK): 16

• • tRCD (ns): 16

• • tRP (ns): 16

• • tRAS (ns): 32

• • tRC (ns): 48

• • CL-tRCD-tRP: 52-52-52
