• Number of Hard Drives Supported12
• Number of Hard Drives Installed0
• Number of Solid State Drive Supported12
• Number of Solid State Drive Installed0
• Flash Memory Capacity512 MB
• Processor TypeAlpine
• Processor ModelAL-324
• Processor CoreQuad-core (4 Core)
• Processor Speed1.70 GHz
• Standard Memory2 GB
• Memory TechnologyDDR4 SDRAM
• Ethernet Technology10 Gigabit Ethernet
• Number of Total Expansion Bays12
• Number of 2.5″/3.5″ Bays12
• Total Number of Expansion Slots3
• Expansion Slot Type
  • PCI Express 2.0 x2
  • SFP+
• Controller TypeSerial ATA/600
• RAID SupportedYes
• RAID Levels0, 1, 5, 6, 10, Hot Spare, JBOD
• Total Number of USB Ports4
• Number of USB 3.2 Gen 1 Ports4
• Network (RJ-45)Yes
• Number of Network (RJ-45) Ports2
• Protocols
  • TCP/IP
  • IPv4
  • IPv6
  • DHCP
  • NAT
  • STP
  • DDNS
  • HTTP
  • HTTPS
  • WEBDAV
  • SSL
  • SSH
  • Telnet
  • FTP
  • CIFS/SMB
  • AFP
  • iSCSI
  • SMTP
  • SNMP
  • NFS
  • SFTP
  • TFTP
  • SSL/TLS
  • FXP
  • MTP
  • RSync
  • RTSP
  • PPTP
  • L2TP
  • IPSec
  • UPnP
• Maximum Power Supply Wattage250 W
• Height3.5″
• Width19″
• Depth21″
• Form FactorRack-mountable
• Rack Height2U
• Weight (Approximate)20.83 lb
• Package Contents
  • TS-1232PXU-RP-4G SAN/NAS Storage System
  • 1 x Ethernet Cable
  • 2 x Power Cords
  • 32 x Flat Head Screws (for 3.5″ HDD)
  • 24 x Flat head Screws (for 2.5″ HDD)
  • Quick Installation Guide (QIG)
• Country of OriginTaiwan
• Limited Warranty2 Year

General Information
Manufacturer: QNAP Systems
Manufacturer Part Number: TS-1232PXU-RP-4G-US
Manufacturer Website Address: http://www.qnap.com
Brand Name: QNAP
Product Series: TS-x32PXU
Product Model: TS-1232PXU-RP-4G

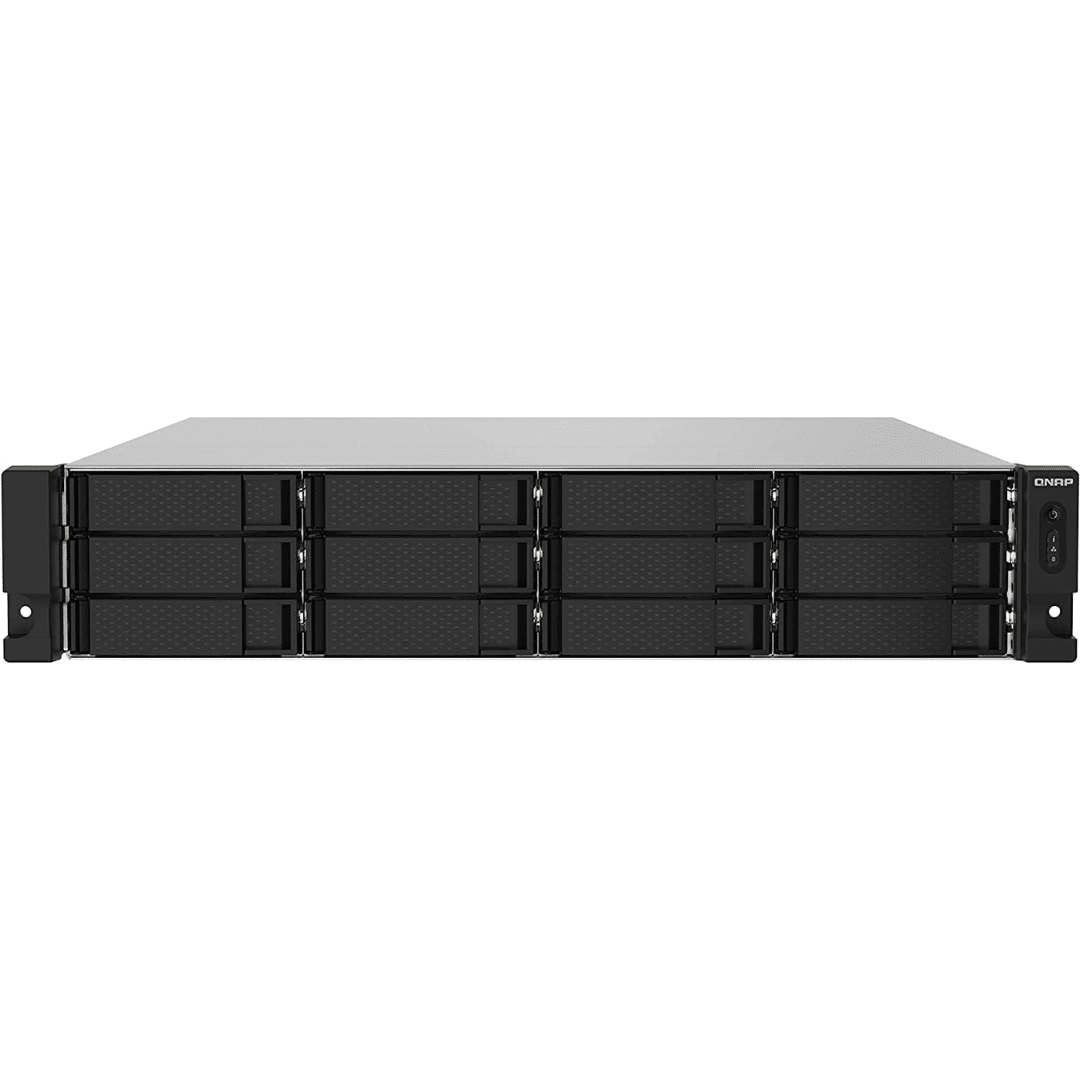

Product Name: TS-1232PXU-RP-4G SAN/NAS Storage System
Marketing Information:

Quad-core 1.7GHz rackmount NAS with dual 10GbE SFP+ and dual 2.5GbE ports for SMB IT environments

With 10GbE SFP+ and 2.5GbE network ports, the TS-832PXU delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-832PXU supports file backup and synchronization, secure snapshot protection, and Google G Suite™ and Microsoft 365® enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a hybrid cloud storage solution has never been easier.

• Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing.

• HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning.

• Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ G Suite and Microsoft 365®.

• Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

• Expand the application potential of the TS-832PXU by installing a compatible PCIe card.

• Increase the storage capacity of the TS-832PXU with QNAP TR RAID expansion enclosures or TL JBOD.

Higher performance x faster throughput

The TS-832PXU is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-832PXU provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.

Upgrade your network to increase team efficiency

QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.

Boost NAS performance with SSDs

As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-832PXU supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.

Balance performance and capacity

Boost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.
Learn more?SSD caching, Qtier auto-tiering

Extend SSD lifespan

Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 12
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 12
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 512 MB
Processor & Chipset
Processor Type: Alpine
Processor Model: AL-324
Processor Core: Quad-core (4 Core)
Processor Speed: 1.70 GHz
Memory
Standard Memory: 2 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 12
Number of 2.5″/3.5″ Bays: 12
Total Number of Expansion Slots: 3
Expansion Slot Type:

• PCI Express 2.0 x2
• SFP+

Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, Hot Spare, JBOD
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.2 Gen 1 Ports: 4
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Management & Protocols
Protocols:

• TCP/IP
• IPv4
• IPv6
• DHCP
• NAT
• STP
• DDNS
• HTTP
• HTTPS
• WEBDAV
• SSL
• SSH
• Telnet
• FTP
• CIFS/SMB
• AFP
• iSCSI
• SMTP
• SNMP
• NFS
• SFTP
• TFTP
• SSL/TLS
• FXP
• MTP
• RSync
• RTSP
• PPTP
• L2TP
• IPSec
• UPnP

Power Description
Maximum Power Supply Wattage: 250 W
Physical Characteristics
Height: 3.5″
Width: 19″
Depth: 21″
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 20.83 lb
Miscellaneous
Package Contents:

• TS-1232PXU-RP-4G SAN/NAS Storage System
• 1 x Ethernet Cable
• 2 x Power Cords
• 32 x Flat Head Screws (for 3.5″ HDD)
• 24 x Flat head Screws (for 2.5″ HDD)
• Quick Installation Guide (QIG)

Country of Origin: Taiwan
Warranty
Limited Warranty: 2 Year
