• Number of IP Channels50
• Connectivity TechnologyWired
• Recording Formats4K
• HD RecordingYes
• System ComponentsSurveillance Station
• FeaturesPTZ Control
• Video Formats
  • H.265
  • H.264
• Maximum Resolution3840 x 2160
• Maximum Frame Rate600 fps
• EthernetYes
• Remote ManagementYes
• USBYes
• USB StandardUSB 3.0
• Number of USB Ports2
• Total Number of Audio In Ports1
• Total Number of Audio Out Ports1
• HDMIYes
• Power Consumption36 W
• Power SourceAC Supply
• Height1.6″
• Width5.9″
• Depth5.9″
• Weight (Approximate)12.70 oz
• Minimum Operating Temperature-4°F (-20°C)
• Maximum Operating Temperature104°F (40°C)
• TAA CompliantYes

Build a plug-and-play video wall

Optimized for video walls

Scale your TV wall with up to 50 video streams across two screen

Crystal-clear video feeds

Watch live camera feeds in up to 4K resolution

Plug-and-play surveillance

Experience instant access to Surveillance Station

US regulatory compliance

NDAA and TAA compliance help meet US federal requirements

Display your way

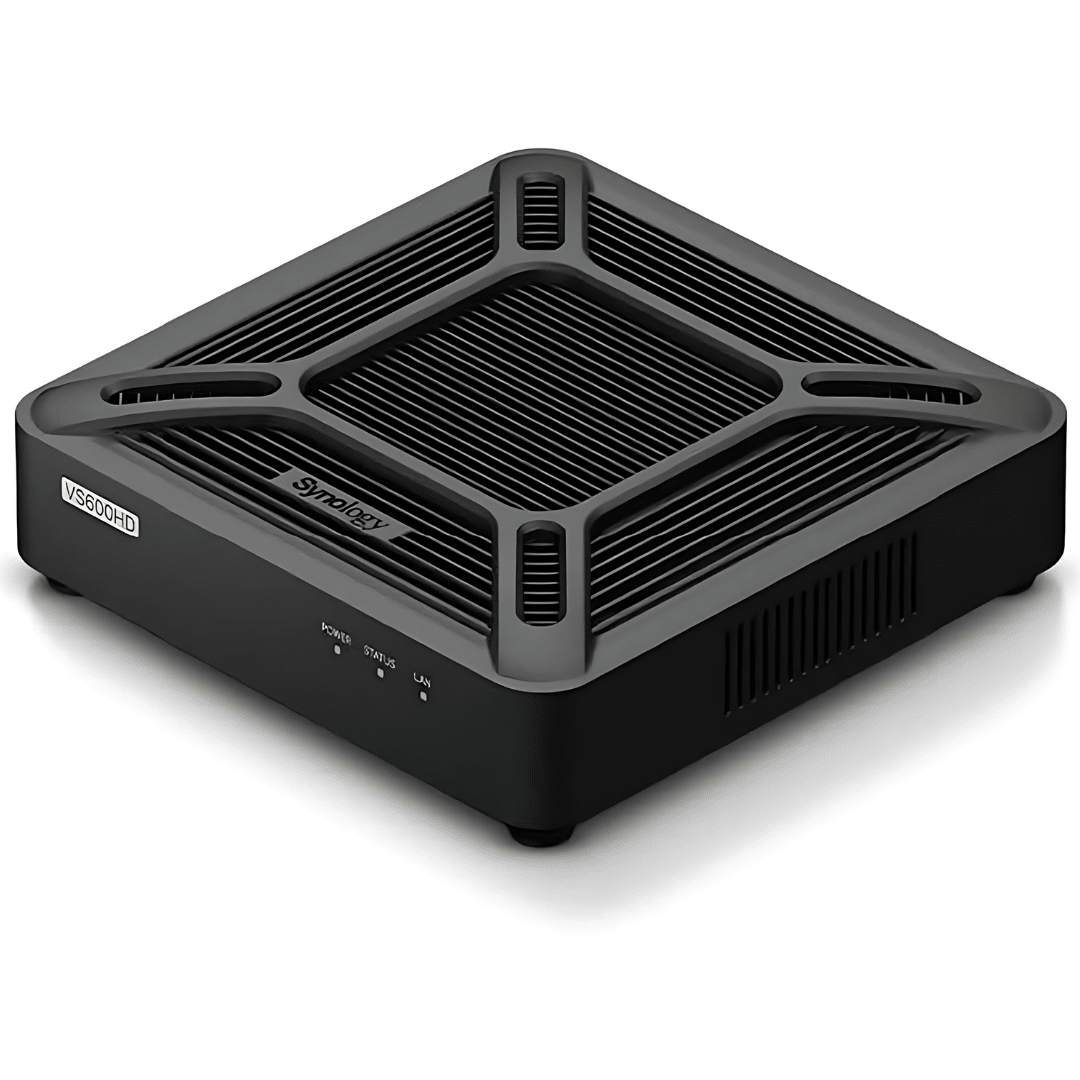

Simplify surveillance management with the VisualStation VS600HD, a PC-less compact surveillance client that pairs with Synology servers to create a comprehensive TV-wall monitoring solution.

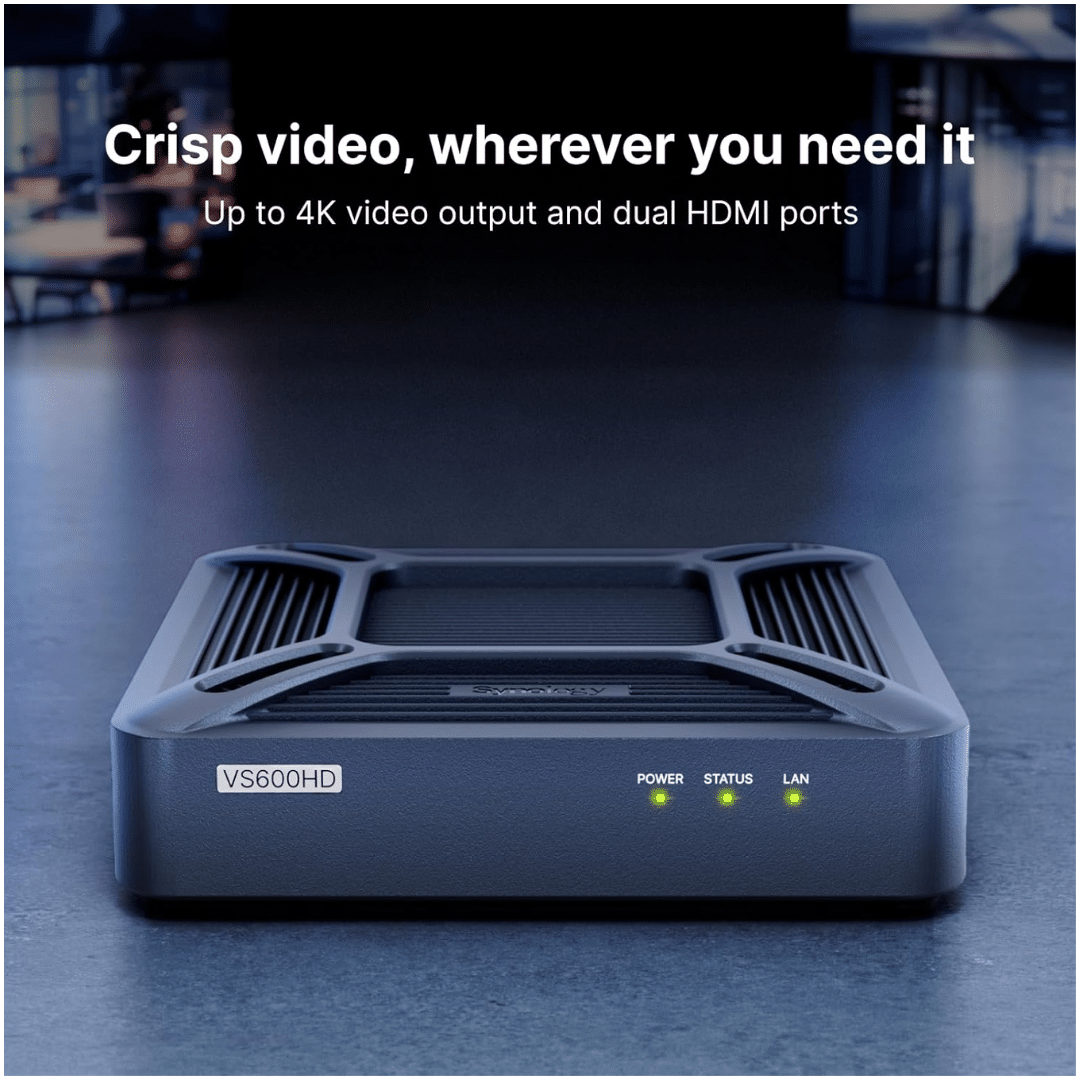

High resolution dual display

Up to 4K video output and dual HDMI ports allow you to perform management tasks while monitoring multiple streams in crisp detail.

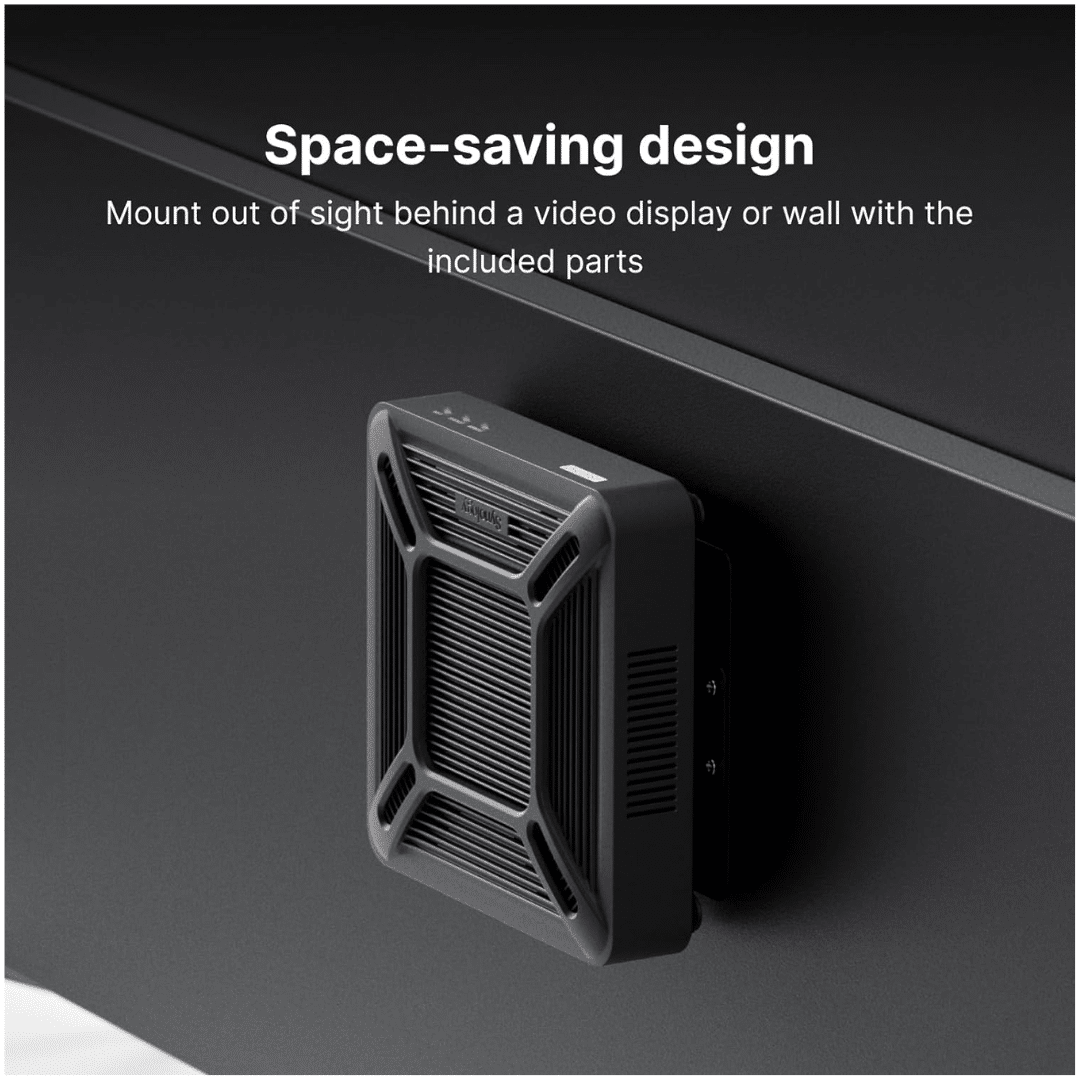

Minimalist design with TV mount option

The VS600HD can be affixed on the back of a monitor with the included VESA mount for optimized space utilization.

50-channel live view

Keep an eye on every corner of your premises with support for simultaneous monitoring of up to 50 channels at 600FPS/720p, as well as both H.265 and H.264 video compression standards

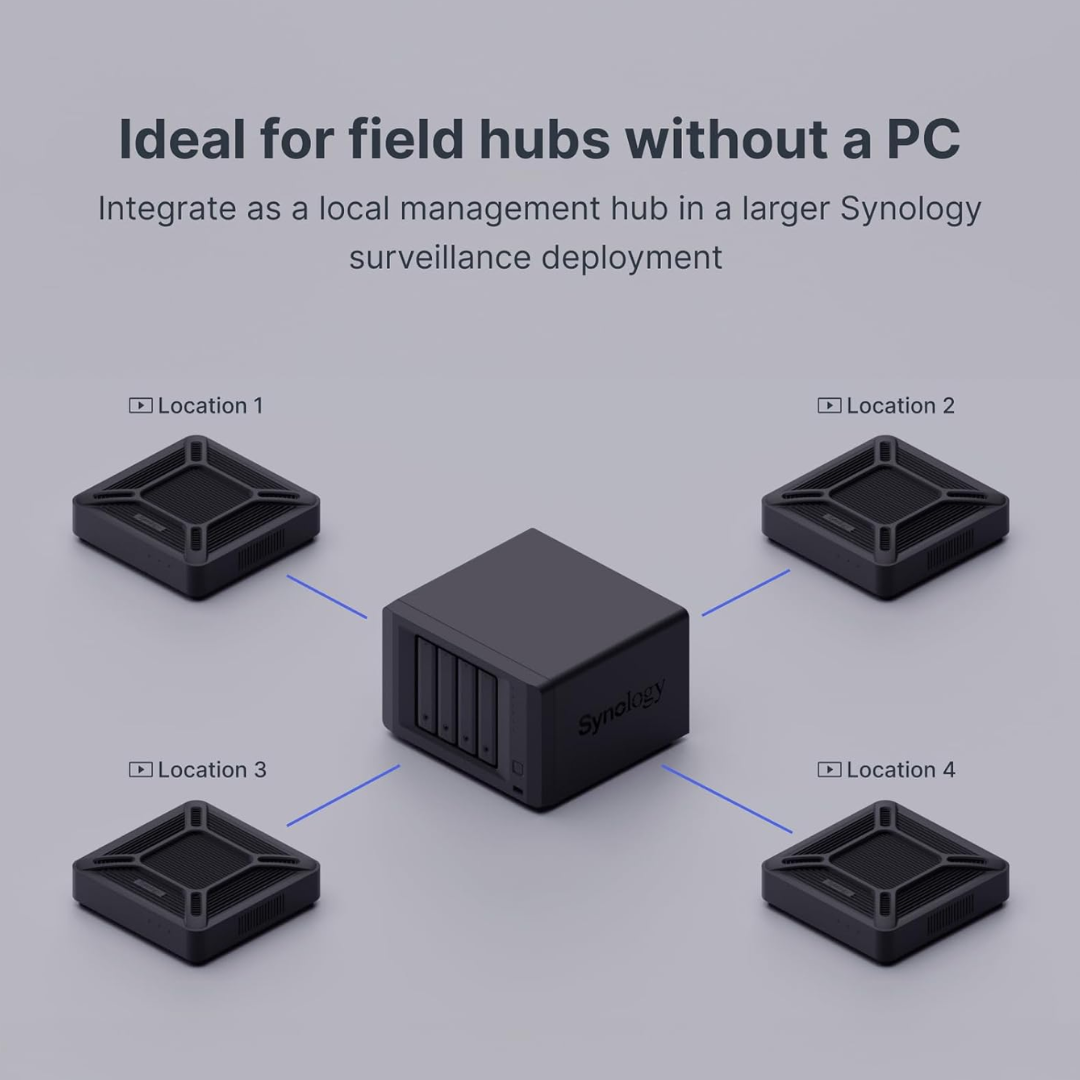

Take security to the next level

Integrate the VS600HD as a powerful local management interface in a larger Synology surveillance deployment.

Centralized monitoring

Manage all your video feeds in one place and keep your property safe with the powerful features available inSurveillance Station

All-in-one security dashboard

Watch live video feeds, scrub through recorded footage, get alerts for security events and suspicious behavior, and control devices from one convenient overview.

Accurate security mapping

Import floor plans of your premises or wider-area maps, maintain a clear overview of camera locations and angles, and see at a glance where events are detected.

Deep learning analytics management

Combine the VS600HD with DVA Series Deep Learning NVRs and Synology Cameras, and leverage AI-powered analytics to boost incident response time.

Easily control and update remotely

Configure the display on the VS600HD and keep the firmware up-to-date remotely from any location.

Product Type: Video Surveillance Station
Technical Information
Number of IP Channels: 50
Connectivity Technology: Wired
Recording Formats: 4K
HD Recording: Yes
System Components: Surveillance Station
Features: PTZ Control
Video
Video Formats:

• H.265
• H.264

Maximum Resolution: 3840 x 2160
Maximum Frame Rate: 600 fps
Network & Communication
Ethernet: Yes
Remote Management: Yes
Interfaces/Ports
USB: Yes
USB Standard: USB 3.0
Number of USB Ports: 2
Total Number of Audio In Ports: 1
Total Number of Audio Out Ports: 1
HDMI: Yes
Power Description
Power Consumption: 36 W
Power Source: AC Supply
Physical Characteristics
Height: 1.6″
Width: 5.9″
Depth: 5.9″
Weight (Approximate): 12.70 oz
Environmental Conditions
Minimum Operating Temperature: -4°F (-20°C)
Maximum Operating Temperature: 104°F (40°C)
Miscellaneous
TAA Compliant: Yes
